Toyota YARIS Alternator — Figure 1903

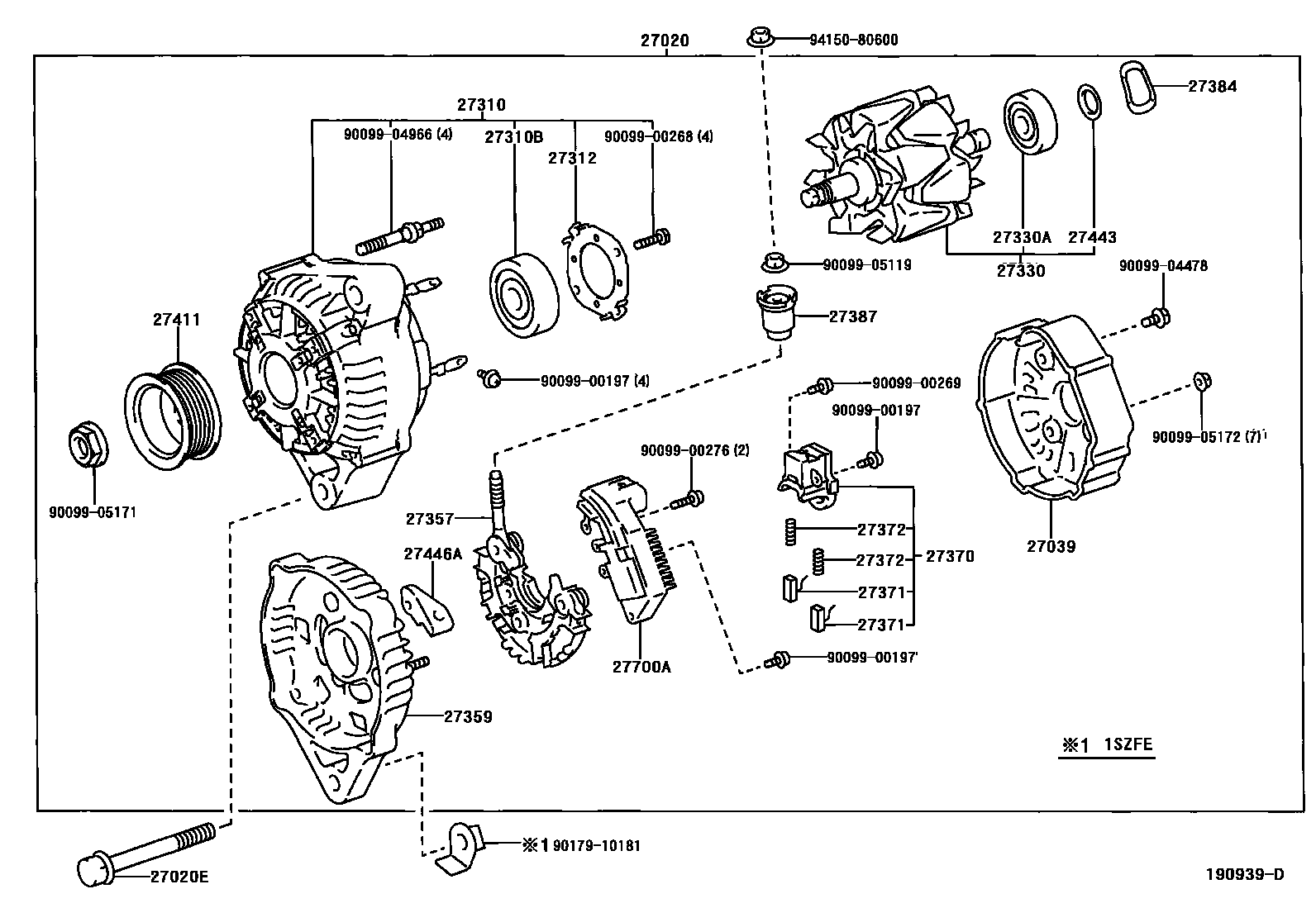

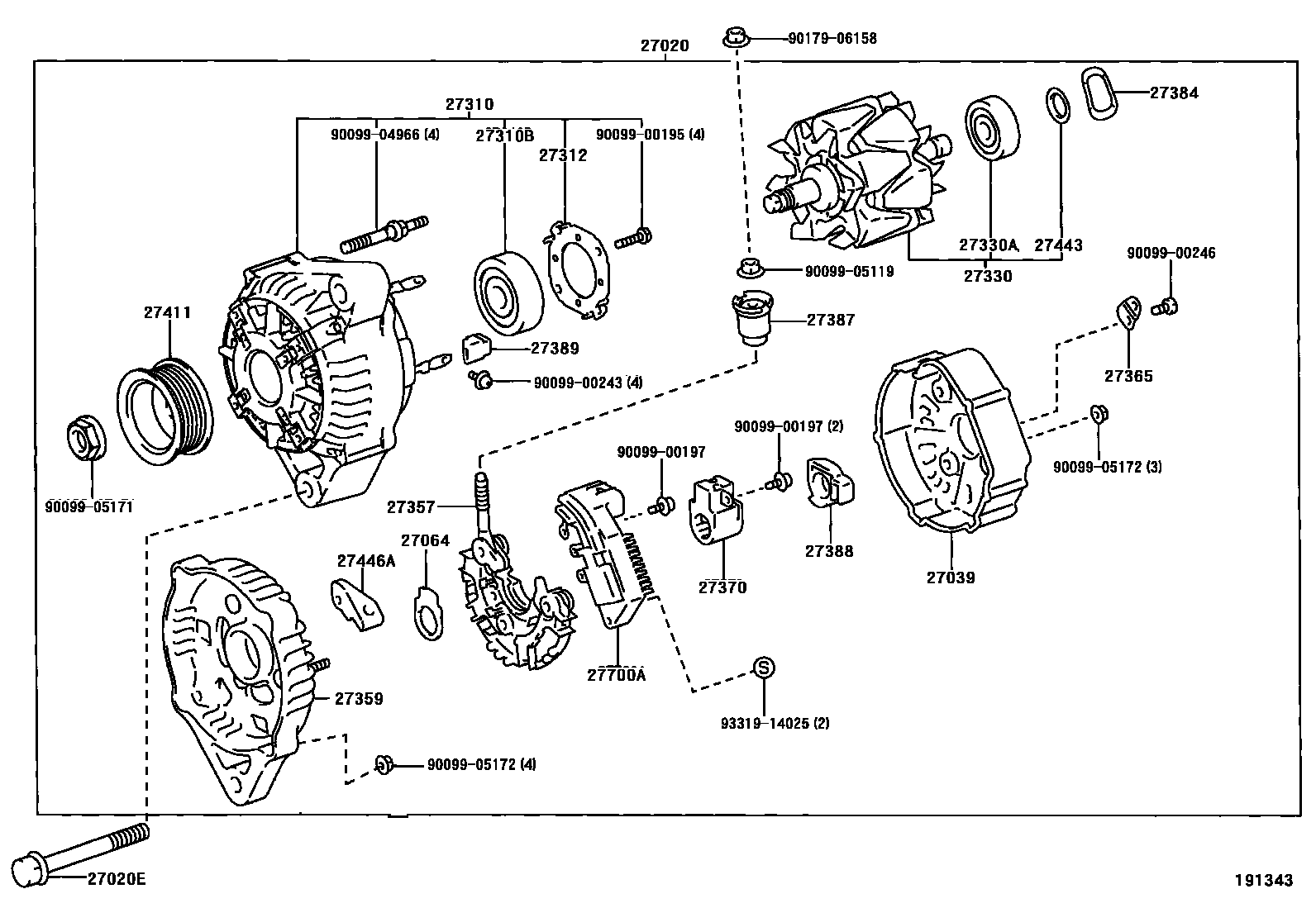

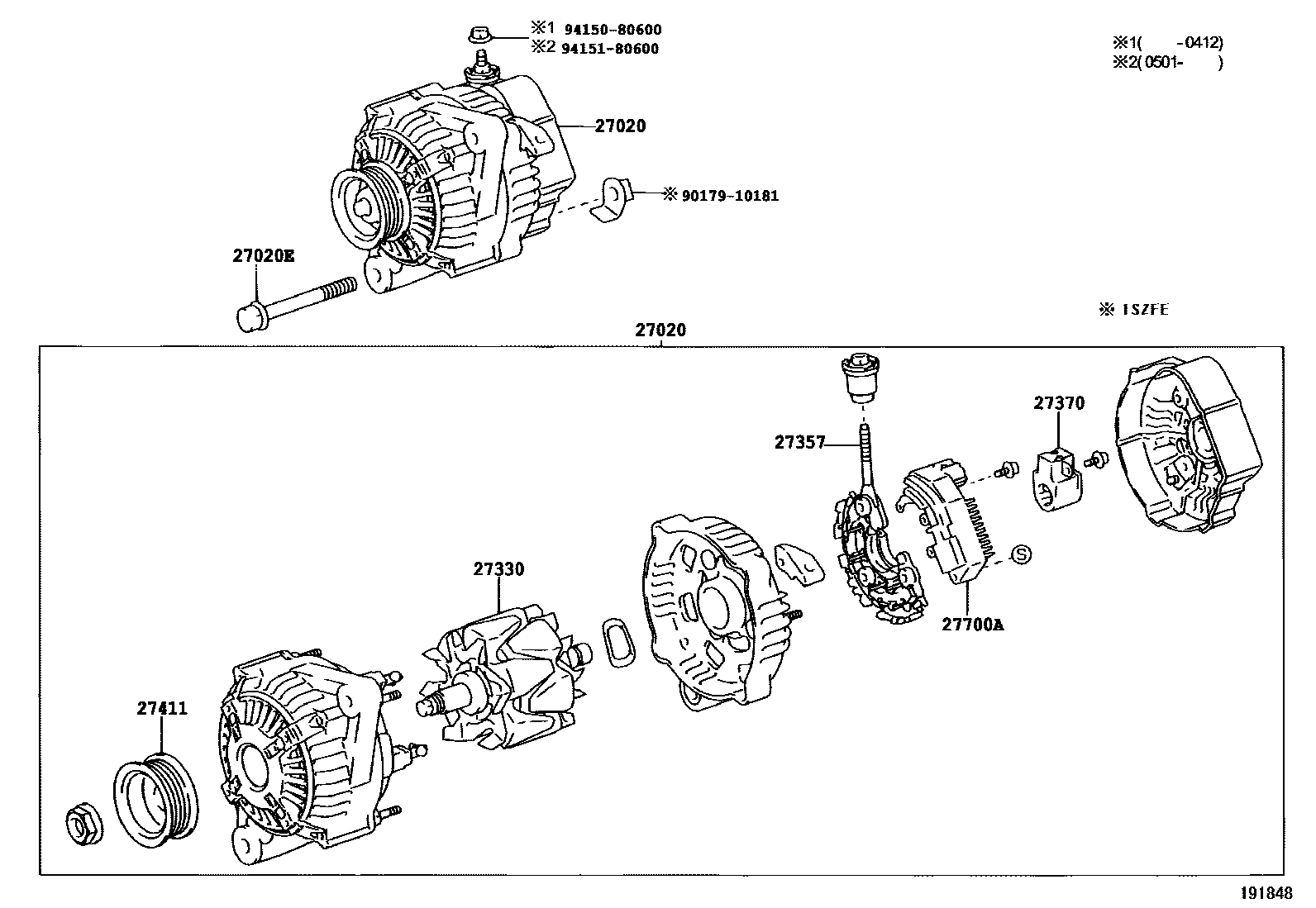

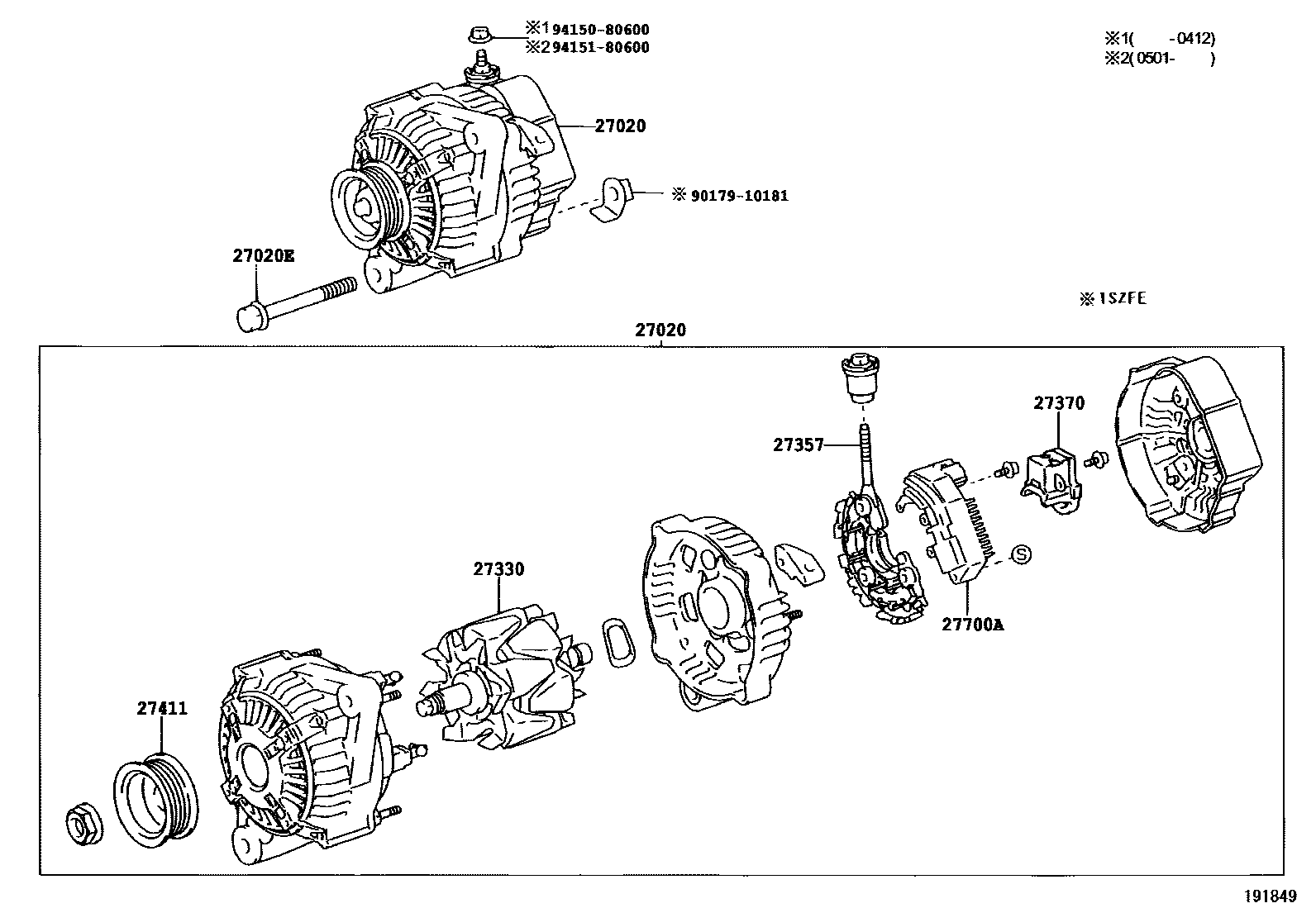

Toyota YARIS EPC diagram 1903, Alternator, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-21030 · 27060-21031 · 27060-21040 · 27060-21041 · 27060-23010 · 27060-23020 · 27060-23070 |
| 27020E | Bolts (for generator) | 90105-10075 · 90105-10468 |
| 27039 | Alternator Rear End Cover | 27039-21020 · 27039-21060 · 27039-22050 · 27039-46190 · 27039-67100 |
| 27064 | Generator sealing plate | 27064-42010 |
| 27310 | Alternator Drive End Frame Assembly | 27310-21020 · 27310-21030 · 27310-23030 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10219 · 90099-10220 |
| 27312 | Retainer Plate | 27312-42010 · 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-16390 · 27330-67100 |
| 27330A | Bearings (for generator rotor) | 90099-10140 · 90099-10216 |
| 27357 | Generator rectifier frame | 27357-21060 · 27357-22050 · 27357-23040 · 27357-67100 |
| 27359 | Generator rectifier end frame | 27359-21020 · 27359-21030 · 27359-23030 |
| 27365 | terminal board | 27365-55080 |
| 27370 | Alternator Brush Holder Assembly | 27370-35060 · 27370-58320 · 27370-75060 |
| 27371 | Generator brushes | 27371-70300 |
| 27372 | Generator brush spring | 27372-63020 · 27372-87501 |
| 27384 | Washer | 27384-16380 · 27384-50030 |
| 27387 | Terminal Insulator | 27387-42021 · 27387-70171 |
| 27388 | Generator brush cover | 27388-42010 |
| 27389 | Terminal Insulator | 27389-42010 |
| 27411 | Alternator Pulley | 27411-11060 · 27411-21030 · 27411-42010 · 27411-65010 · 27411-70140 · 27411-70200 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27446A | card holder | 27446-21020 · 27446-72250 |
| 27700A | Generator voltage regulator assembly | 27700-21010 · 27700-21020 · 27700-23010 · 27700-23020 |
