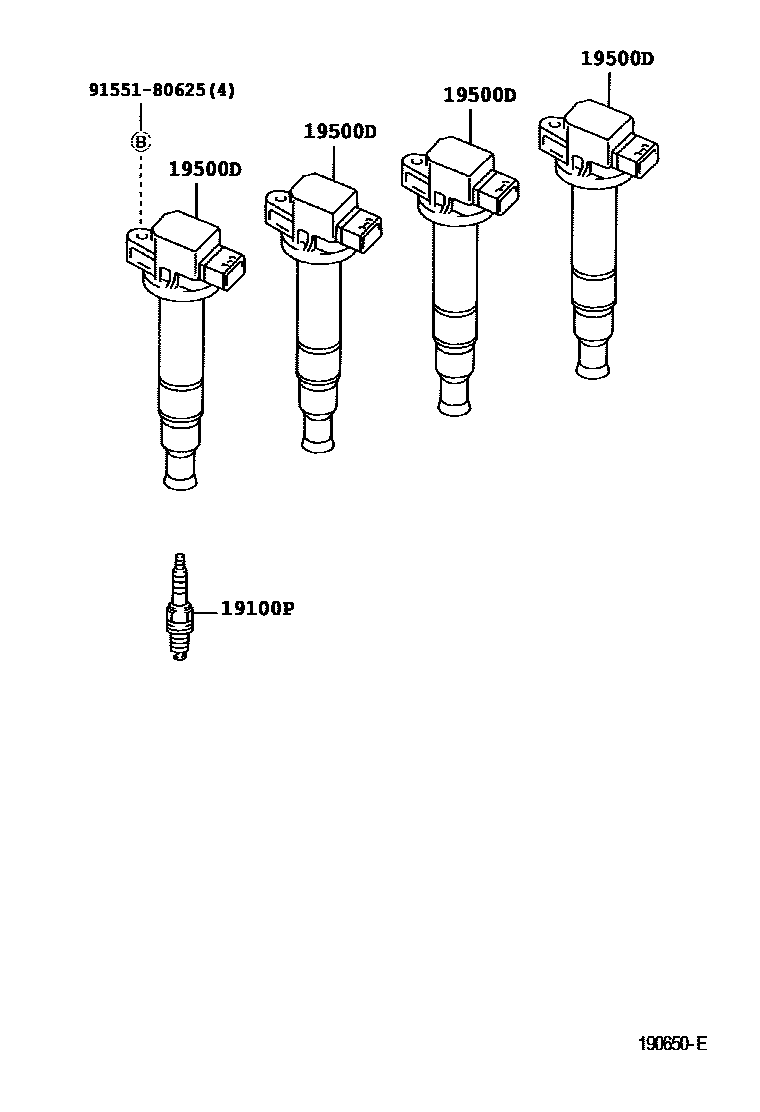

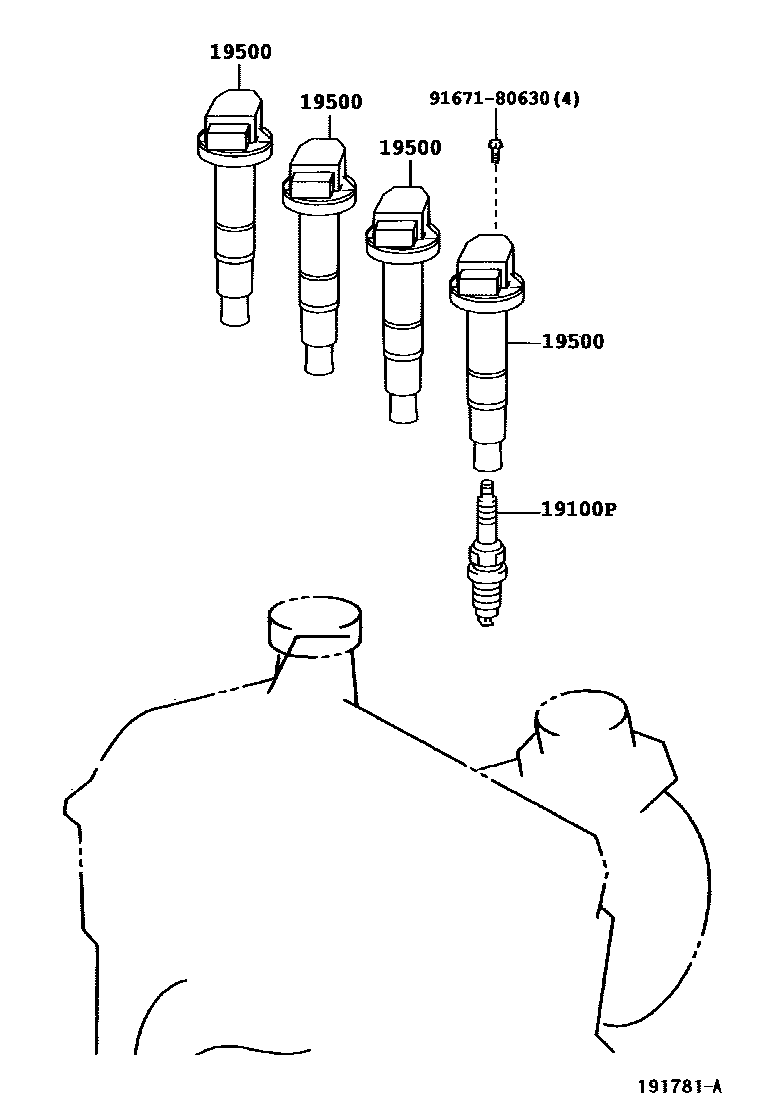

Toyota YARIS 点火线圈和火花塞 /电热塞 — Figure 1901
Toyota YARIS EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01164 · 90919-01176 · 90919-01244 |
| 19500 | Ignition coil assembly | 90919-02229 · 90919-02240 |
| 19500D | No. 1 ignition coil | 90919-02240 |
