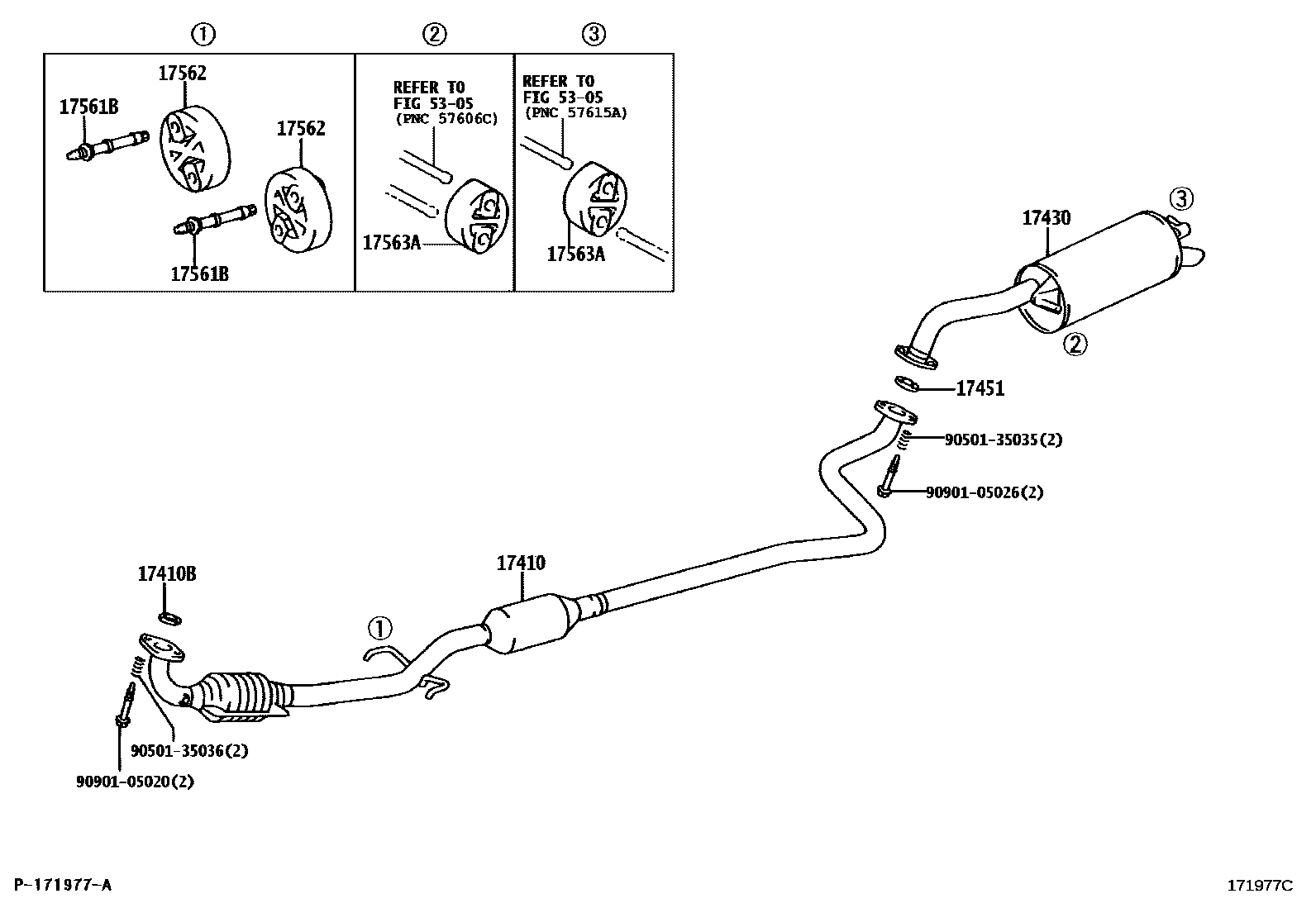

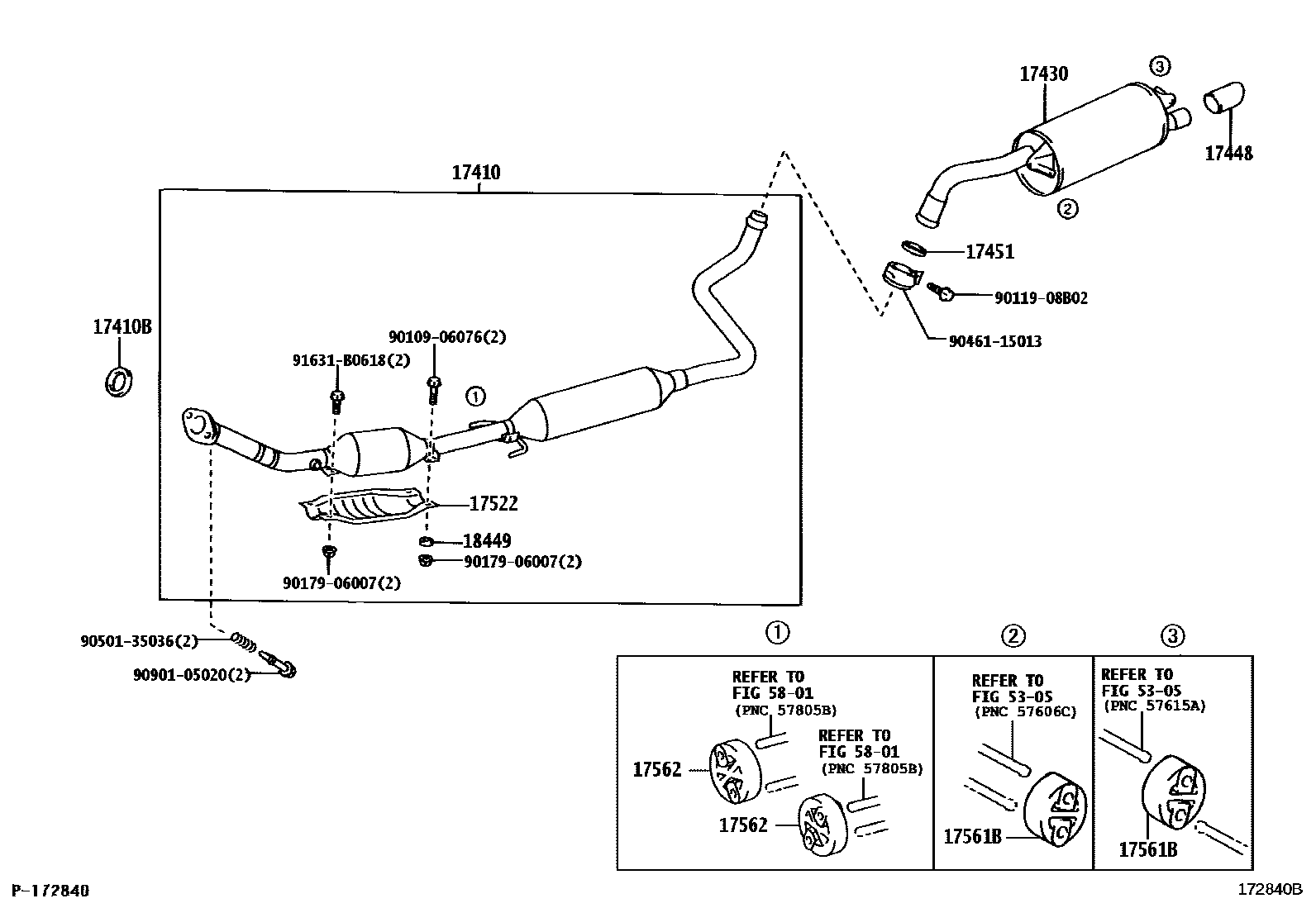

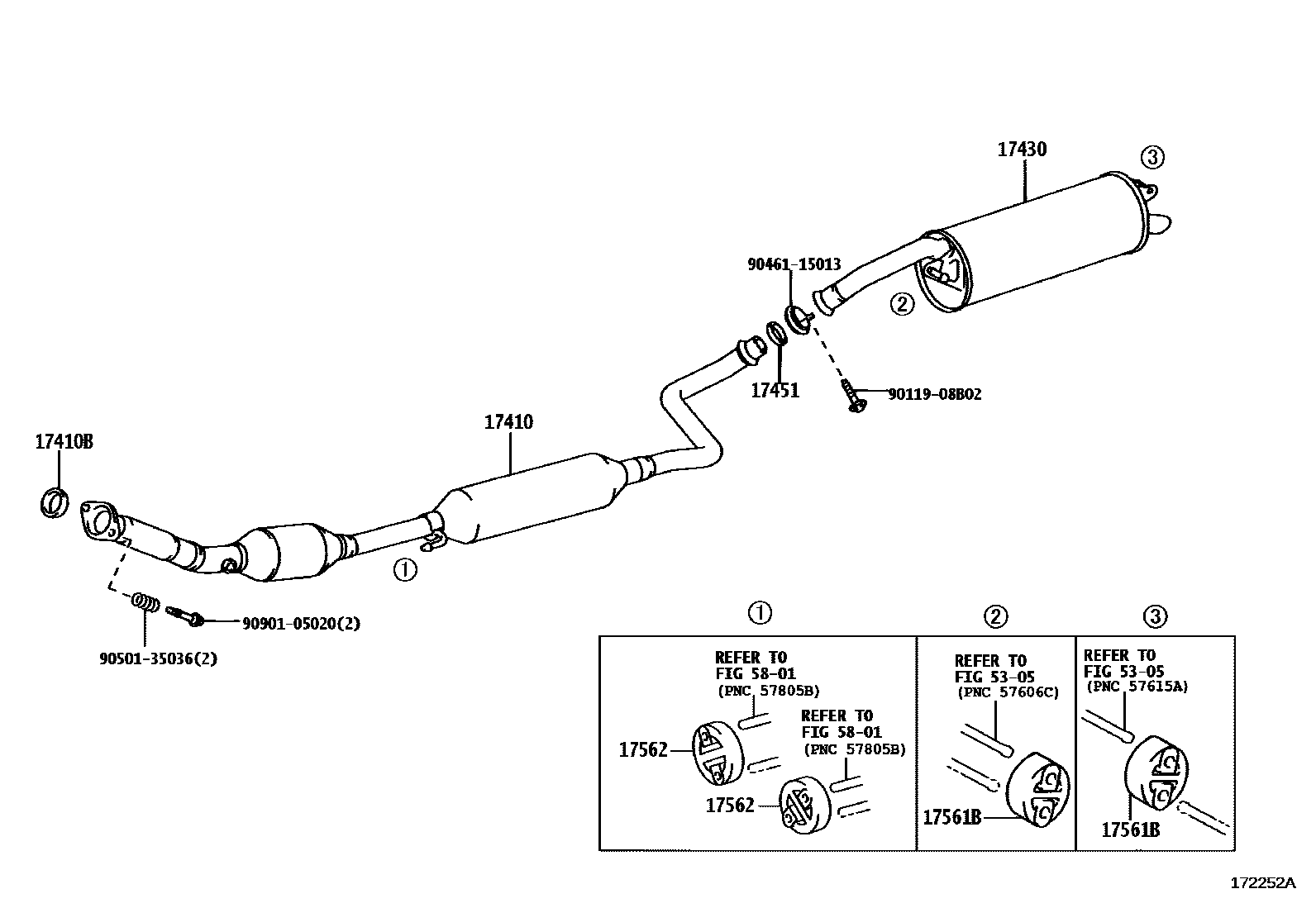

Toyota YARIS Exhaust Pipe — Figure 1702
Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-21060 · 17410-21070 · 17410-21080 · 17410-21150 · 17410-21351 · 17410-21380 · 17410-23070 |
| 17410B | Exhaust pipe gasket | 17451-21030 · 17451-23030 · 90917-06080 |
| 17430 | Exhaust tailpipe assembly | 17430-21030 · 17430-21031 · 17430-21200 · 17430-21540 · 17430-23030 · 17430-23031 |
| 17448 | Exhaust pipe tail throat | 17408-74040 · 17408-74080 |
| 17451 | Exhaust pipe gasket | 17451-23010 · 90917-06082 |
| 17522 | No. 2 upper exhaust pipe protection device | 17522-21010 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-74280 · 17584-23020 |
| 17562 | No. 2 exhaust pipe lifting lug | 17562-23040 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-46040 |
| 18449 | Three-way catalytic converter protection device gasket | 18449-74010 |
