Toyota YARIS Manifold — Figure 1701

Toyota YARIS EPC diagram 1701, Manifold, with 2 images and 8 PNC and OE references.

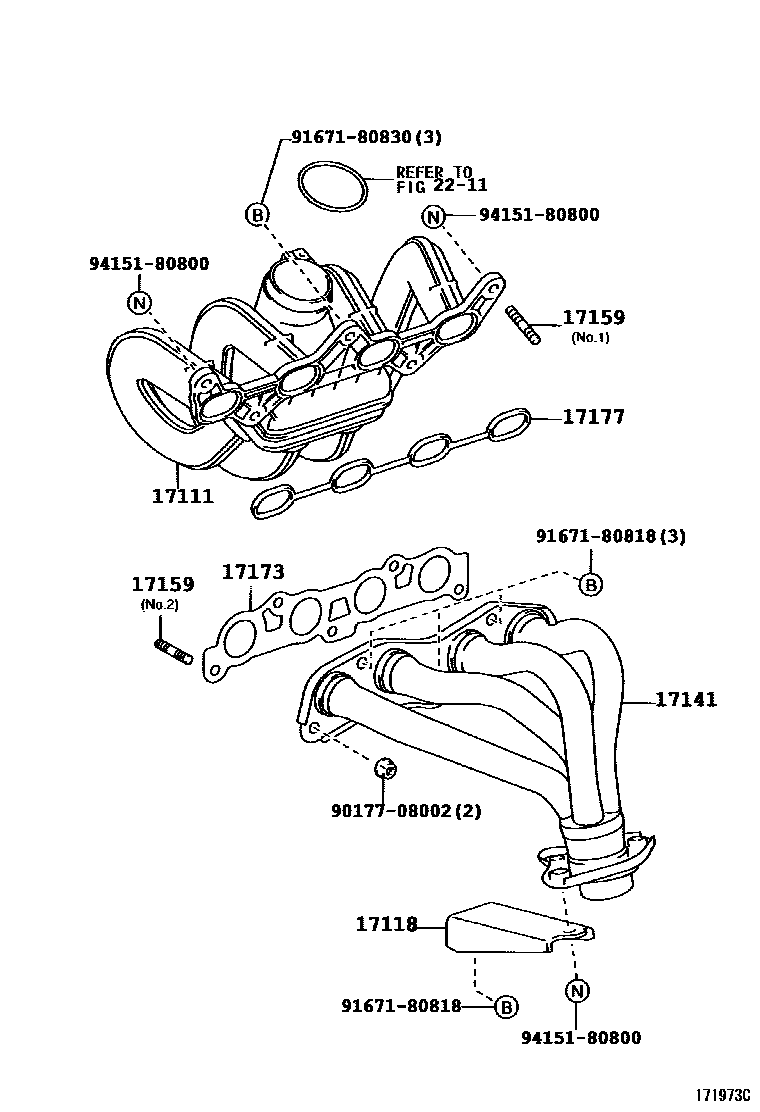

Toyota YARIS Manifold EPC diagram — 171973C
Manifold — 171973C (199903 – 999999)

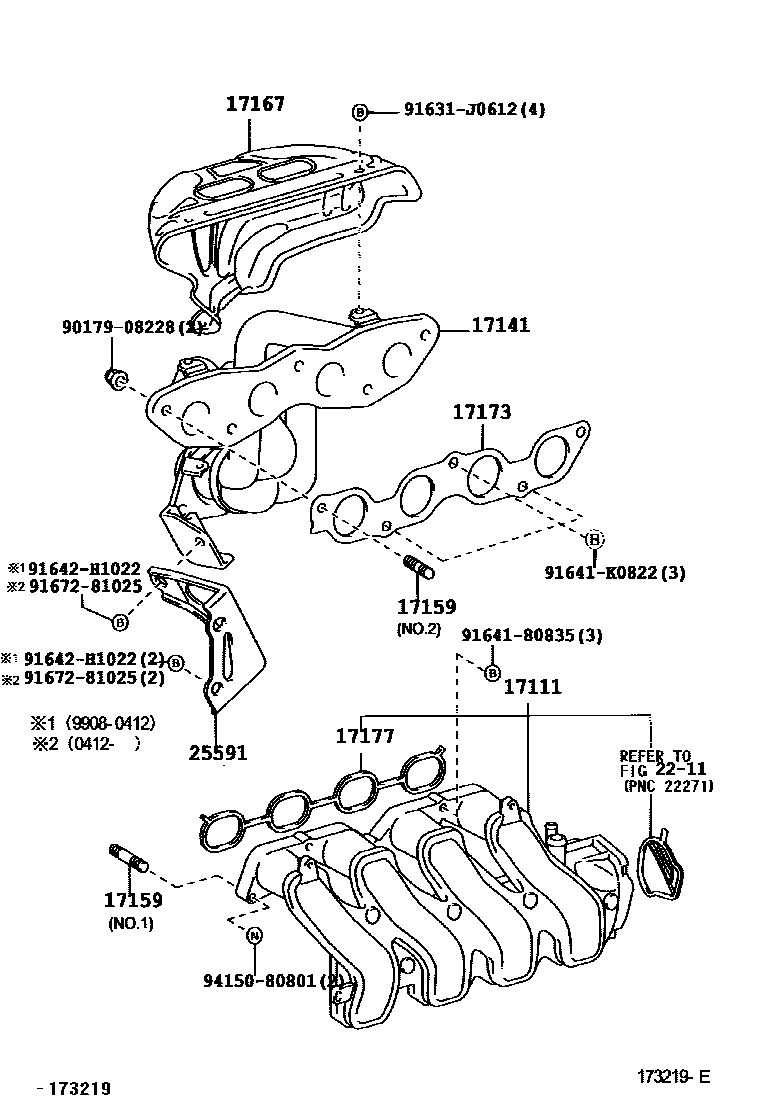

Toyota YARIS Manifold EPC diagram — 173219E
Manifold — 173219E (199908 – 999999)

PNC and OE references

PNCPart nameOE numbers
17111Intake Manifold17101-21020 · 17101-21030 · 17101-23020 · 17120-21010 · 17120-21020
17118Manifold stays17118-23010
17141exhaust manifold17141-21040 · 17141-21060 · 17141-23040
17159Studs (for manifold to cylinder head)90116-08395 · 90126-08013 · 90126-08026 · 90126-08037 · 92122-60825
17167Exhaust manifold No. 1 heat shield17167-21020 · 17167-21030
17173Gasket (exhaust manifold to cylinder head)17173-21020 · 17173-23010
17177No. 1 gasket (intake manifold to cylinder head)17177-21020 · 17177-23020
25591Manifold bracket25591-21020
