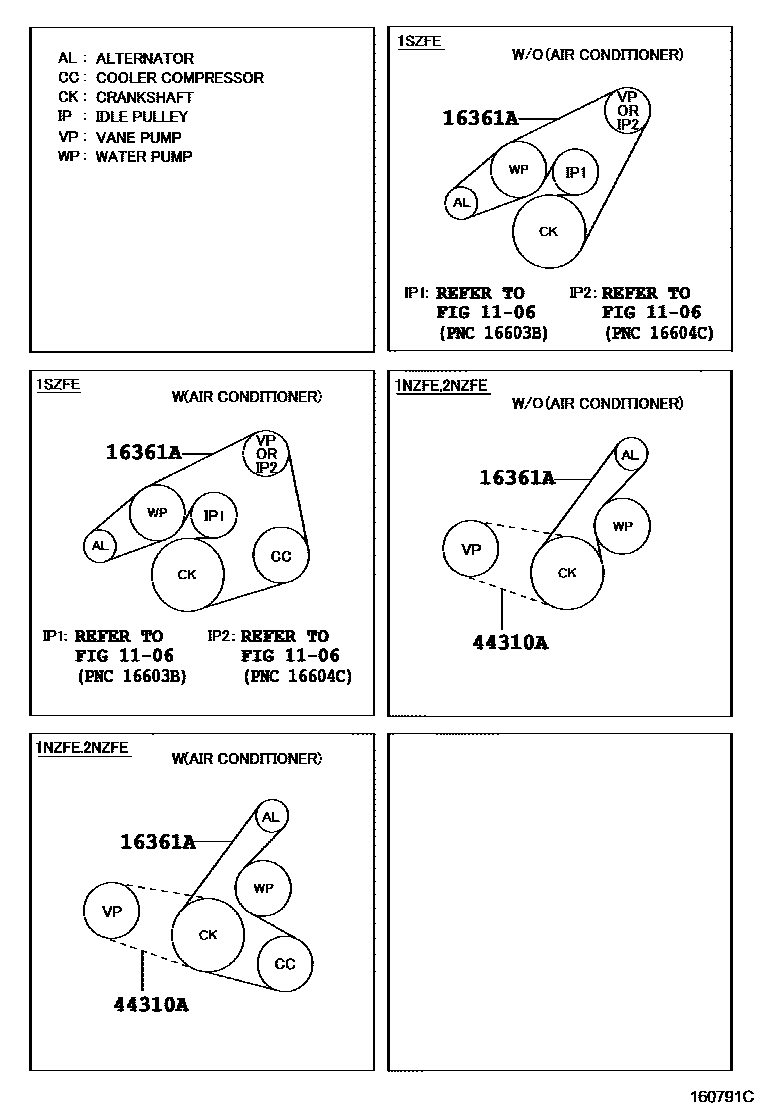

Toyota YARIS V-Belt — Figure 1605
Toyota YARIS EPC diagram 1605, V-Belt, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90916-02475 · 90916-02476 · 90916-02478 · 90916-02499 · 90916-02500 · 90916-02560 · 90916-02561 · 90916-02564 · 90916-02566 · 90916-02569 · 99364-90920 · 99364-91180 |
| 44310A | V-belt (for vane pump) | 90916-02575 · 90916-02576 · 99363-30850 |
