Toyota YARIS Water Pump — Figure 1601

Toyota YARIS EPC diagram 1601, Water Pump, with 2 images and 3 PNC and OE references.

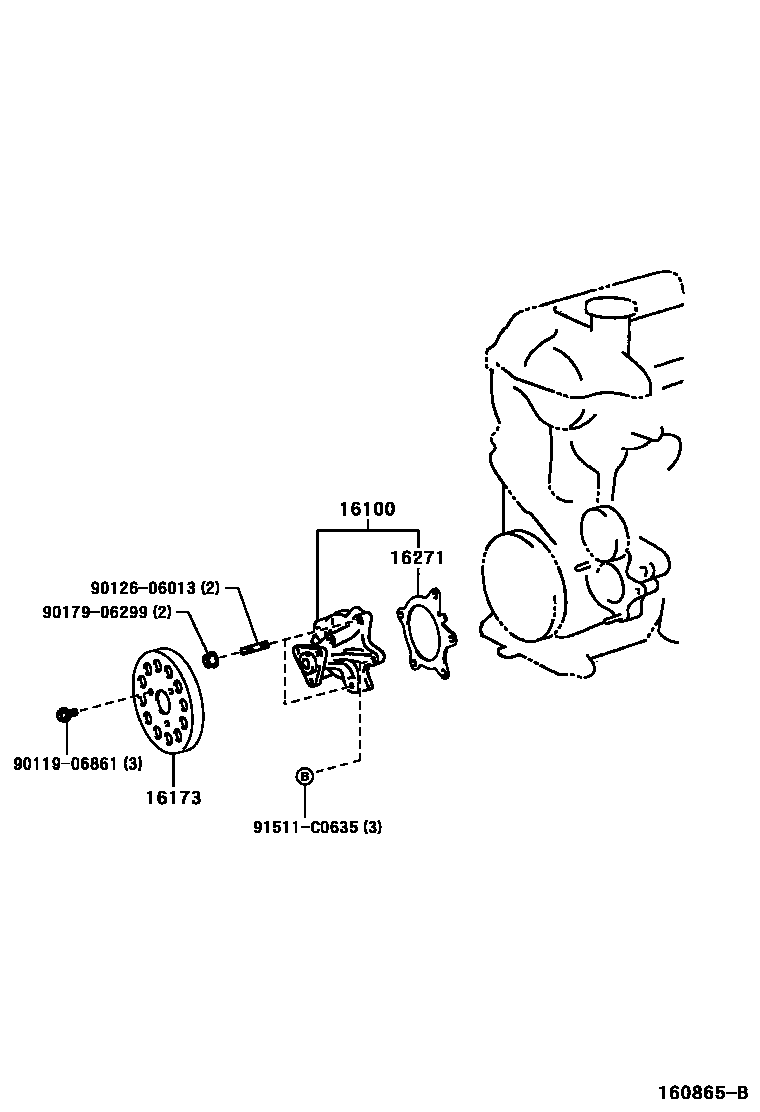

Toyota YARIS Water Pump EPC diagram — 160865B
Water Pump — 160865B (199908 – 999999)

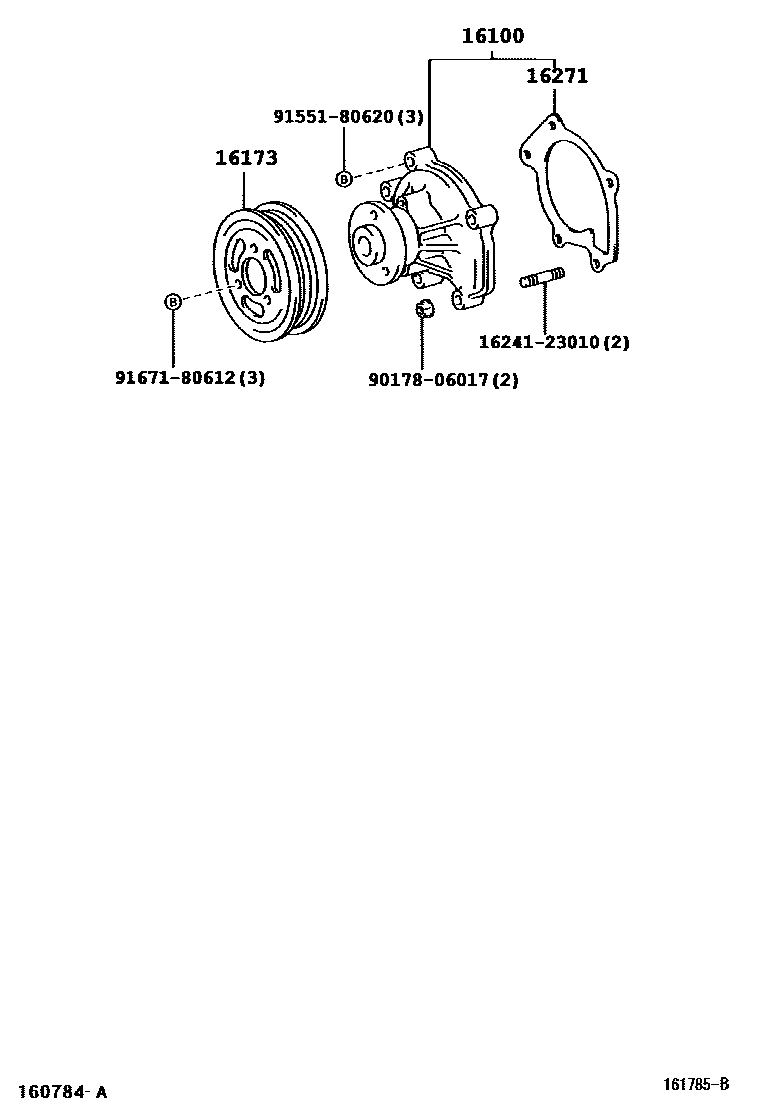

Toyota YARIS Water Pump EPC diagram — 161785B
Water Pump — 161785B (199903 – 999999)

PNC and OE references

PNCPart nameOE numbers
16100Engine water pump assembly16100-29115 · 16100-29116 · 16100-29155 · 16100-29156
16173water pump pulley16173-21020 · 16173-23020
16271water pump gasket16271-21020 · 16271-23020
