Toyota YARIS Engine Oil Pump — Figure 1501

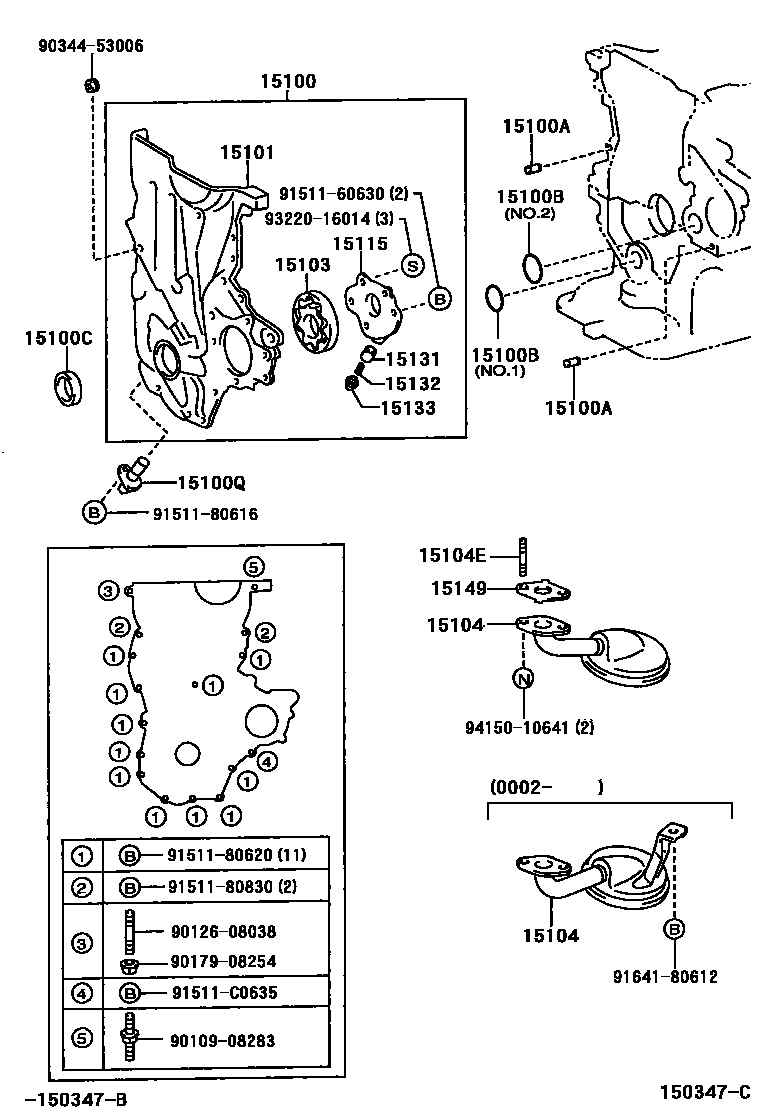

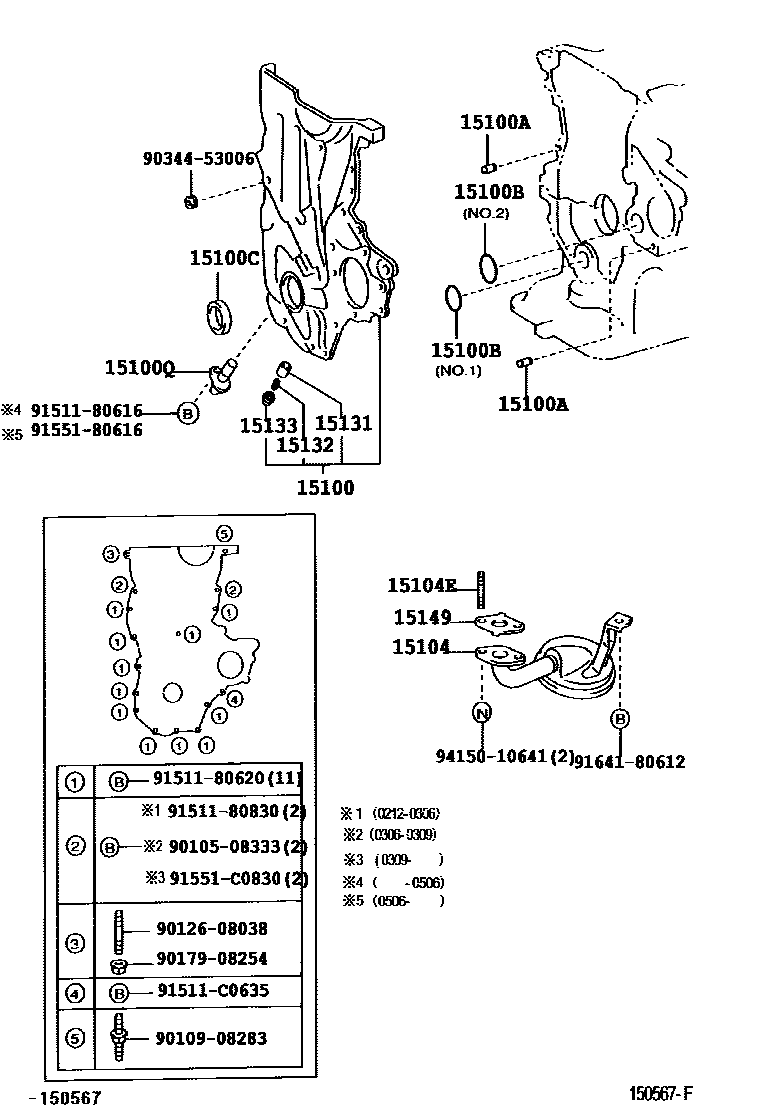

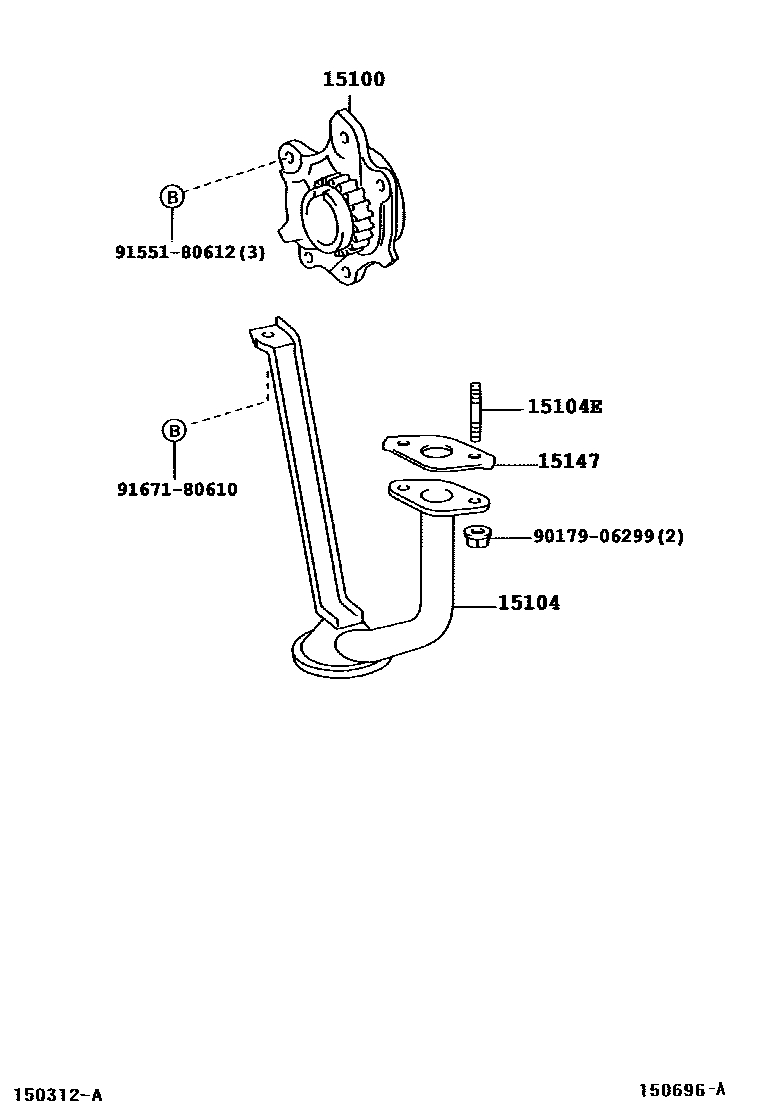

Toyota YARIS EPC diagram 1501, Engine Oil Pump, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15100 | Oil pump assembly | 15100-21030 · 15100-21040 · 15100-23020 |
| 15100A | Ring pin (for oil pump assembly) | 90253-08003 |
| 15100B | O-ring (for oil pump) | 90301-31012 · 90301-42006 |
| 15100C | Seals (for oil pump) | 90311-25020 · 90311-25021 |
| 15100Q | crankshaft position sensor | 90919-05045 |
| 15101 | Oil pump body sub-assembly | 15111-21030 · 15111-21040 |
| 15103 | Oil pump gear assembly | 15103-21020 |
| 15104 | Oil filter sub-assembly | 15104-21020 · 15104-21021 · 15104-23020 |
| 15104E | Stud bolts (for oil filter) | 90126-06021 · 92122-60614 · 92122-B0614 |
| 15115 | oil pump cover | 15115-21030 |
| 15131 | Oil pump pressure reducing valve | 15131-21020 |
| 15132 | Oil pump pressure reducing valve spring | 15132-21020 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-21020 · 15133-21030 |
| 15147 | Oil filter gasket | 15147-23020 |
| 15149 | Oil filter flange gasket | 16258-21010 · 16258-21030 |
