Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 2 images and 6 PNC and OE references.

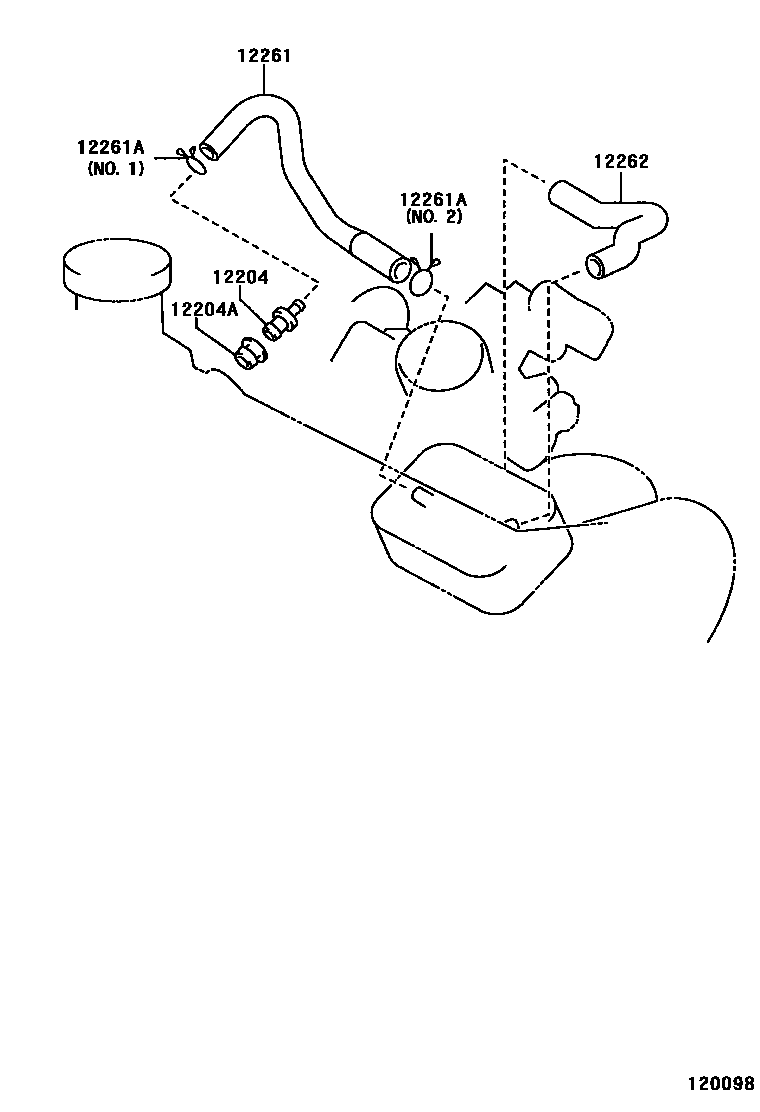

Toyota YARIS Ventilation Hose EPC diagram — 120098
Ventilation Hose — 120098 (199903 – 999999)
Toyota YARIS Ventilation Hose EPC diagram — 120118A
Ventilation Hose — 120118A (199908 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-21010 · 12204-21011 · 12204-23010 · 12204-23011
12204AGasket (for ventilation system)90480-18001
12261Ventilation Hose12261-21030 · 12261-23010
12261AClip or clip (for vent hose)90467-14001 · 90467-15019 · 90467-15120 · 90467-18003 · 90467-23007 · 90467-24038 · 96134-42300
12262Ventilation hose No. 212262-21020 · 90910-05224 · 90910-05227
12262AClamp (for vent hose No. 2)16581-21050 · 90467-21004
