Toyota YARIS Cylinder Block — Figure 1105

Toyota YARIS EPC diagram 1105, Cylinder Block, with 2 images and 27 PNC and OE references.

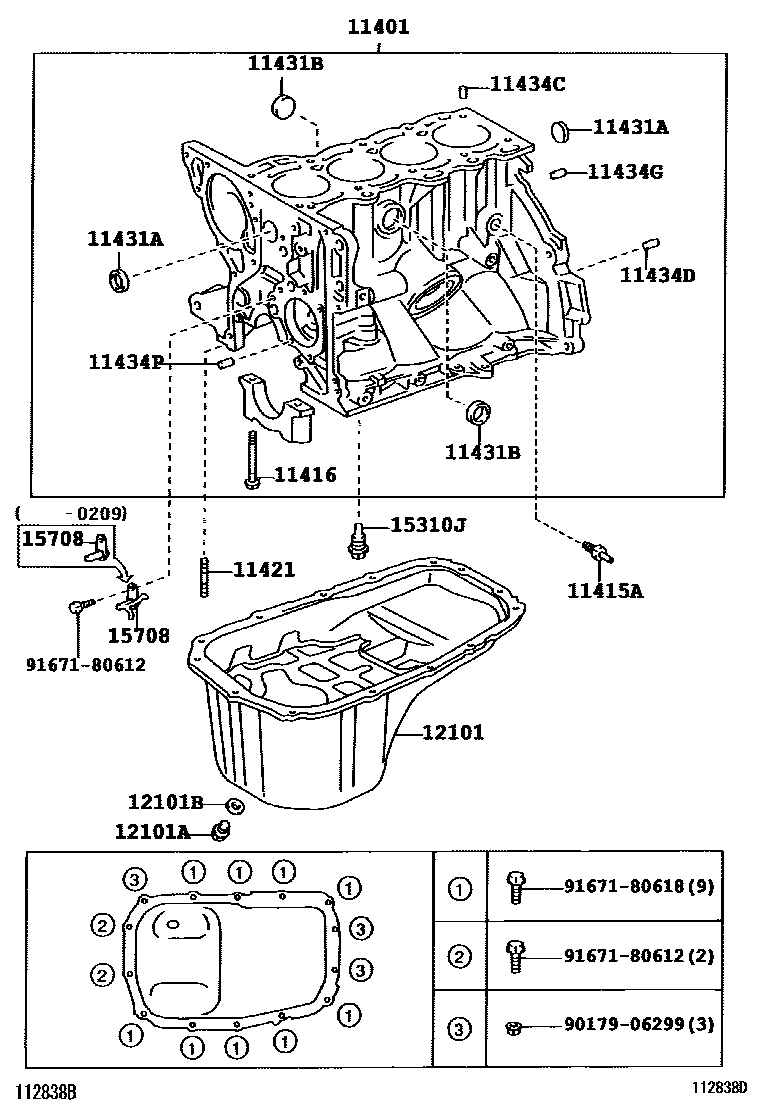

Toyota YARIS Cylinder Block EPC diagram — 112838D
Cylinder Block — 112838D (199903 – 999999)

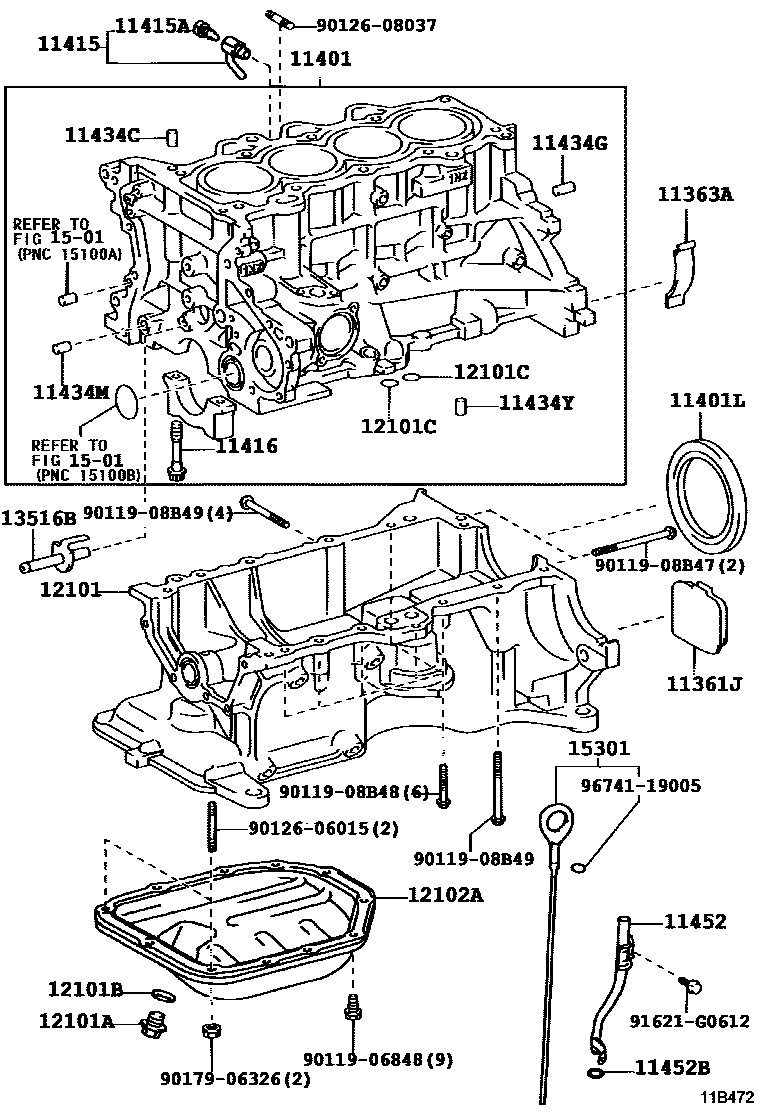

Toyota YARIS Cylinder Block EPC diagram — 11B472
Cylinder Block — 11B472 (199908 – 999999)

PNC and OE references

PNCPart nameOE numbers
11361JFlywheel housing bottom cover11361-21010 · 11361-21011
11363AFlywheel housing side cover11363-21010
11401Cylinder block sub-assembly11401-23020 · 11401-23021 · 11401-23030 · 11401-29675 · 11401-29686 · 11401-29845 · 11401-29855
11401LSEAL, ENGINE REAR OIL90311-75016
11415Water release switch sub-assembly (for cylinder block)90910-09107
11415AWater drain switch screw plug (for cylinder block)90910-09087 · 90910-09116
11416Bolts (for crankshaft bearing cap assembly)90105-10460 · 90105-10492 · 90910-02125
11421Stud bolts (for oil pan)92122-60610
11431ANo. 1 sealing plug (for cylinder block)96411-62500
11431BNo. 2 sealing plug (for cylinder block)96411-63000
11434CDirect sales (for cylinder head components)90250-08120 · 90253-12002
11434DDirect sales (for engine rear oil seal)90250-06030
11434GDirect sales (for end plates)90250-10113 · 90250-10214
11434MDirect pin (for chain tensioner)90250-10030
11434PDirect sales (for oil pump components)90250-06030
11434YDirect sales (for oil pan)90250-08120
11452Engine oil level gauge guide11452-21030
11452BO-ring (for oil level gauge guide)96721-19010
12101Oil pan sub-assembly12101-23030 · 12111-21030 · 12111-21031 · 12111-21032 · 12111-21033
12101AScrew plug (for draining oil from the oil pan)90341-12012 · 90341-12026
12101BGasket (for oil pan drain plug)90430-12031
12101CO-ring (for oil pan)96722-24020
12102ANo. 2 oil pan sub-assembly12102-21010
13516Boil nozzle13516-21010
15301Engine oil level scoring assembly15301-21030
15310JOil regulator assembly15310-23010
15708No. 1 oil nozzle sub-assembly15708-23010 · 15708-23020
