Toyota YARIS Engine Overhaul Gasket Kit — Figure 1103

Toyota YARIS EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

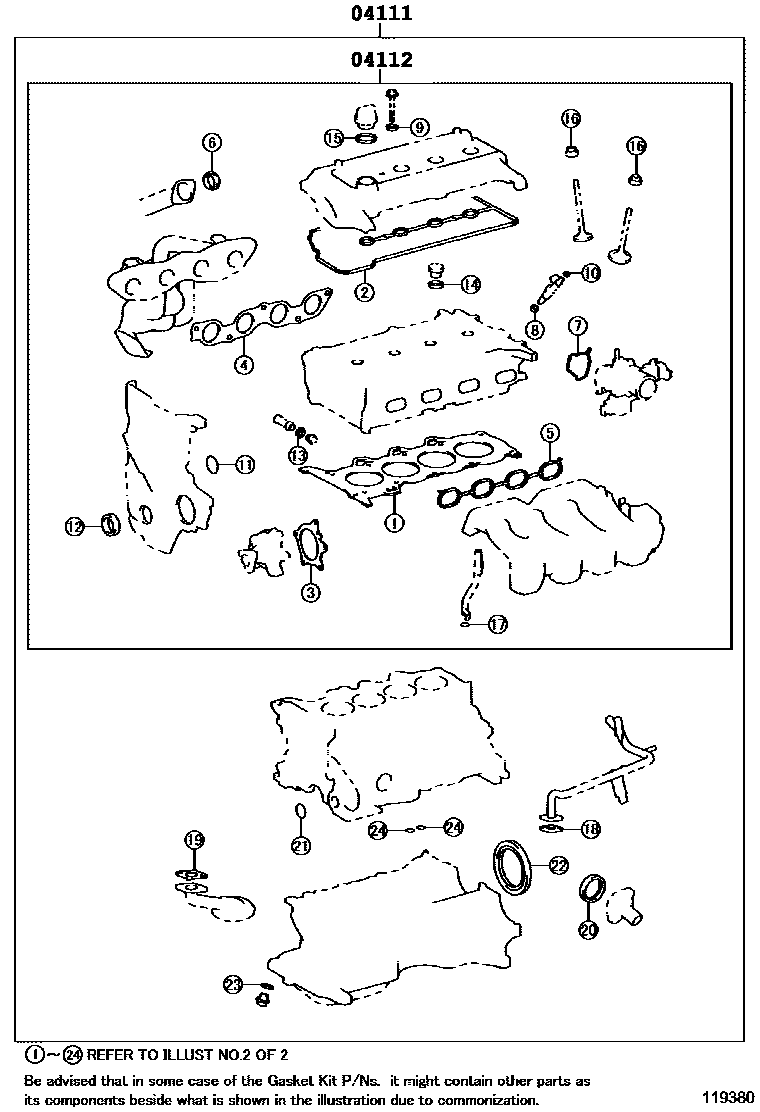

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 119380
Engine Overhaul Gasket Kit — 119380 (199908 – 999999)

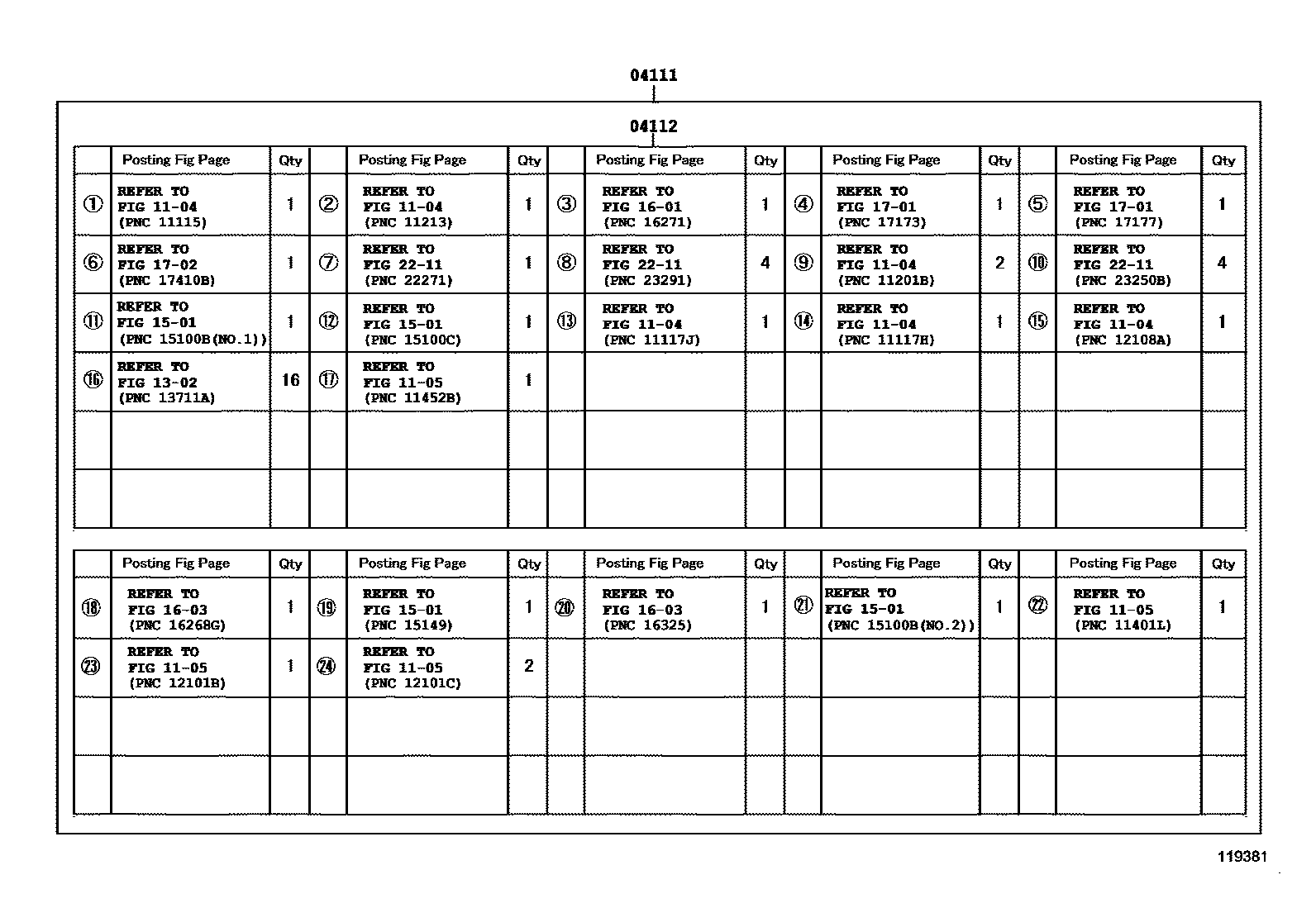

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 119381
Engine Overhaul Gasket Kit — 119381 (199908 – 999999)

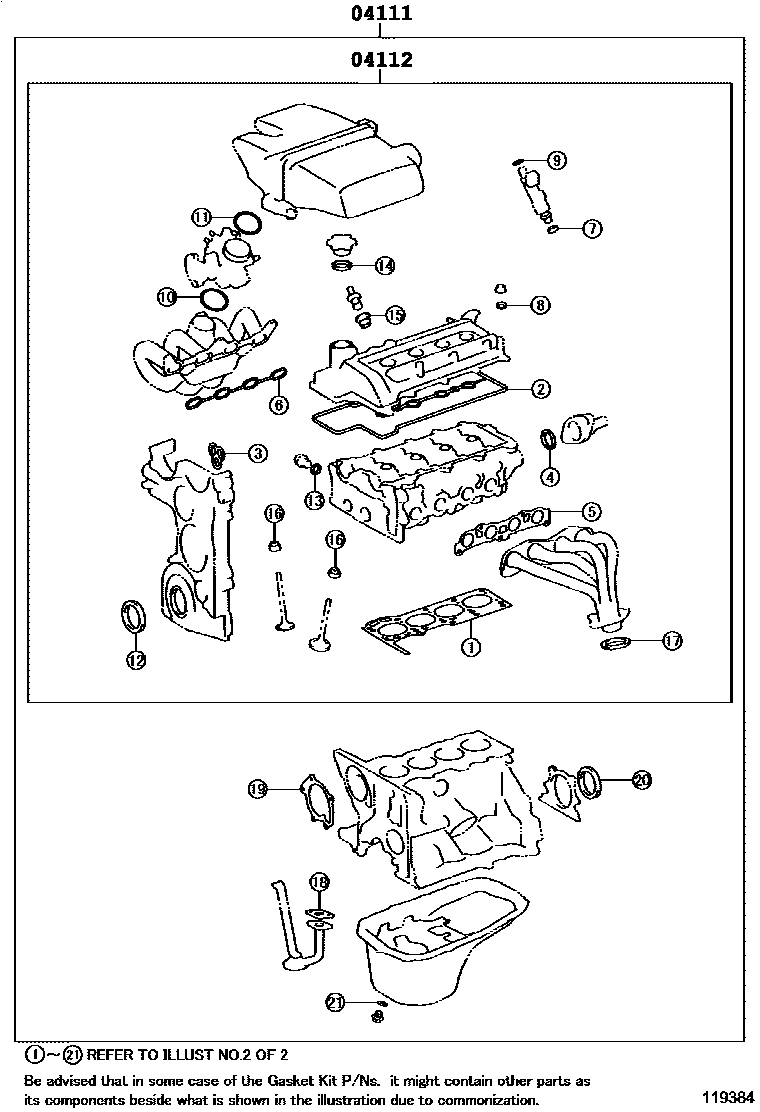

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 119384
Engine Overhaul Gasket Kit — 119384 (199903 – 999999)

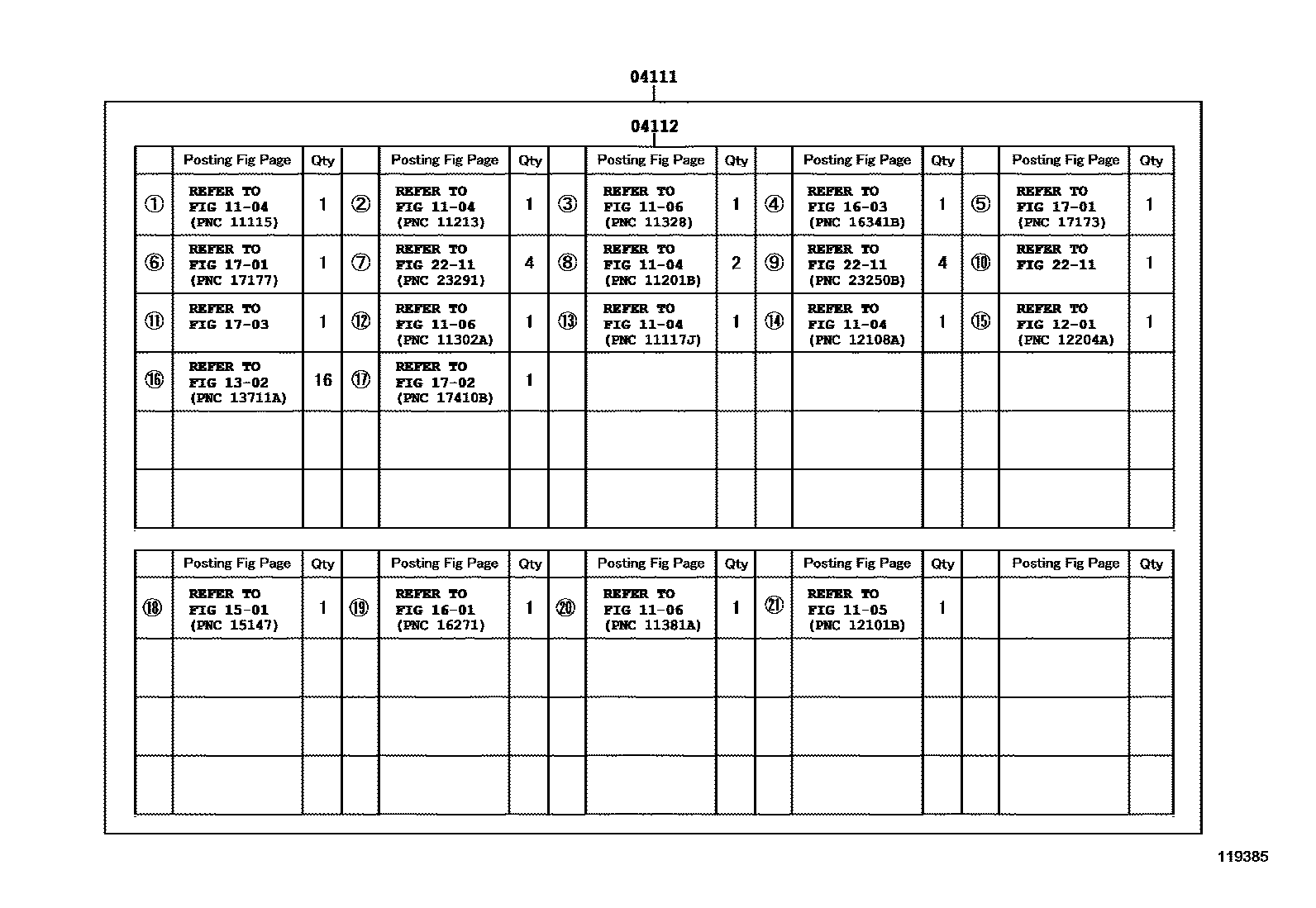

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 119385
Engine Overhaul Gasket Kit — 119385 (199903 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-21040 · 04111-21060 · 04111-21061 · 04111-21062 · 04111-21140 · 04111-23040 · 04111-23050
04112Engine valve grinding pad assembly04112-21040 · 04112-21060 · 04112-21061 · 04112-21062 · 04112-21140 · 04112-23040 · 04112-23050
