Toyota YARIS Heating & Air Conditioning - Compressor — Figure 8719

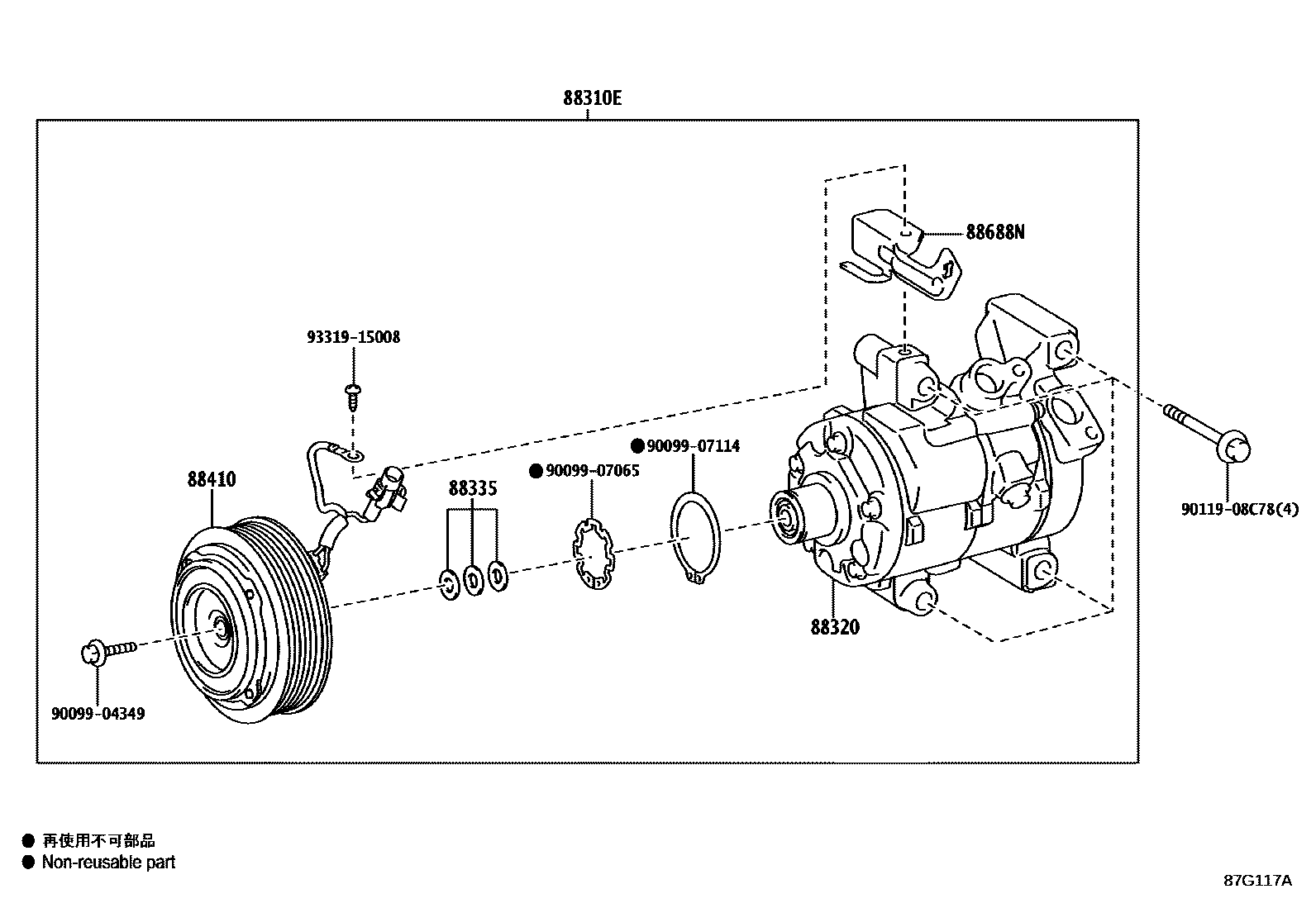

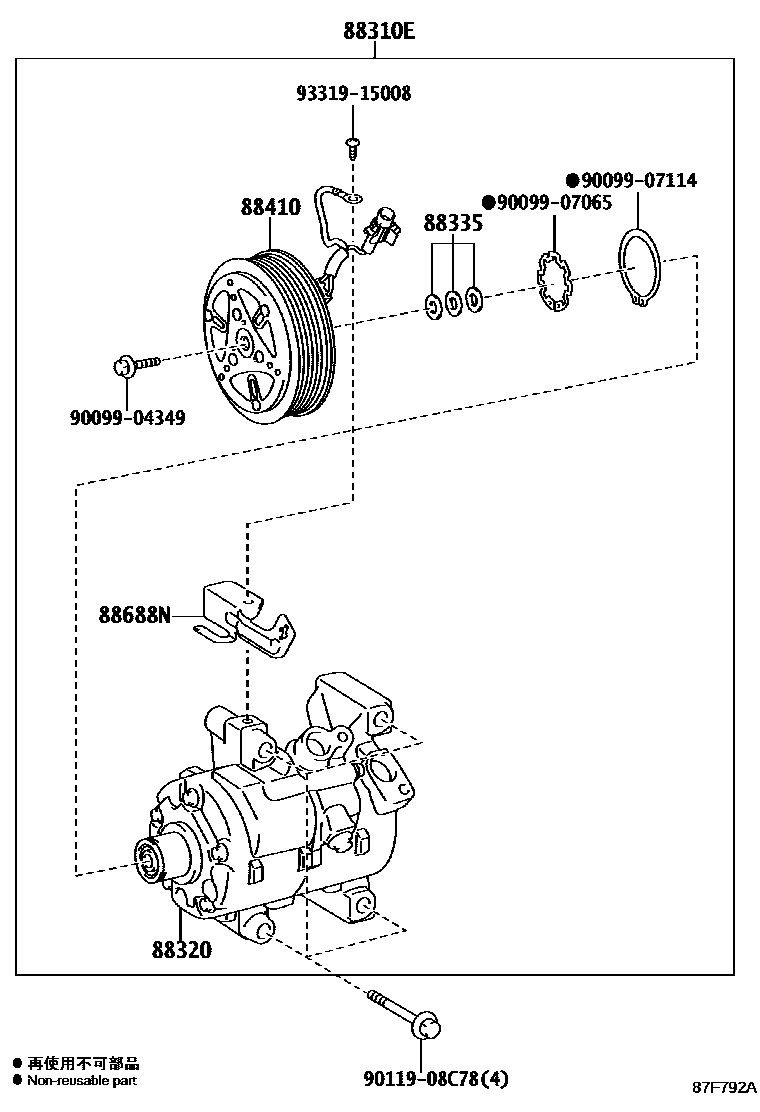

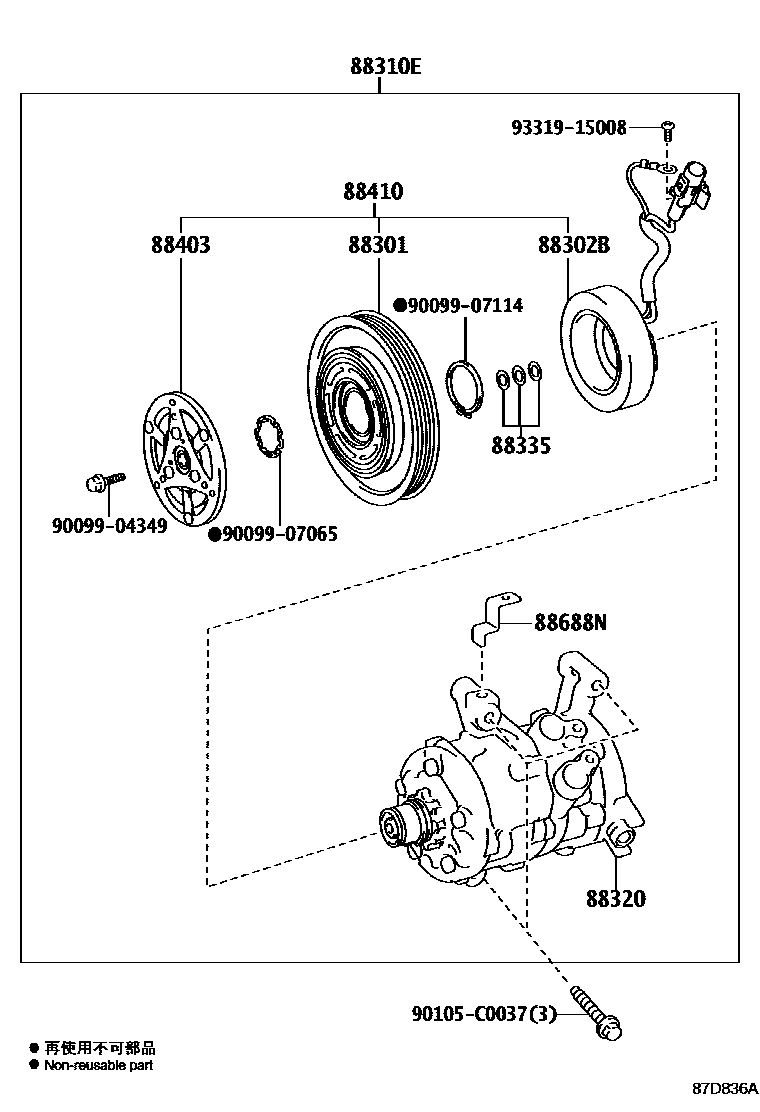

Toyota YARIS EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-0D190 |
| 88302B | Electromagnetic clutch stator | 88411-0D160 |
| 88310E | Compressor with electromagnetic clutch | 88310-0D510 · 88310-0DA10 · 88310-0DA30 · 88310-0DB40 |
| 88320 | Cooler Compressor Assembly | 88320-0D090 · 88320-0D130 |
| 88335 | Overhaul gasket assembly | 88335-14020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-0D090 · 88403-0D110 |
| 88410 | Magnetic Clutch Assembly | 88410-0D300 · 88410-0D340 · 88410-0D350 · 88410-0D410 |
| 88688N | cooler bracket | 88849-0D010 · 88849-0D070 |
