Toyota YARIS Heating & Air Conditioning - Cooler Piping — Figure 8718

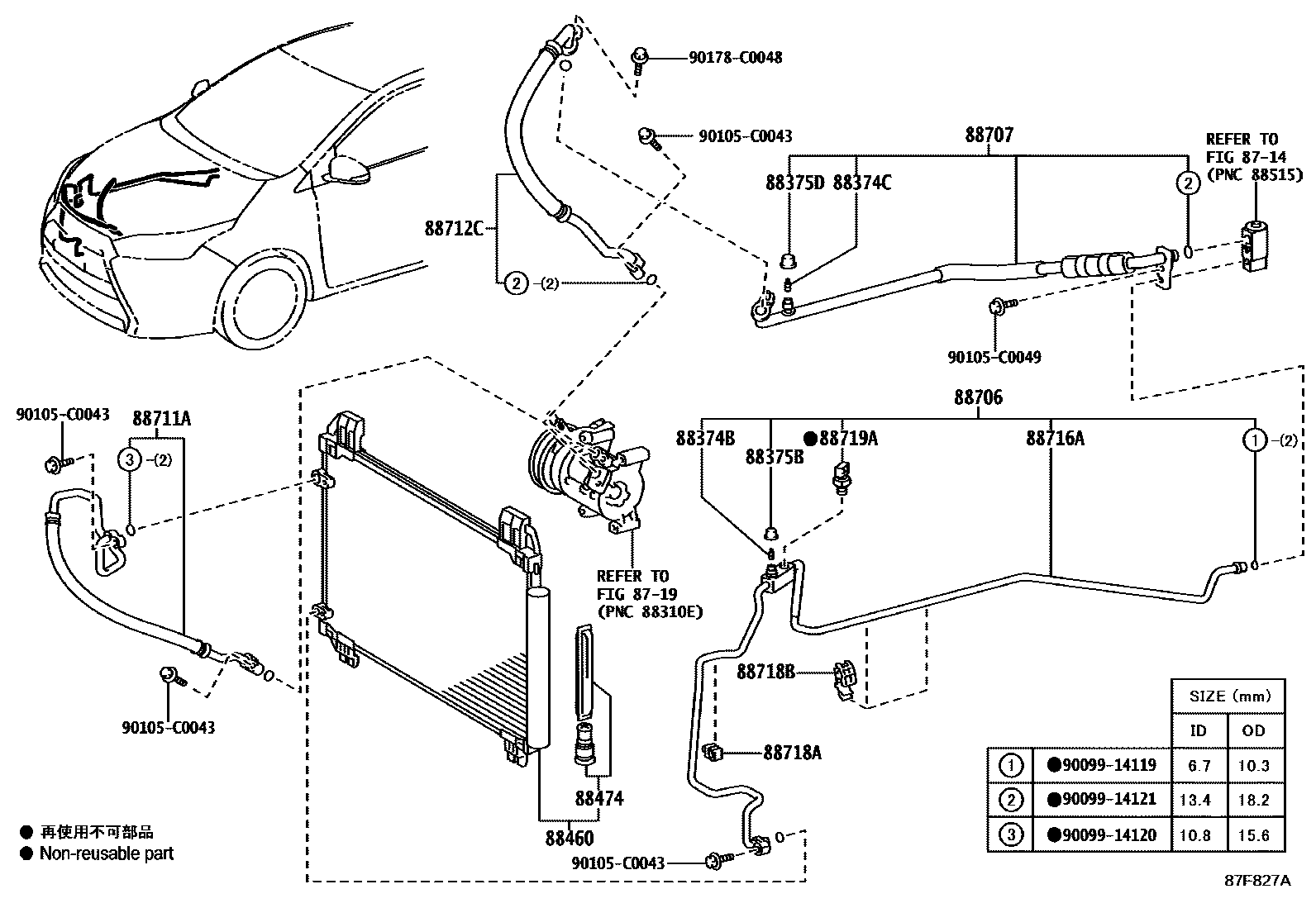

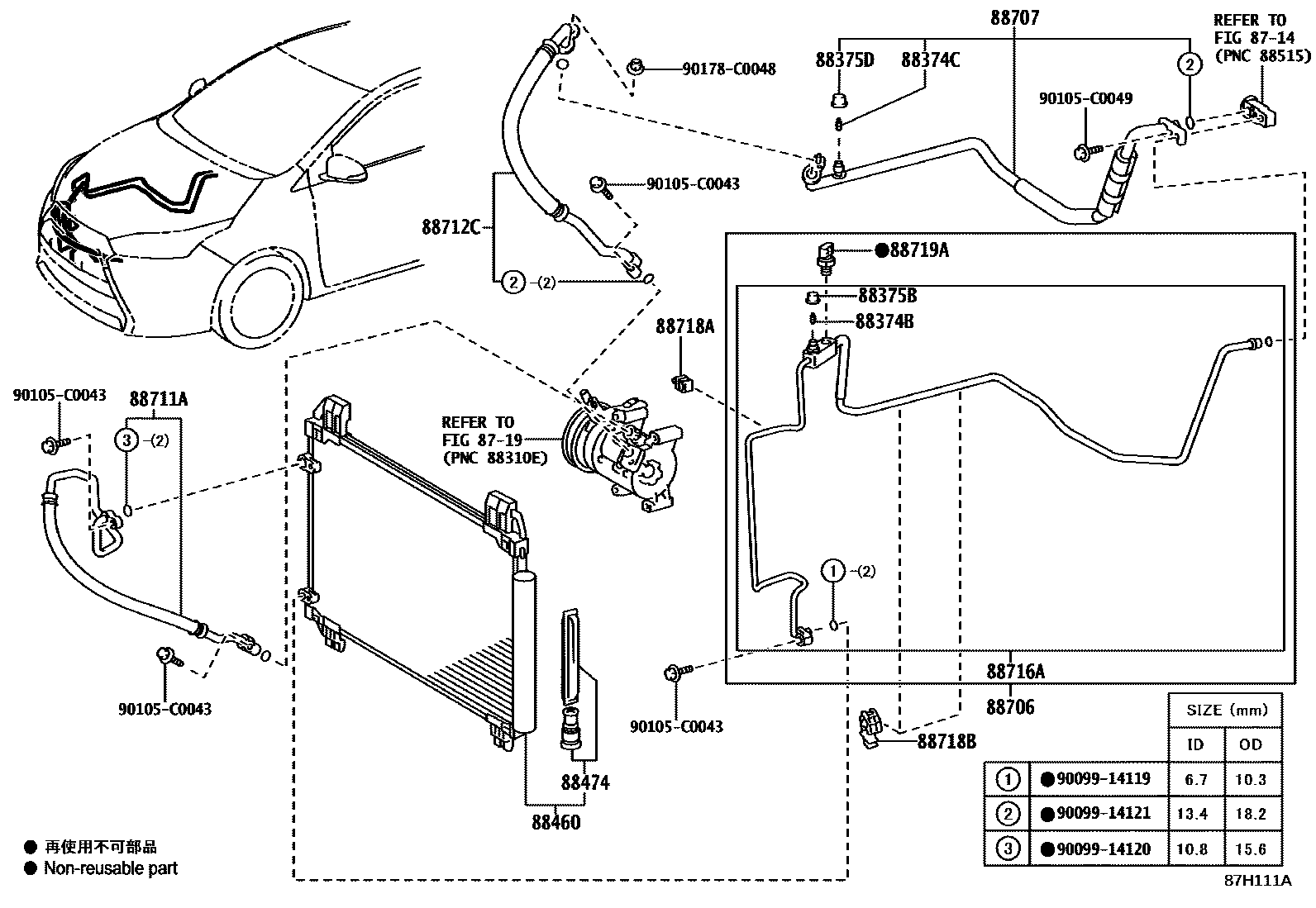

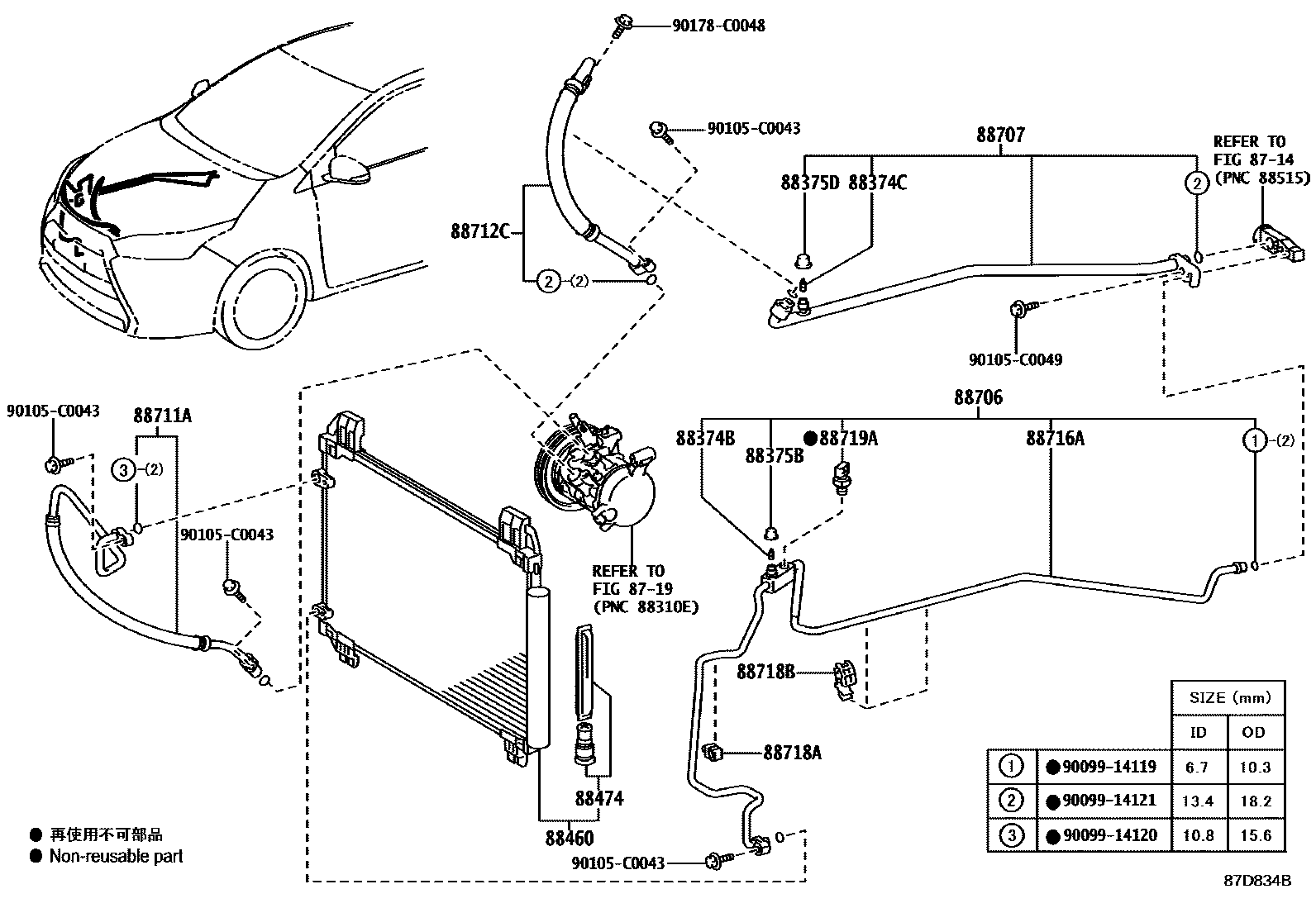

Toyota YARIS EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-0D010 |
| 88375D | No. 2 maintenance valve cover | 88375-30290 |
| 88460 | Air conditioning condenser assembly | 88460-0D360 · 88460-0D480 |
| 88474 | cooler dryer | 88474-12010 |
| 88706 | Liquid pipe sub-assembly | 88706-0D570 · 88706-0DC40 |
| 88707 | Suction pipe sub-assembly | 88707-0D311 · 88707-0D510 · 88707-0D590 |
| 88711A | Cooler No. 2 refrigerant drain hose | 88711-0D460 · 88711-0D710 |
| 88712C | Oil suction hose | 88712-0D560 · 88712-0D870 · 88712-0D871 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-0D490 · 88716-0DB90 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-0D370 |
| 88718B | Clamp No. 2 (for cooler refrigerant pipe) | 88718-0D631 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
