Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

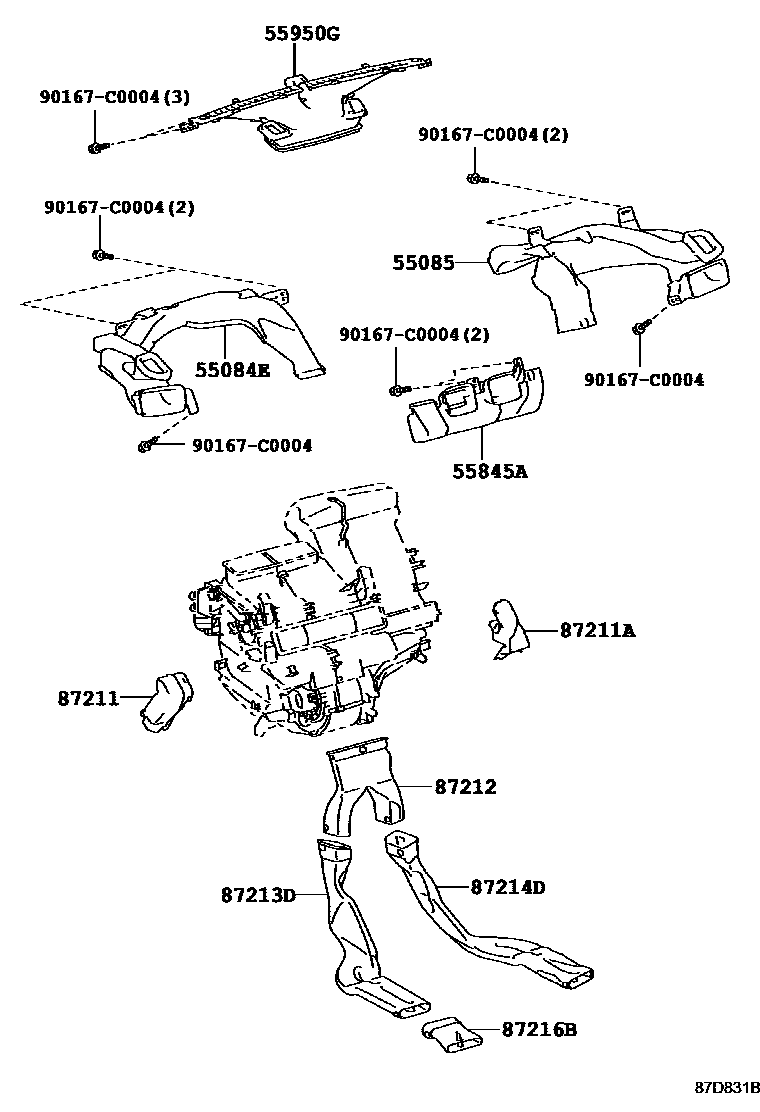

| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-0D090 · 55084-0D300 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-0D060 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-0D150 |

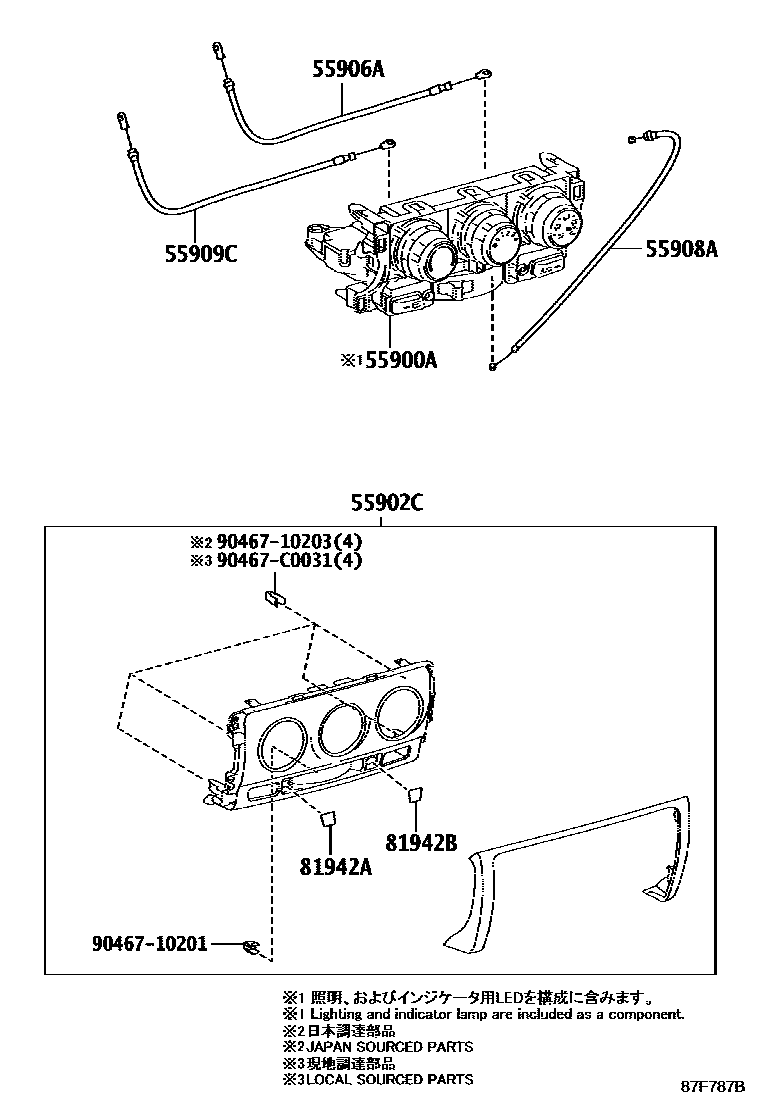

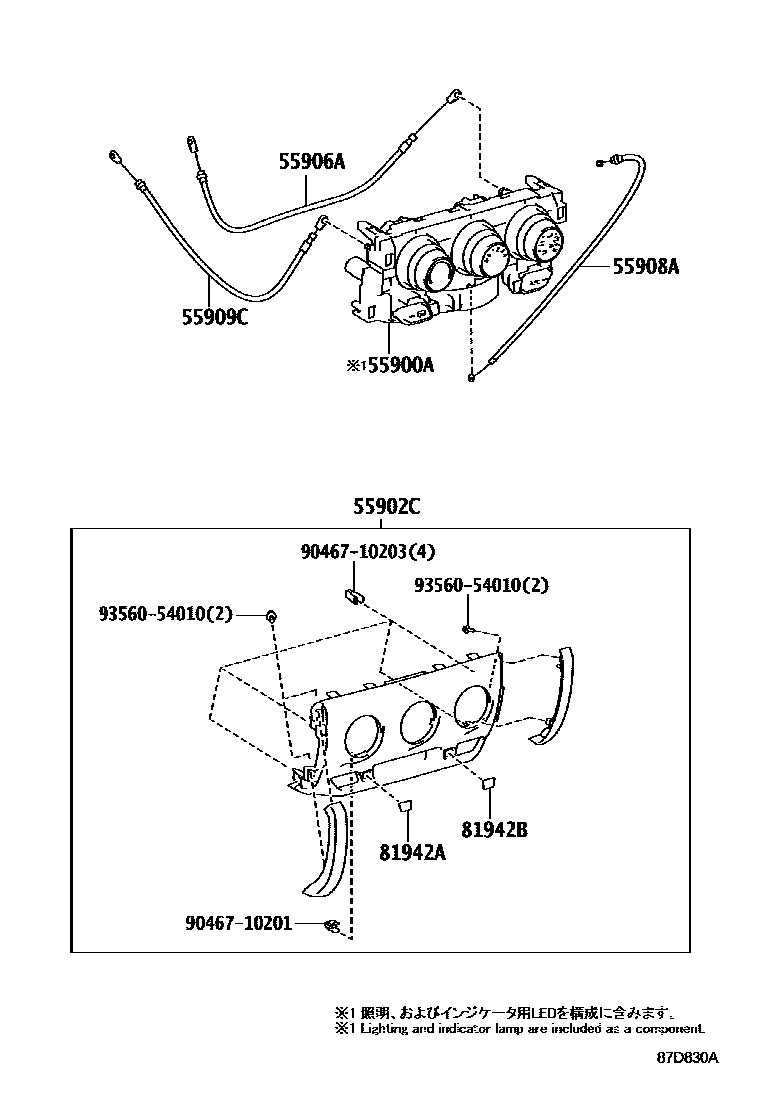

| 55900A | Heater control and accessory assembly | 55900-0D470 · 55900-0D480 · 55900-0DA00 |
| 55902C | Air conditioning panel sub-assembly | 55902-0D260 · 55902-0D390 · 55902-0D430 |
| 55906A | Defroster damper control cable sub-assembly | 55906-0D140 |
| 55908A | Intake air valve control cable sub-assembly | 55908-0D160 |
| 55909C | Air mix damper control cable sub-assembly | 55909-0D130 |
| 55950G | Defroster nozzle assembly | 55950-0D190 |
| 81942A | Heater No. 1 control nameplate | 81942-0D690 · 81942-0D820 |
| 81942B | Heater No. 2 control nameplate | 81942-0D700 · 81942-0D830 |
| 87211 | No. 1 air duct | 87211-0D390 |
| 87211A | Duct No. 2 | 87211-0D400 |
| 87212 | No. 1 rear air duct | 87215-0D060 |
| 87213D | No. 2 rear air duct | 87213-0D090 |
| 87214D | No. 3 rear air duct | 87212-0D090 |
| 87216B | No. 4 rear air duct | 87216-0D040 |

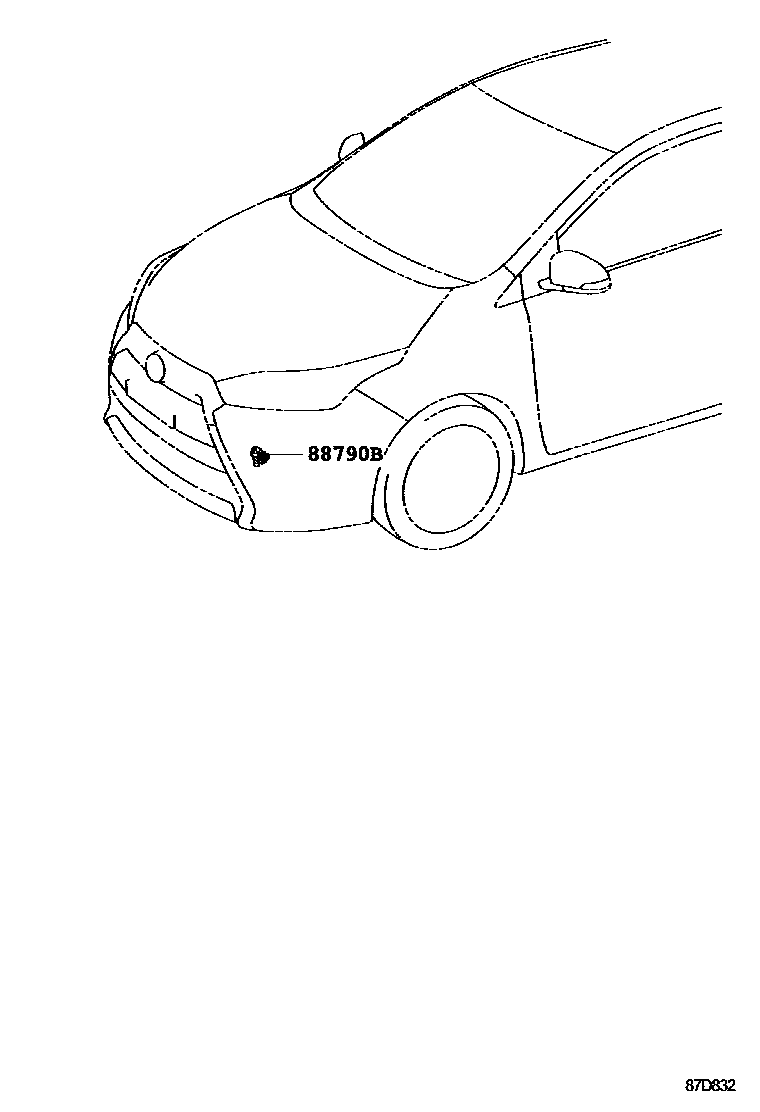

| 88790B | Thermistor assembly | 88790-02010 · 88790-22131 |
