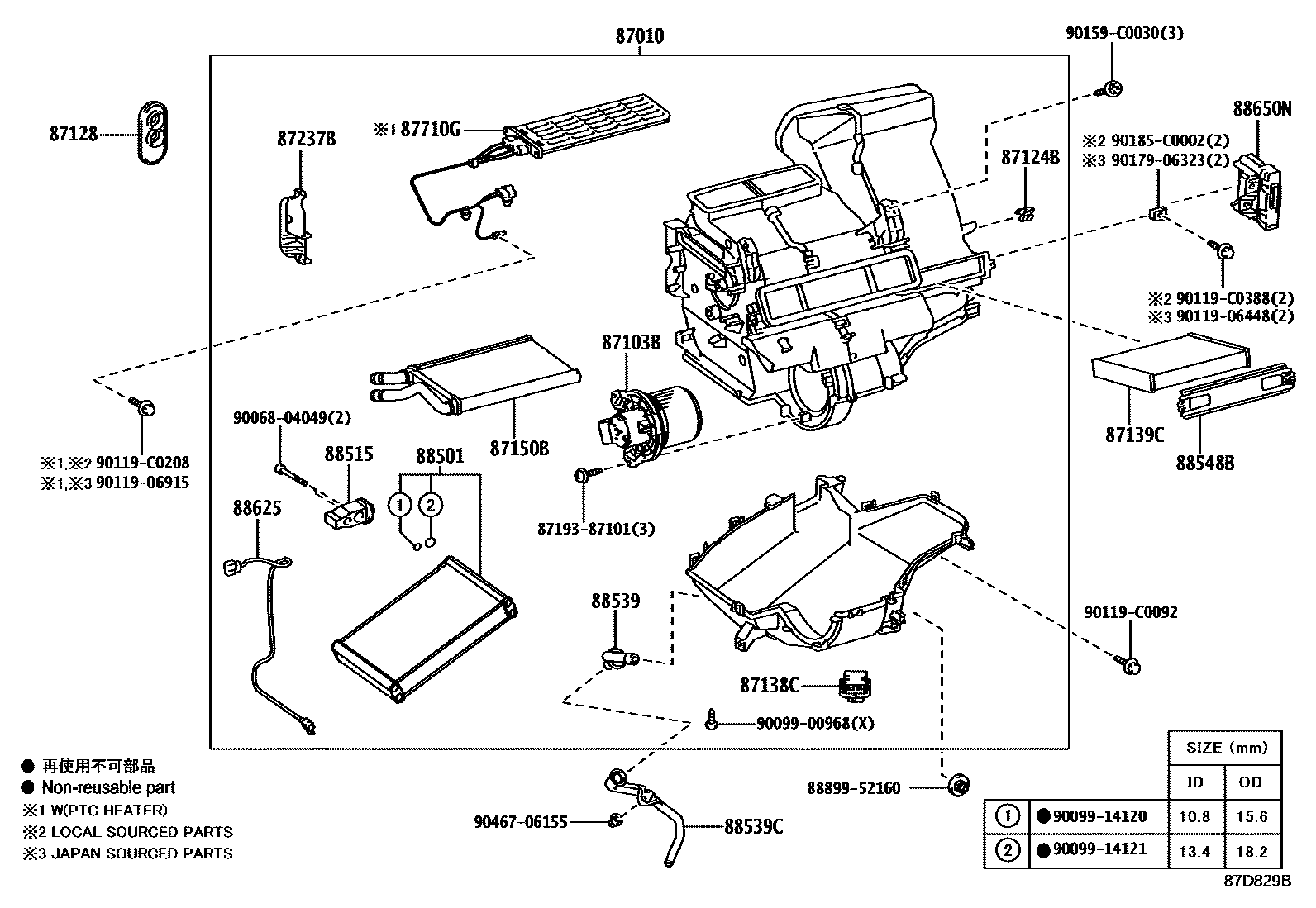

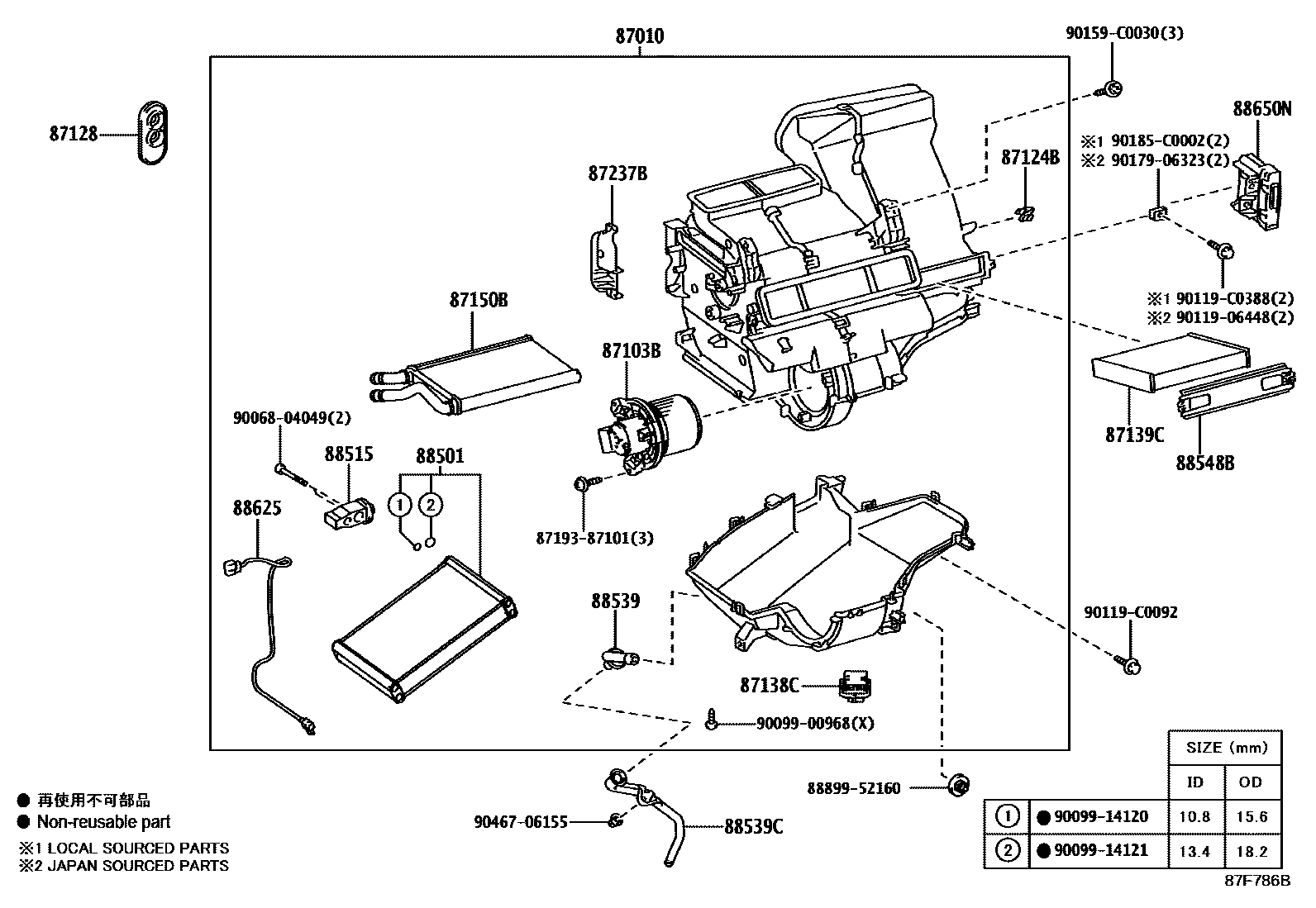

Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87010 | Air conditioning unit assembly | 87010-0DA30 · 87010-0DA40 · 87010-0DG10 · 87010-0DG11 |
| 87103B | Blower motor sub-assembly with fan | 87103-0D340 · 87103-0D341 |
| 87124B | heater clip | 87124-0D200 |
| 87128 | heater seal | 87128-0D140 |
| 87138C | Blower resistor | 87138-0D200 |
| 87139C | air purification filter | 87139-0D040 · 87139-50100 |
| 87150B | Heater radiator assembly | 87150-0D170 |
| 87237B | Heater connection cover | 87237-0D080 |
| 87710G | Rapid heater assembly | 87710-0D050 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0D291 · 88501-0D440 |
| 88515 | Cooler expansion valve | 88515-0D420 · 88515-0D660 · 88515-0F010 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-0D390 |
| 88539C | No. 2 cooler unit drain hose | 88539-0D400 |
| 88548B | air filter housing | 88548-0D210 |
| 88625 | Cooler No. 1 Thermistor | 88620-0D100 |
| 88650N | Air conditioning amplifier assembly | 88650-0D420 · 88650-0D640 |
