Toyota YARIS antenna — Figure 8604

Toyota YARIS EPC diagram 8604, antenna, with 3 images and 5 PNC and OE references.

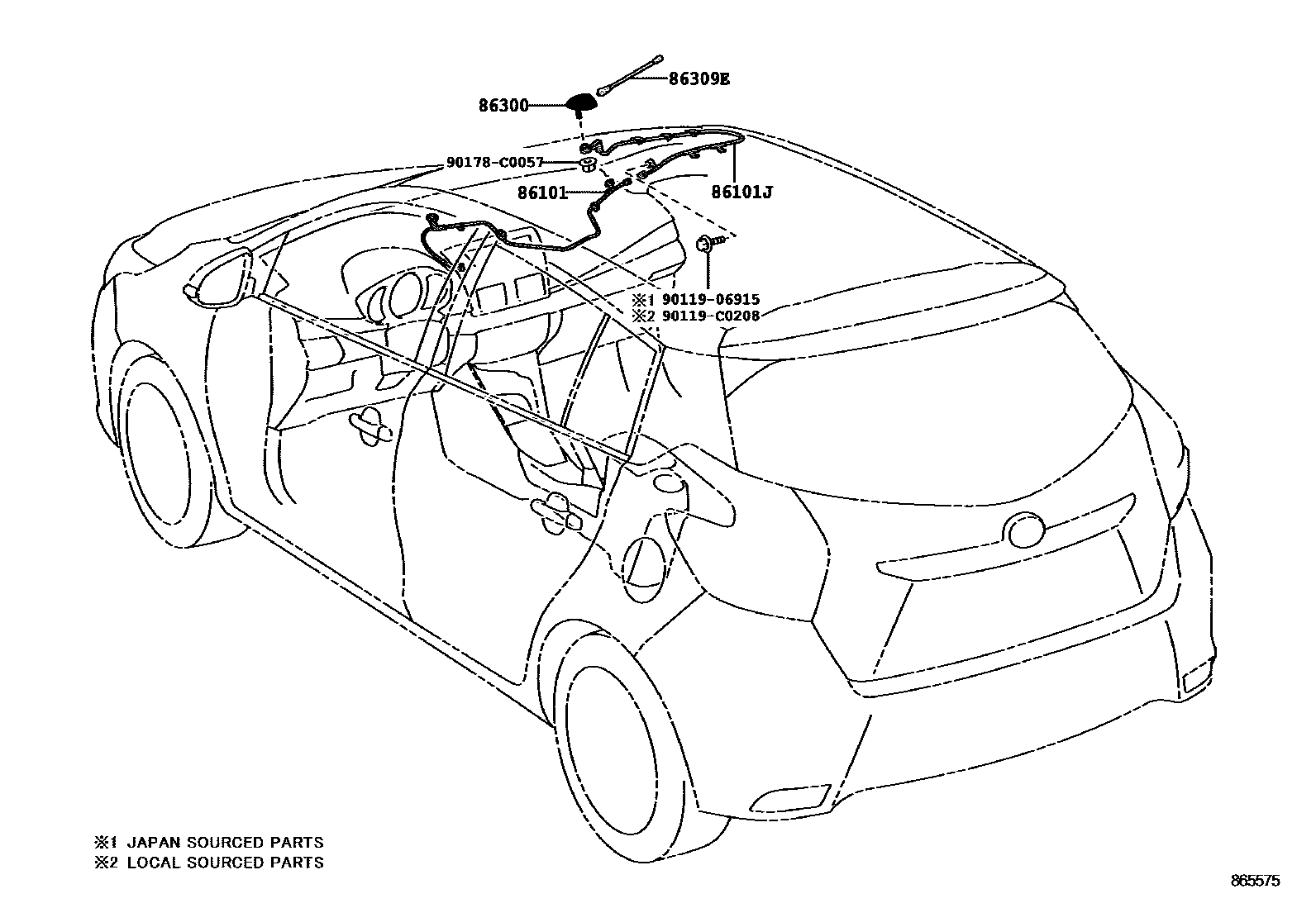

Toyota YARIS antenna EPC diagram — 865575
antenna — 865575 (201312 – 201608)

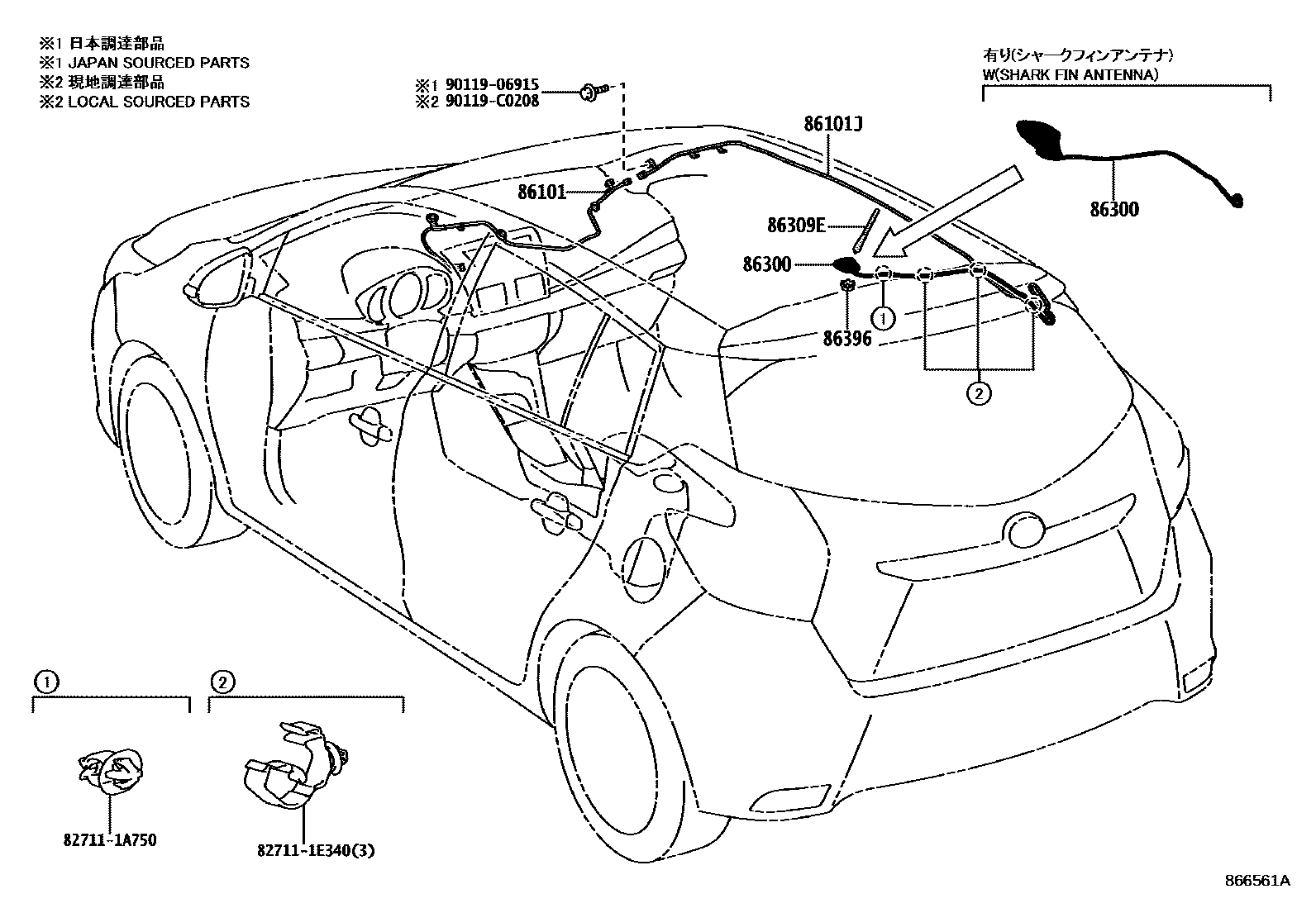

Toyota YARIS antenna EPC diagram — 866561A
antenna — 866561A (201608 – 999999)

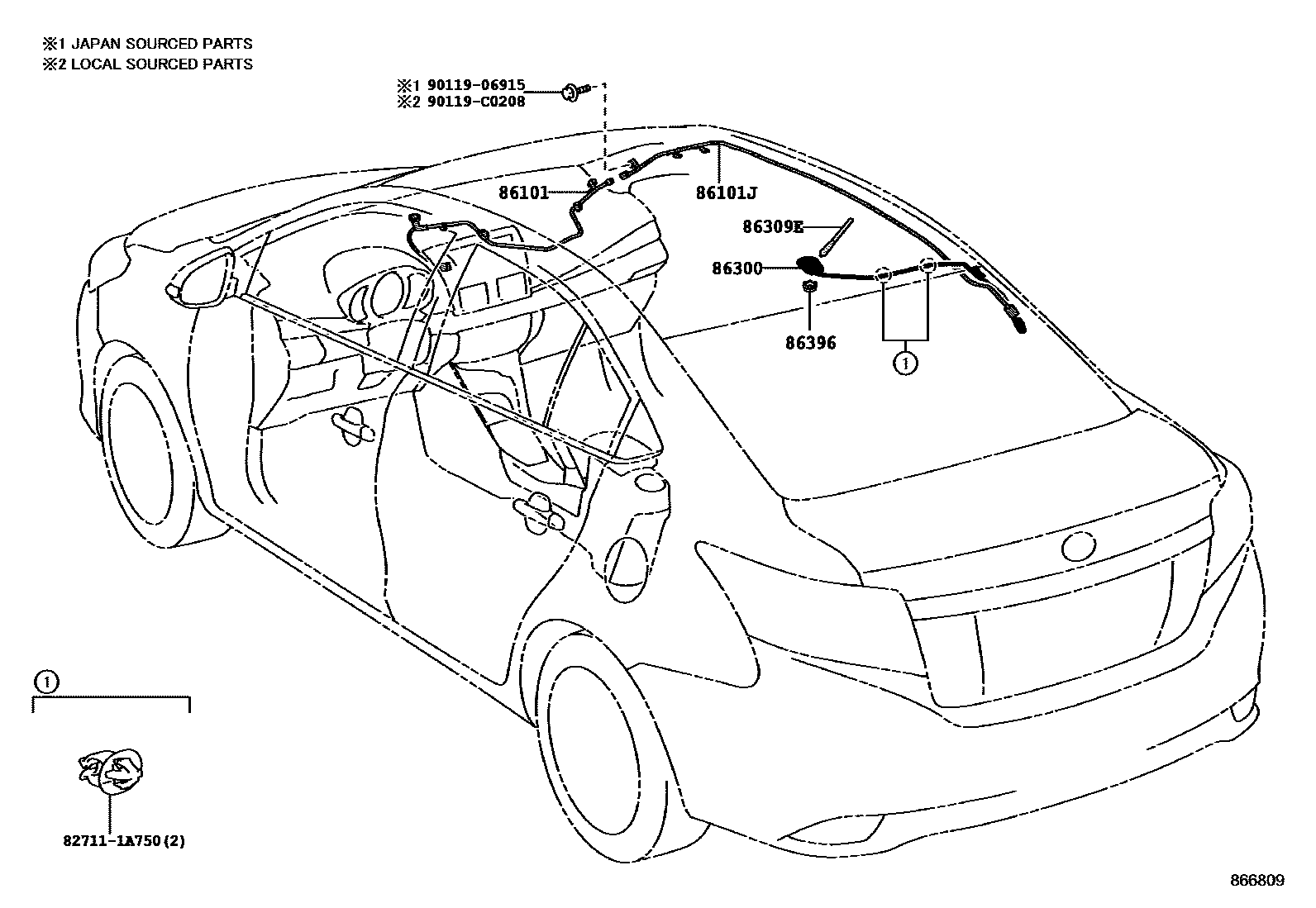

Toyota YARIS antenna EPC diagram — 866809
antenna — 866809 (201703 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-0D540 · 86101-0D820
86101JAntenna No. 2 wire sub-assembly86101-0D530 · 86101-0D800 · 86101-0D810 · 86101-0DB20 · 86101-0DB30
86300Antenna assembly with fixing parts86300-0D180 · 86300-0D350 · 86300-0D360
86309ERoof antenna sub-assembly86309-0D160 · 86309-0R030
86396Antenna nut86396-47010
