Toyota YARIS 后清洗器 — Figure 8504

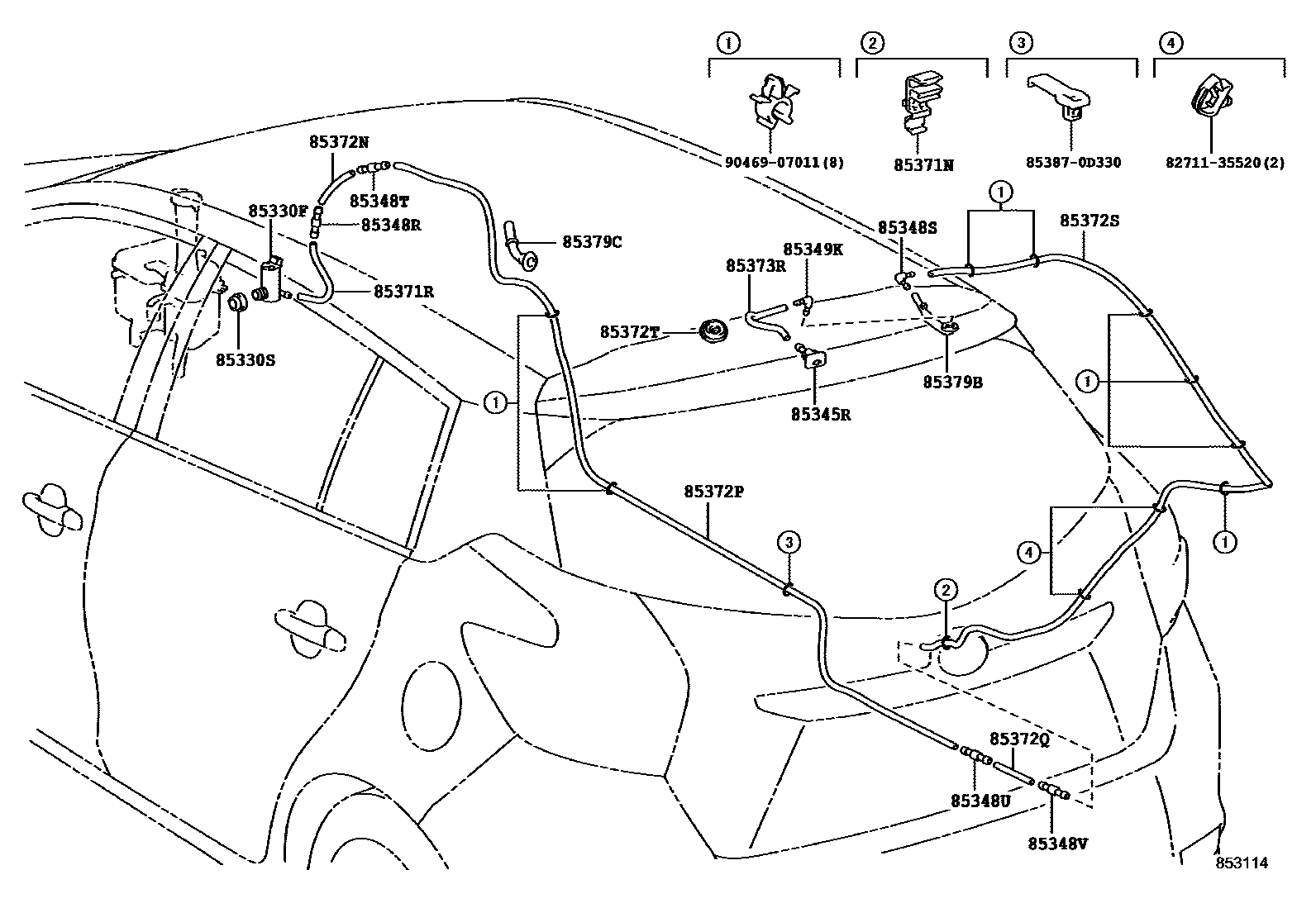

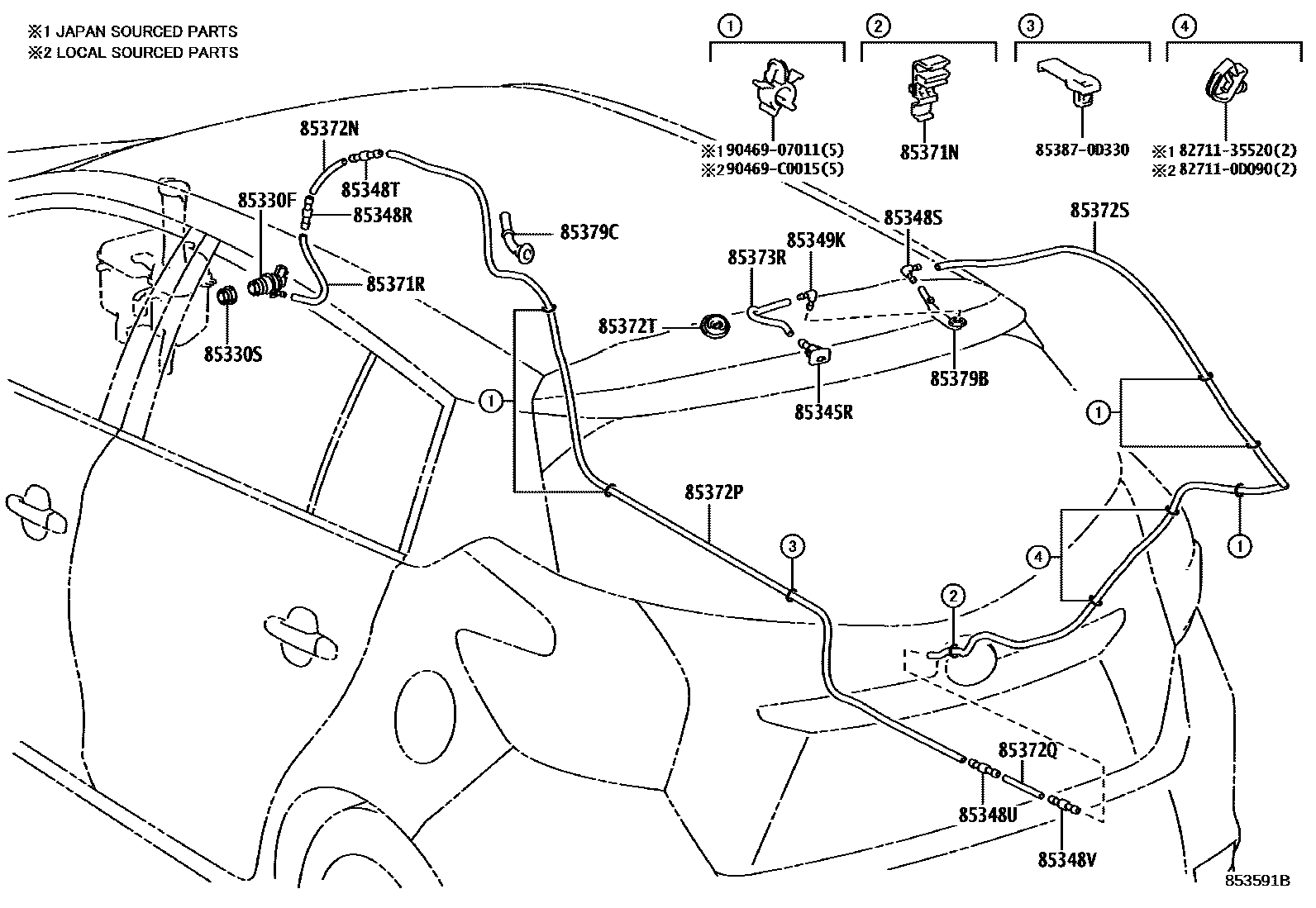

Toyota YARIS EPC diagram 8504, 后清洗器, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85330F | Rear washer motor and pump assembly | 85330-0D170 · 85330-42030 |
| 85330S | Rear washer fluid tank bushing | 85336-60300 · 90068-32006 |
| 85345R | Rear washer nozzle | 85391-0D070 |
| 85348R | No. 1 rear washer hose connector | 85375-0E140 |
| 85348S | No. 1 rear cleaner elbow joint | 85377-0E160 |
| 85348T | No. 2 rear washer hose connector | 85375-0E140 |
| 85348U | No. 3 rear washer hose connector | 85375-0E140 |
| 85348V | No. 4 rear washer hose connector | 85375-0E140 |
| 85349K | No. 2 rear cleaner elbow joint | 85377-0E160 |
| 85371N | Rear washer hose clamp | 85371-0D060 |
| 85371R | Rear washer hose (from motor to connector) | 90068-59110 · 90068-59158 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 90068-33122 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 90068-59125 |
| 85372Q | No. 3 rear washer hose (from connector to connector) | 90068-33122 |
| 85372S | No. 4 rear washer hose (from connector to connector) | 90068-59125 |
| 85372T | Cleaner seal | 85373-0F030 |
| 85373R | Rear washer hose (from connector to nozzle) | 90068-33209 |
| 85379B | Cleaner seal A | 85373-0F020 |
| 85379C | No. 1 rear washer hose seal | 85379-52530 |
