Toyota YARIS 挡风玻璃清洗器 — Figure 8503

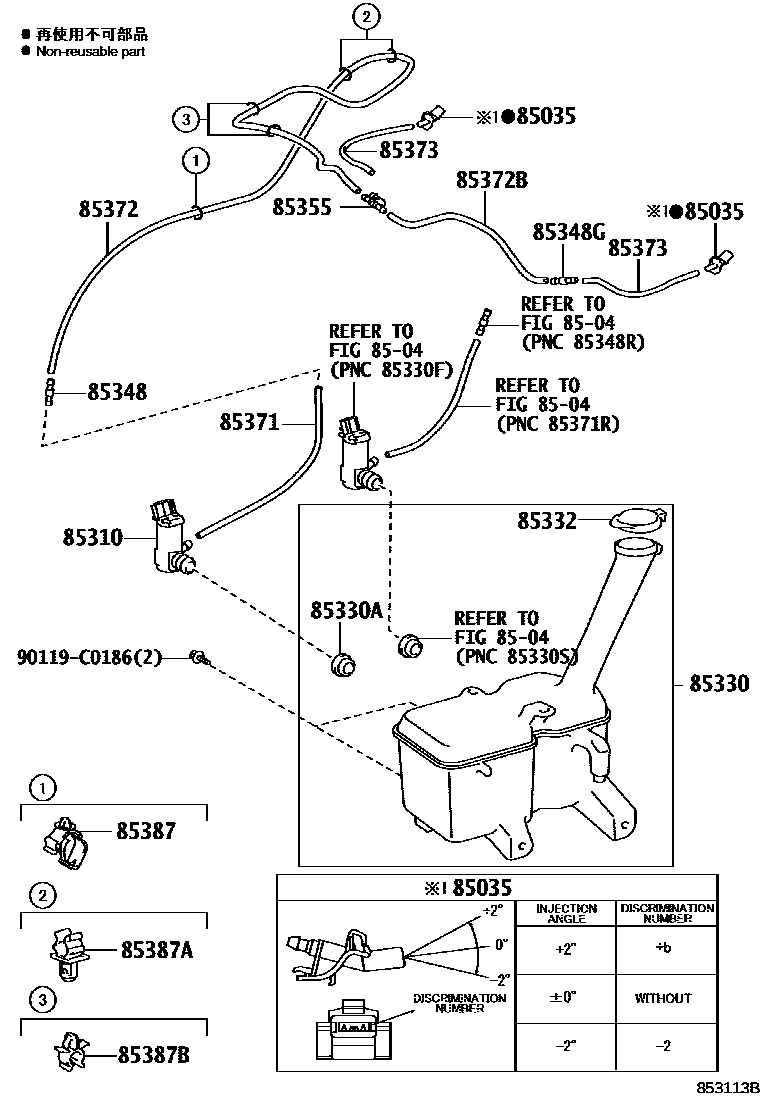

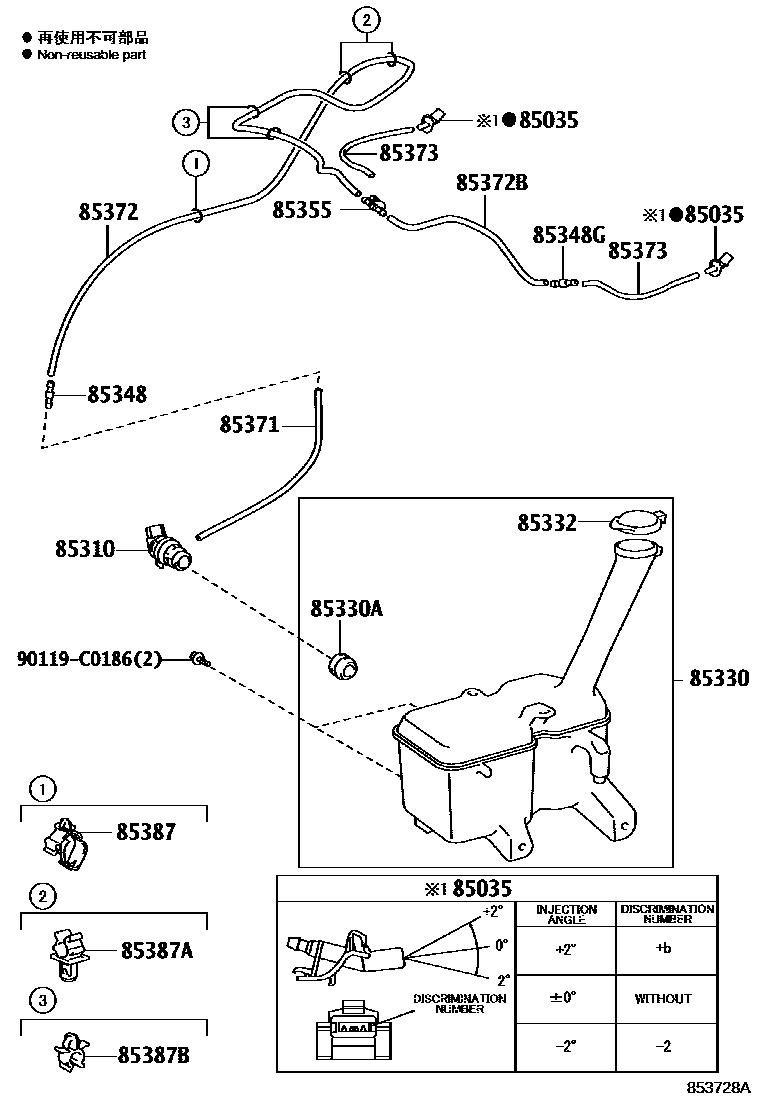

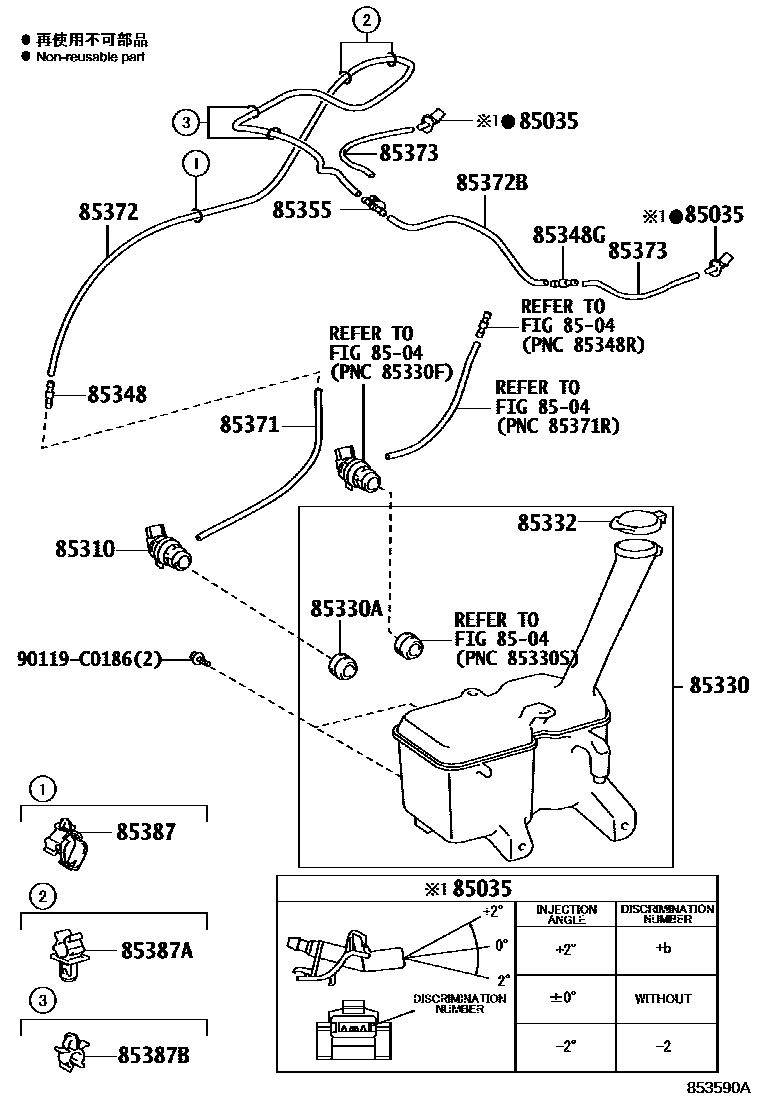

Toyota YARIS EPC diagram 8503, 挡风玻璃清洗器, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12400 · 85381-30220 · 85381-30230 |
| 85310 | Windshield washer motor and pump assembly | 85330-0D130 · 85330-71020 |
| 85330 | Windshield washer fluid tank assembly | 85315-0D240 · 85315-0D360 · 85315-0D370 |
| 85330A | Windshield washer fluid tank bushing | 85336-60300 · 90068-32006 |
| 85332 | Windshield washer fluid tank cap | 85316-0D200 |
| 85348 | Windshield washer hose connector No. 1 | 85375-0E140 |
| 85348G | Windshield washer hose connector No. 2 | 85375-0E140 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85371 | Windshield washer hose (from motor to connector) | 90068-33136 · 90068-33189 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-59116 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-59106 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33192 |
| 85387 | Clip No. 1 (for windshield washer) | 82711-0D110 · 82711-3F230 |
| 85387A | Cleaner clip No. 2 | 85371-0D070 · 85371-52110 |
| 85387B | No. 3 cleaner clip | 90469-07011 · 90469-C0015 |
