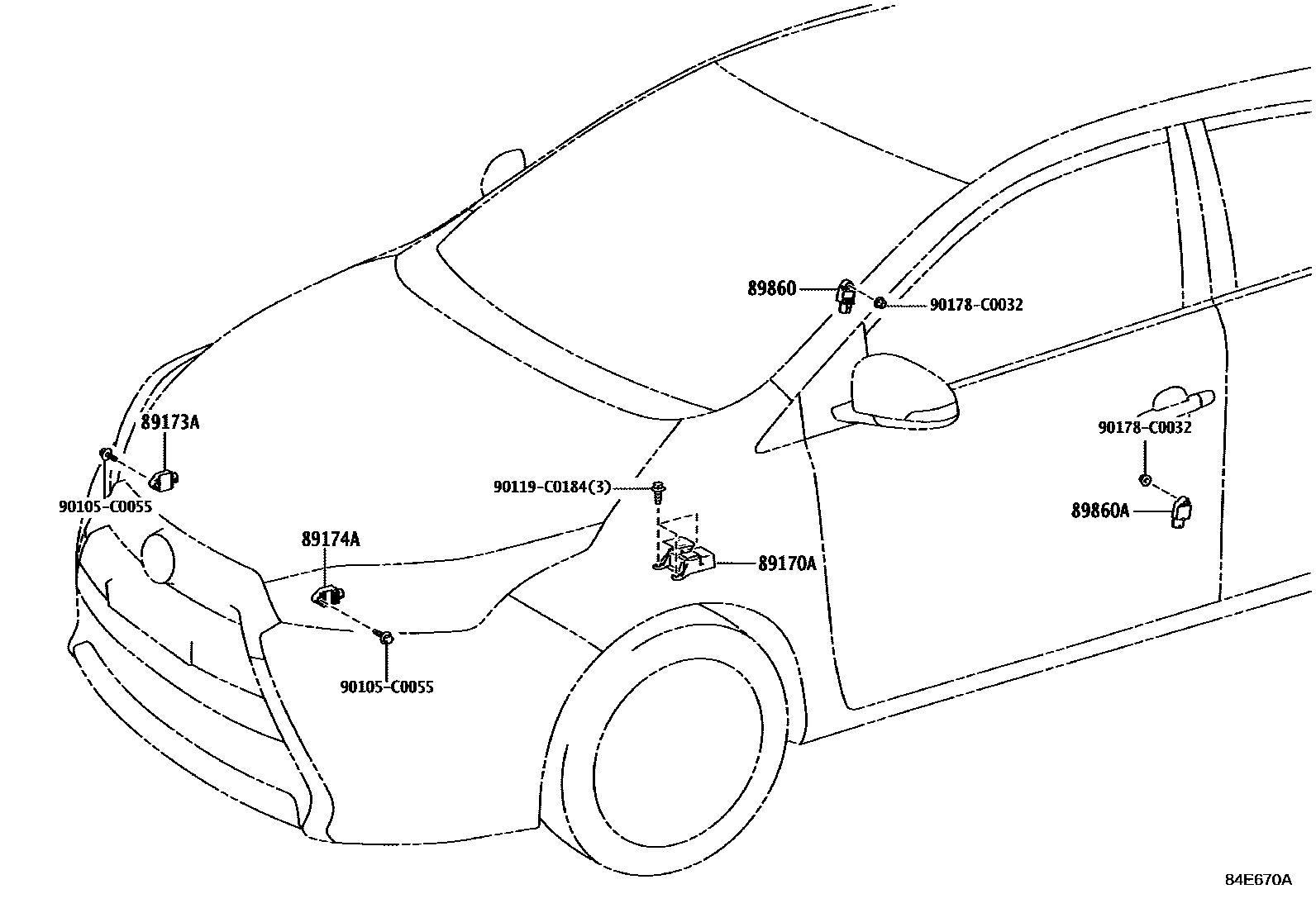

Toyota YARIS 空气囊 — Figure 8421
Toyota YARIS EPC diagram 8421, 空气囊, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-0D630 · 89170-0D640 · 89170-0DA50 · 89170-0DA60 · 89170-0DF00 · 89170-0DF10 |
| 89173A | Right front air bag sensor | 89173-09895 · 89173-09B40 |
| 89174A | Left front air bag sensor | 89173-09895 · 89173-09B40 |
| 89860 | Right side airbag sensor assembly | 89831-02240 · 89831-0D030 |
| 89860A | Left side air bag sensor assembly | 89831-02240 · 89831-0D030 |
