Toyota YARIS 遥控门锁 — Figure 8420
Toyota YARIS EPC diagram 8420, 遥控门锁, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

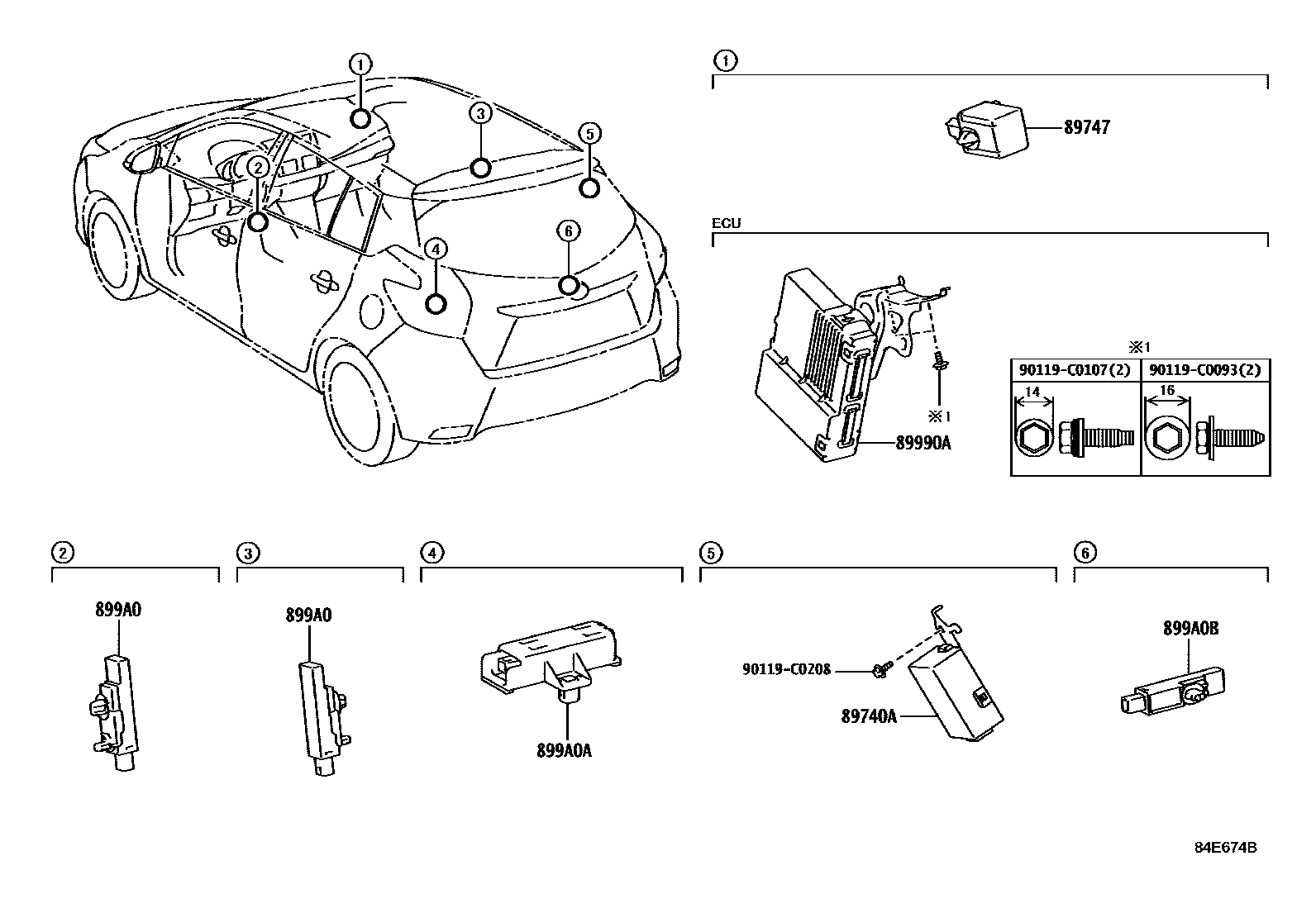

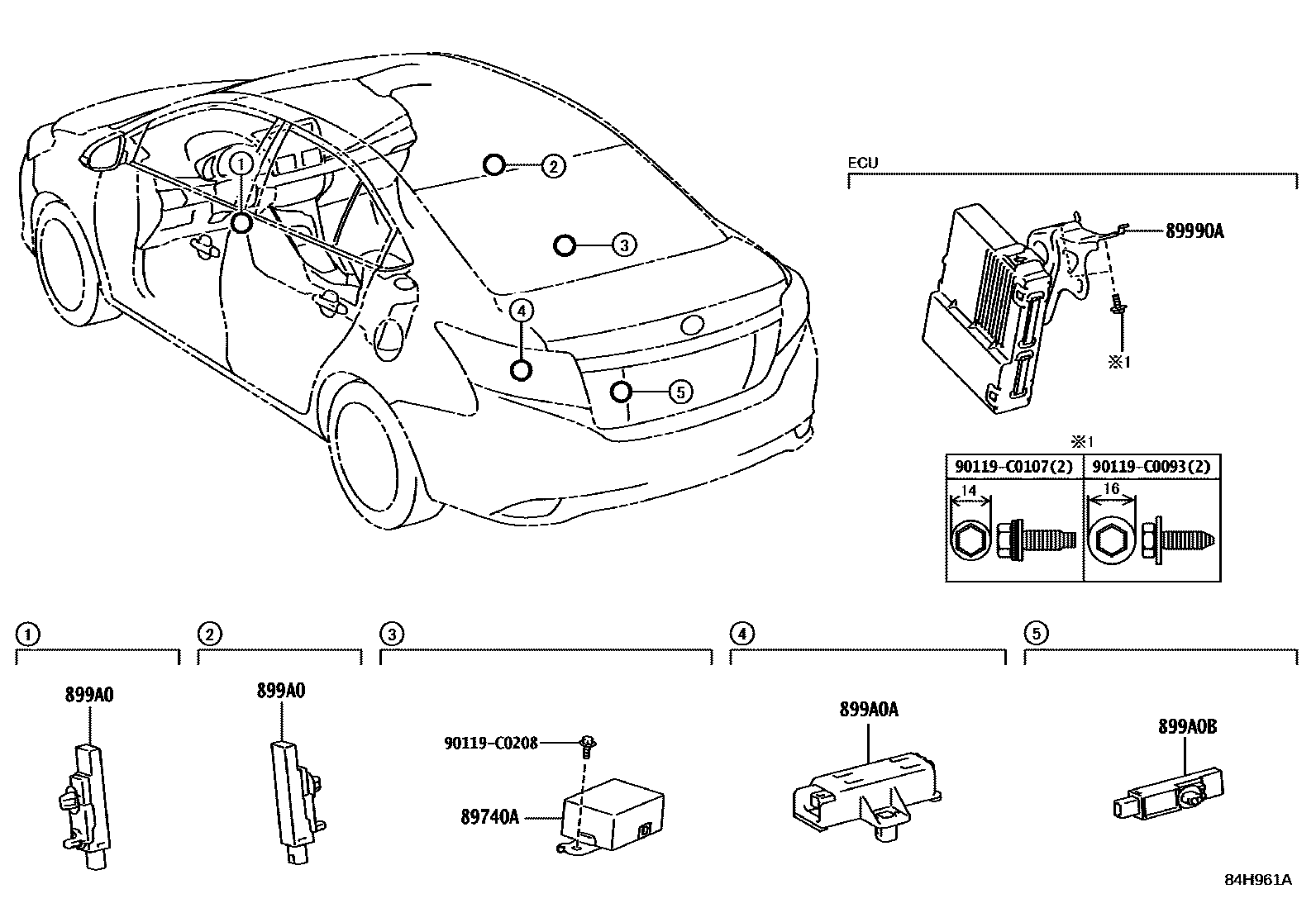

| 89740A | Smart door control receiver assembly | 89740-0D160 · 89740-0D161 · 89740-0D190 · 89740-0D191 |

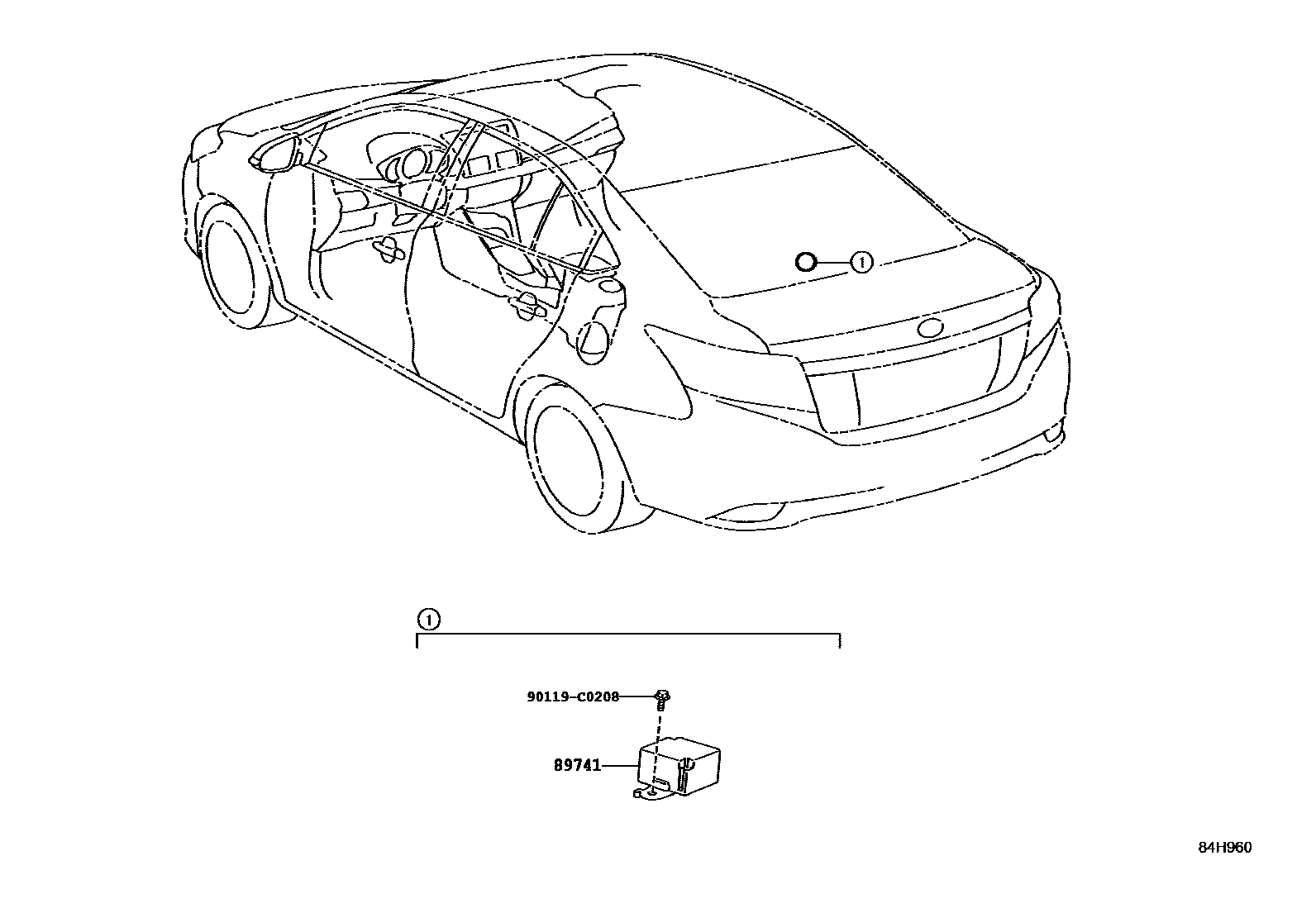

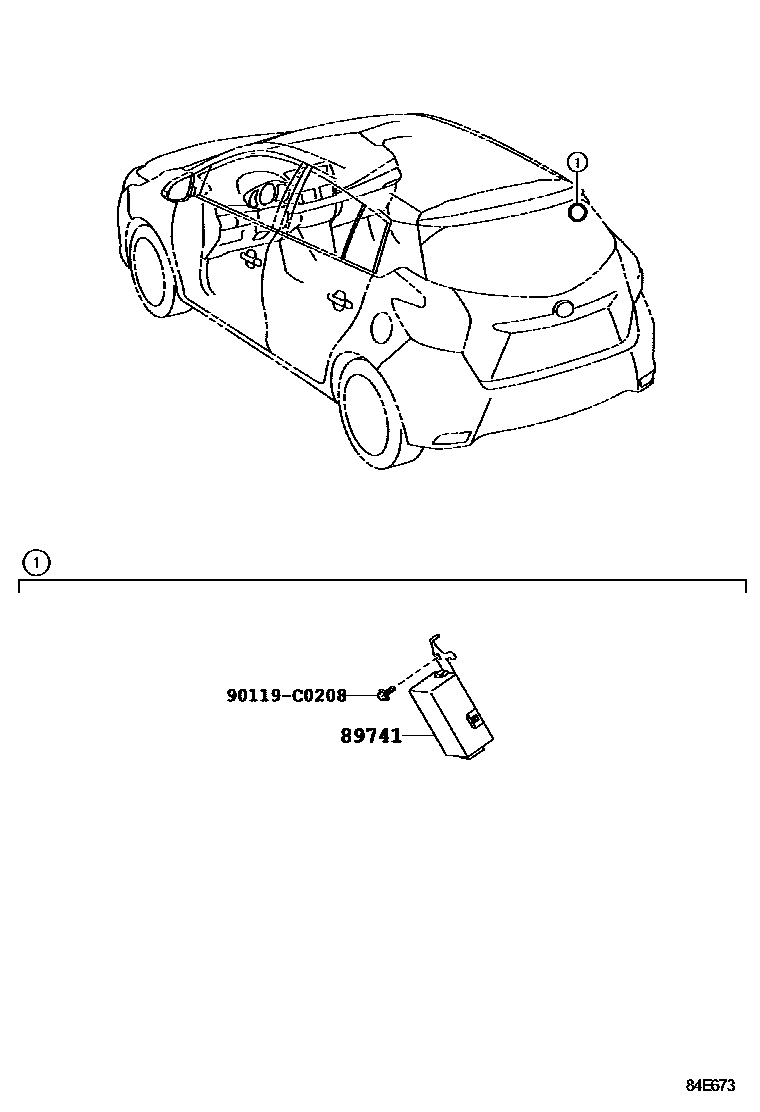

| 89741 | door control receiver | 89741-0D180 · 89741-0D181 · 89741-0D191 |
| 89747 | Remote door lock buzzer | 89747-0E020 |
| 89990A | Smart key ECU assembly | 89990-0D120 · 89990-0D121 · 89990-0D200 · 89990-0D210 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-0D150 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-0D160 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-0D180 · 899A0-0F010 |
