Toyota YARIS ABS 和 VSC — Figure 8414

Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 2 images and 2 PNC and OE references.

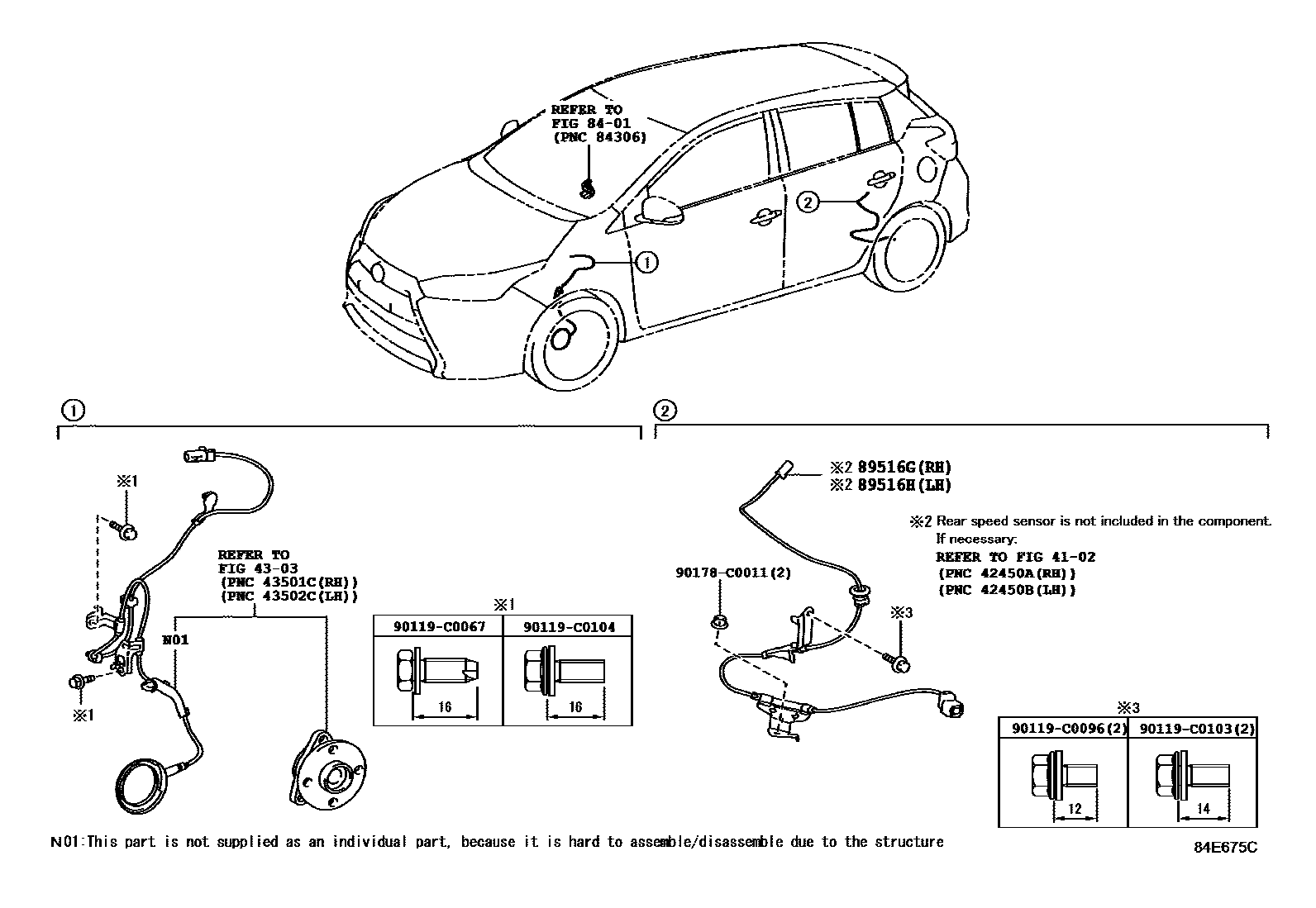

Toyota YARIS ABS 和 VSC EPC diagram — 84E675C
ABS 和 VSC — 84E675C (201312 – 999999)

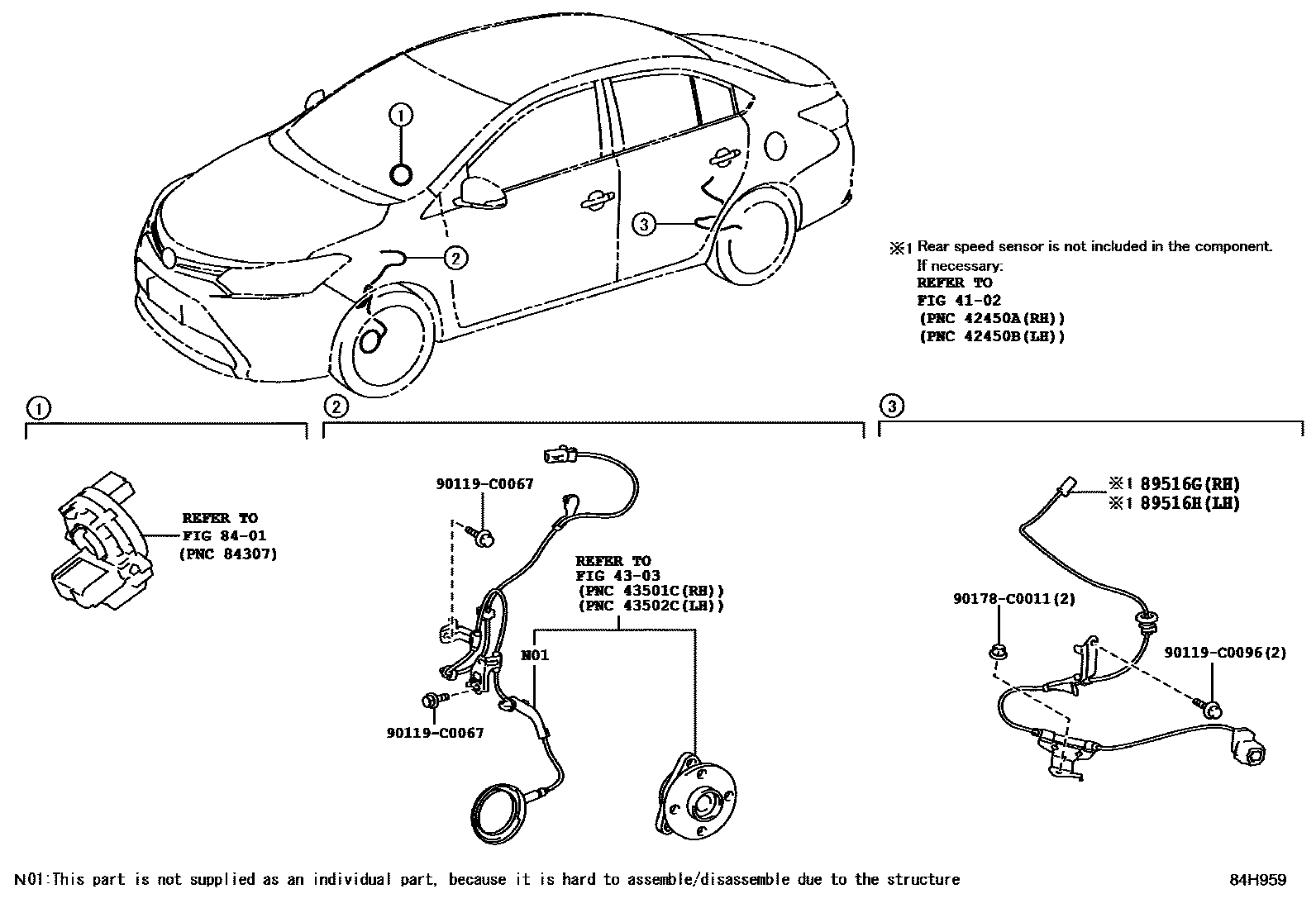

Toyota YARIS ABS 和 VSC EPC diagram — 84H959
ABS 和 VSC — 84H959 (201703 – 999999)

PNC and OE references

PNCPart nameOE numbers
89516GRight rear No. 1 anti-skid control sensor wiring harness89516-0D210
89516HLeft rear No. 1 anti-skid control sensor wiring harness89516-0D220
