Toyota YARIS 电子燃油喷射系统 — Figure 8404

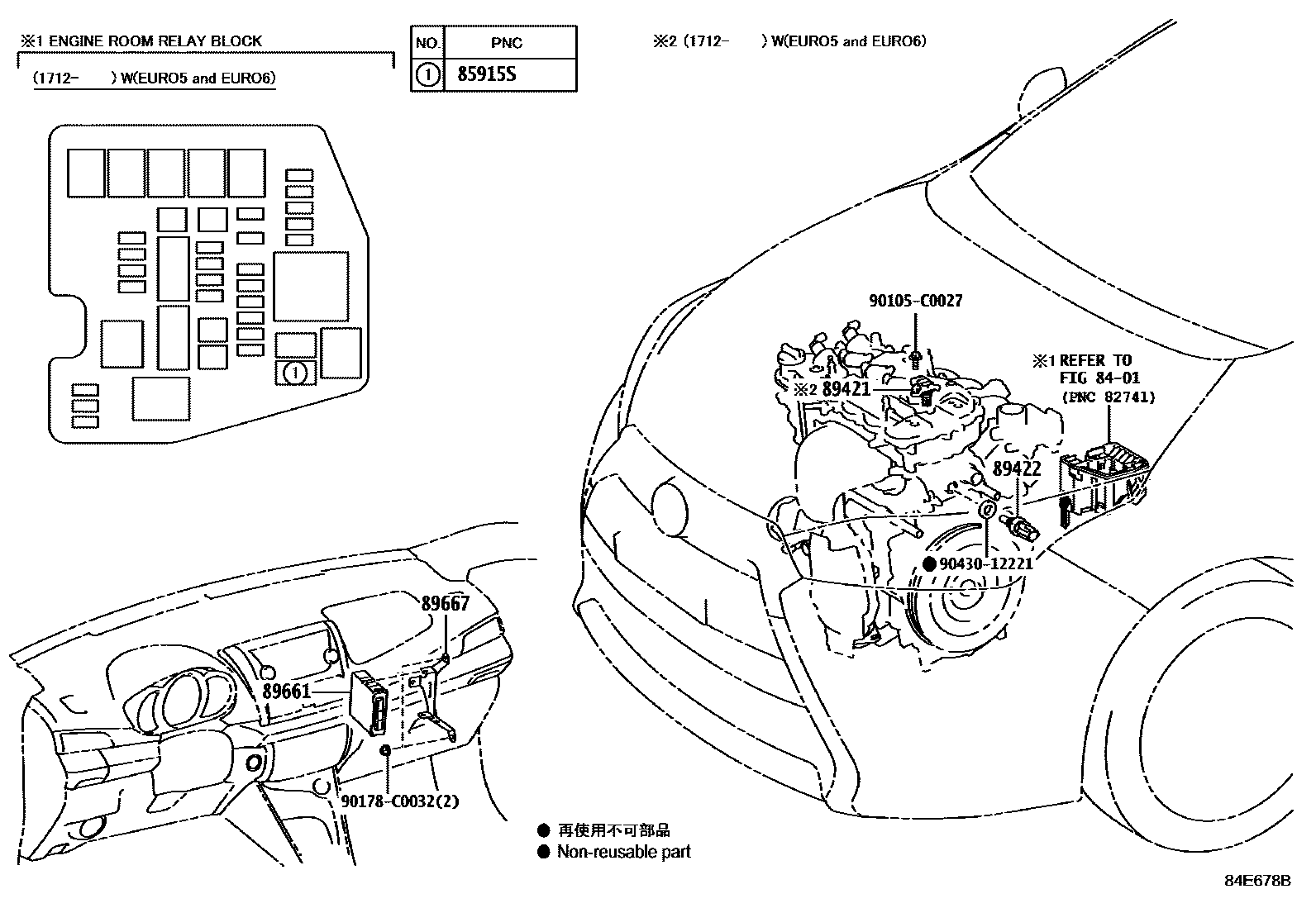

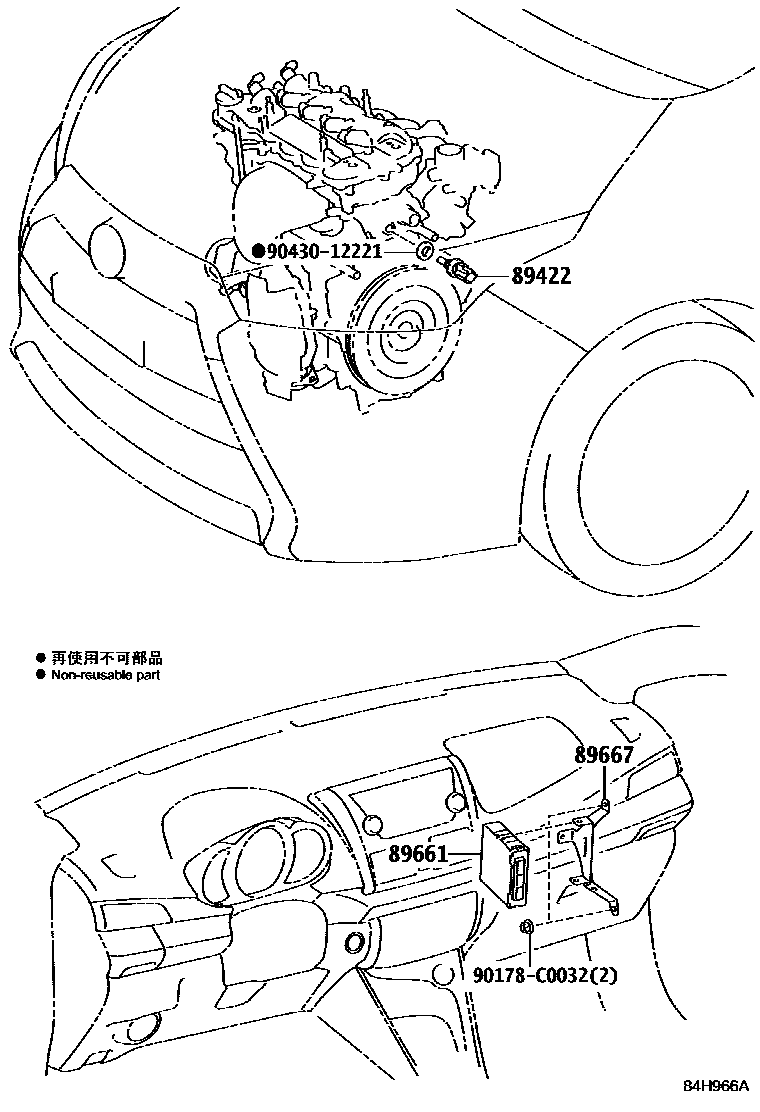

Toyota YARIS EPC diagram 8404, 电子燃油喷射系统, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85915S | Heater relay (for air-fuel ratio sensor) | 90987-02027 · 90987-T2005 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-47010 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-0D010 · 89422-33030 |
| 89661 | Engine control ECU | 89661-0DJ50 · 89661-0DJ60 · 89661-0DJ70 · 89661-0DJ80 · 89661-0DS00 · 89661-0DS10 · 89661-0DV90 · 89661-0DW00 · 89661-0DW10 · 89661-0DW20 · 89661-0U490 · 89661-0U500 · 89661-0UD70 |
| 89667 | Engine control ECU bracket | 89667-0D200 · 89667-0D360 |
