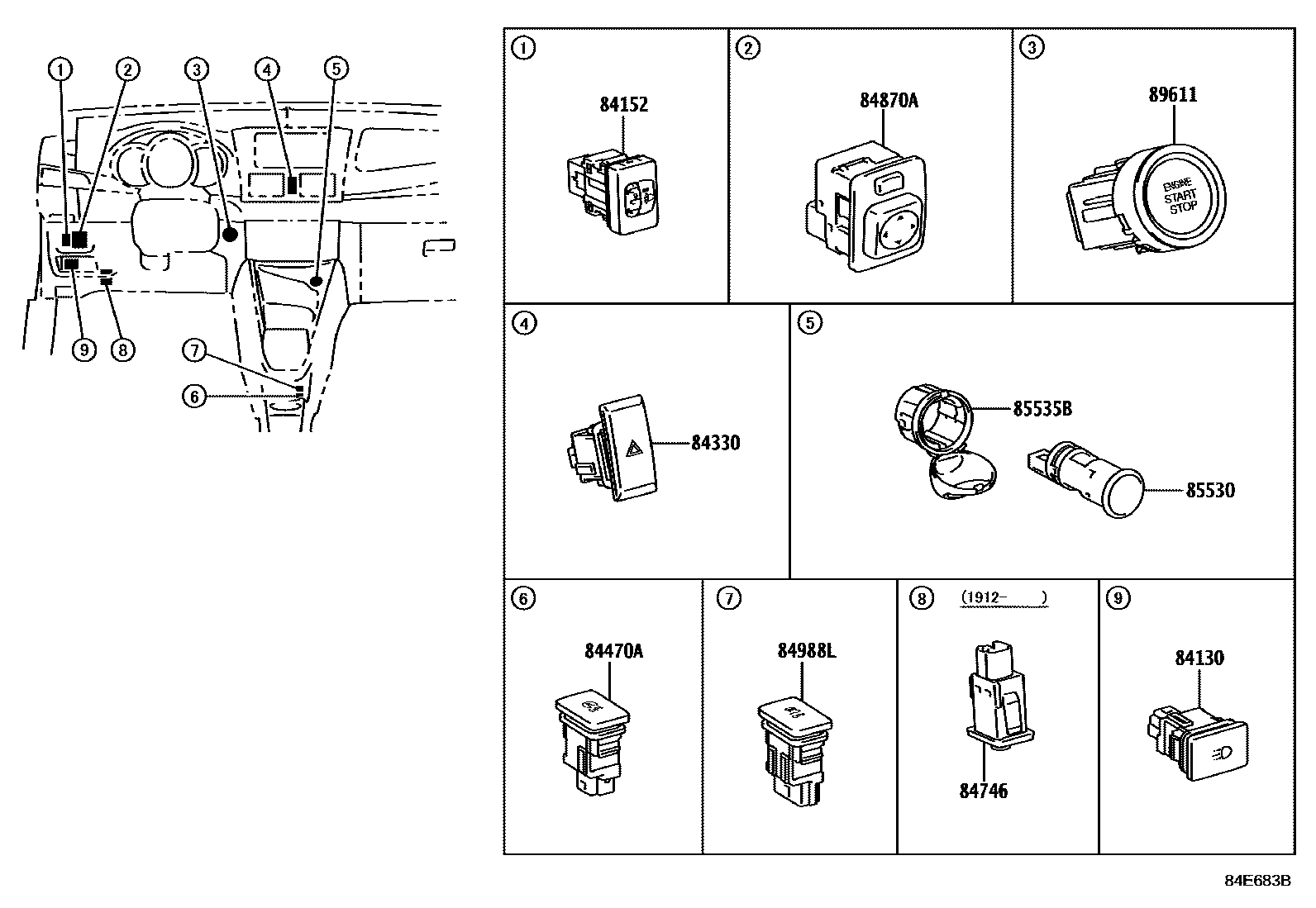

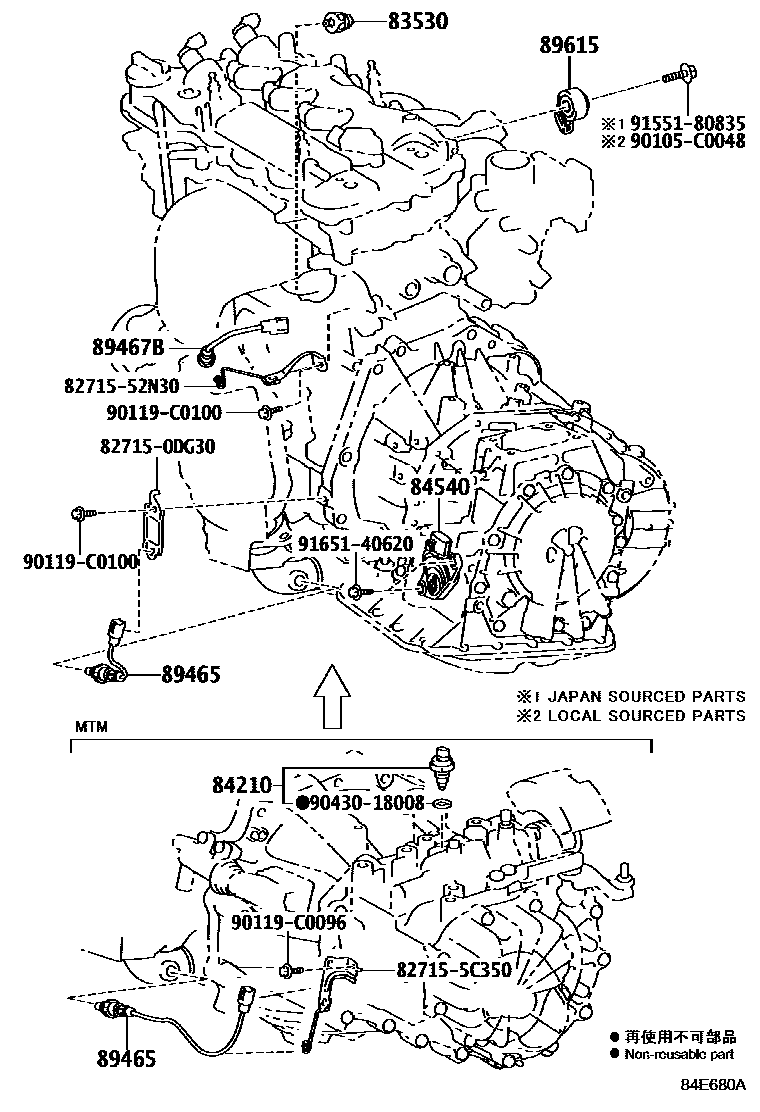

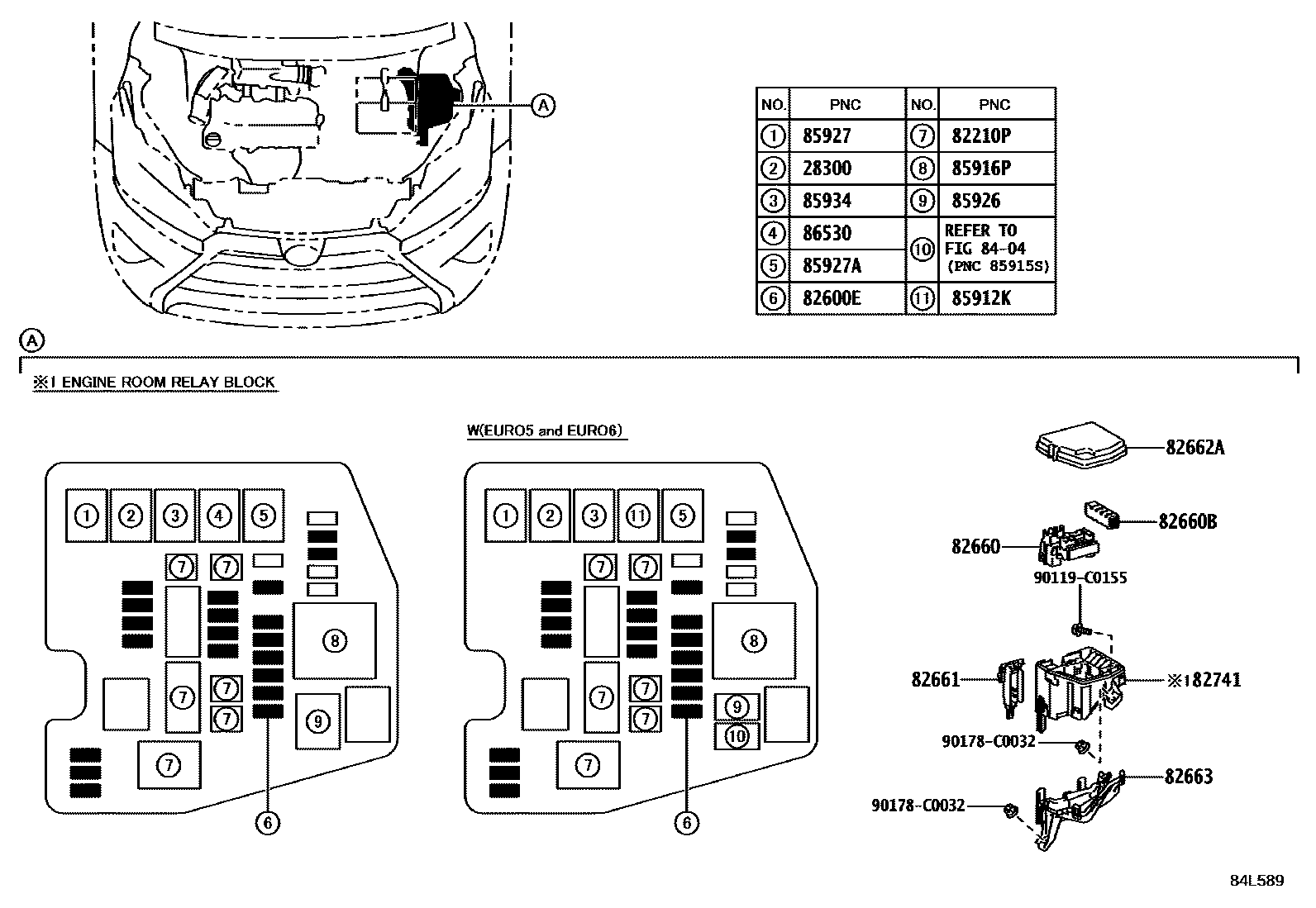

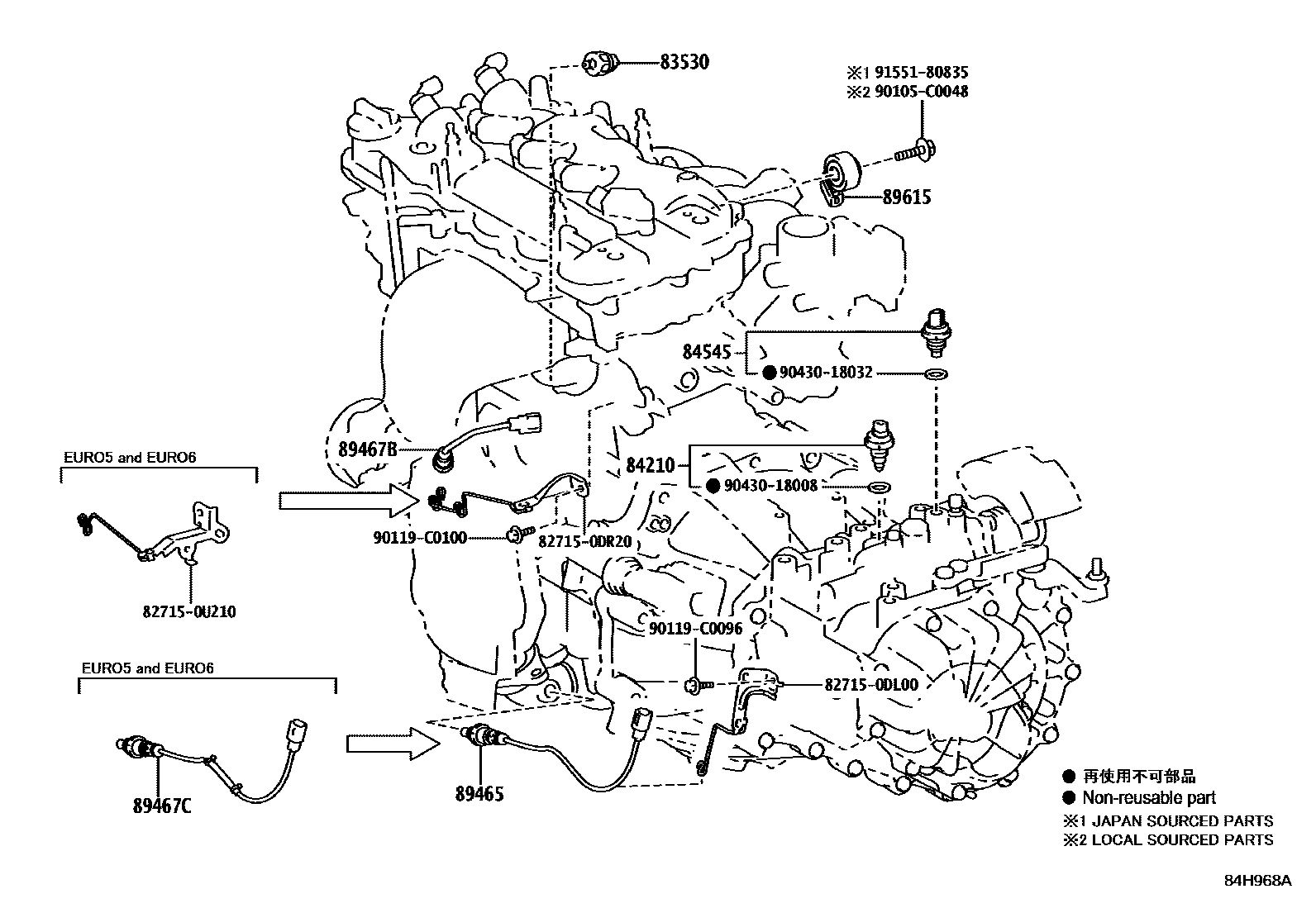

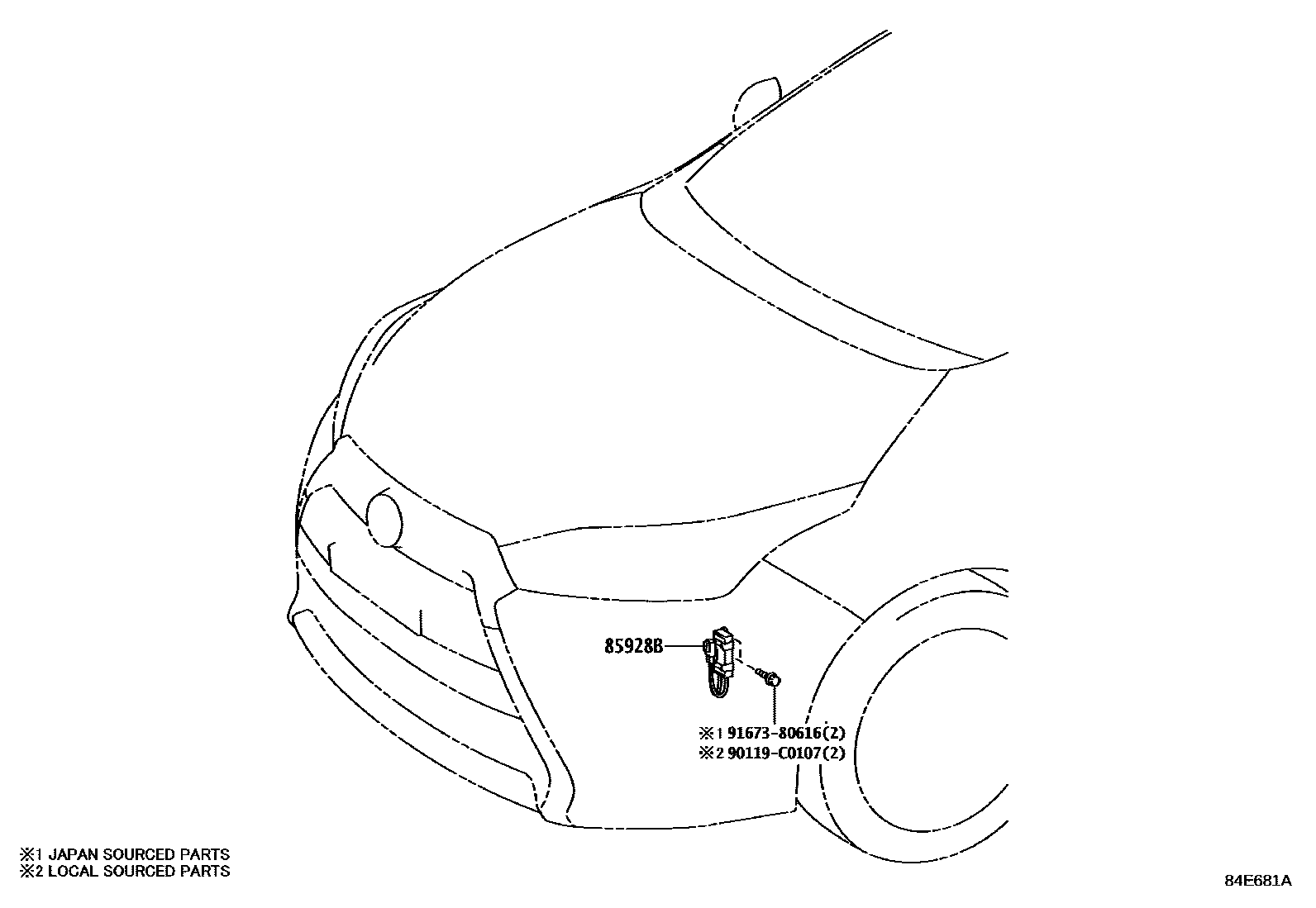

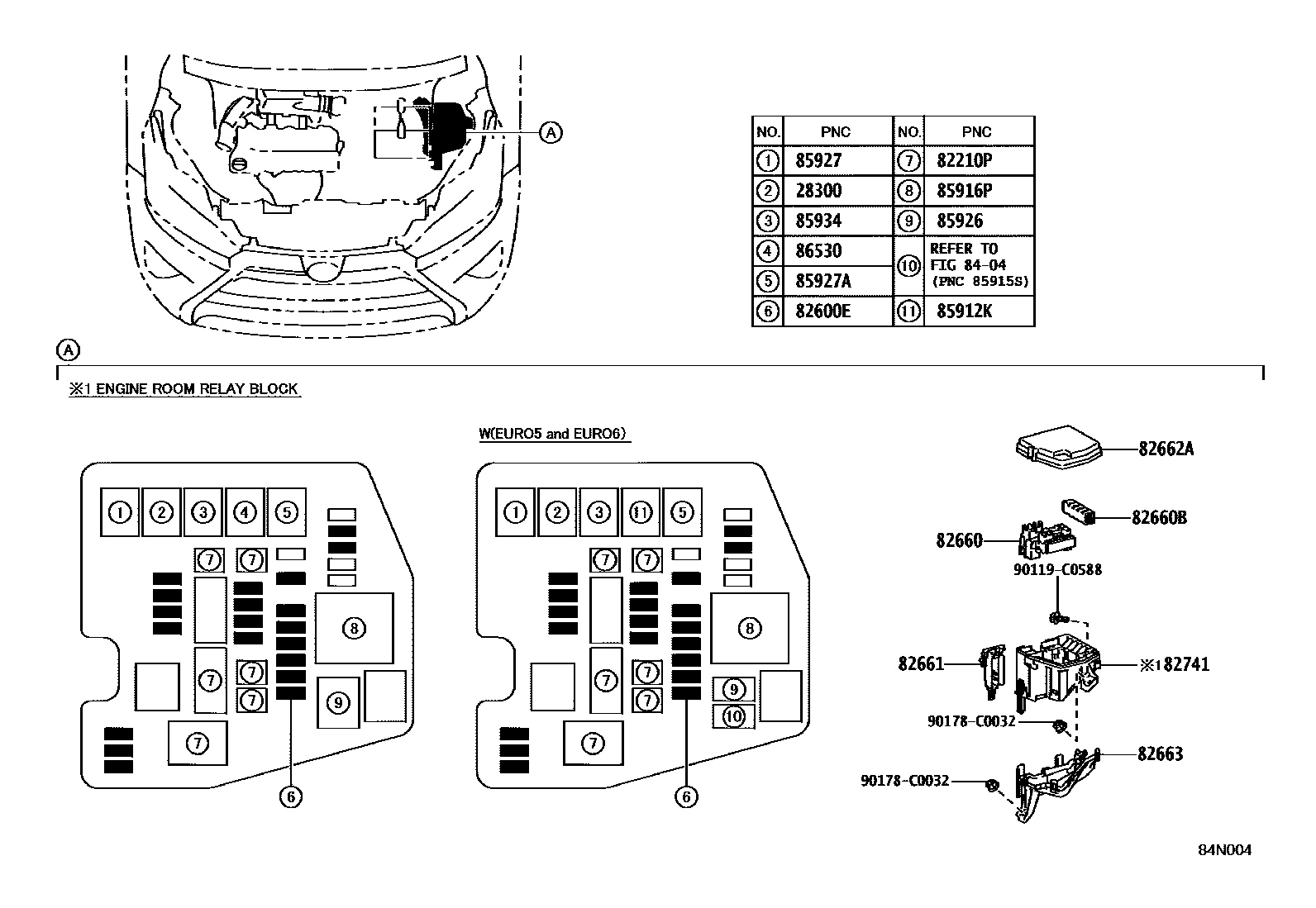

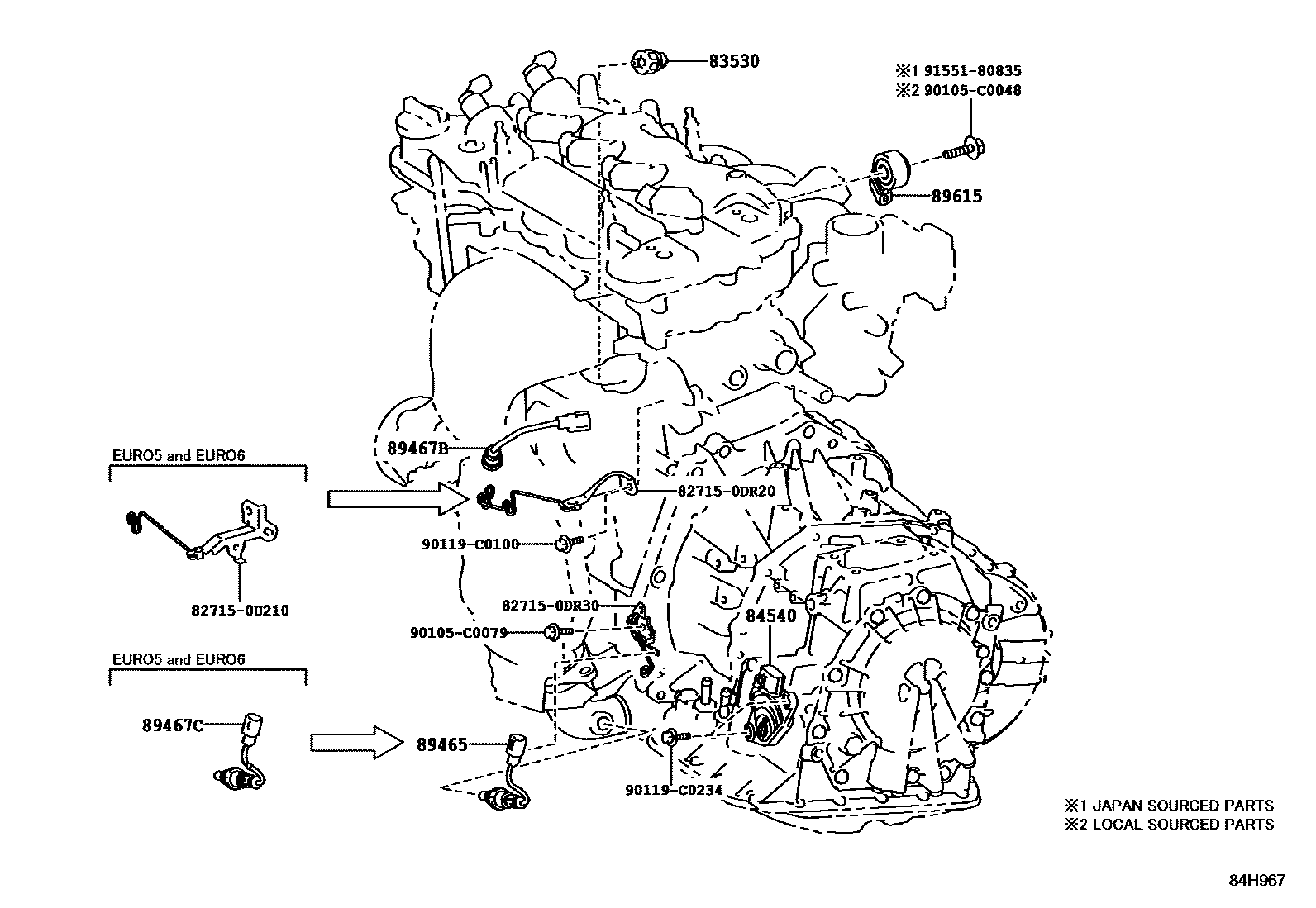

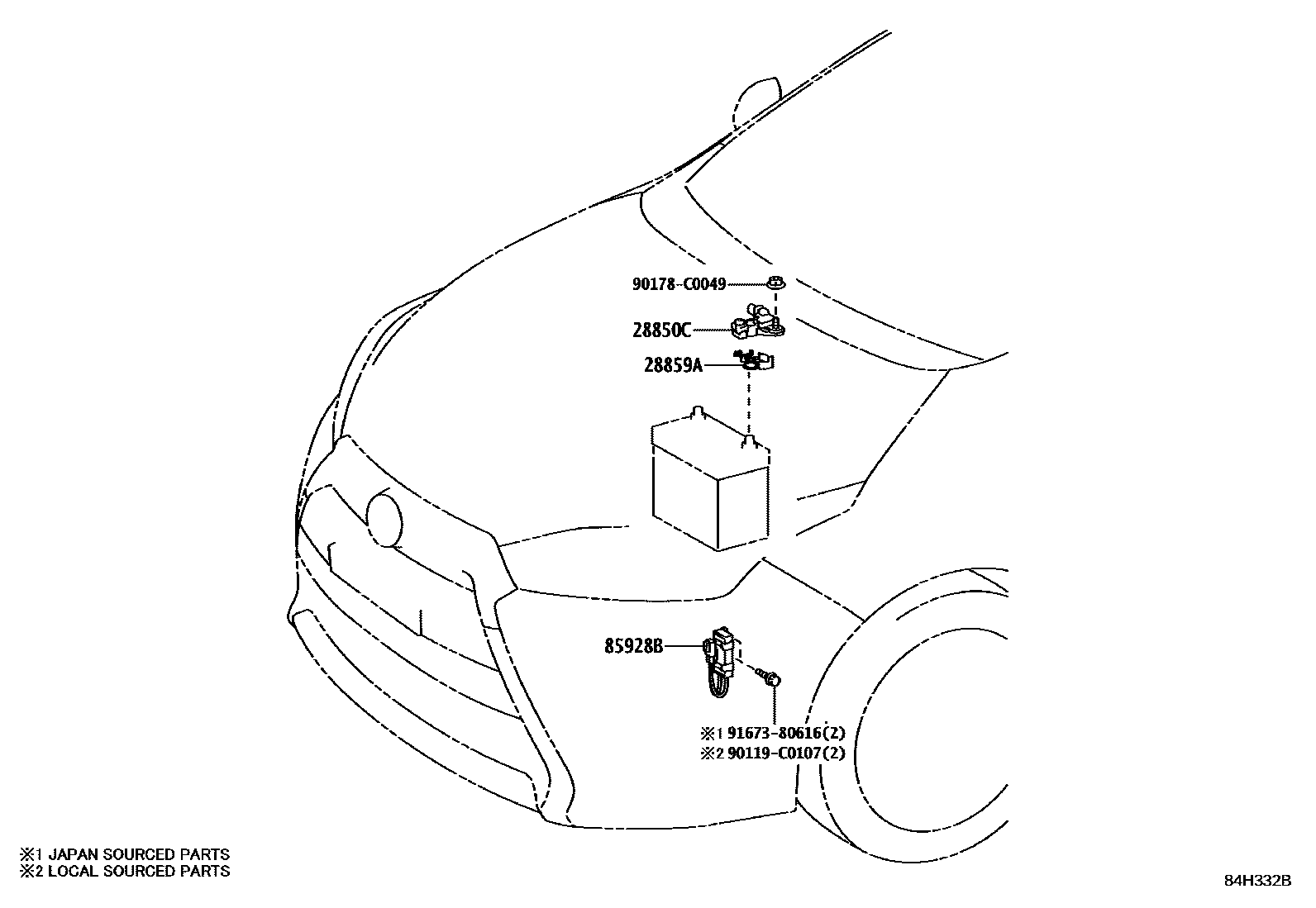

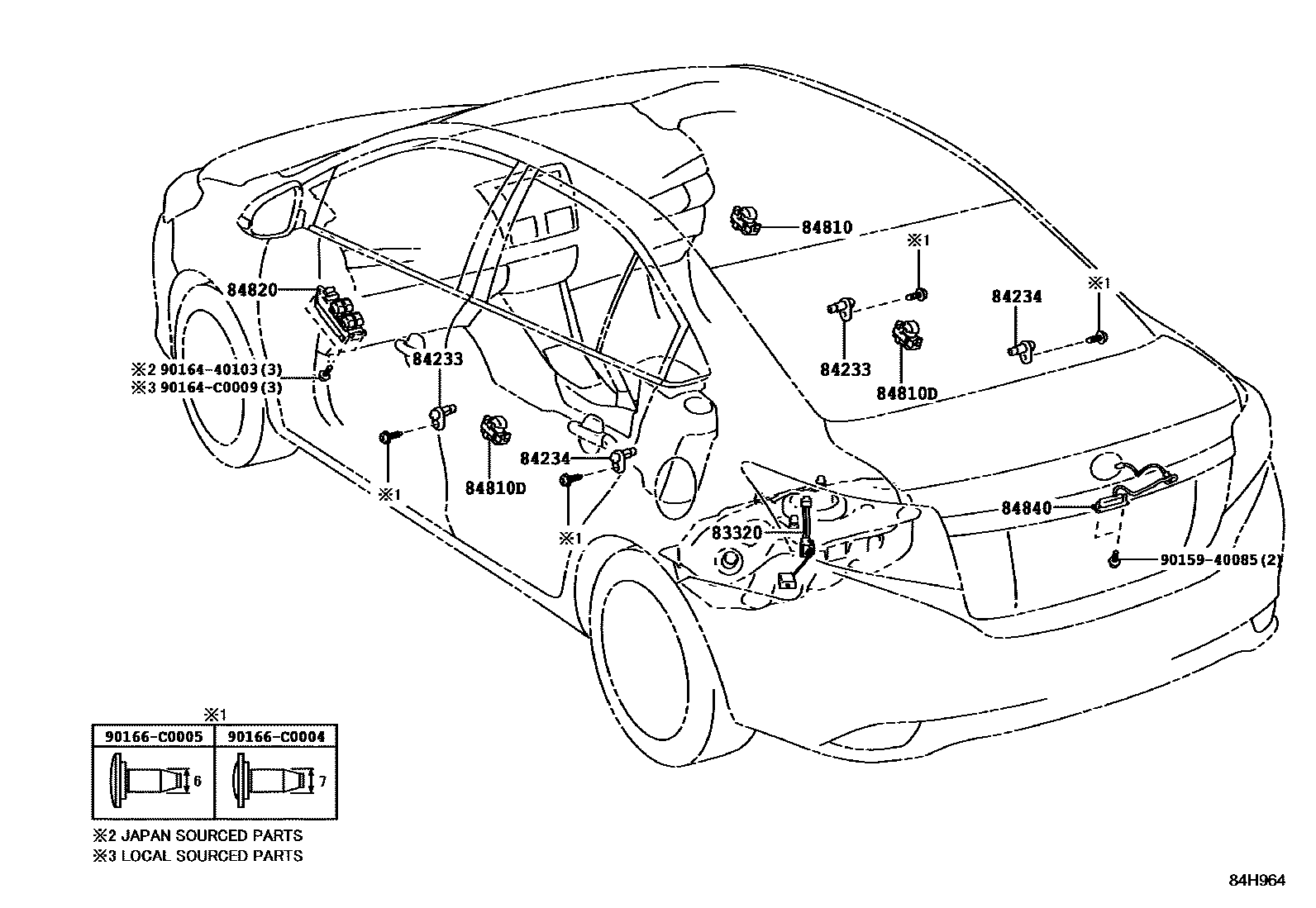

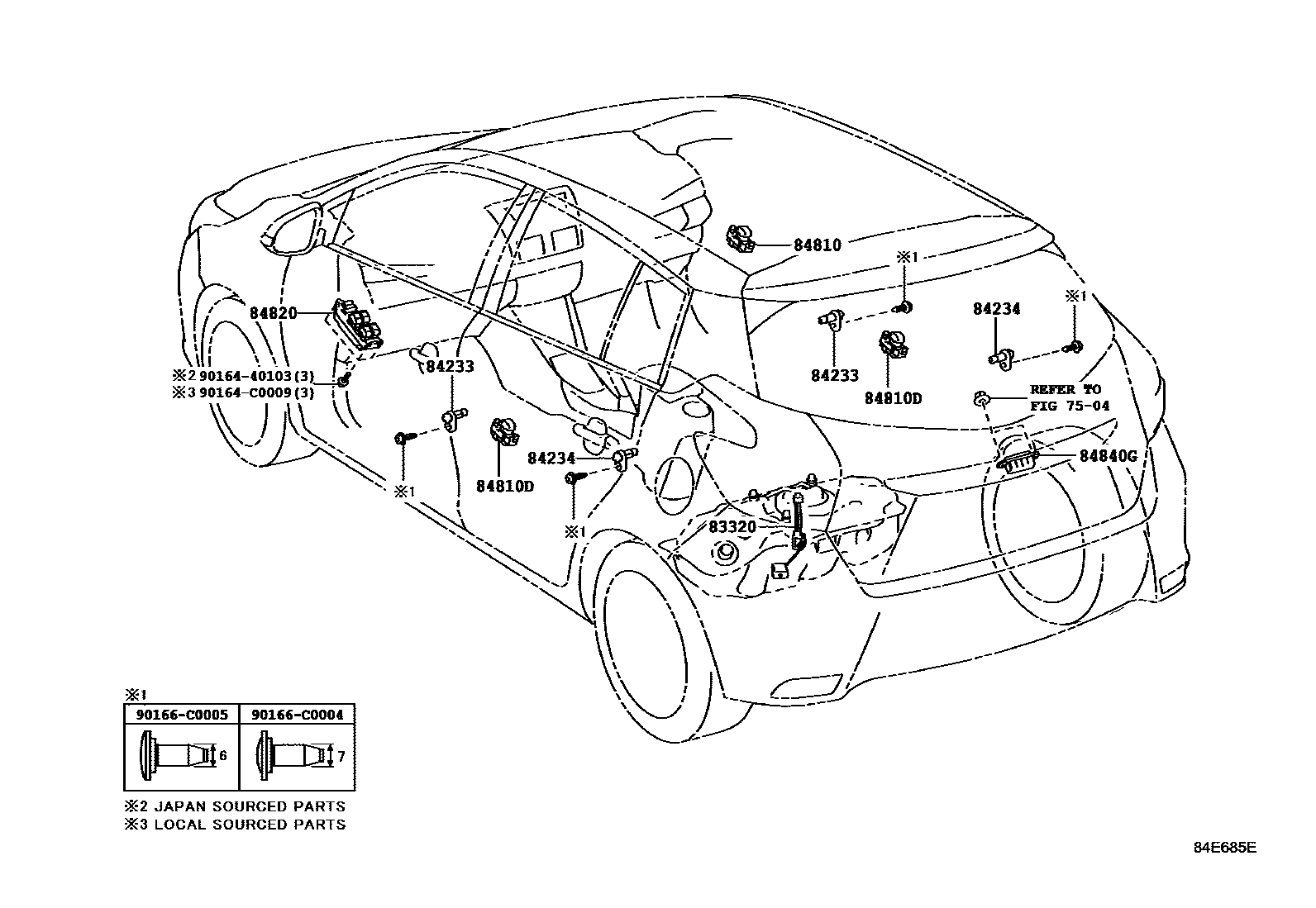

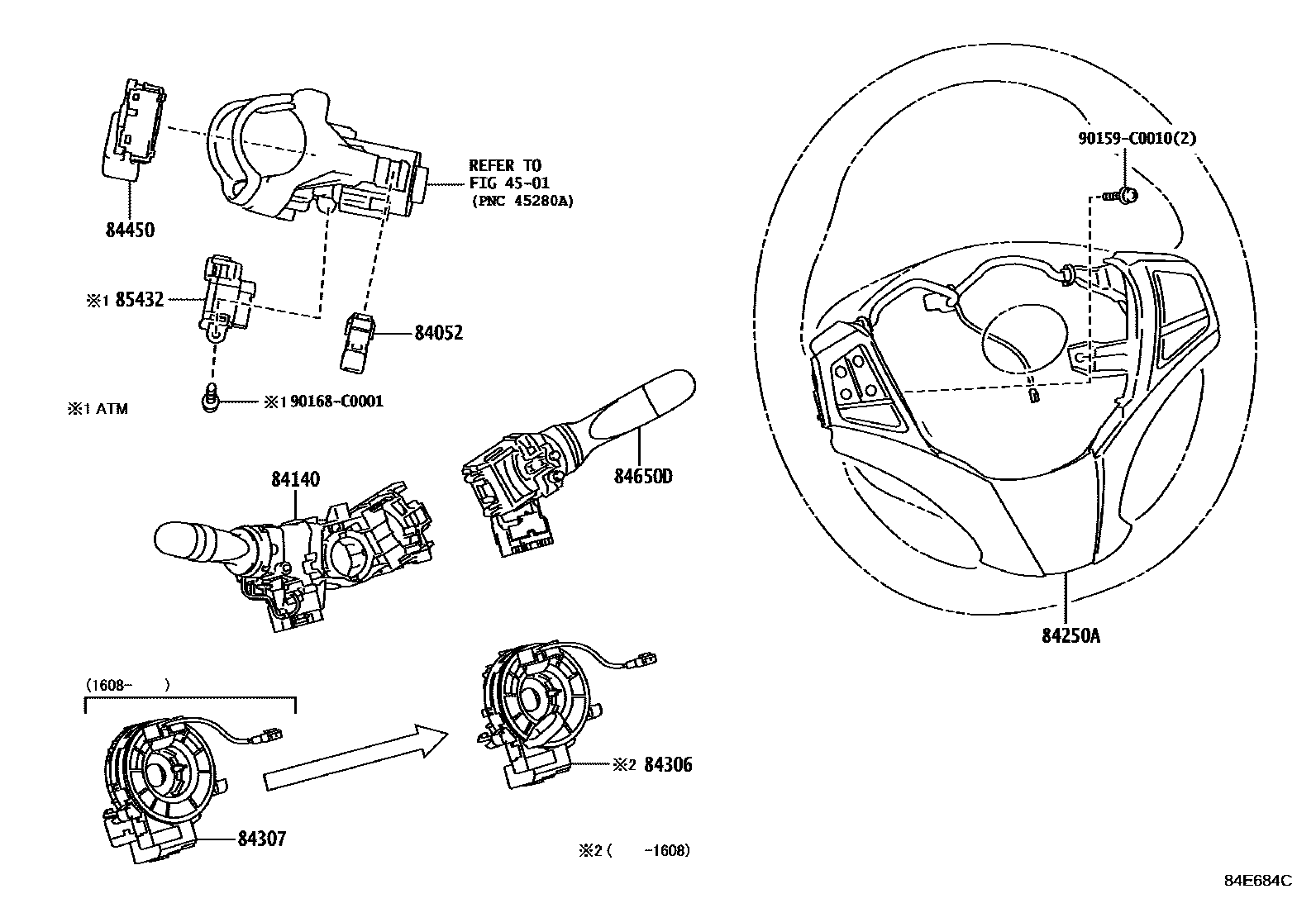

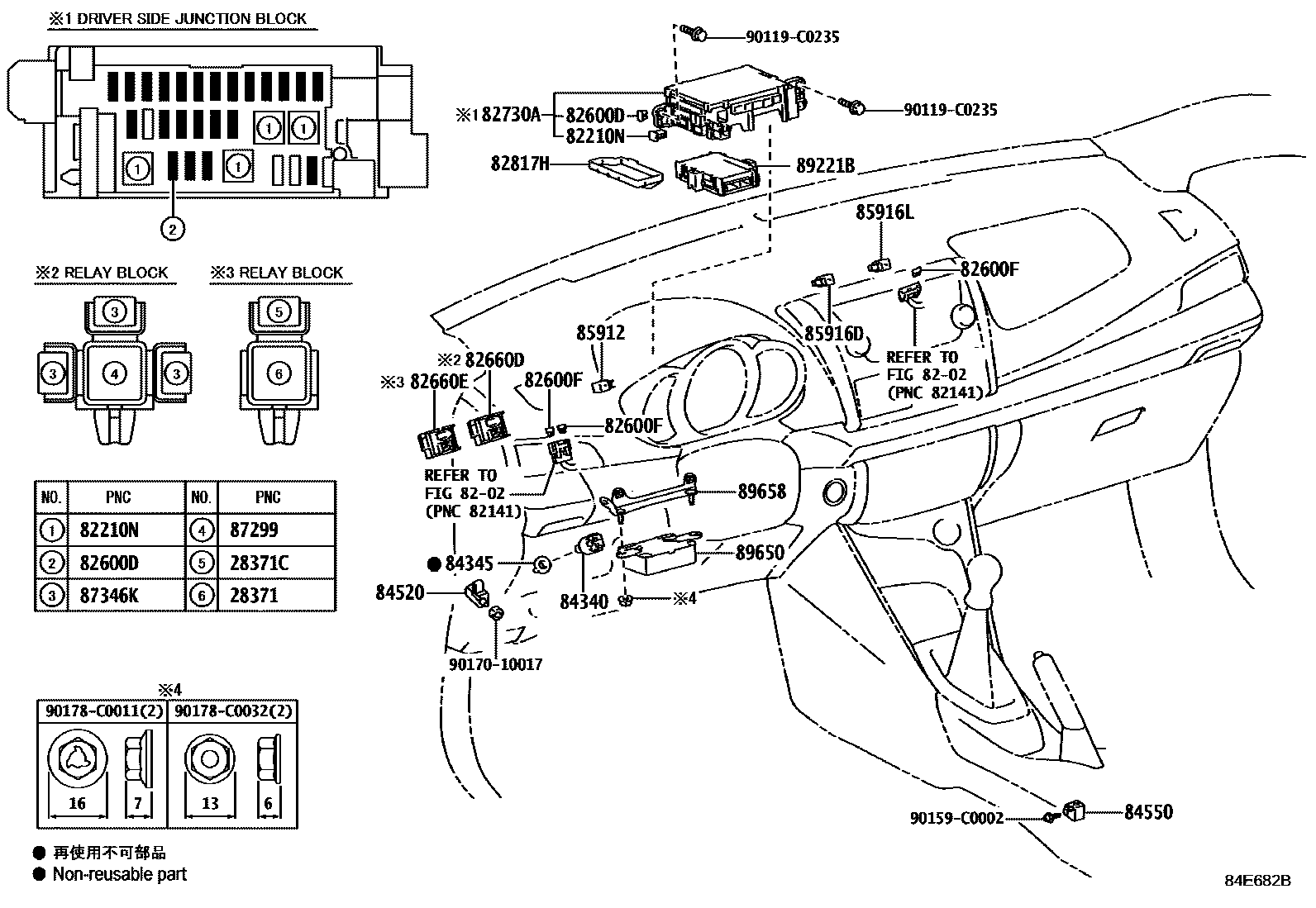

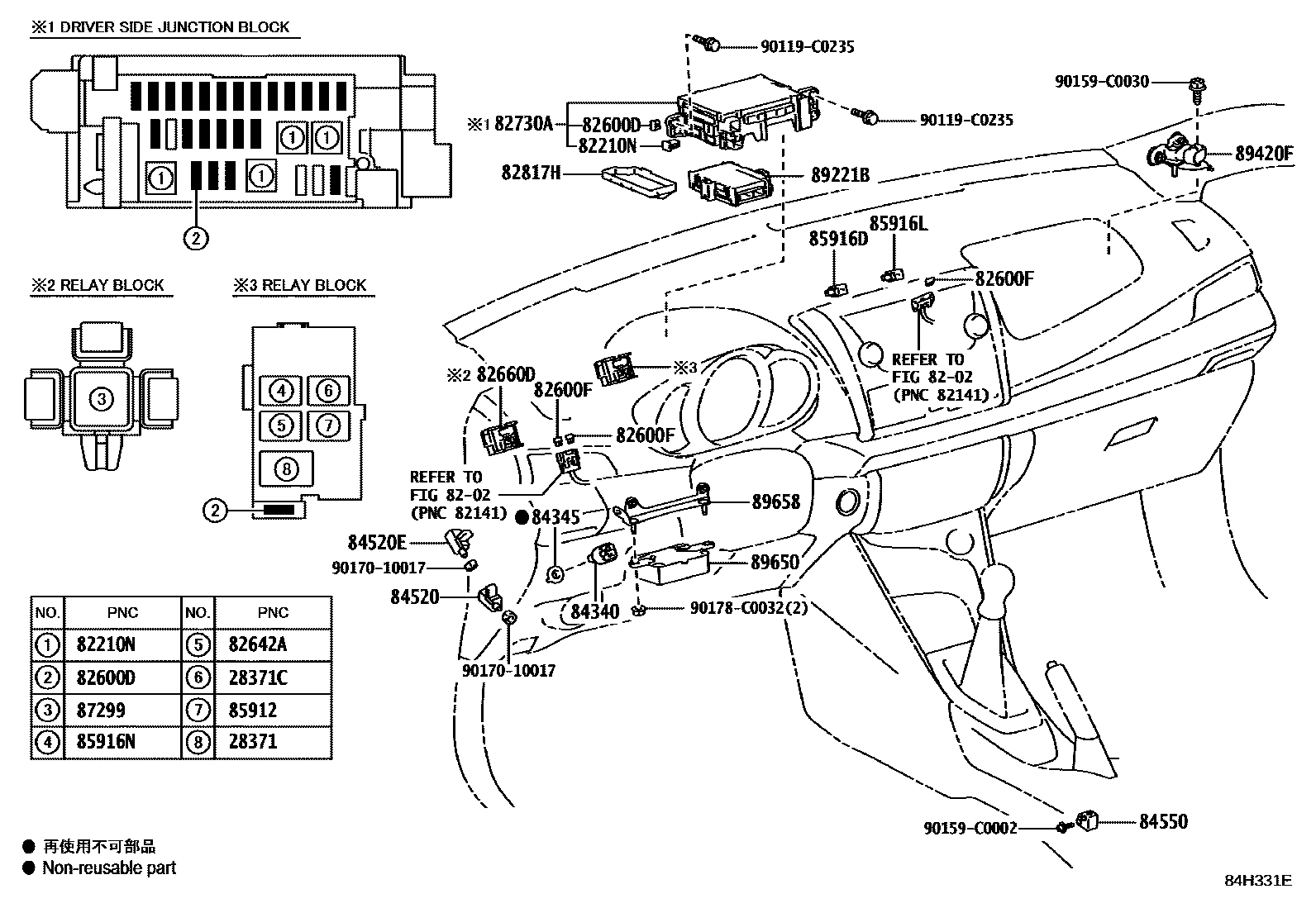

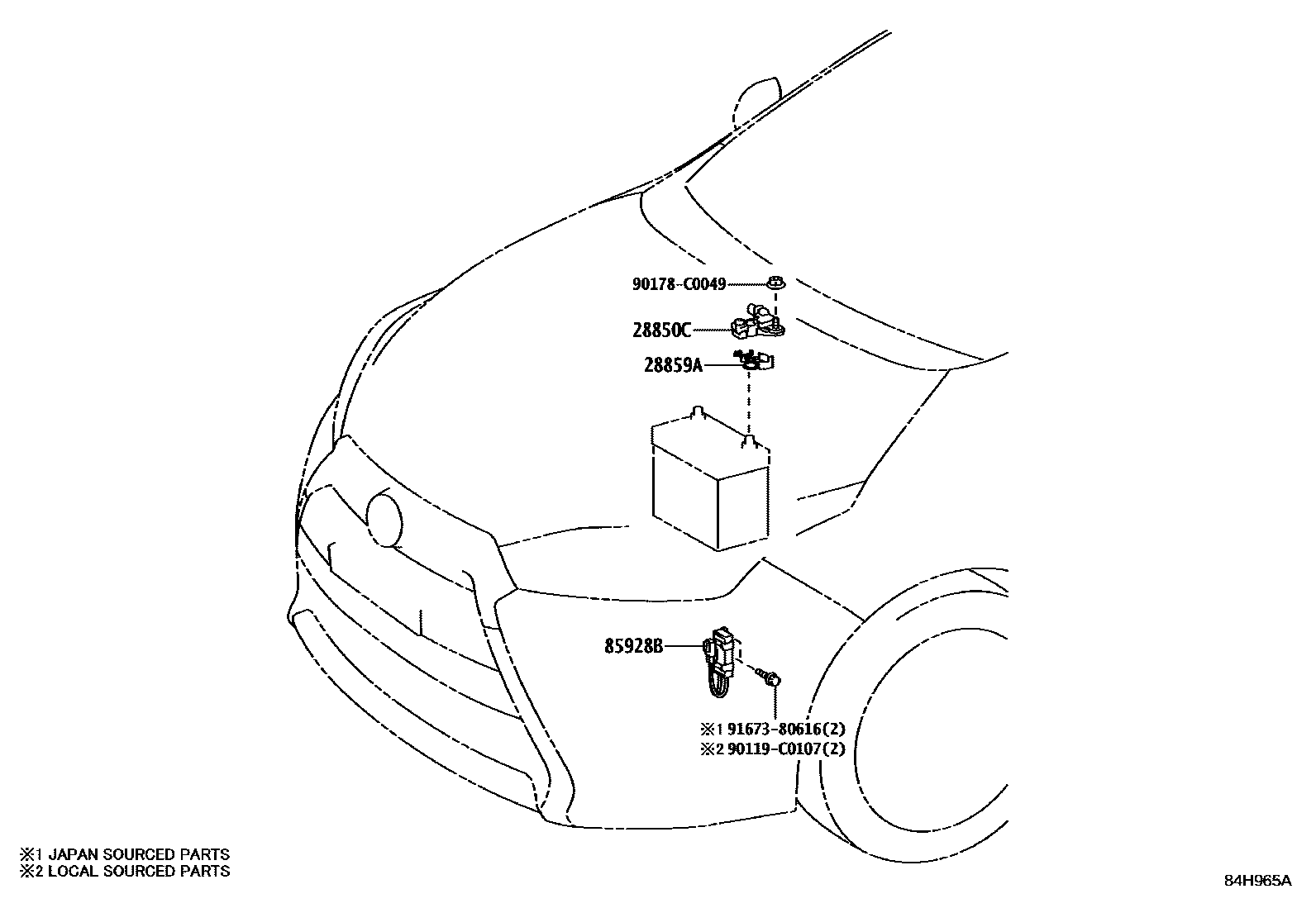

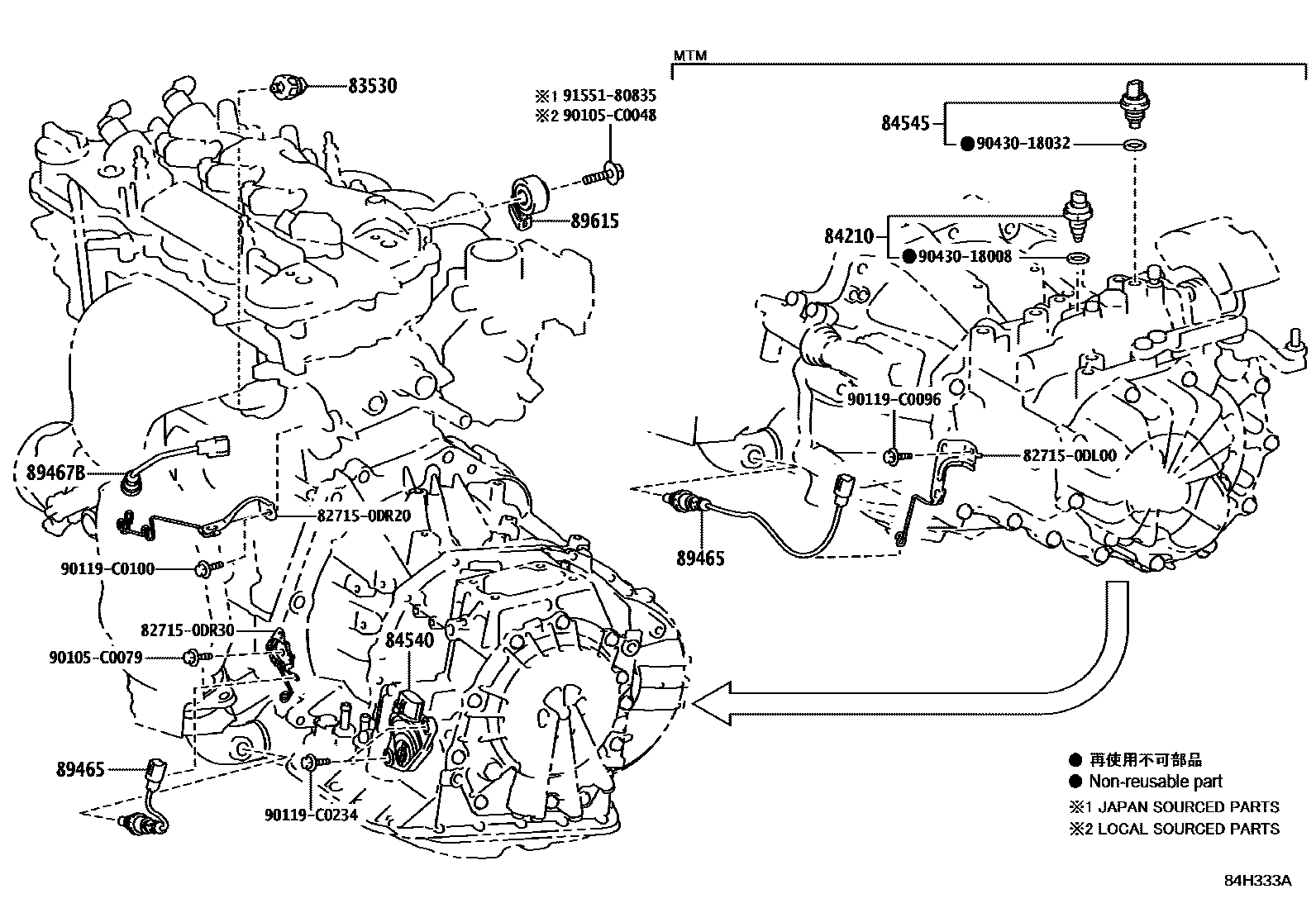

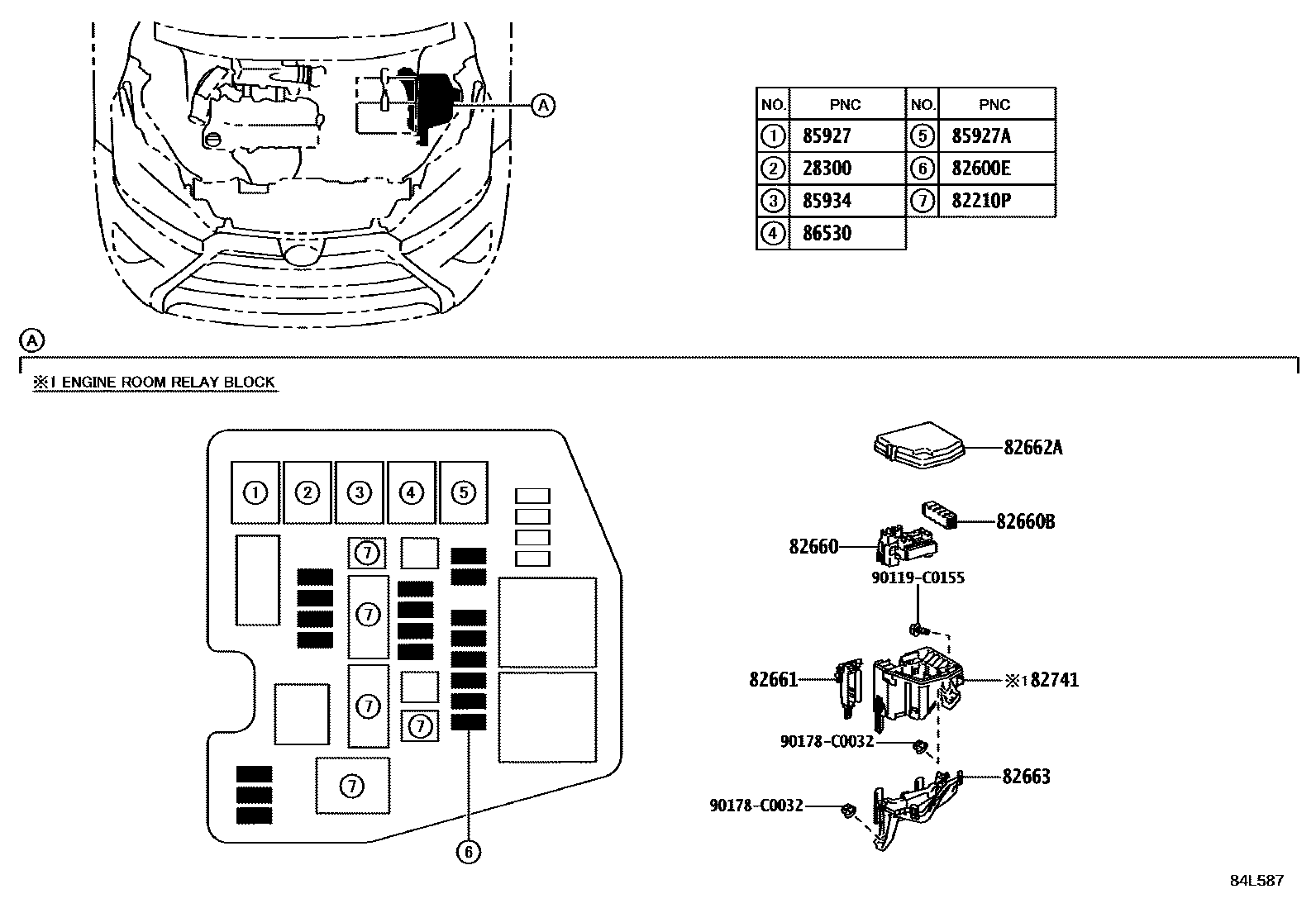

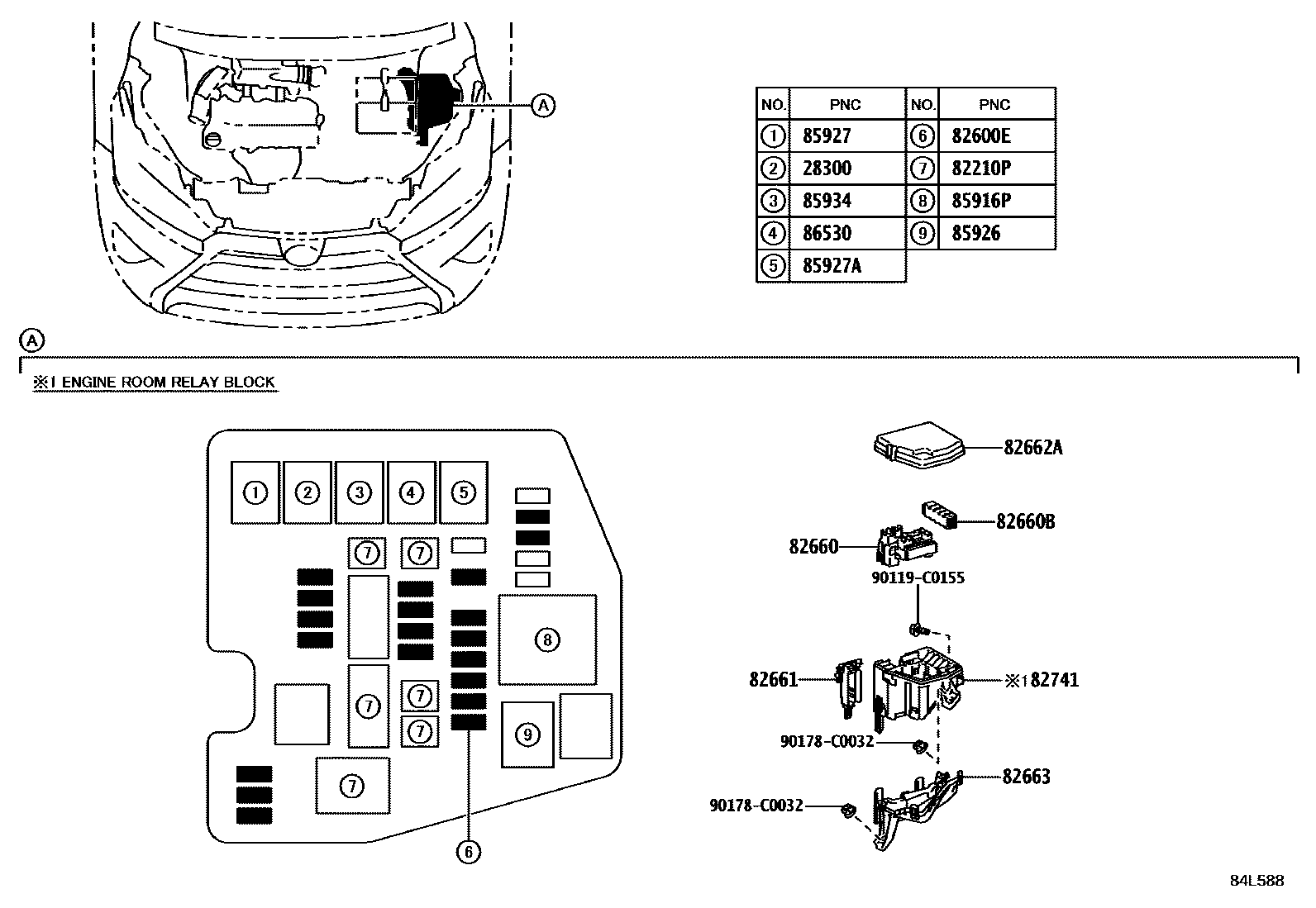

Toyota YARIS 开关和继电器和ECU — Figure 8401
Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 17 images and 77 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 · 28300-28010 |
| 28371 | No. 1 ignition relay | 90987-C2001 |
| 28371C | No. 2 ignition relay | 90987-T2005 |
| 28850C | Battery status sensor assembly | 28850-0V020 |
| 28859A | Battery current sensor mount | 28859-0V010 |
| 82210N | Instrument panel fuse | 90982-08294 · 90982-08295 |
| 82210P | Engine room fuse | 90982-08274 · 90982-08294 · 90982-08295 · 90982-08296 · 90982-08302 · 90982-08308 · 90982-09020 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09007 · 90982-09008 |
| 82642A | driving light relay | 90987-02027 · 90987-T2005 |
| 82660 | Engine room relay box assembly | 82660-0D040 |
| 82660B | Relay assembly | 82660-0D050 |
| 82660D | Relay assembly | 82660-74010 |
| 82660E | Relay assembly | 82660-74010 |
| 82661 | No. 1 relay box cover | 82661-52050 |
| 82662A | No. 1 relay box upper cover | 82662-0D240 · 82662-0D440 · 82662-0D441 · 82662-0D450 · 82662-0D451 · 82662-0D480 · 82662-0D481 · 82662-0D490 · 82662-0D491 |
| 82663 | Relay box lower cover | 82663-0D080 |
| 82730A | Driver's side junction box assembly | 82730-0D571 · 82730-0D890 |
| 82741 | Engine room relay box | 82741-0D090 |
| 82817H | Harness protection device | 82817-0D780 |
| 83320 | Fuel gauge sensor assembly | 83320-0D140 · 83320-0D170 · 83320-0D171 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-06010 |
| 84130 | Daytime running light switch assembly | 84130-0D020 |
| 84140 | Headlight dimmer switch assembly | 84140-0D281 · 84140-0D291 · 84140-0D380 · 84140-YL010 |
| 84152 | Headlight beam height adjustment switch | 84152-0D050 · 84152-0D051 · 84152-52131 |
| 84210 | Reversing light switch assembly | 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-0D110 |
| 84234 | Door control light switch assembly (for rear door) | 84231-0D110 |
| 84306 | Spiral cable sub-assembly | 84306-0D130 · 84306-0N020 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-0D100 · 84307-0D110 |
| 84330 | Hazard warning signal switch assembly | 84332-0D100 · 84332-0D130 · 84332-0D131 |
| 84340 | brake light switch assembly | 84340-09151 · 84340-09160 · 84340-09240 |
| 84345 | Brake light switch base adjuster | 84345-0R010 · 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-06040 |
| 84470A | Economic operation cancel switch assembly | 84470-0D050 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84520E | No. 2 clutch start switch assembly | 84520-42010 |
| 84540 | Neutral start switch assembly | 84540-02020 · 84540-52110 |
| 84545 | neutral position switch | 84545-52010 |
| 84550 | Parking brake switch assembly | 84550-16060 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-0D161 · 84652-0D240 |
| 84746 | tire pressure warning switch | 84746-0E040 |
| 84810 | Electric window lift switch assembly | 84810-06060 |
| 84810D | Rear electric window lift switch assembly | 84810-06060 |
| 84820 | Electric window lift main switch assembly | 84820-0D360 |
| 84840 | Trunk door opening switch assembly | 84840-52030 |
| 84840G | Back door opener switch assembly | 84840-06030 · 84840-0D070 · 84840-F4090 · 84840-F4100 |
| 84870A | Exterior rearview mirror switch assembly | 84870-0D070 |
| 84988L | VSC off switch | 84988-0E041 |
| 85432 | Key interlock solenoid valve | 85432-06020 |
| 85530 | No. 1 power socket assembly | 85530-06040 |
| 85535B | No. 1 power outlet cover | 85535-0D040 |
| 85912 | defogger relay | 90987-T2005 |
| 85912K | VVT relay | 90987-02027 · 90987-T2005 |
| 85916D | fog light relay | 90987-T2005 |
| 85916L | Rear fog light relay | 90987-T2005 |
| 85916N | Tail light relay | 90987-T2005 |
| 85916P | headlight relay | 90987-T2004 |
| 85926 | Headlight dimmer relay | 90987-T2004 · 90987-T2005 |
| 85927 | cooling fan relay | 90987-02027 · 90987-T2005 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 · 90987-T4001 |
| 85928B | Cooling fan resistor | 85928-52030 · 85928-52032 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 86530 | Speaker relay assembly | 90987-T2005 |
| 87299 | heater relay | 90987-02025 · 90987-T2004 |
| 87346K | PTC heater relay | 90987-02027 · 90987-T2005 |
| 89221B | Body ECU | 89221-0D330 · 89221-0D331 · 89221-0D332 · 89221-0D590 · 89221-0D591 |
| 89420F | Vacuum sensor assembly | 89420-52100 |
| 89465 | oxygen sensor | 89465-0D220 · 89465-0D230 |
| 89467B | air fuel ratio sensor | 89467-0D040 · 89467-0D050 · 89467-0D060 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-0D070 · 89467-0D080 |
| 89611 | One-button start switch | 89611-06083 · 89611-0D040 · 89611-0D041 · 89611-0D042 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-0D410 · 89650-0D590 |
| 89658 | Power steering ECU bracket | 89658-0D030 |
