Toyota YARIS 车内灯 — Figure 8121

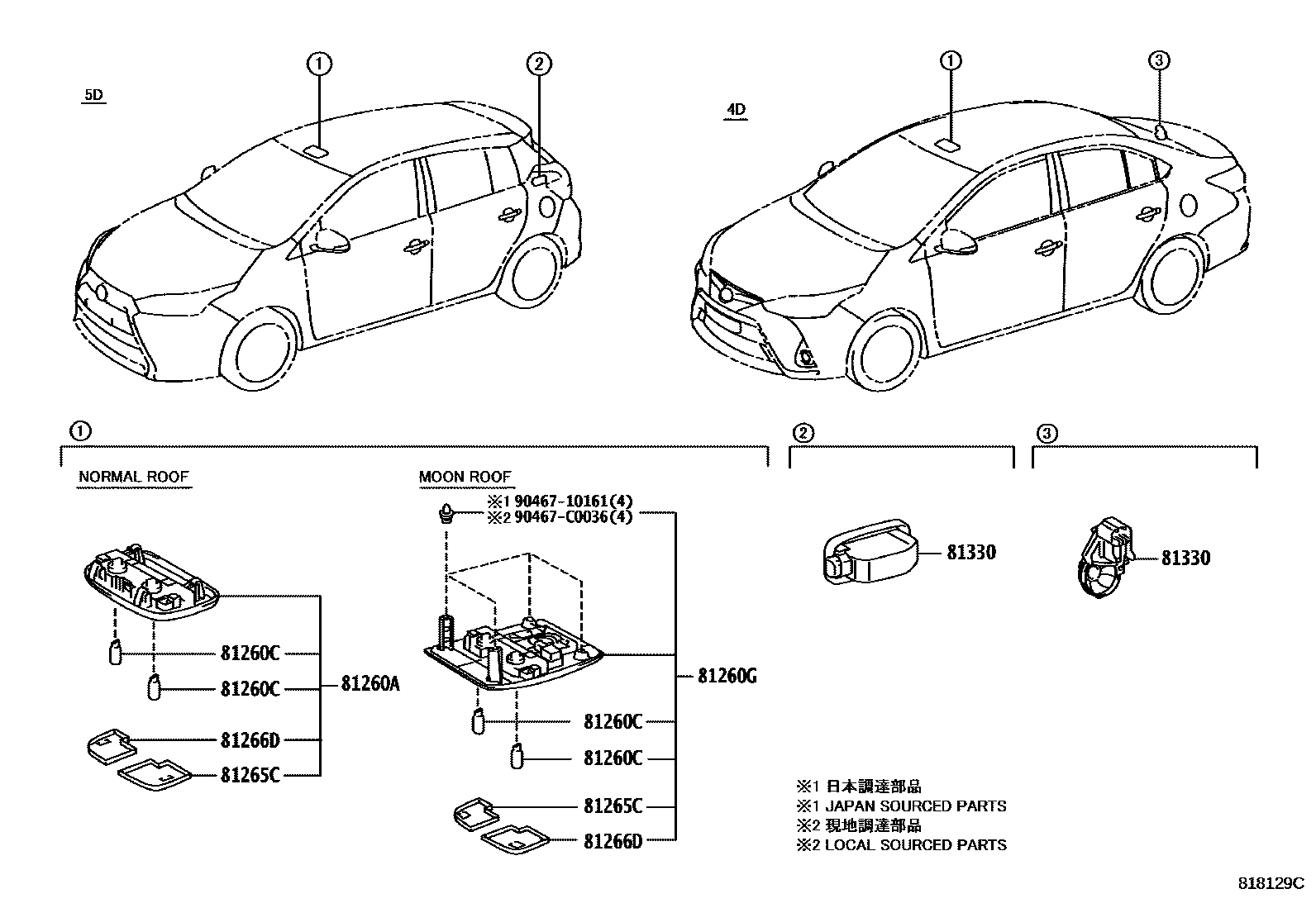

Toyota YARIS EPC diagram 8121, 车内灯, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81260C | Light bulb (for reading lamp) | 90981-11062 · 90981-11067 |
| 81265C | No. 1 reading lamp shade | 81265-0D180 |
| 81266D | Reading lamp shade No. 2 | 81266-0D180 |
| 81330 | No. 1 trunk light assembly | 81330-0D040 · 81330-0D100 |
