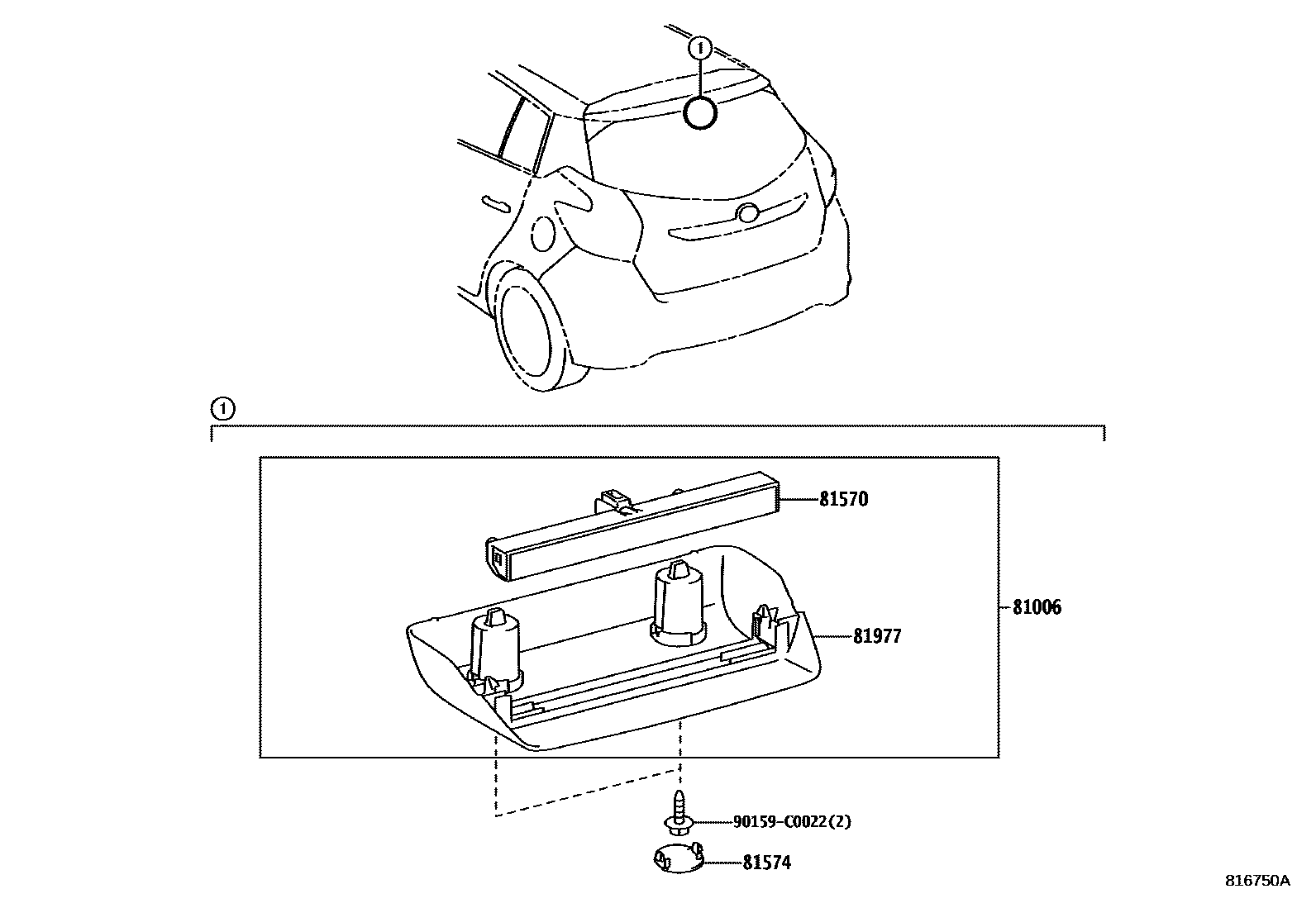

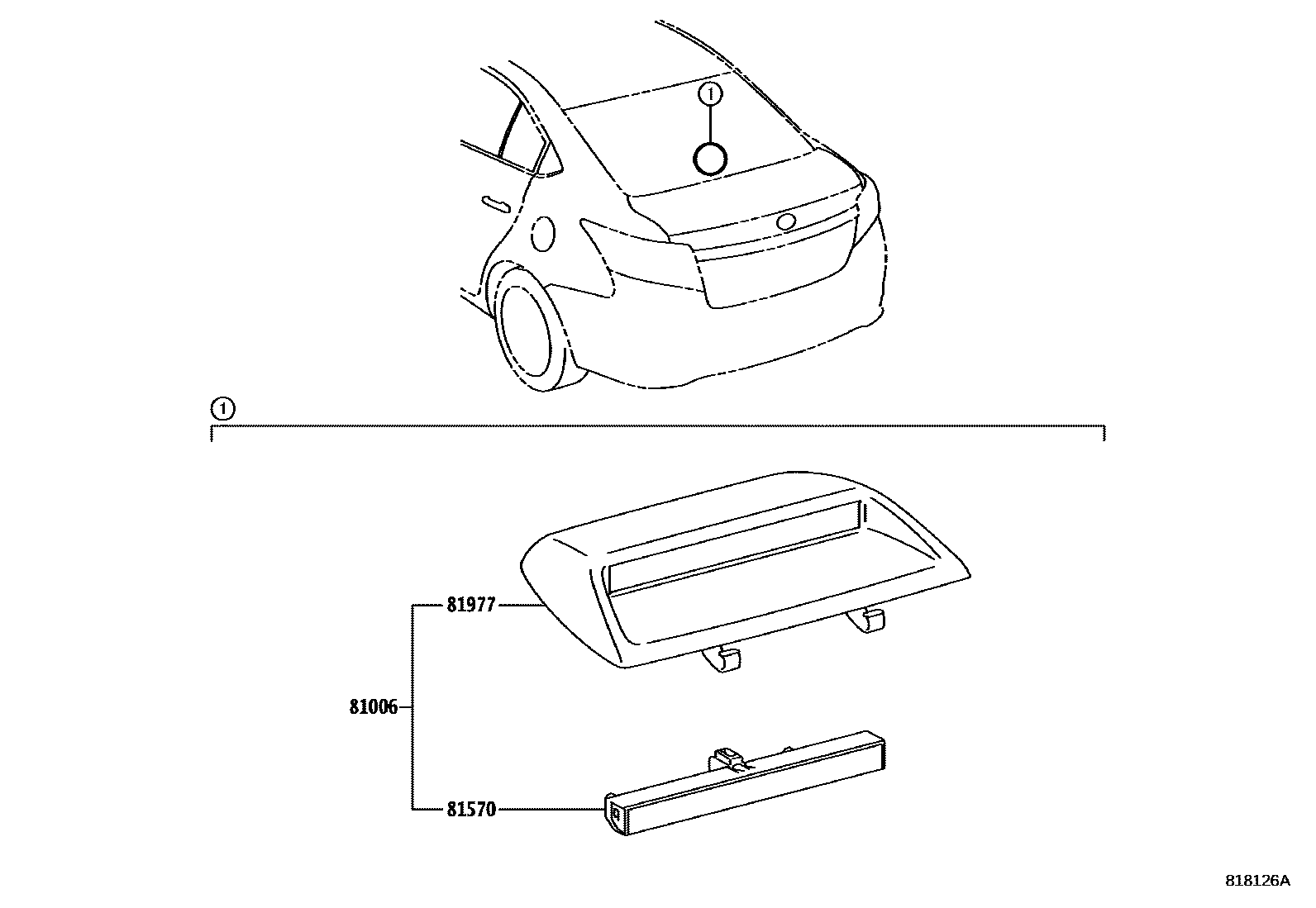

Toyota YARIS 高位刹车灯 — Figure 8117
Toyota YARIS EPC diagram 8117, 高位刹车灯, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81006 | central brake light assembly | 81006-0D070 |
| 81570 | Central brake light assembly | 81570-0D160 |
| 81574 | Central brake light cover | 81952-0D070 |
| 81977 | Central brake light cover | 81977-0D140 |
