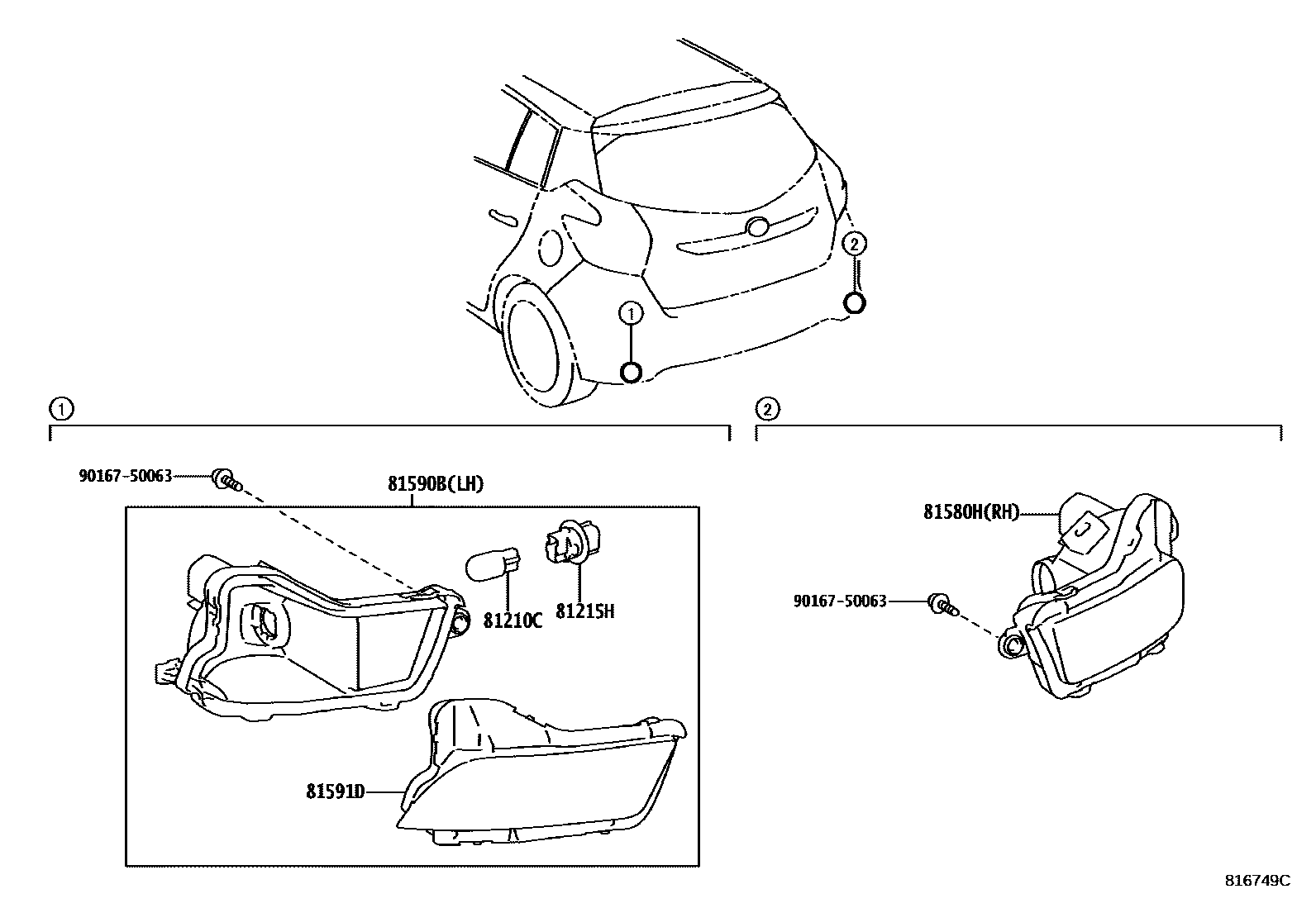

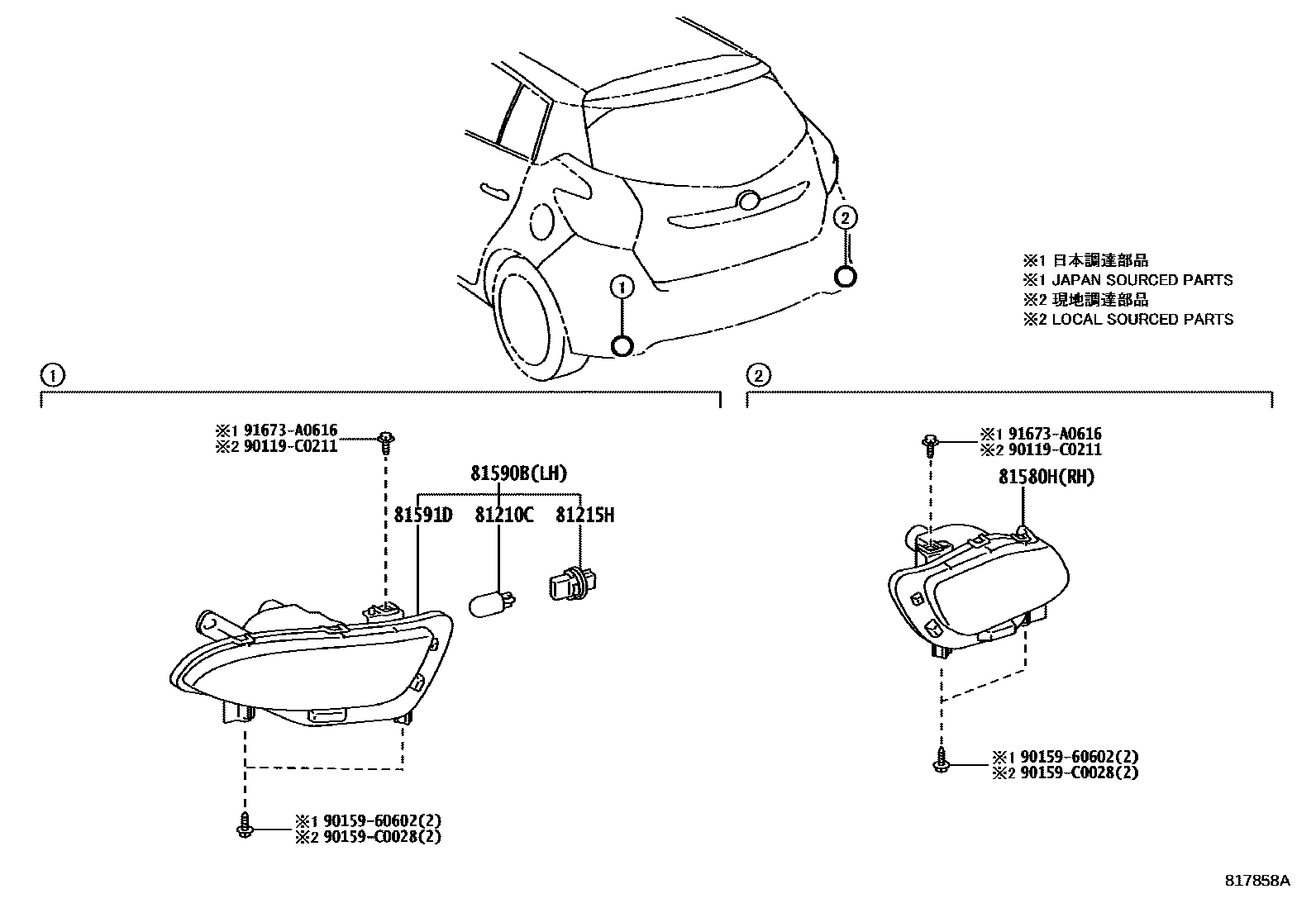

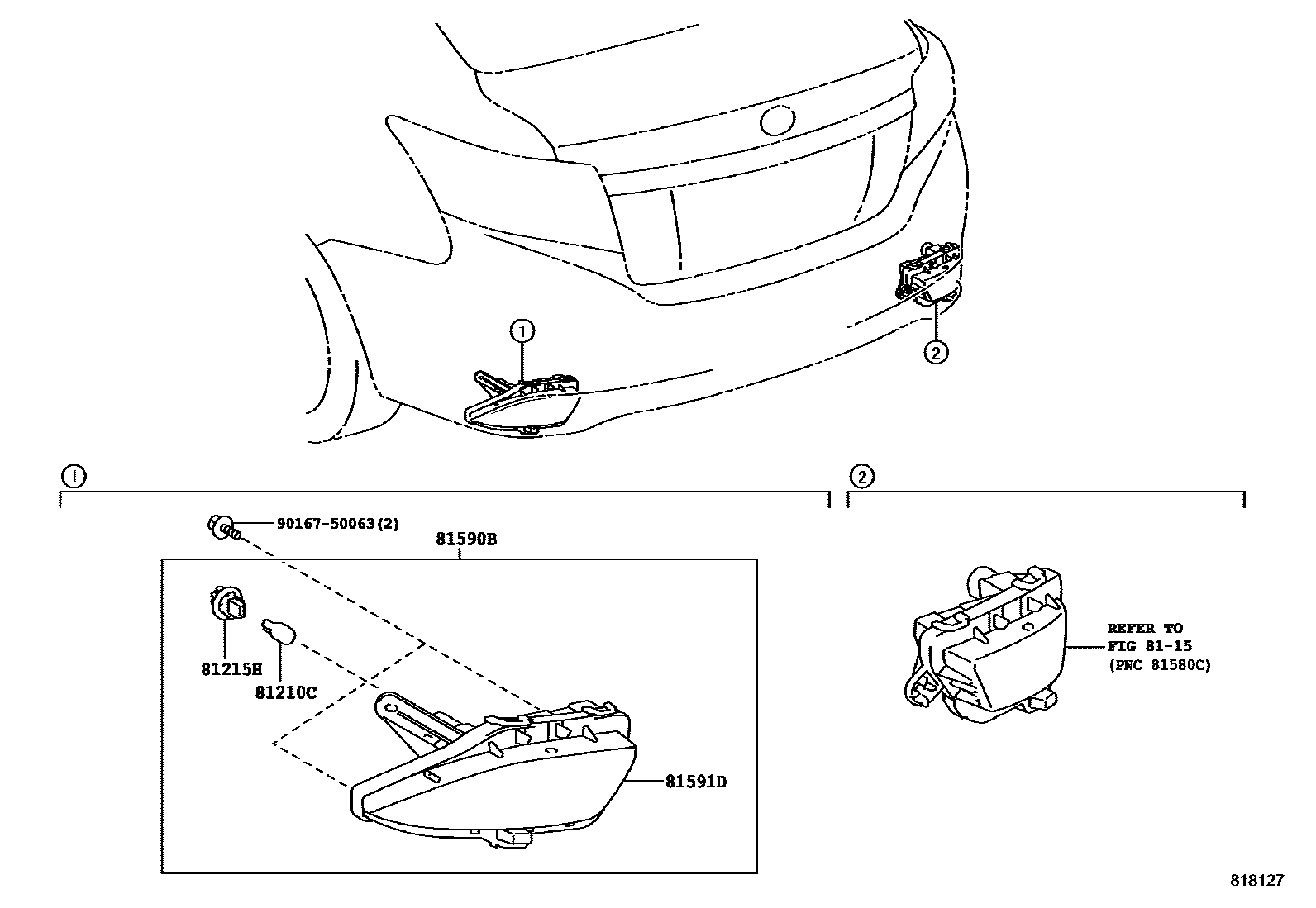

Toyota YARIS 后雾灯 — Figure 8116
Toyota YARIS EPC diagram 8116, 后雾灯, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210C | Rear fog light bulb | 90981-CD005 |
| 81215H | Rear fog light lamp holder | 81555-0R020 |
| 81580H | Right rear fog light assembly | 81580-0D160 · 81580-0D370 |
| 81590B | Left rear fog light assembly | 81590-0D160 · 81590-0D350 · 81590-0D370 |
| 81591D | Left rear fog lamp cover and lamp body | 81591-0D160 · 81591-0D350 · 81591-0D370 |
