Toyota YARIS 后组合灯 — Figure 8111

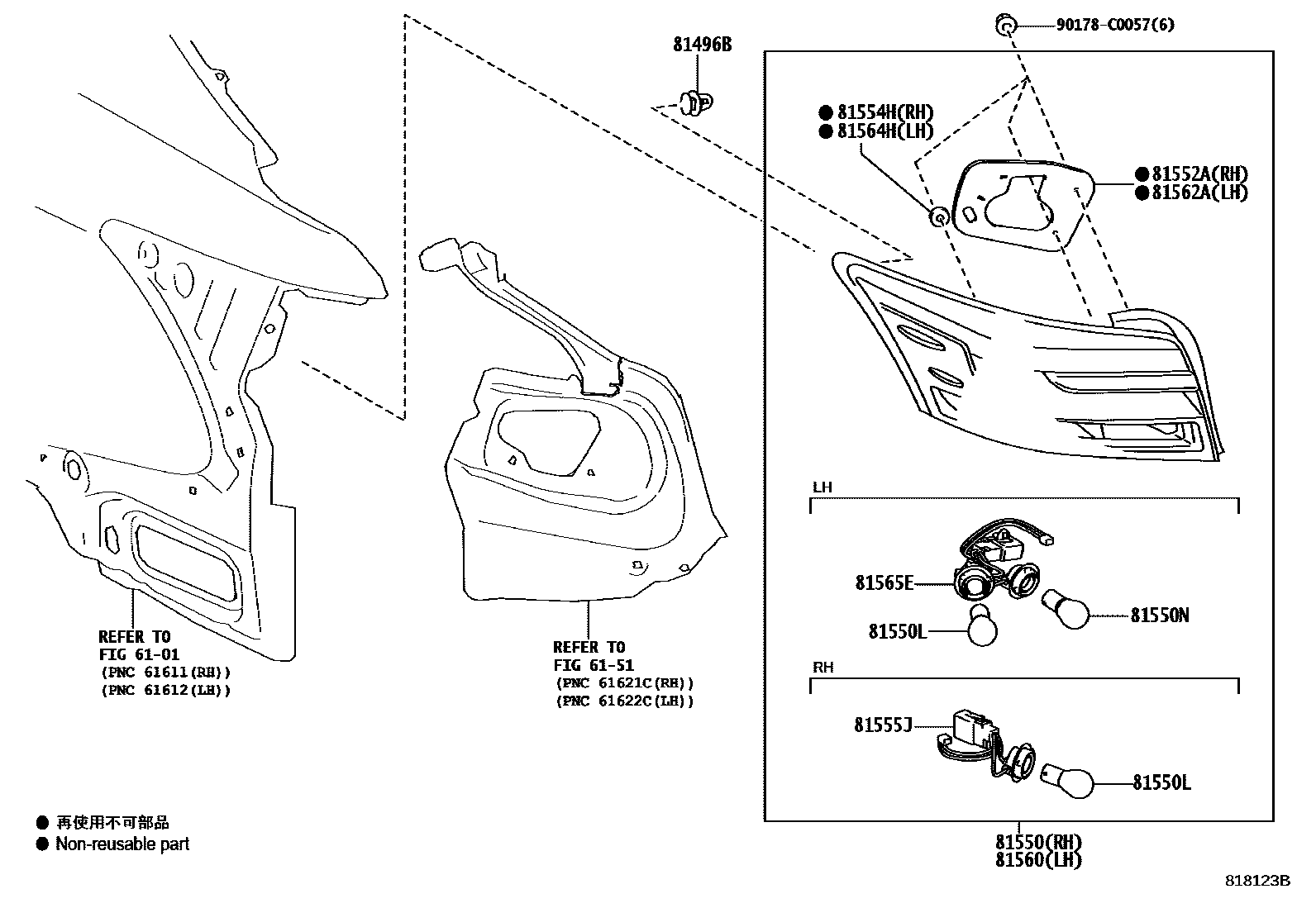

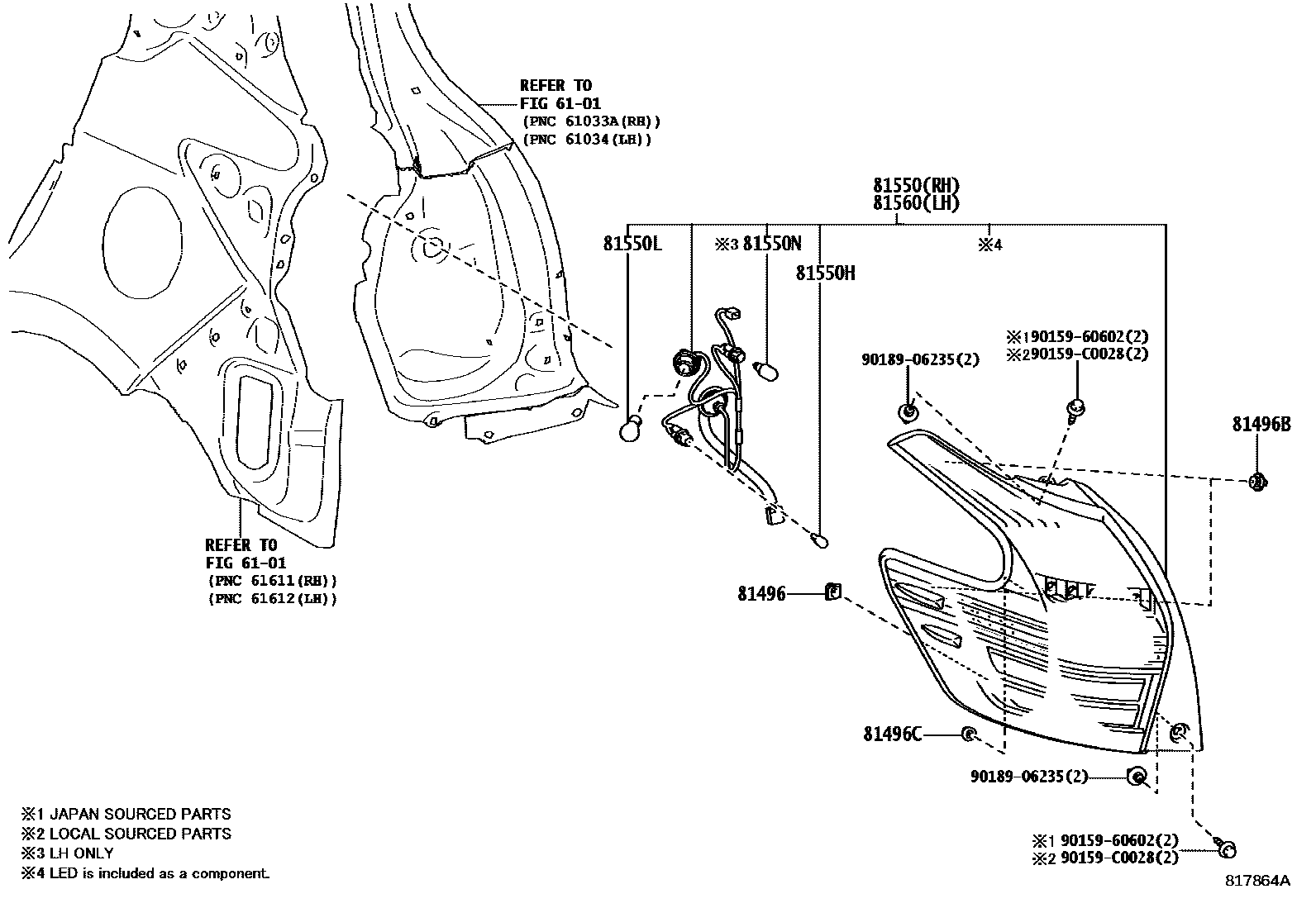

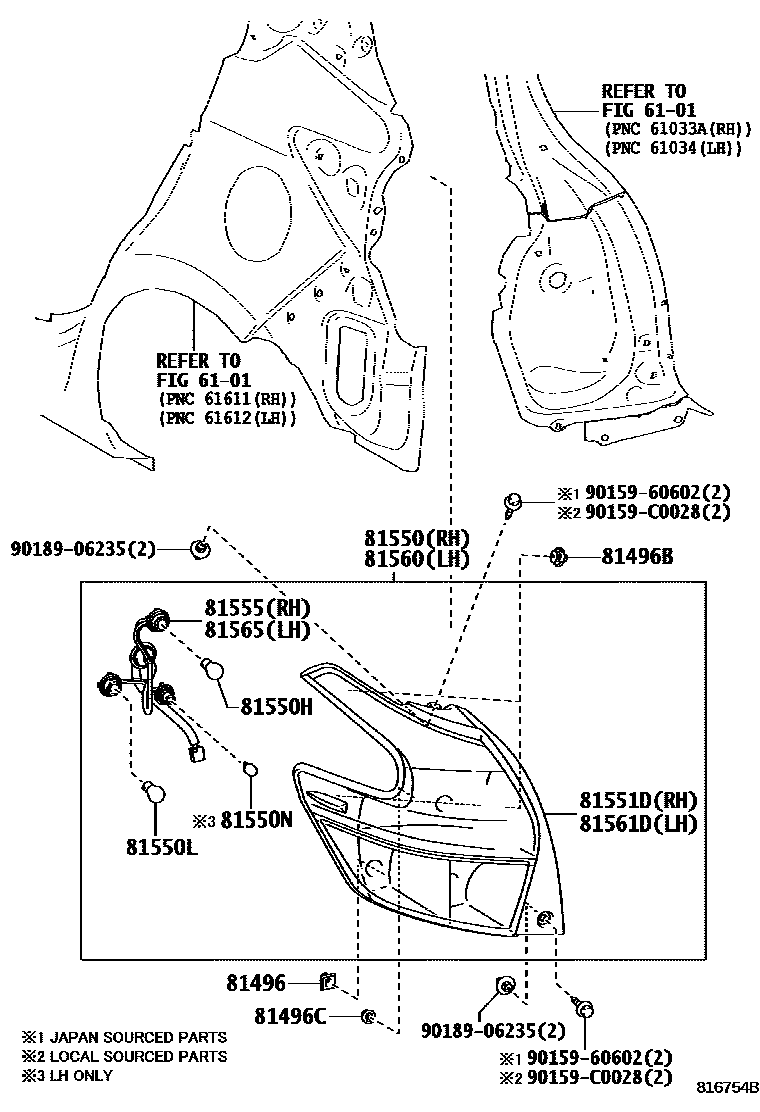

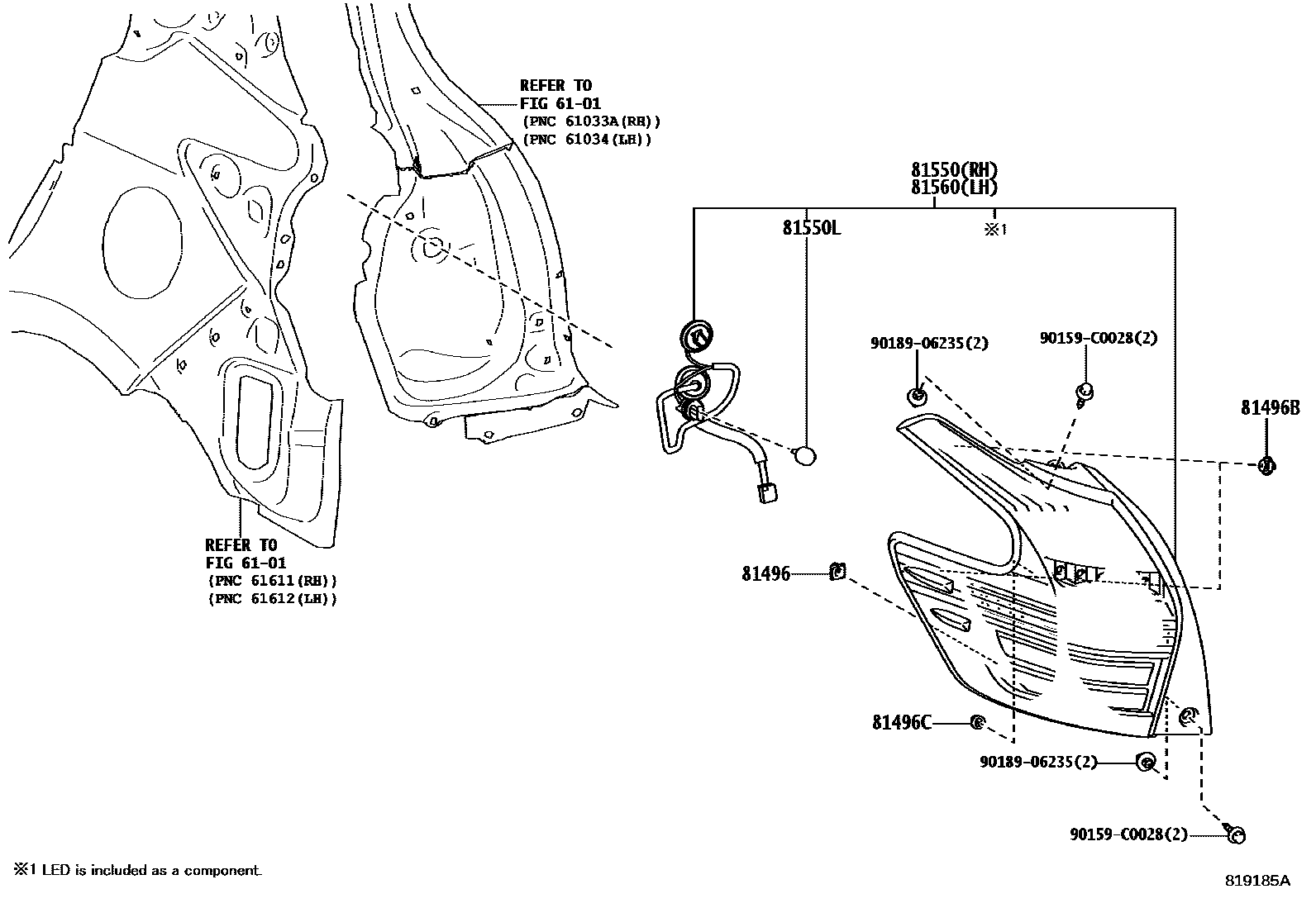

Toyota YARIS EPC diagram 8111, 后组合灯, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 76817-26040 · 90467-C0083 |
| 81496B | Rear light guide block | 81496-06010 · 90467-C0019 |
| 81496C | No. 2 rear combination light guide block | 81496-0D030 |
| 81550 | Right rear combination light assembly | 81550-0D420 · 81550-0D820 · 81550-0D821 · 81550-0D830 · 81550-0D831 · 81550-YL010 |
| 81550H | Tail and brake light bulbs | 90981-CB001 · 90981-CD007 |
| 81550L | Rear turn signal light bulb | 90981-CB004 · 90981-CF002 |
| 81550N | reversing light bulb | 90981-CB002 · 90981-CD006 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-0D420 |
| 81552A | Right rear combination light gasket | 81554-0D830 |
| 81554H | Right rear combination lamp seal | 81554-0D411 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0D420 |
| 81555J | Right rear combination lamp holder and wiring harness | 81555-0D830 |
| 81560 | Left rear combination light assembly | 81560-0D420 · 81560-0D820 · 81560-0D821 · 81560-0D830 · 81560-0D831 · 81560-YL010 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-0D420 |
| 81562A | Left rear combination light gasket | 81554-0D830 |
| 81564H | Left rear combination lamp seal | 81554-0D411 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-0D420 |
| 81565E | Left rear combination lamp holder and wiring harness | 81565-0D830 |
