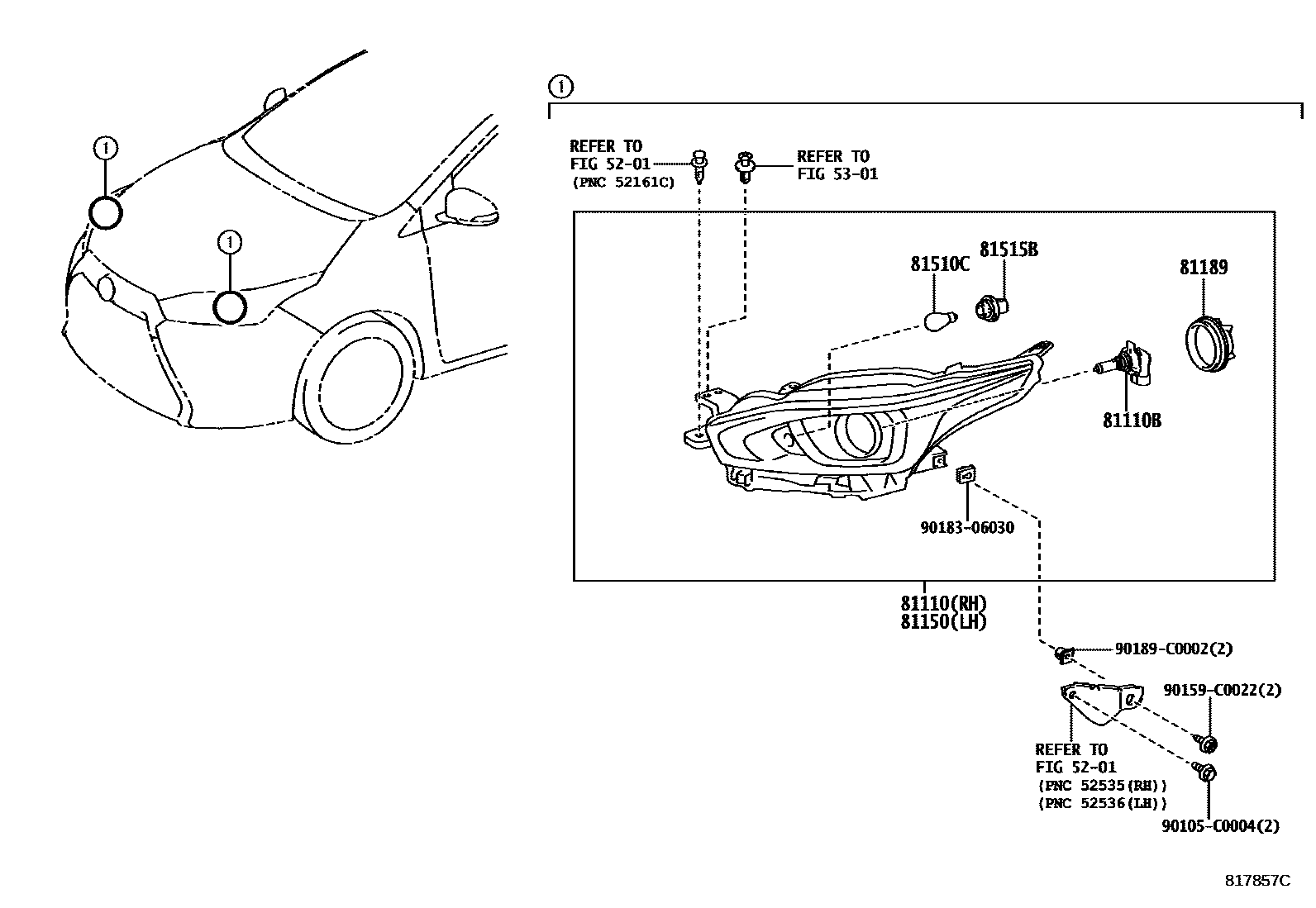

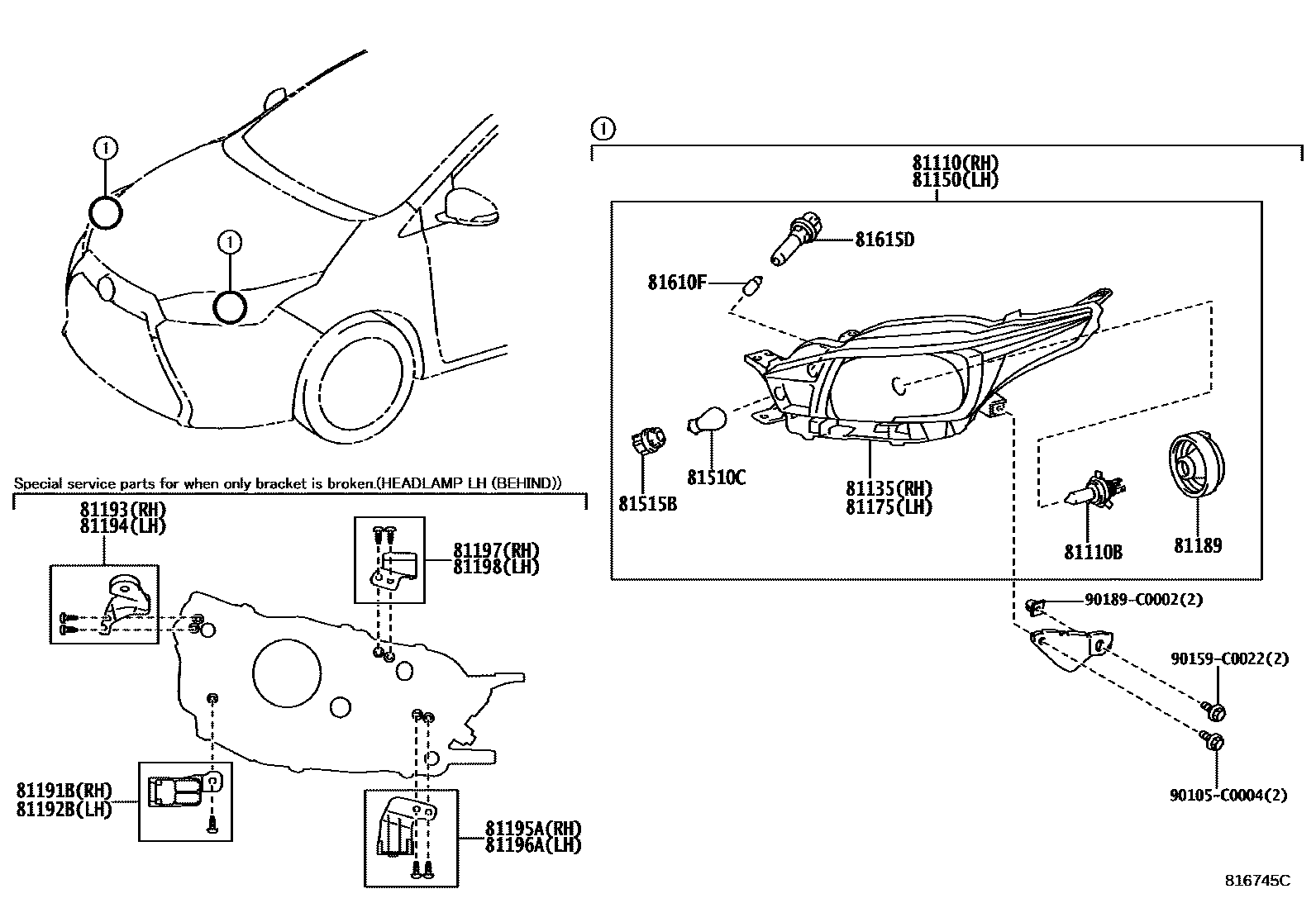

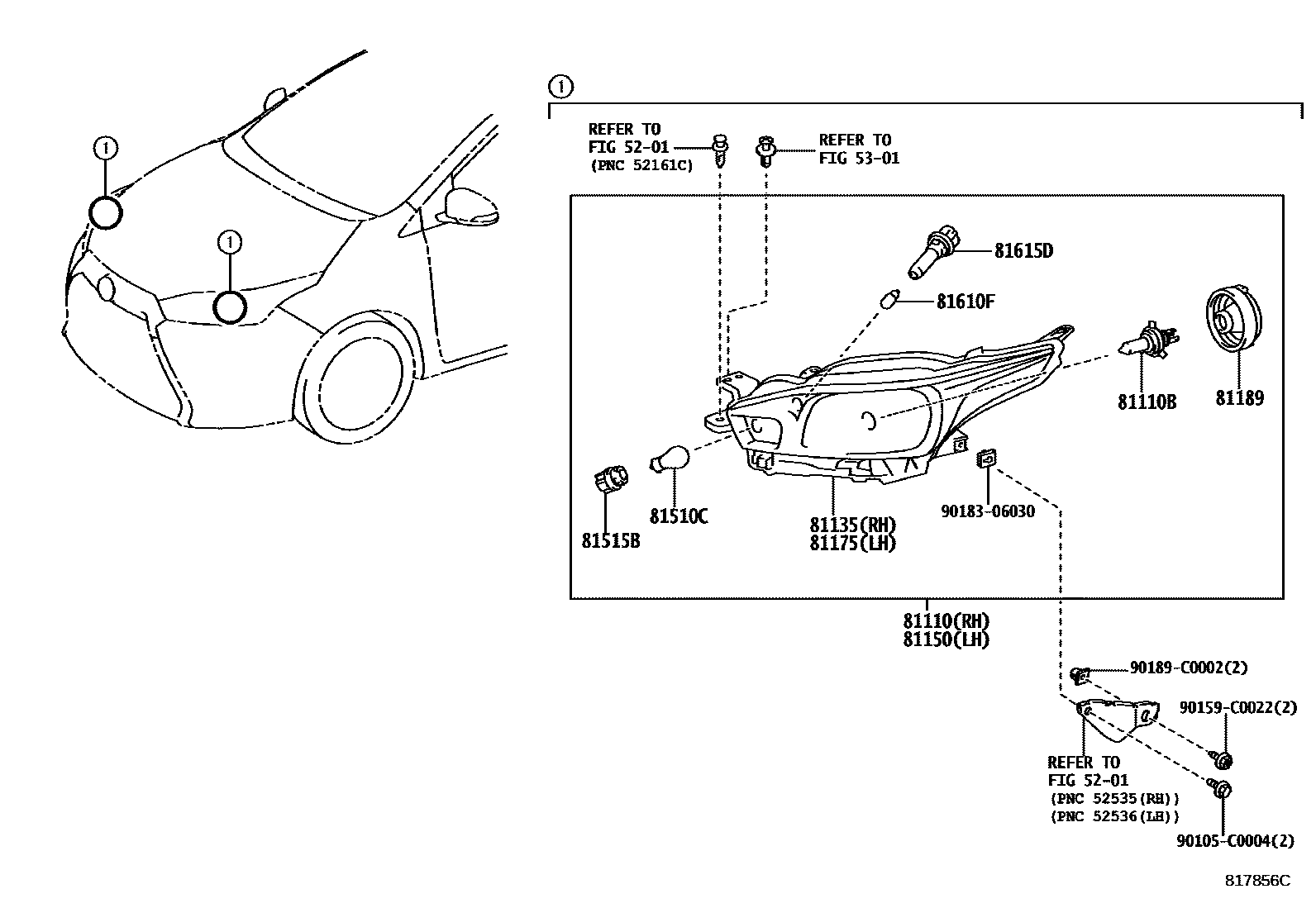

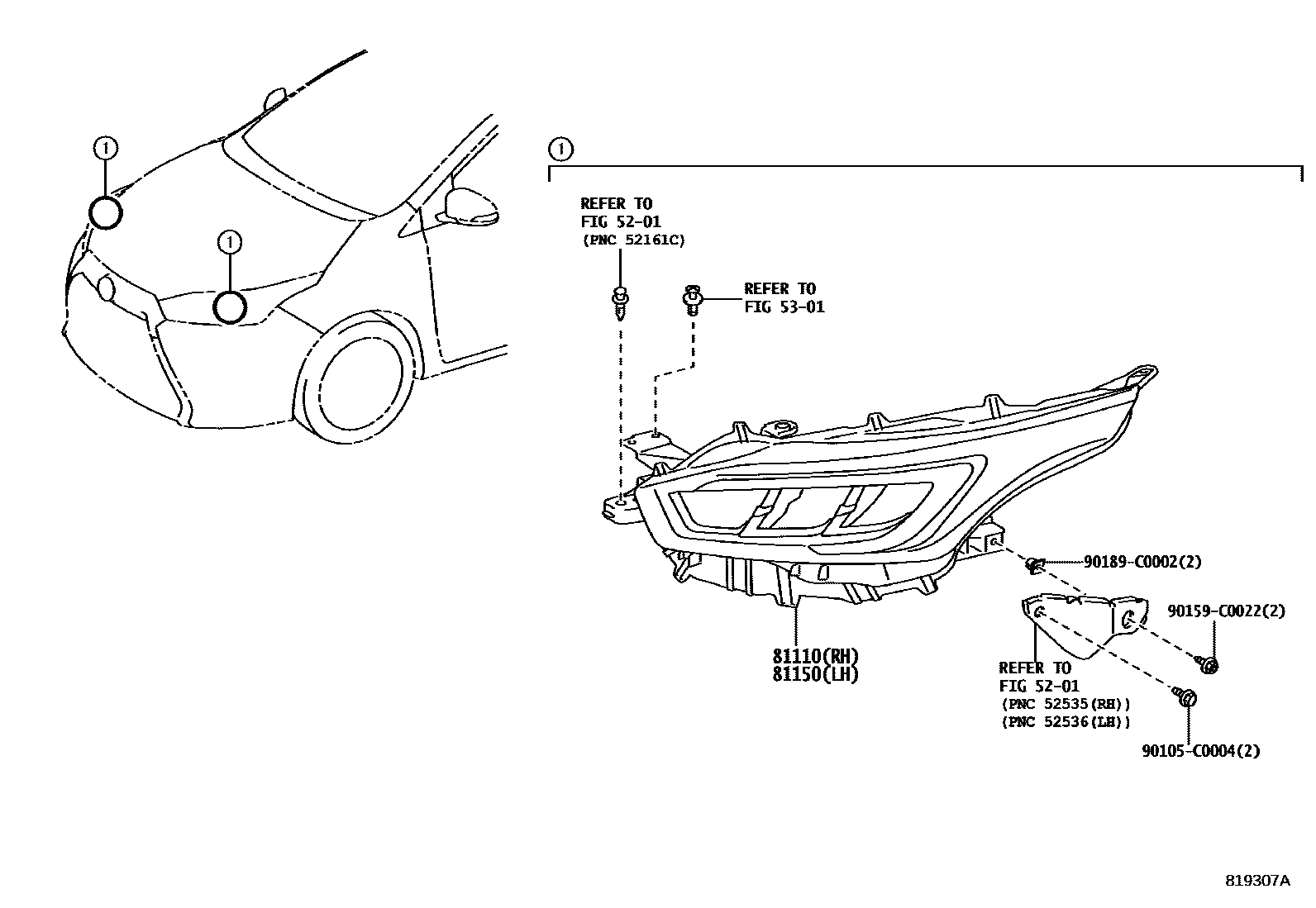

Toyota YARIS Headlamp — Figure 8101
Toyota YARIS EPC diagram 8101, Headlamp, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-0D550 · 81110-0D551 · 81110-0DD81 · 81110-0DE30 · 81110-0DE40 · 81110-YL020 |
| 81110B | Bulb (for headlight No. 1) | 90981-13091 · 90981-13100 |
| 81135 | Right headlight assembly assembly | 81130-0D550 · 81130-0D551 · 81130-0DD81 · 81130-0DE30 |
| 81150 | Left headlight assembly | 81150-0D550 · 81150-0D551 · 81150-0DD81 · 81150-0DE30 · 81150-0DE40 · 81150-YL020 |
| 81175 | Left headlight assembly assembly | 81170-0D550 · 81170-0D551 · 81170-0DD81 · 81170-0DE30 |
| 81189 | headlight cover | 81135-0DE40 · 90075-65002 |
| 81191B | Right headlight tape | 81191-0D050 |
| 81192B | Left headlight tape | 81192-0D050 |
| 81193 | Right headlight upper protective ring | 81193-0D050 |
| 81194 | Left headlight upper protective ring | 81194-0D050 |
| 81195A | Right headlight lower protection ring | 81195-0D040 |
| 81196A | Left headlight lower protection ring | 81196-0D040 |
| 81197 | Right headlight lower bracket | 81197-0D020 |
| 81198 | Left headlight lower bracket | 81198-0D020 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15028 |
| 81515B | Front turn signal lamp holder | 90075-60069 |
| 81610F | Light bulb (for width indicator light) | 90981-11069 |
| 81615D | Width light lamp holder | 81125-0DE30 · 90075-60077 |
