Toyota YARIS 燃油箱和燃油管 — Figure 7701

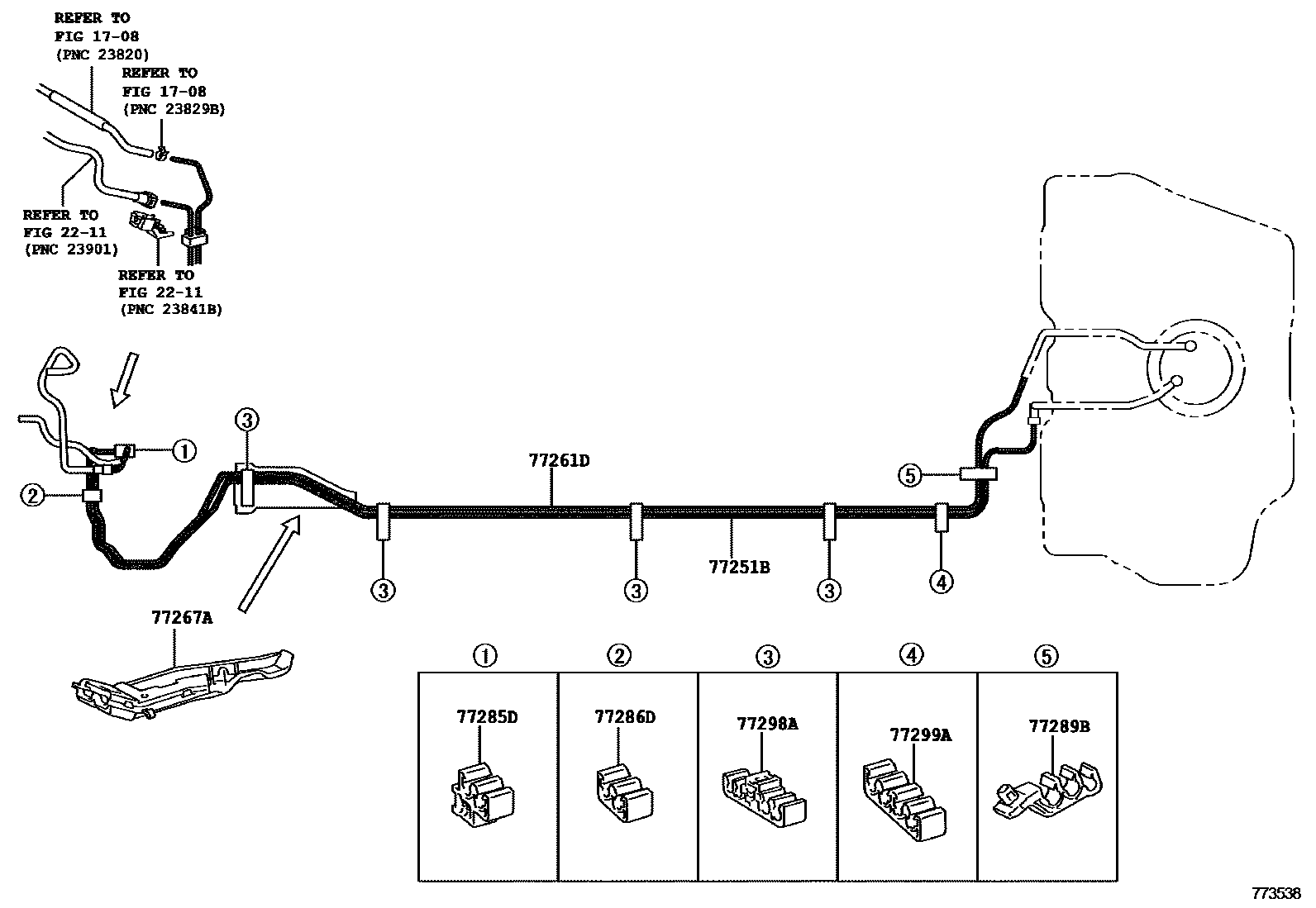

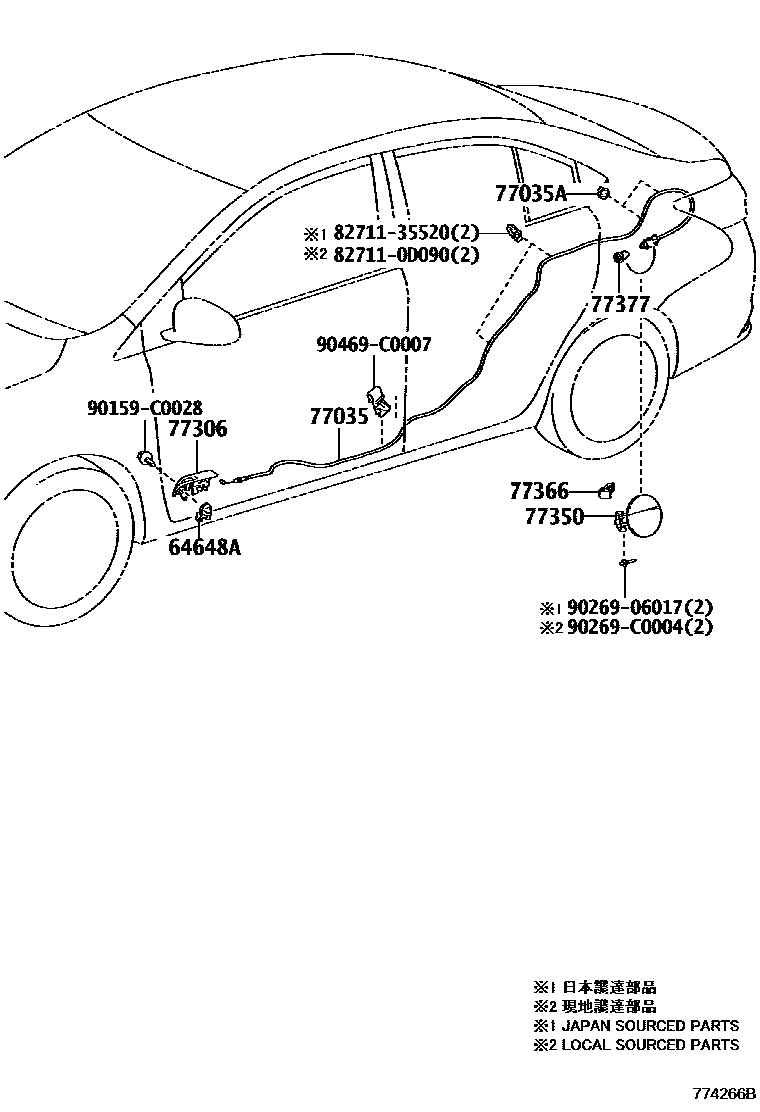

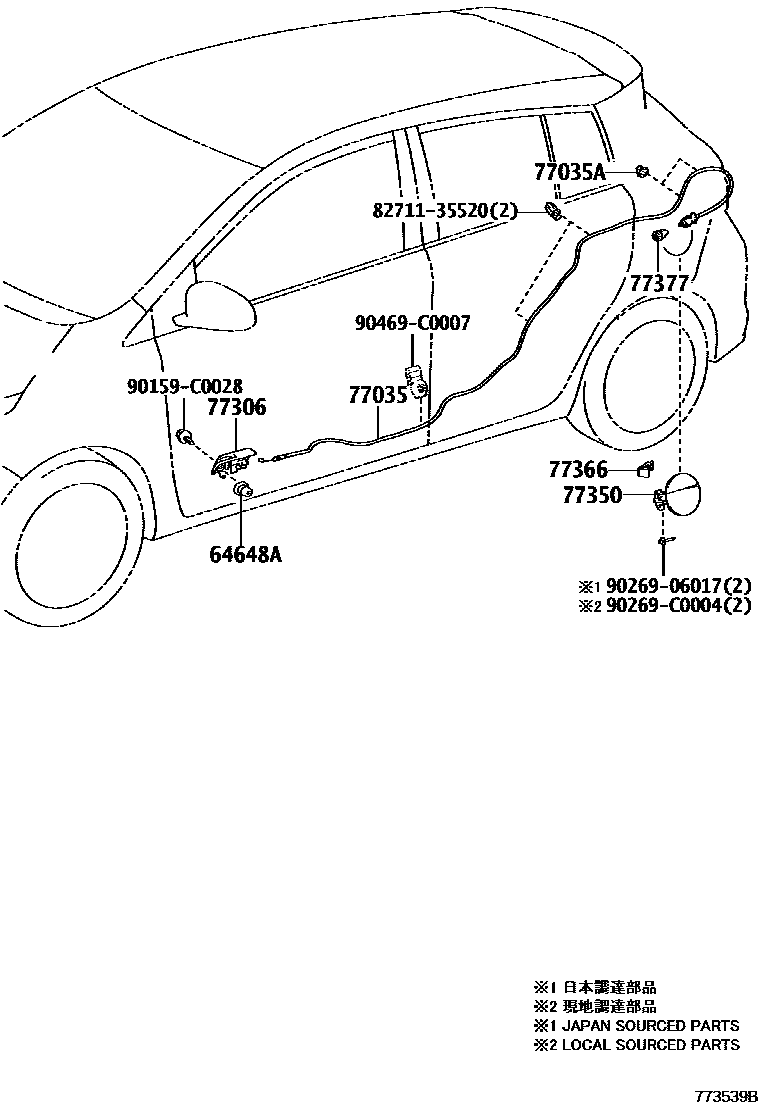

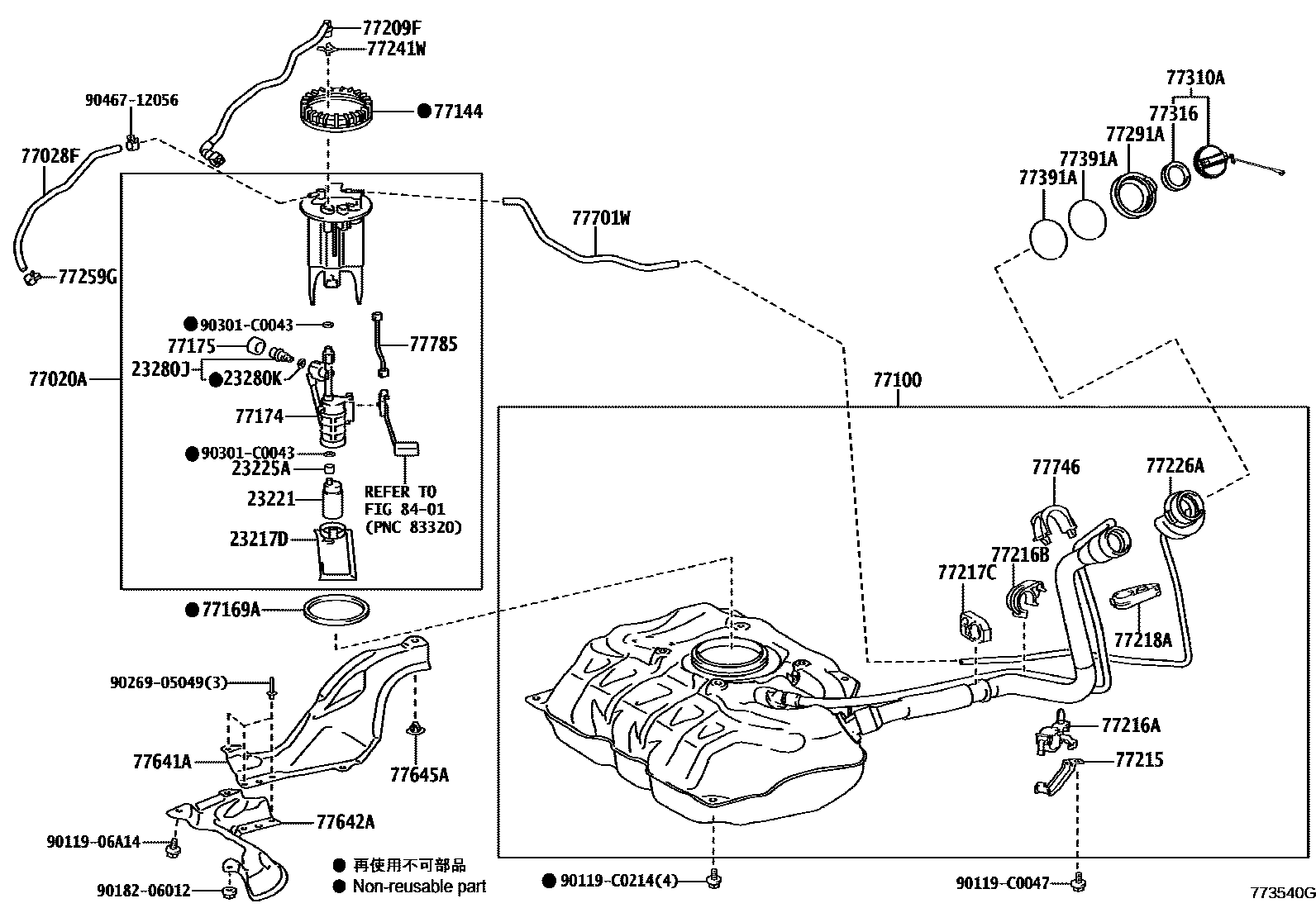

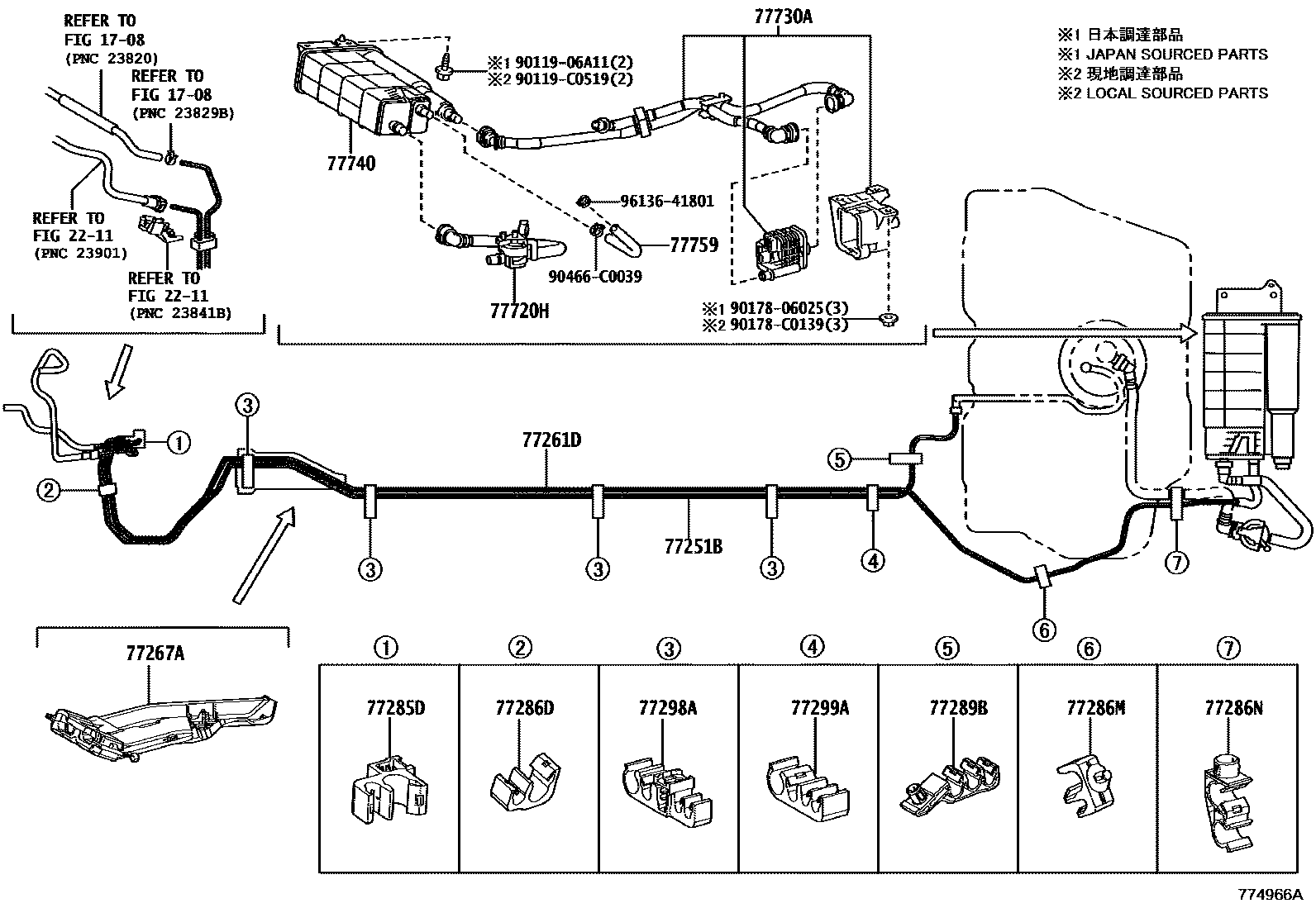

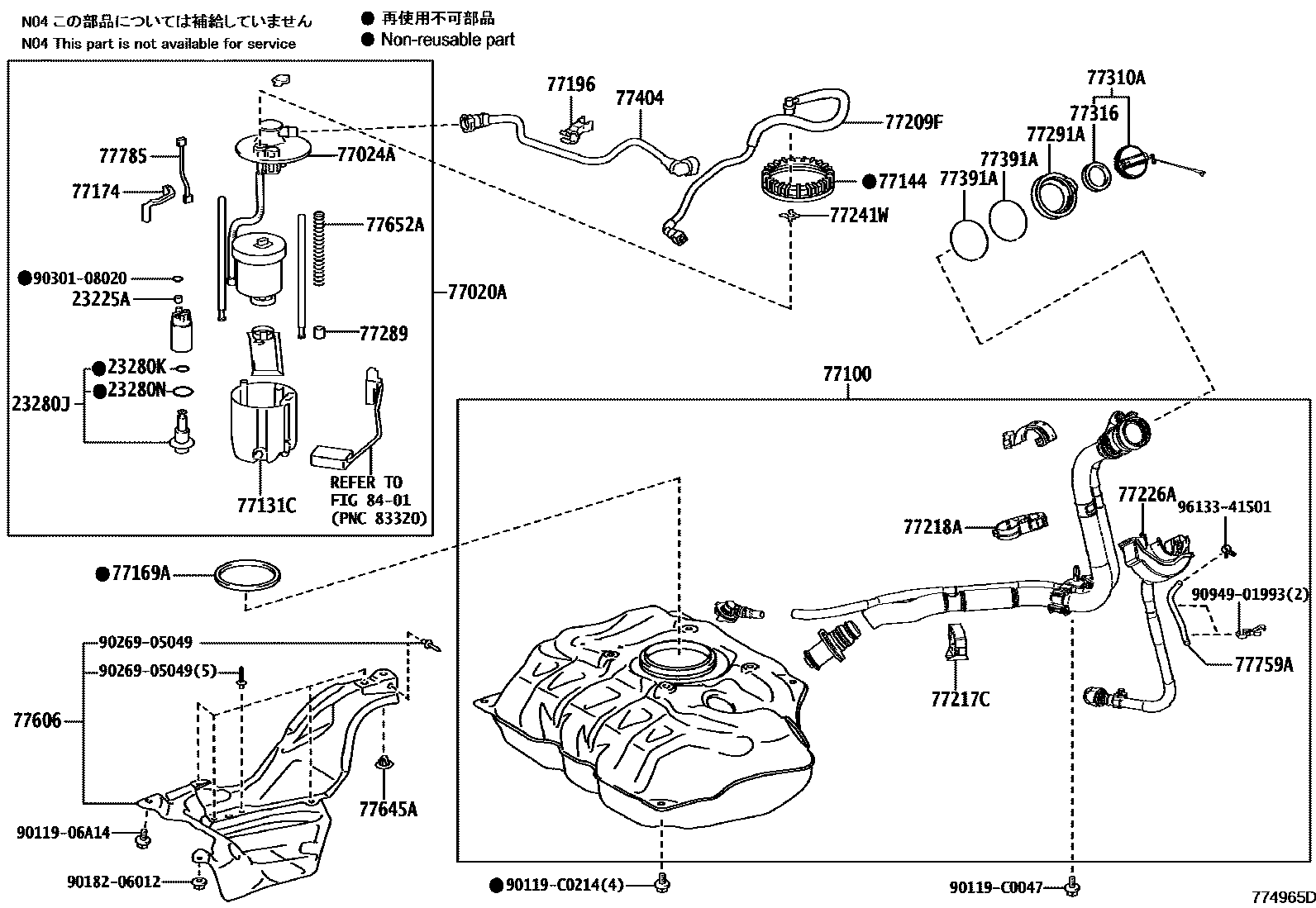

Toyota YARIS EPC diagram 7701, 燃油箱和燃油管, with 6 images and 61 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 00000-00000 · 23217-0Y030 |
| 23221 | fuel pump | 00000-00000 · 23221-0Y010 |
| 23225A | fuel pump septum | 23225-0H020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 · 23280-22010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-07020 |
| 23280N | No. 2 O-ring (for fuel pressure regulator) | 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-0F010 · 64648-32020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0D180 · 77020-0D410 · 77020-0D411 |
| 77024A | Fuel absorber sub-assembly | 77024-0D210 |
| 77028F | No. 2 fuel drain pipe sub-assembly | 00000-00000 · 77028-0D150 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0D350 · 77035-0D460 |
| 77035A | Clip (for fuel filler cap lock control cable) | 90469-06005 · 90469-C0008 |
| 77100 | fuel tank assembly | 77001-0D240 · 77001-0D241 · 77001-0D420 |
| 77131C | No. 1 auxiliary fuel tank | 77131-0D120 |
| 77144 | Fuel pump instrument fixture | 77144-0D050 · 77144-0H010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0D110 · 77169-0D120 · 77169-0D160 |
| 77174 | No. 1 oil suction pipe bracket | 77174-0D040 · 77174-0D090 |
| 77175 | No. 2 oil suction pipe bracket | 00000-00000 · 77175-0D040 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-0D010 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-0D180 · 77209-0D260 |
| 77215 | Fuel tank filler pipe flange piece | 77219-0D060 |
| 77216A | No. 1 fuel tank filler pipe bracket | 00000-00000 · 77216-0D120 |
| 77216B | No. 2 fuel tank filler pipe bracket | 00000-00000 · 77216-0D130 |
| 77217C | No. 2 fuel tank filler pipe bracket | 77217-0D110 · 77217-0D230 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-0D040 · 77218-0D090 |
| 77226A | No. 6 fuel tank breather pipe | 77226-0D051 · 77226-0D171 · 77226-0D190 · 77226-0D210 |
| 77241W | Pipe joint clip | 77241-02020 · 77241-33011 |
| 77251B | main fuel pipe | 77251-0D390 · 77251-0D540 · 77251-0D620 · 77251-0D630 |
| 77259G | fuel hose clip | 00000-00000 · 90466-C0037 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-0D330 · 77261-0D480 · 77261-0D540 |
| 77267A | No. 2 fuel pipe protection device | 77267-0D090 · 77267-0D150 |
| 77285D | No. 1 fuel pipe clamp | 77285-0D170 · 77285-0D310 |
| 77286D | No. 2 fuel pipe clamp | 77286-0D140 · 77286-0D270 |
| 77286M | No. 6 fuel pipe clamp | 77286-0D280 |
| 77286N | No. 7 fuel pipe clamp | 77299-0D220 |
| 77289 | Fuel tank pipe holder | 77289-78010 |
| 77289B | No. 3 fuel pipe clamp | 77289-0D110 |
| 77291A | Fuel tank filler pipe cover | 77291-0D150 |
| 77298A | No. 4 fuel pipe clamp | 77298-0D130 · 77298-0D230 |
| 77299A | No. 5 fuel pipe clamp | 77299-0D100 · 77299-0D210 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-0D070 · 77306-0D060 |
| 77310A | Fuel tank cap assembly | 77300-02030 · 77300-06100 · 77300-0F010 · 77300-0R010 |
| 77316 | fuel tank cap gasket | 77316-0F020 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-0D090 · 77350-0D130 |
| 77366 | Fuel filler cap hinge spring | 77366-52011 |
| 77377 | Fuel filler cap lock retainer | 77377-0D090 |
| 77391A | fuel inlet ring | 77391-0R080 · 77391-12020 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-0D040 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-0D150 |
| 77641A | No. 1 fuel tank protective shell | 77641-0D110 |
| 77642A | No. 2 fuel tank protective shell | 77642-0D110 |
| 77645A | Fuel tank protective shell fixings | 77645-0D050 · 77645-0D080 |
| 77652A | No. 2 fuel tank liner | 77652-0D030 |
| 77701W | No. 1 carbon canister outlet hose sub-assembly | 00000-00000 · 77701-0D100 |
| 77720H | Fuel delivery valve assembly | 77720-0D010 · 77720-0D020 |
| 77730A | Capture carbon canister assembly with oil outlet valve | 77730-0D030 · 77730-0D040 |
| 77740 | Carbon canister assembly | 77740-0D060 |
| 77746 | No.2 carbon canister filter | 00000-00000 · 77746-0D040 · 77746-52020 |
| 77759 | Carbon canister hose | 77759-0D020 |
| 77759A | Carbon canister hose | 77759-0D040 |
| 77785 | fuel pump wiring harness | 77785-0D100 · 77785-0D170 |
