Toyota YARIS 挡泥板和扰流板 — Figure 7601
Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

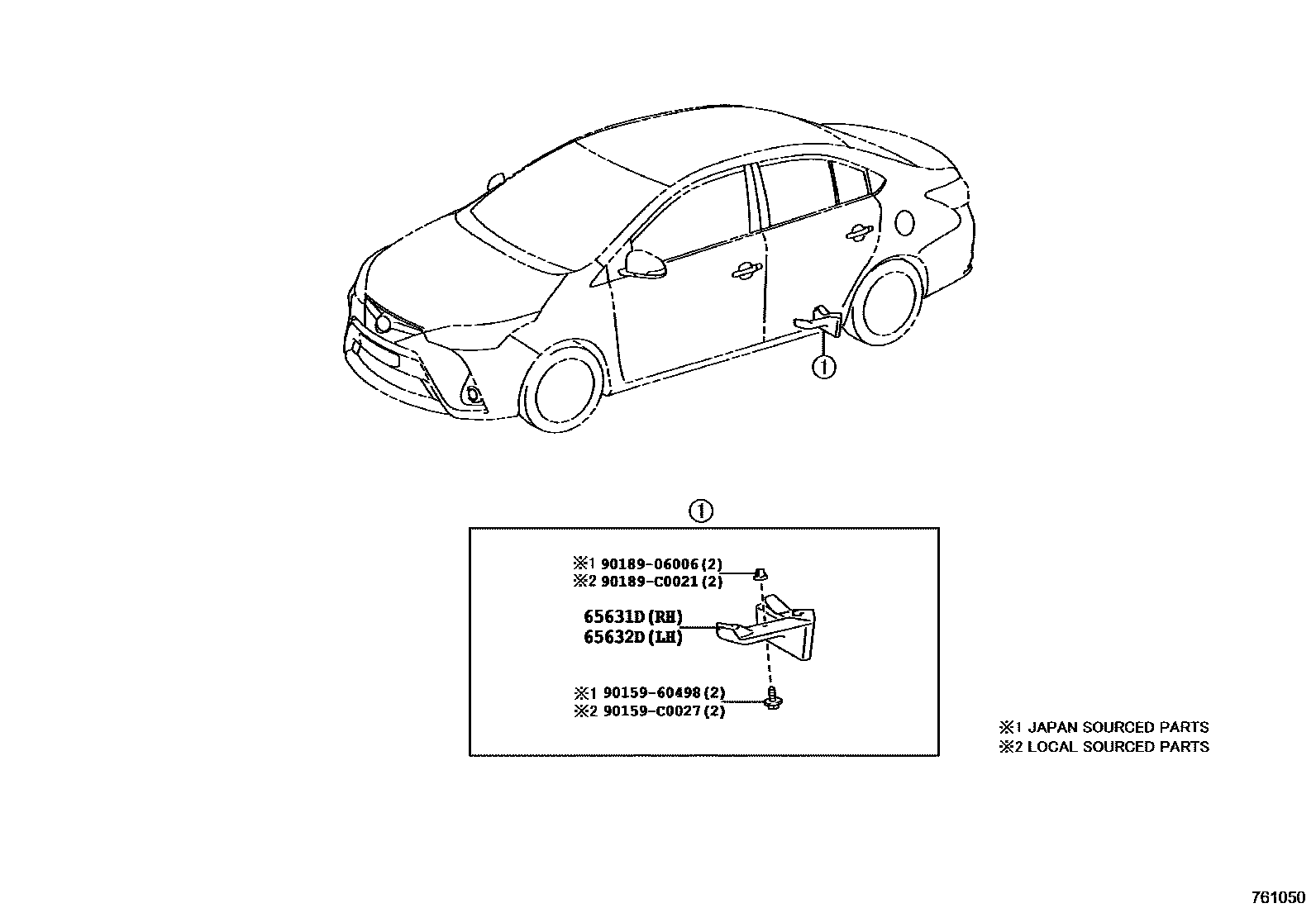

| 65631D | Right rear wheel house front panel | 65631-0D080 |
| 65632D | Left rear wheel house front panel | 65632-0D080 |

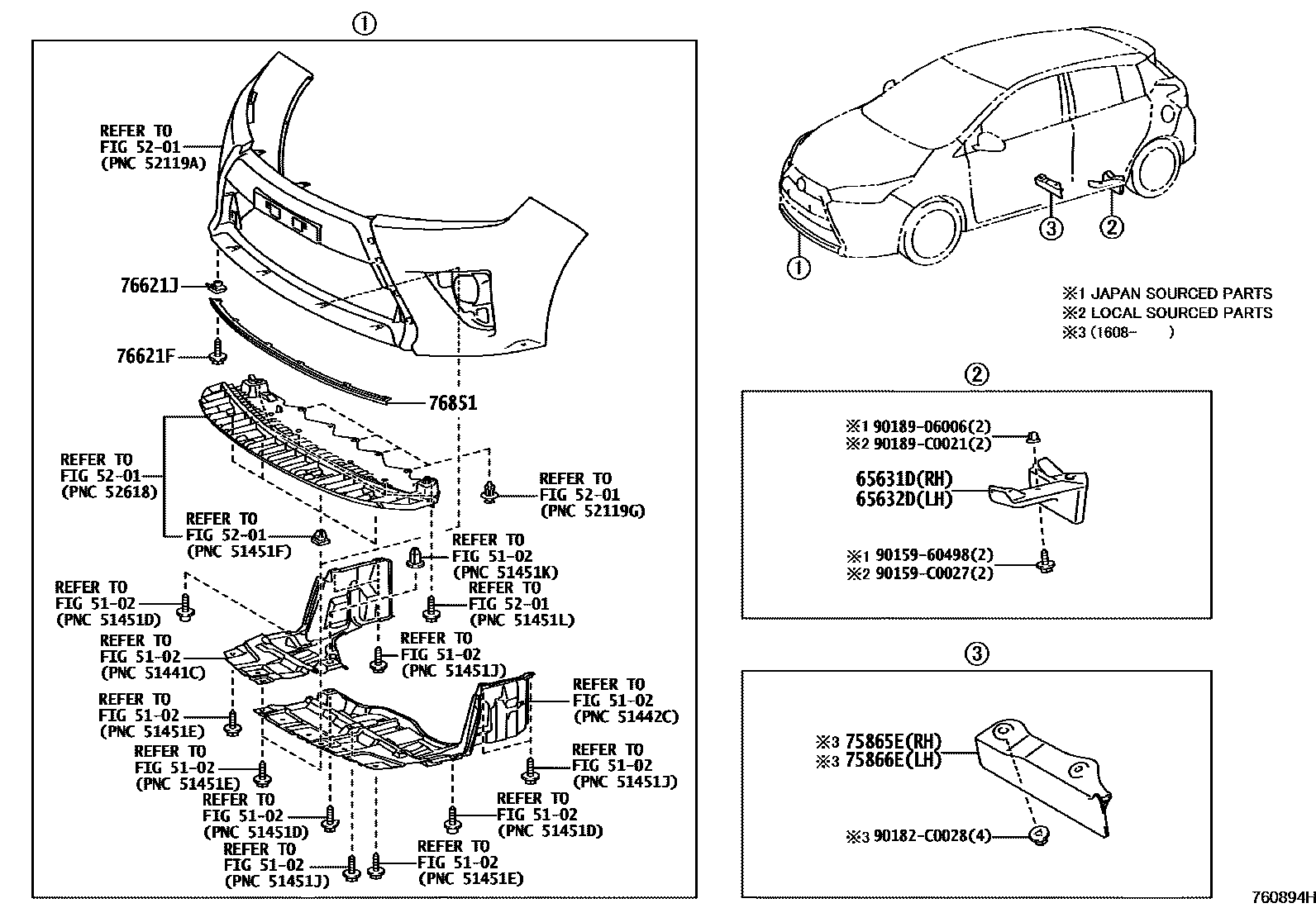

| 75865E | Right side door sill panel protective strip protective cover | 75865-0D080 |
| 75866E | Left side door sill panel protective strip protective cover | 75866-0D080 |
| 76621F | Screw No. 1 | 90159-C0007 |
| 76621J | Nut No. 1 | 90179-05060 · 90467-C0007 |
| 76851 | front spoiler cover | 76851-0D130 |

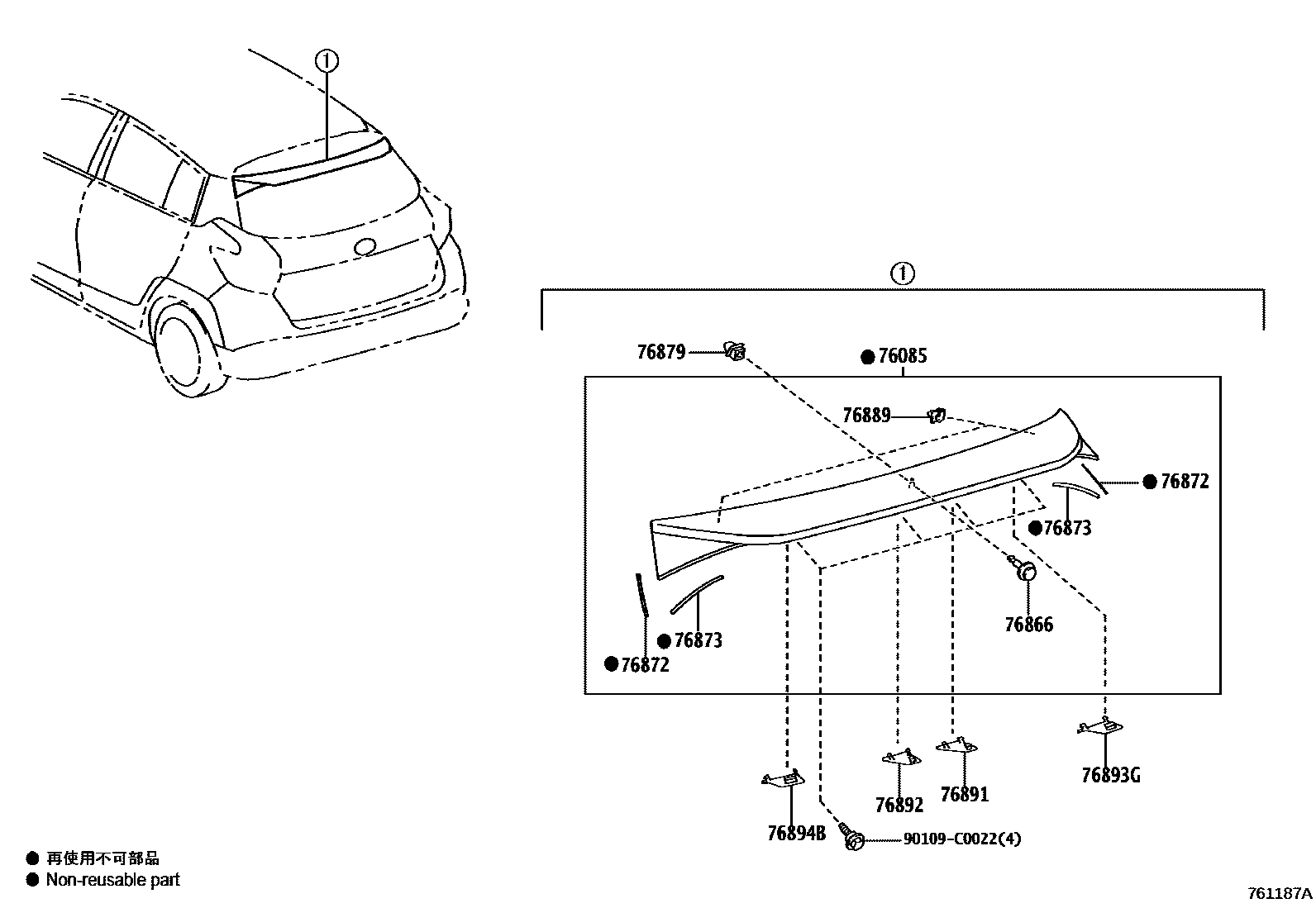

| 76866 | No. 2 rear spoiler fixing piece | 76866-YL010 |
| 76872 | No. 1 rear spoiler protective strip | 76872-YL010 |
| 76873 | No. 2 rear spoiler protective strip | 76873-YL010 |
| 76879 | No. 1 rear spoiler clip | 76879-YL010 |
| 76889 | No. 2 rear spoiler clip | 76889-YL010 |
| 76891 | No. 1 rear spoiler | 76891-YL010 |
| 76892 | No. 2 rear spoiler | 76892-YL010 |
| 76893G | No. 3 rear spoiler | 76893-YL010 |
| 76894B | No. 4 rear spoiler | 76894-YL010 |
