Toyota YARIS 后防护条 — Figure 7504

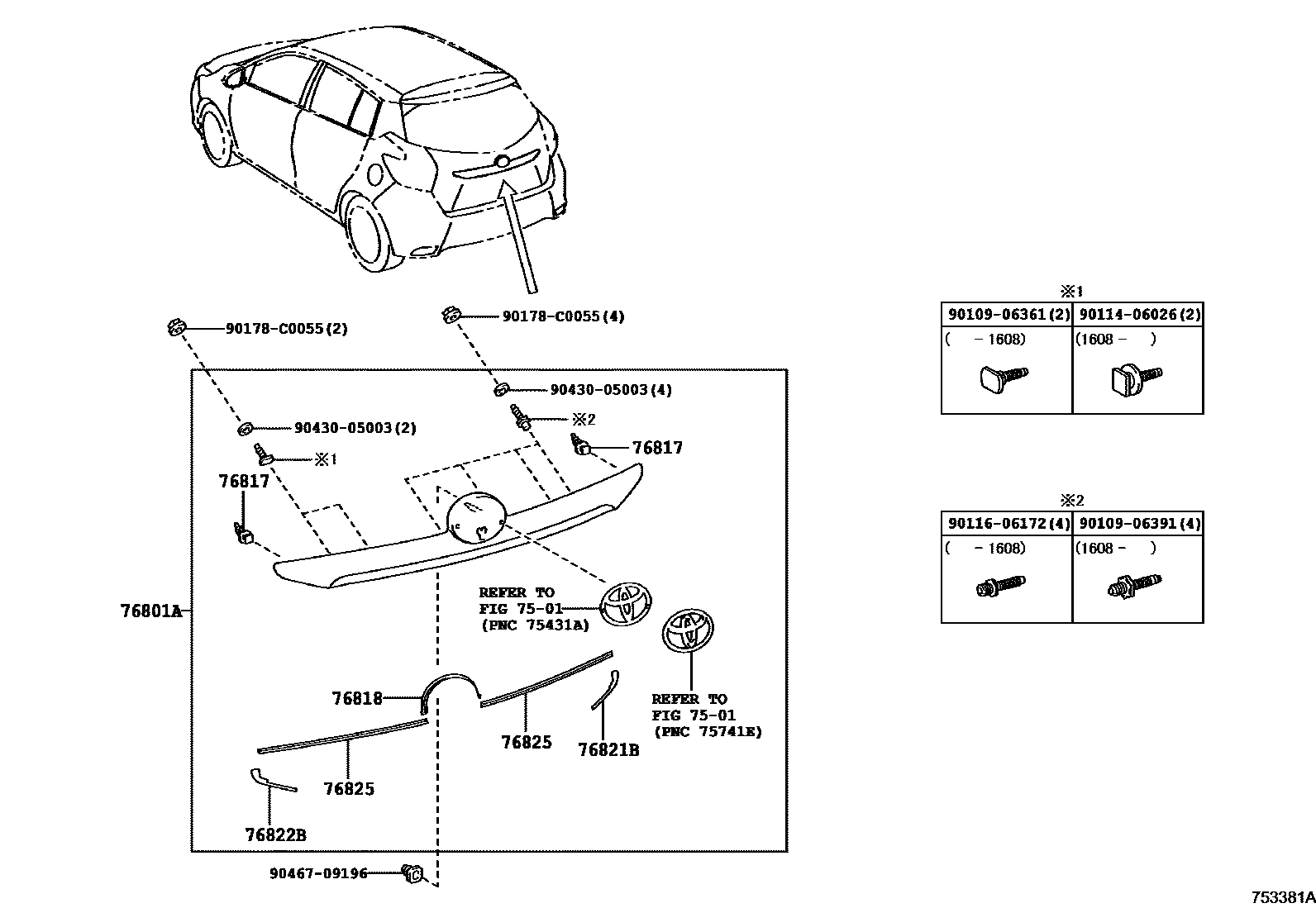

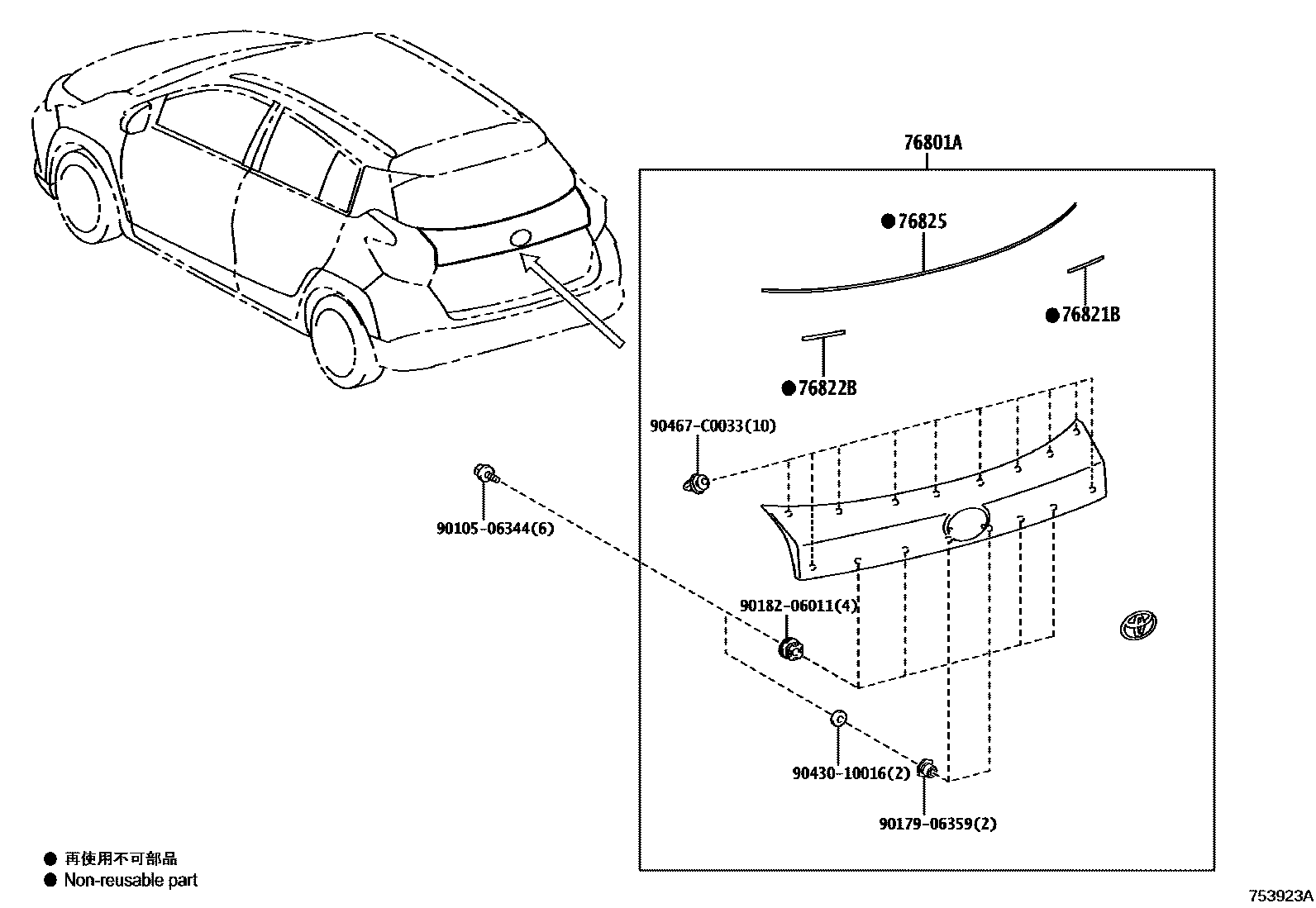

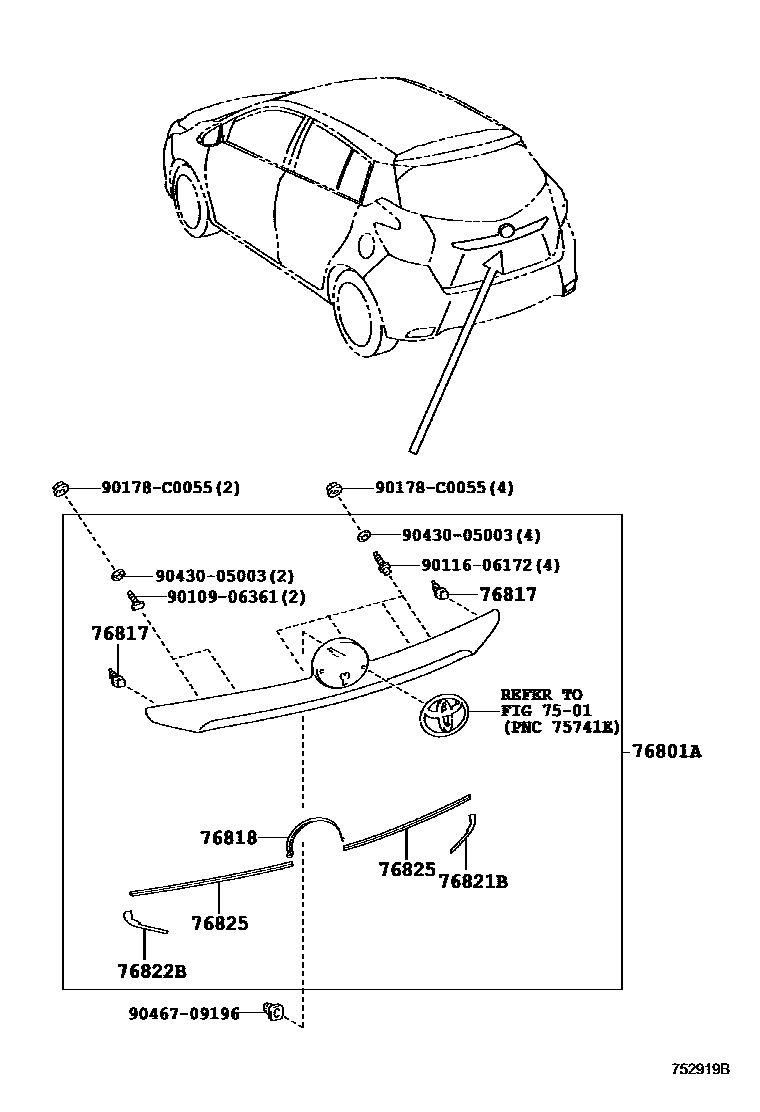

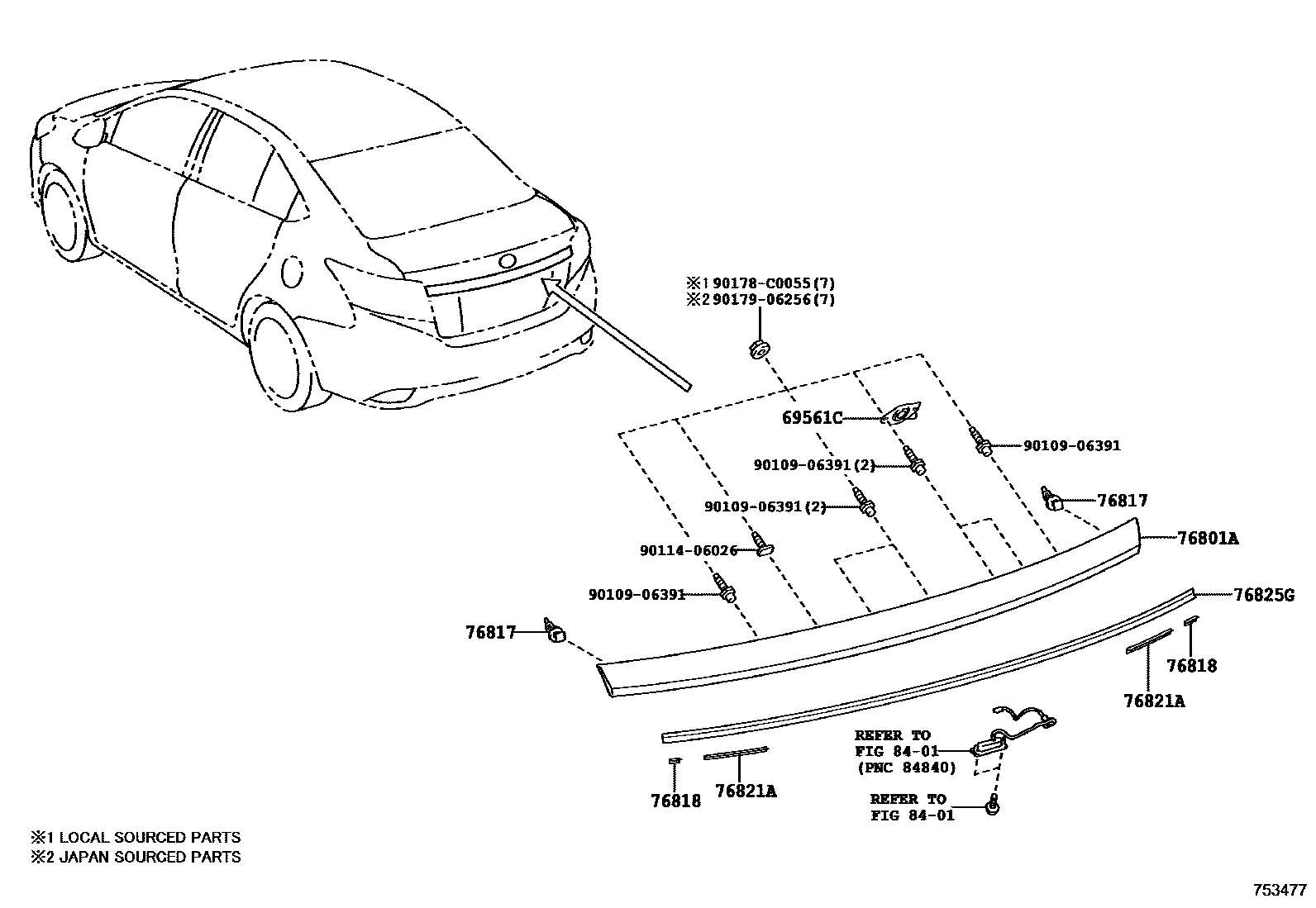

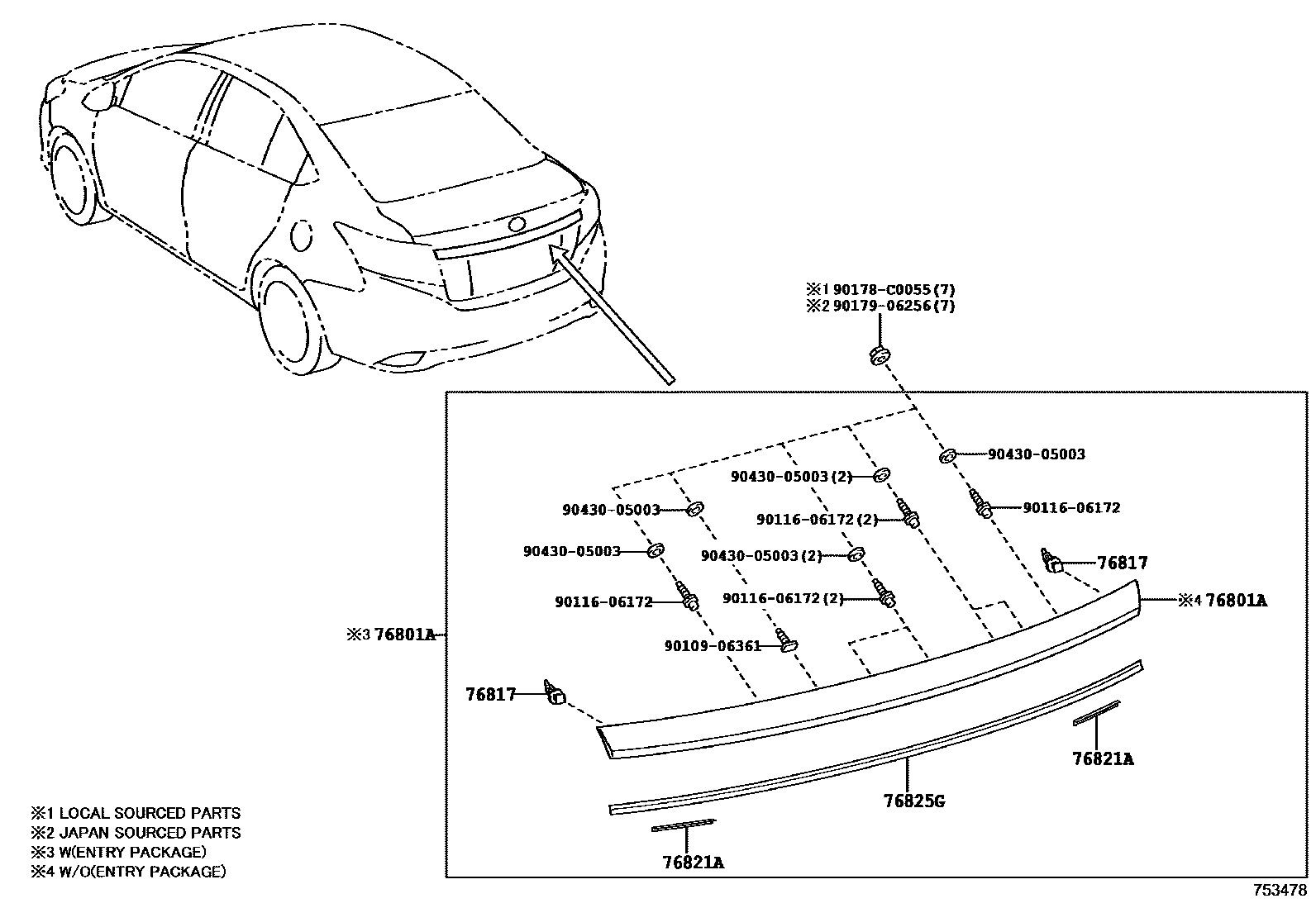

Toyota YARIS EPC diagram 7504, 后防护条, with 5 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69561C | Luggage lock core fixing parts | 69561-0D040 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-0D150 · 76801-0D380 · 76801-0D440 · 76801-0D450 · 76801-0D460 · 76801-0D470 · 76801-0D790 · 76801-YL010 · 76801-YL020 · 76811-0D916 |
| 76817 | Rear door exterior decorative strip clip | 76817-07010 |
| 76818 | Rear door outer trim strip lining | 76818-0D030 · 76818-0D120 |
| 76821A | Luggage door outer decorative strip protective cover | 76821-0D150 |
| 76821B | Rear door right side decorative strip protective cover | 76821-0D190 · 76821-0D370 · 76821-YL010 |
| 76822B | Rear door left side decorative strip protective cover | 76821-YL010 · 76822-0D080 · 76822-0D180 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-0D100 · 76825-0D220 · 76825-YL010 |
| 76825G | No. 2 protective cover for luggage compartment door decorative strip | 76825-0D200 |
