Toyota YARIS 侧防护条 — Figure 7503

Toyota YARIS EPC diagram 7503, 侧防护条, with 3 images and 35 PNC and OE references.

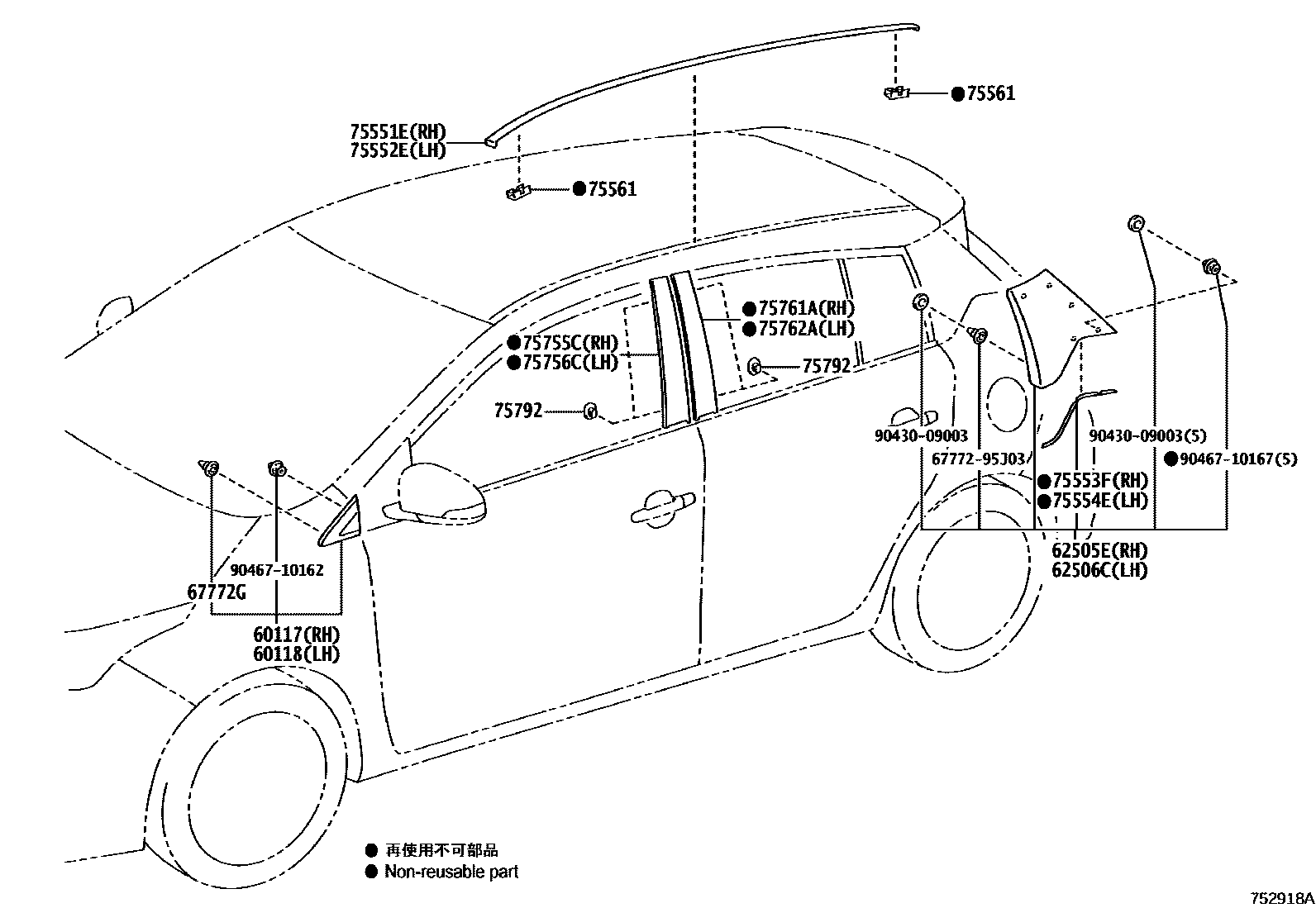

Toyota YARIS 侧防护条 EPC diagram — 752918A
侧防护条 — 752918A (201312 – 999999)

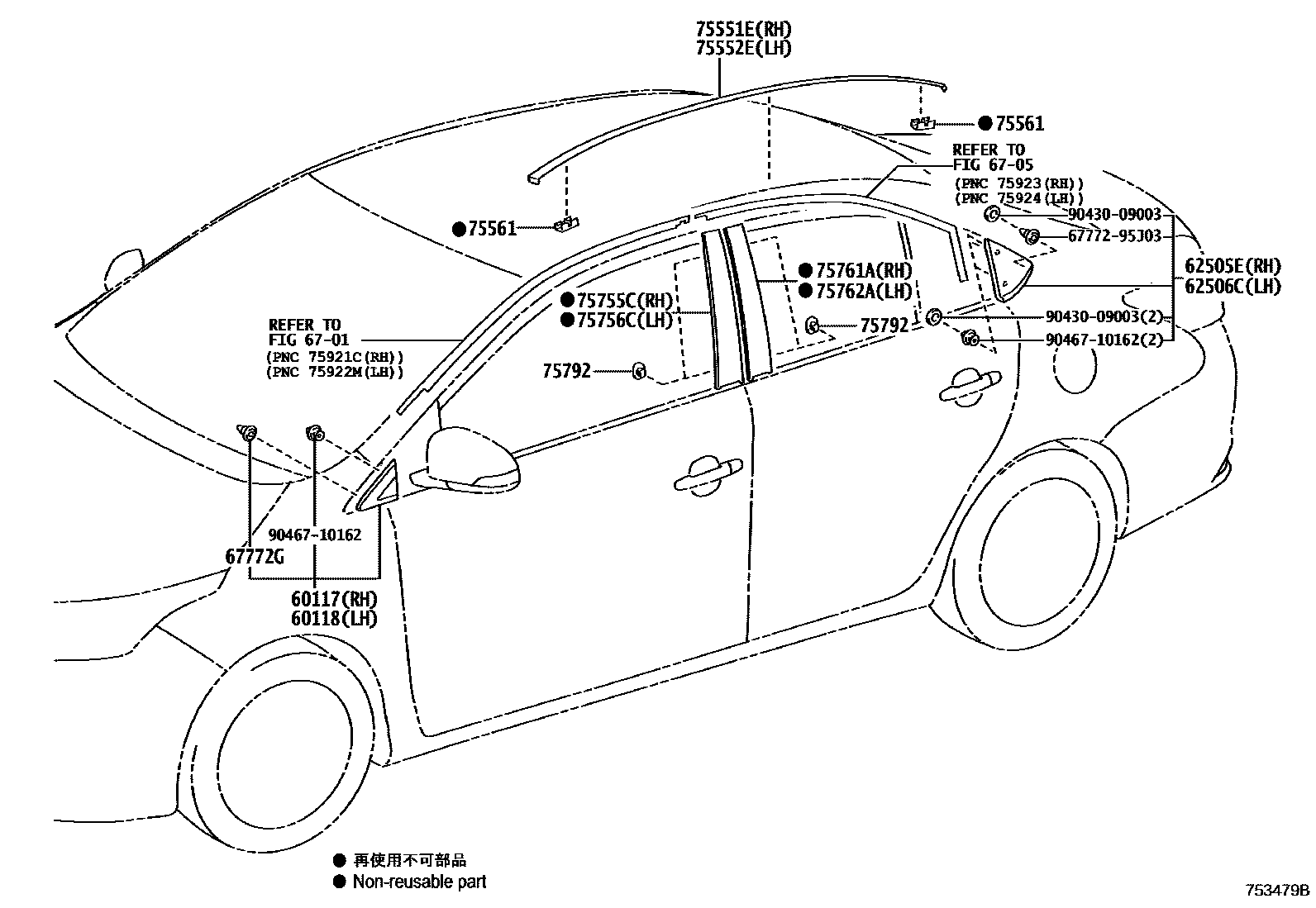

Toyota YARIS 侧防护条 EPC diagram — 753479B
侧防护条 — 753479B (201703 – 999999)

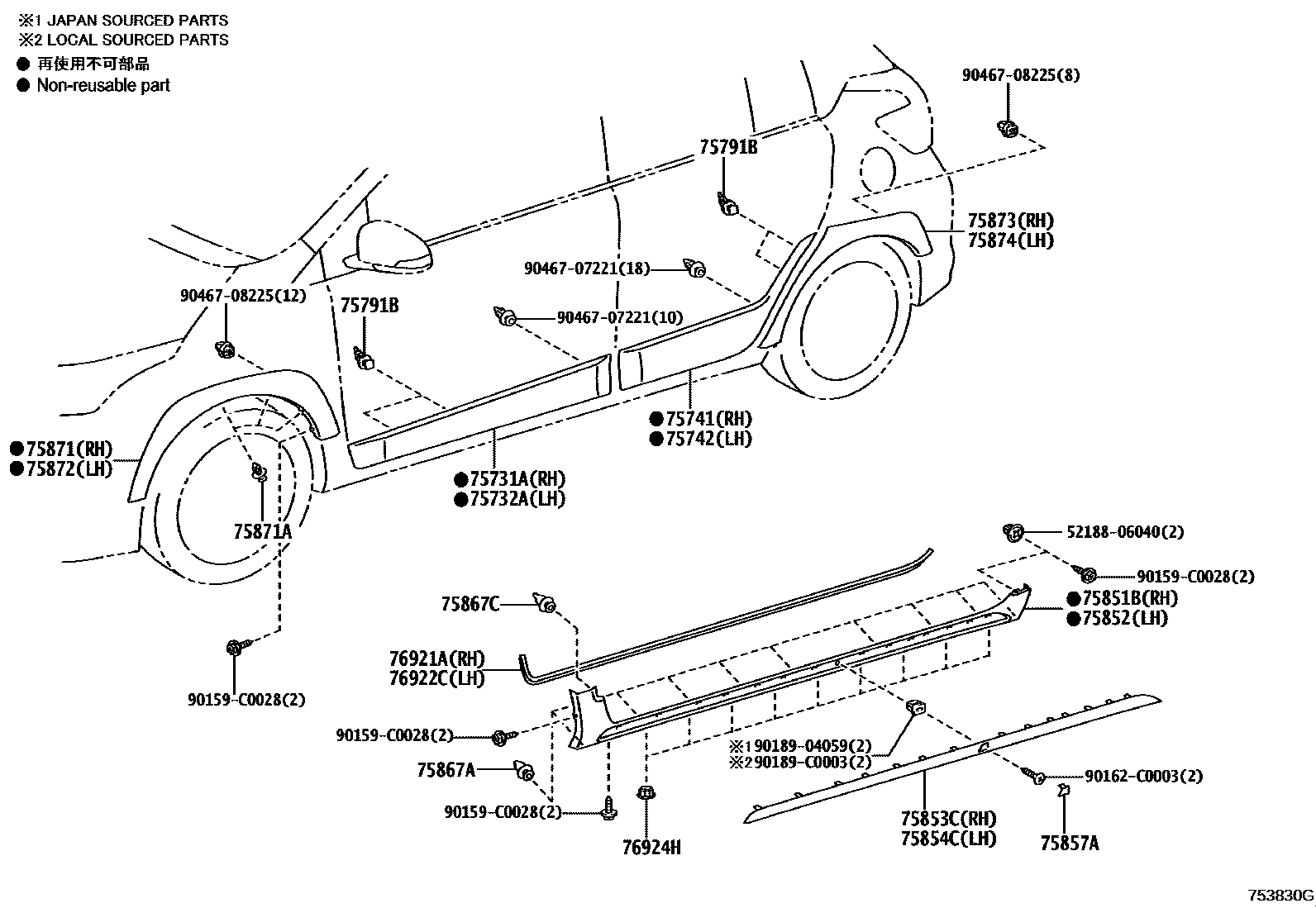

Toyota YARIS 侧防护条 EPC diagram — 753830G
侧防护条 — 753830G (201910 – 999999)

PNC and OE references

PNCPart nameOE numbers
60117Right front pillar upper cover sub-assembly60117-0D140
60118Left front pillar upper cover sub-assembly60118-0D140
62505ERight corner window pillar cover sub-assembly62505-0D040 · 62505-0D090
62506CLeft corner window pillar cover sub-assembly62506-0D040 · 62506-0D090
67772Gfront pillar cover67772-95J03
75551EDrainage groove side decorative strip on the right side of the roof75551-0D180 · 75551-0D250
75552EDrainage groove side decorative strip on the left side of the roof75552-0D130 · 75552-0D200
75553FRight side enclosure decorative panel protective strip75553-0D020
75554ELeft side enclosure decorative panel protective strip75554-0D020
75561No. 1 roof drain channel side decorative strip clip75561-33030
75731ARight front door outer protective strip75731-YL010
75732ALeft front door outer protective strip75732-YL010
75741Right rear door outer protective strip75741-YL010
75742Left rear door outer protective strip75742-YL010
75755CRight front door window frame rear protective strip75755-0D050
75756CLeft front door window frame rear protective strip75756-0D050
75761ARight rear door window frame front protective strip75761-0D030
75762ALeft rear door window frame front protective strip75762-0D030
75791BWaistline side protective strip clip75791-YL010
75792Car door window frame protective strip clip75792-0D030
75851BRight body door sill panel protection strip75851-YL010
75852Left side door sill panel protective strip75852-YL010
75853CRight side door sill panel lower protective strip75853-YL020
75854CLeft side door sill panel lower protective strip75854-YL010
75857ARight side door sill panel protective strip cover75857-YL020
75867ADoor sill panel protective strip clip75867-68010
75867CDoor sill panel protective strip clip75867-YL010
75871Right front fender wheel well protection strip75871-YL010
75871AClip (for No. 1 front fender protection strip)90467-07220 · 90467-C0043
75872Left front fender wheel well protection strip75872-YL010
75873Right side panel wheel mouth protection strip75873-YL010
75874Left side panel wheel mouth protection strip75874-YL010
76921ANo. 1 side fender protection strip76921-YL010
76922CSide fender No. 2 protective strip76922-YL010
76924HNo. 2 side fender fixings76924-52021
