Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.

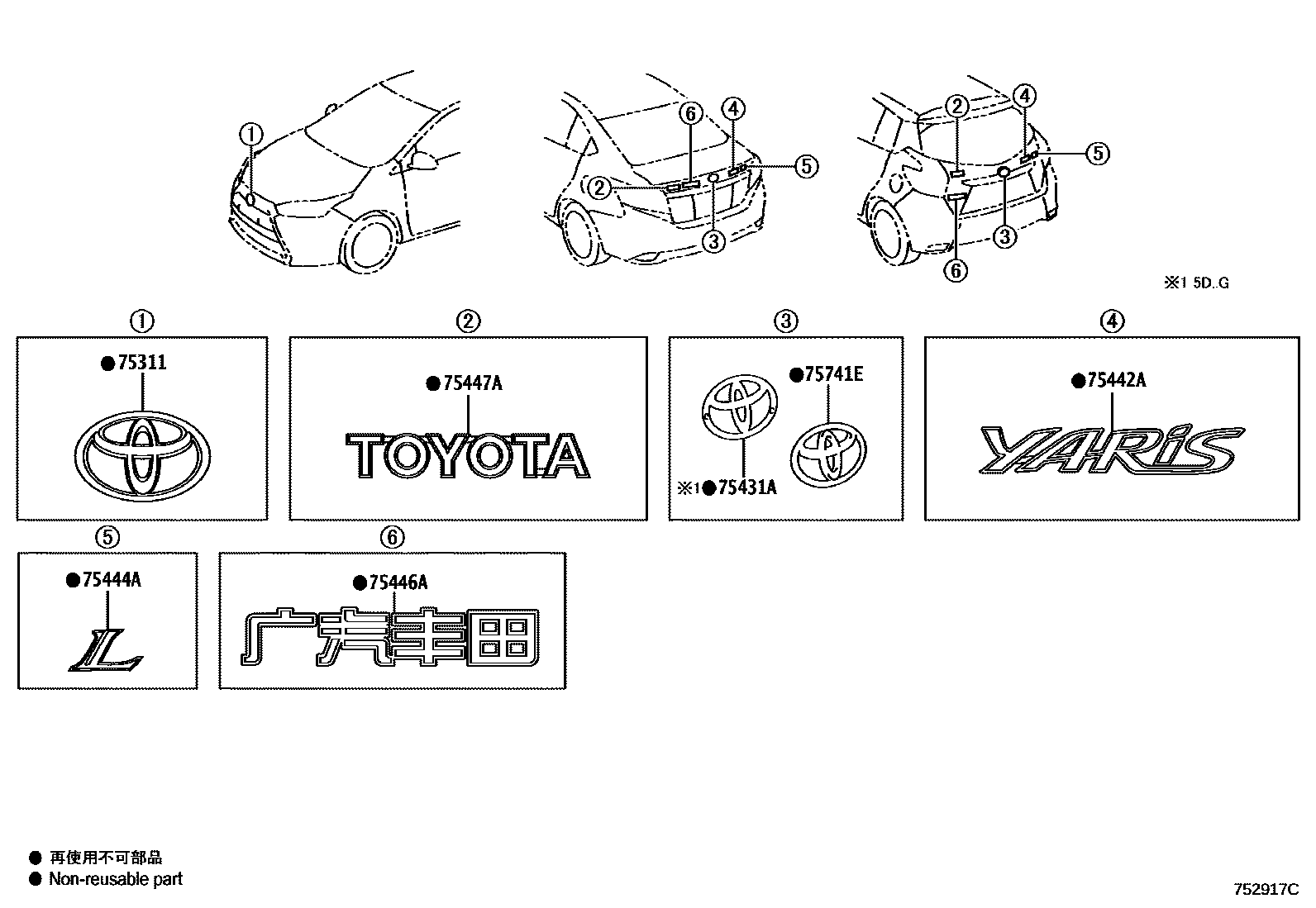

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 752917C
丰田徽标和铭牌(车外和车内) — 752917C (201312 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-02170 · 90975-C2014
75431ANo. 1 sign on back door75431-0D190
75442ANo. 2 nameplate on back door75442-0D220 · 75442-0D370
75444ANo. 4 nameplate on back door75444-0D540 · 75444-0DB00
75446ANo. 6 nameplate on back door75446-0D110 · 75446-0D120 · 75446-YL010
75447ANo. 7 nameplate on back door75447-0D120 · 75447-0D150
75741Elogo90975-C2002 · 90975-C2006
