Toyota YARIS 警示铭牌(车外和车内) — Figure 7403

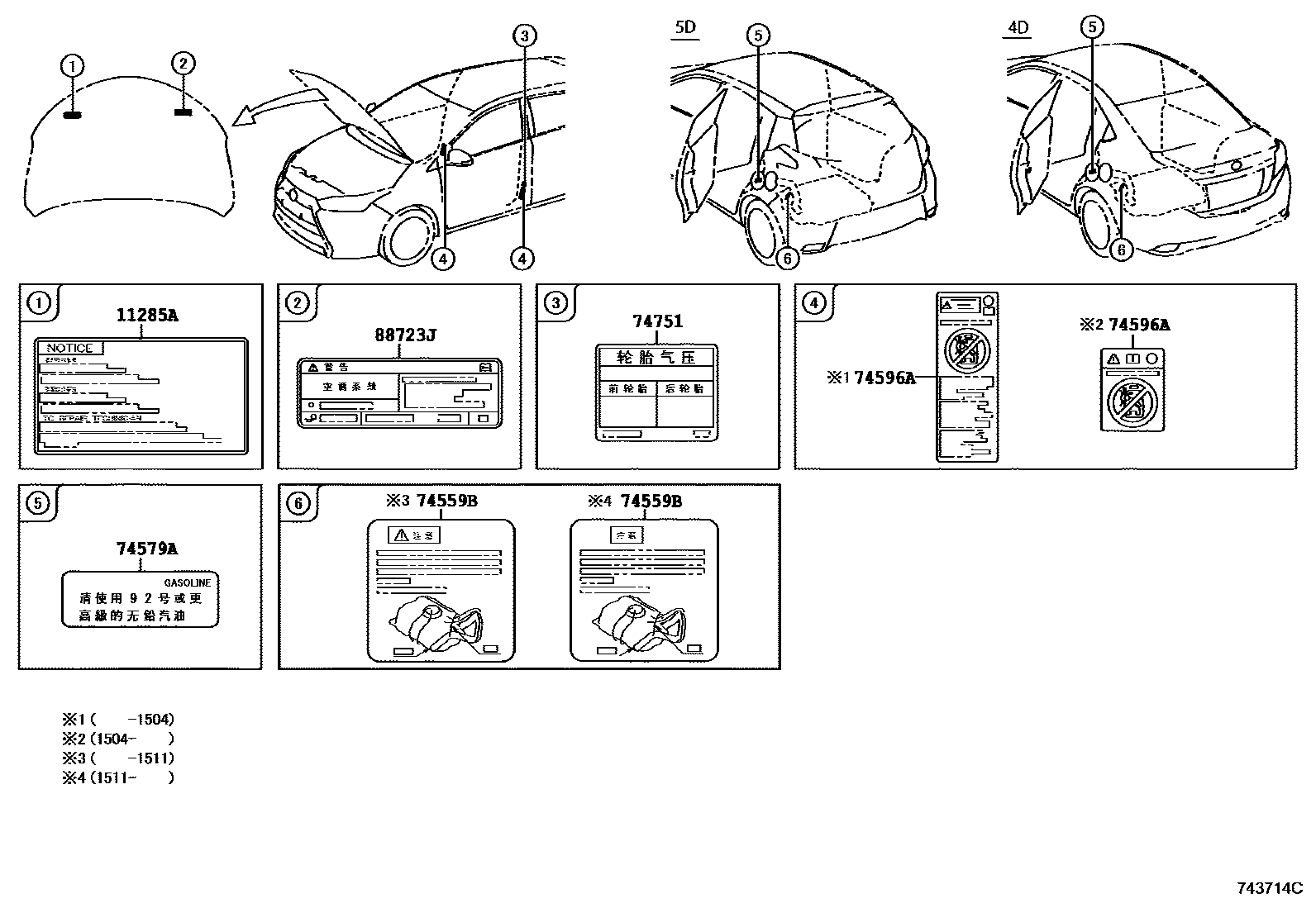

Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0Y020 |
| 11291B | Engine name plate | 11291-50051 |
| 16793E | Cooling fan warning label | 16793-15020 · 16793-31070 |
| 69339C | Child Restraint Information Label | 69339-06080 |
| 74541B | Small spare tire warning plate | 42668-0D100 |
| 74541E | Small spare tire warning plate | 42668-20020 |
| 74559B | fuel information label | 74559-0D030 · 74559-0D090 · 74559-0D100 |
| 74579A | Unleaded Fuel Information Label | 74579-0D010 · 74579-26011 |
| 74596A | Side air bag warning label | 74596-0G010 · 74596-53020 |
| 74598A | Passenger air bag warning label | 74598-06040 |
| 74751 | tire pressure information label | 42661-0D700 · 42661-0D710 · 42661-0D890 · 42661-0DA40 |
| 88723J | Cooler No. 2 maintenance warning label | 88723-0D150 |
