Toyota YARIS battery holder — Figure 7402

Toyota YARIS EPC diagram 7402, battery holder, with 1 images and 4 PNC and OE references.

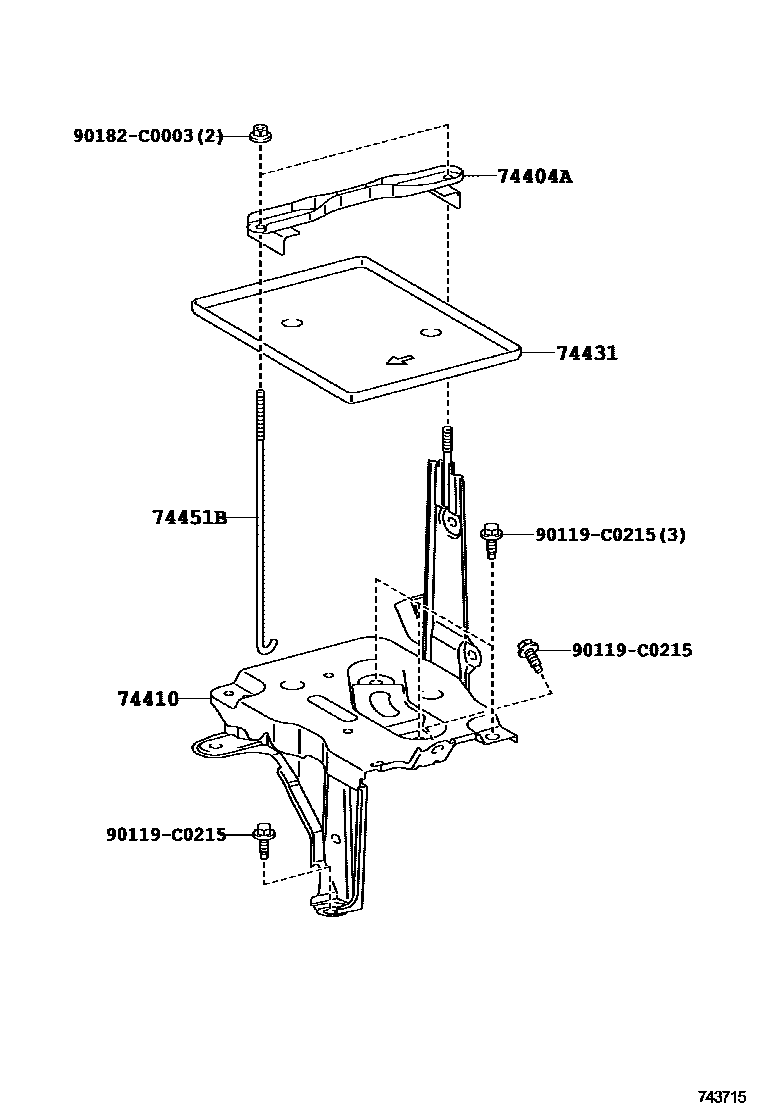

Toyota YARIS battery holder EPC diagram — 743715
battery holder — 743715 (201312 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-0D190
74410Battery bracket assembly74410-0D160 · 74410-0D261
74431battery tray74431-0D230 · 74431-0D310
74451BBattery clamp bolt74451-0D060 · 74451-0D130
