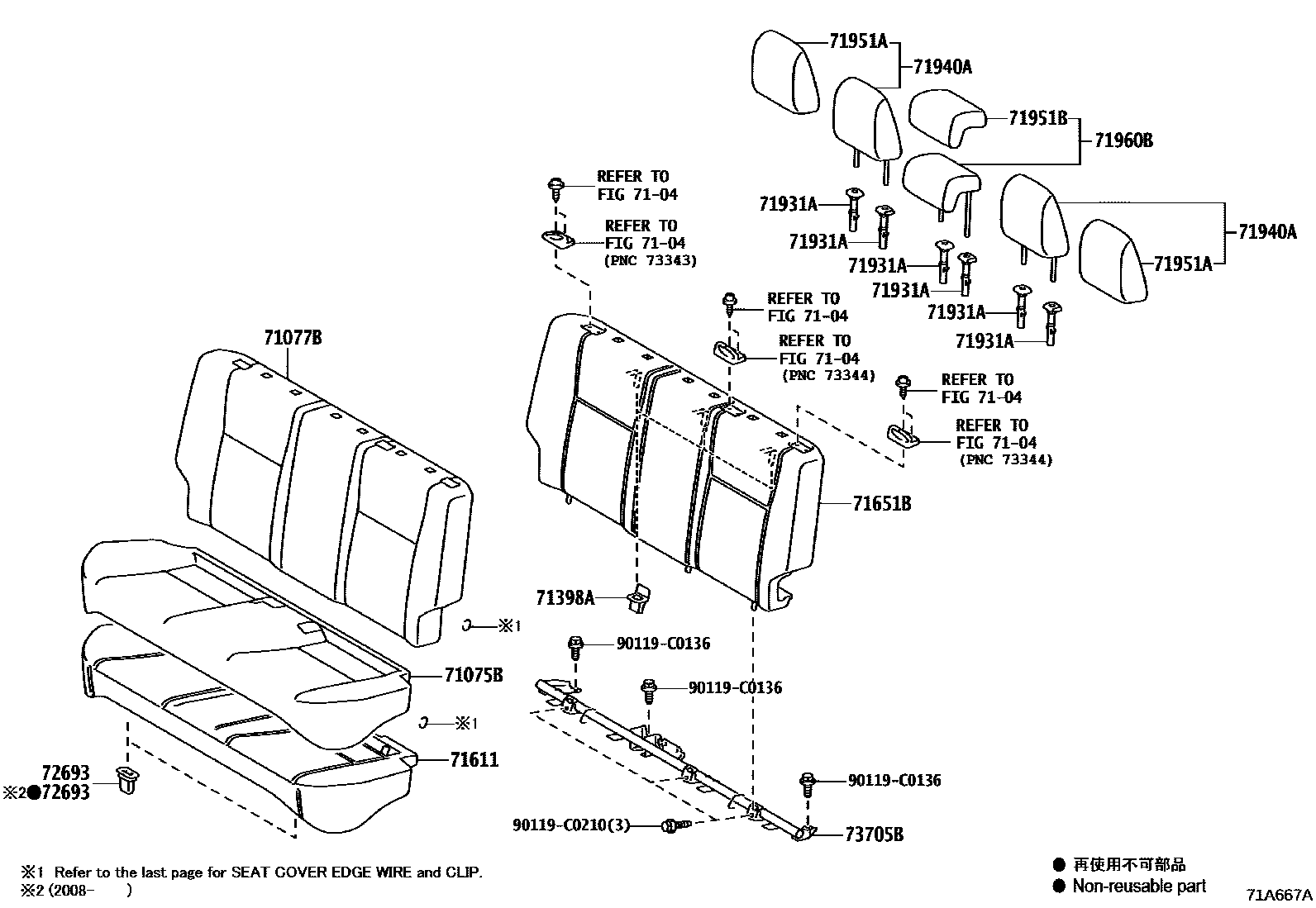

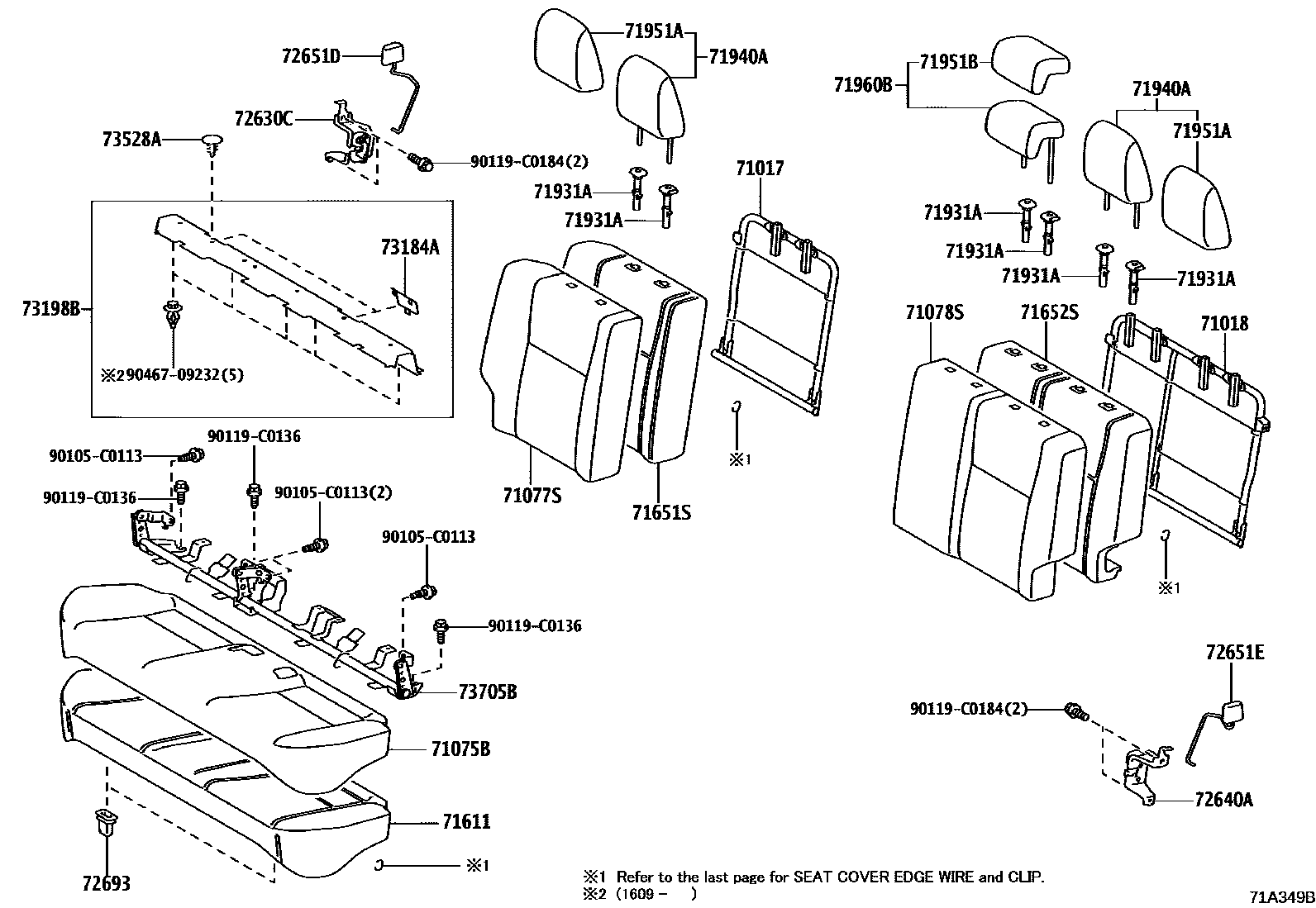

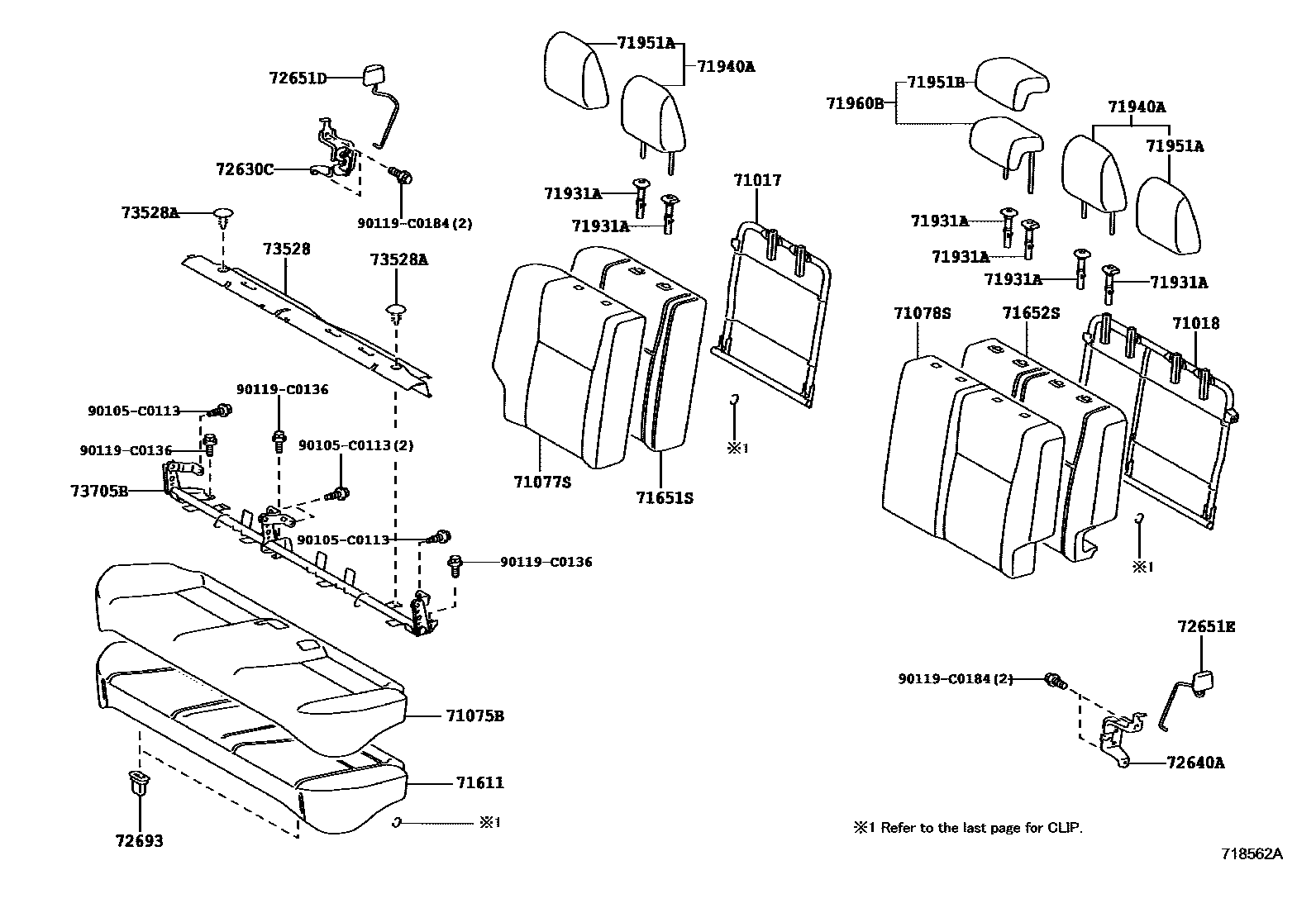

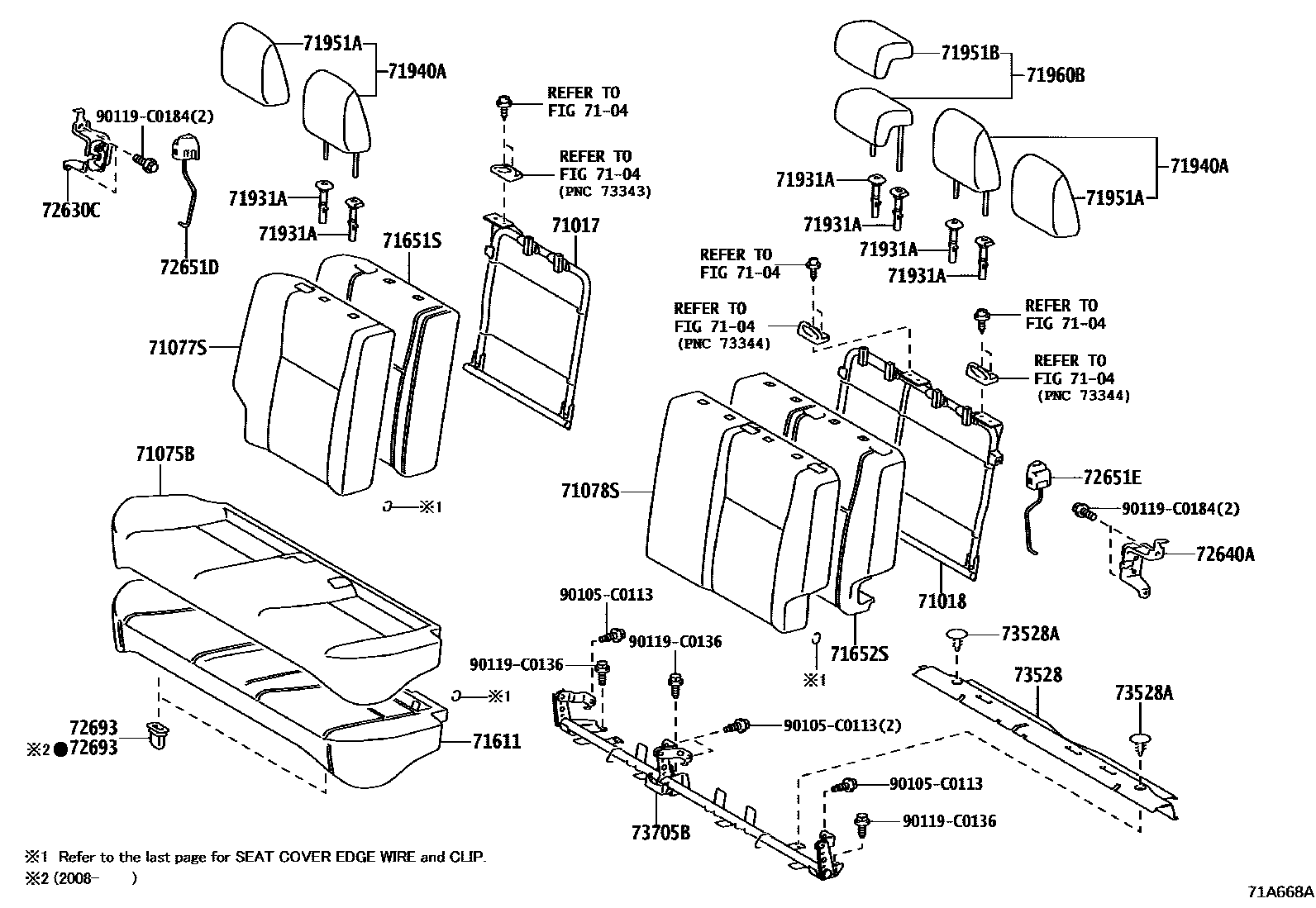

Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102
Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 5 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-0D310 · 71017-0D430 · 71017-0D750 |
| 71018 | Rear left seat back frame sub-assembly | 71018-0D130 · 71018-0D230 · 71018-0D440 |
| 71398A | Rear seat back retainer | 71398-33010 |
| 71611 | Rear seat cushion cushion | 71503-0D380 · 71503-0D420 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-0D490 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-0D460 · 71651-0D490 · 71651-0D500 · 71651-0D710 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-0D260 · 71652-0D380 · 71652-0D390 |
| 71951A | Rear seat headrest protector | 71951-0D310 · 71951-0D320 |
| 71951B | Center rear seat headrest protector | 71951-0D330 |
| 72630C | Rear right seat back lock assembly | 72630-0D130 |
| 72640A | Rear left seat back lock assembly | 72640-0D130 |
| 72693 | Rear seat cushion hook | 72693-02030 · 72693-12080 |
| 73184A | Child restraint seat tether anchor cover | 73717-0D150 |
| 73198B | Rear seat bracket cover | 73198-0D010 |
| 73528 | Auxiliary carpet behind rear seats | 73528-0D030 · 73528-0D031 |
| 73705B | Cross anchor bracket sub-assembly | 73705-0D310 · 73705-0D490 · 73705-0D590 |
