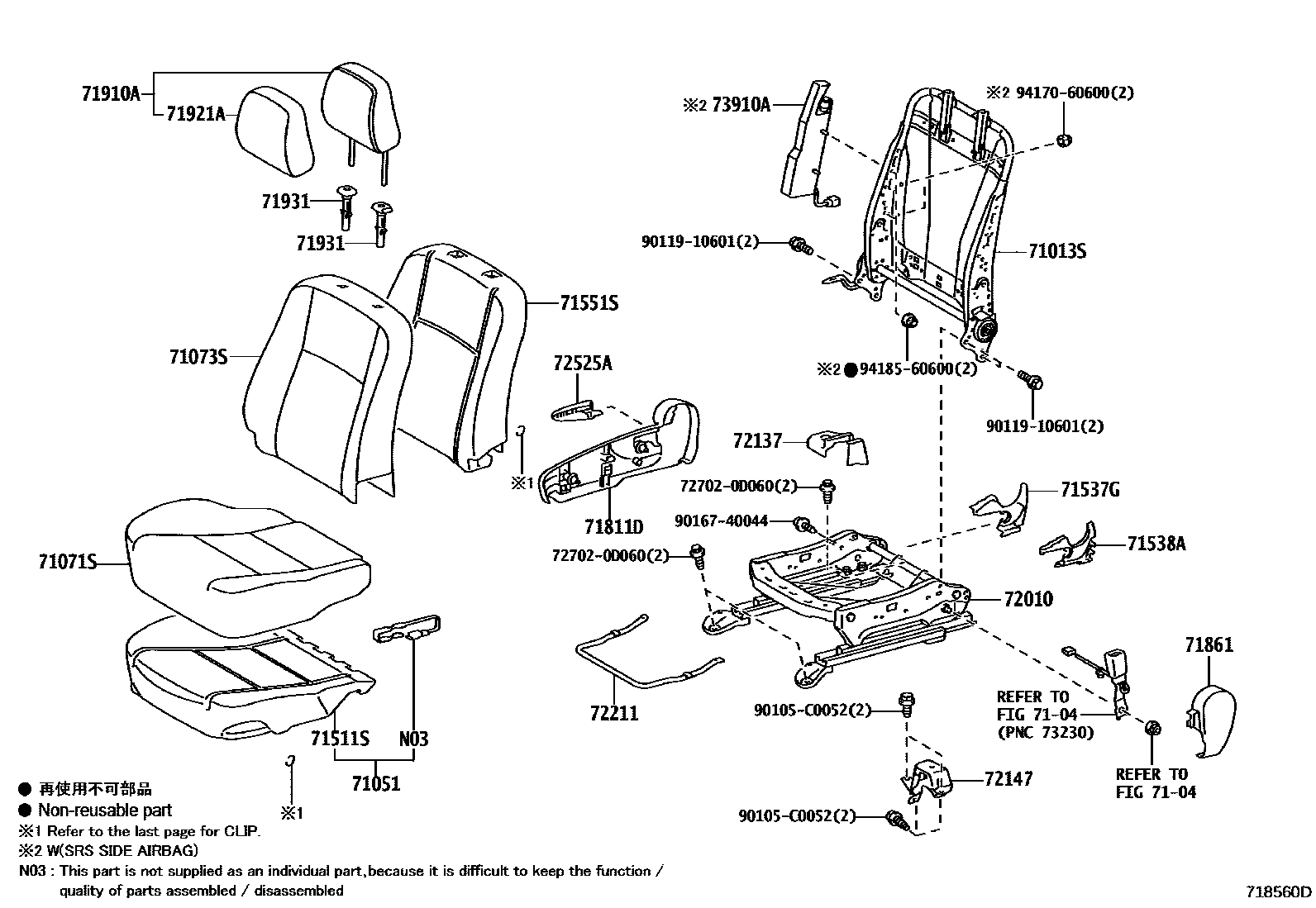

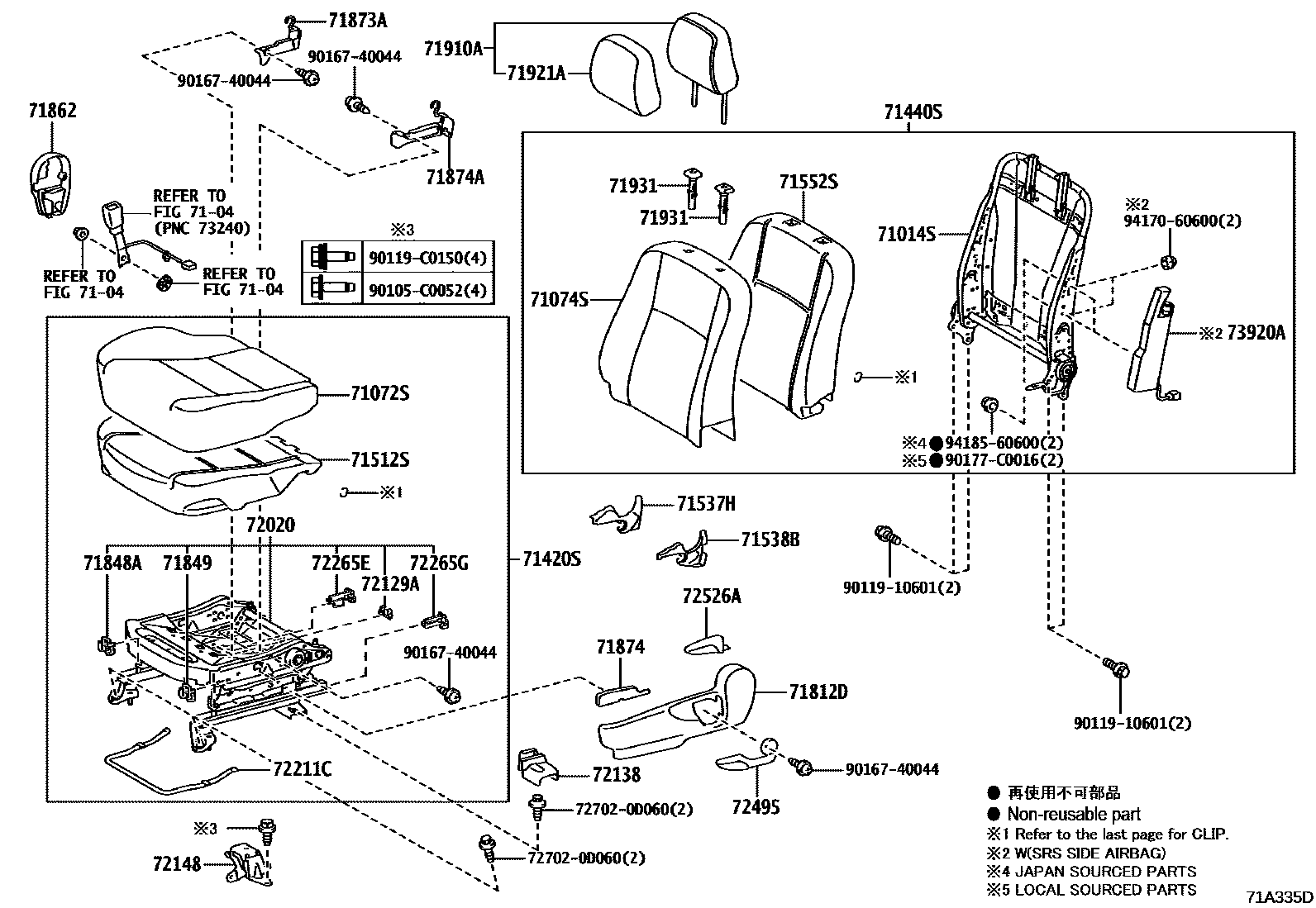

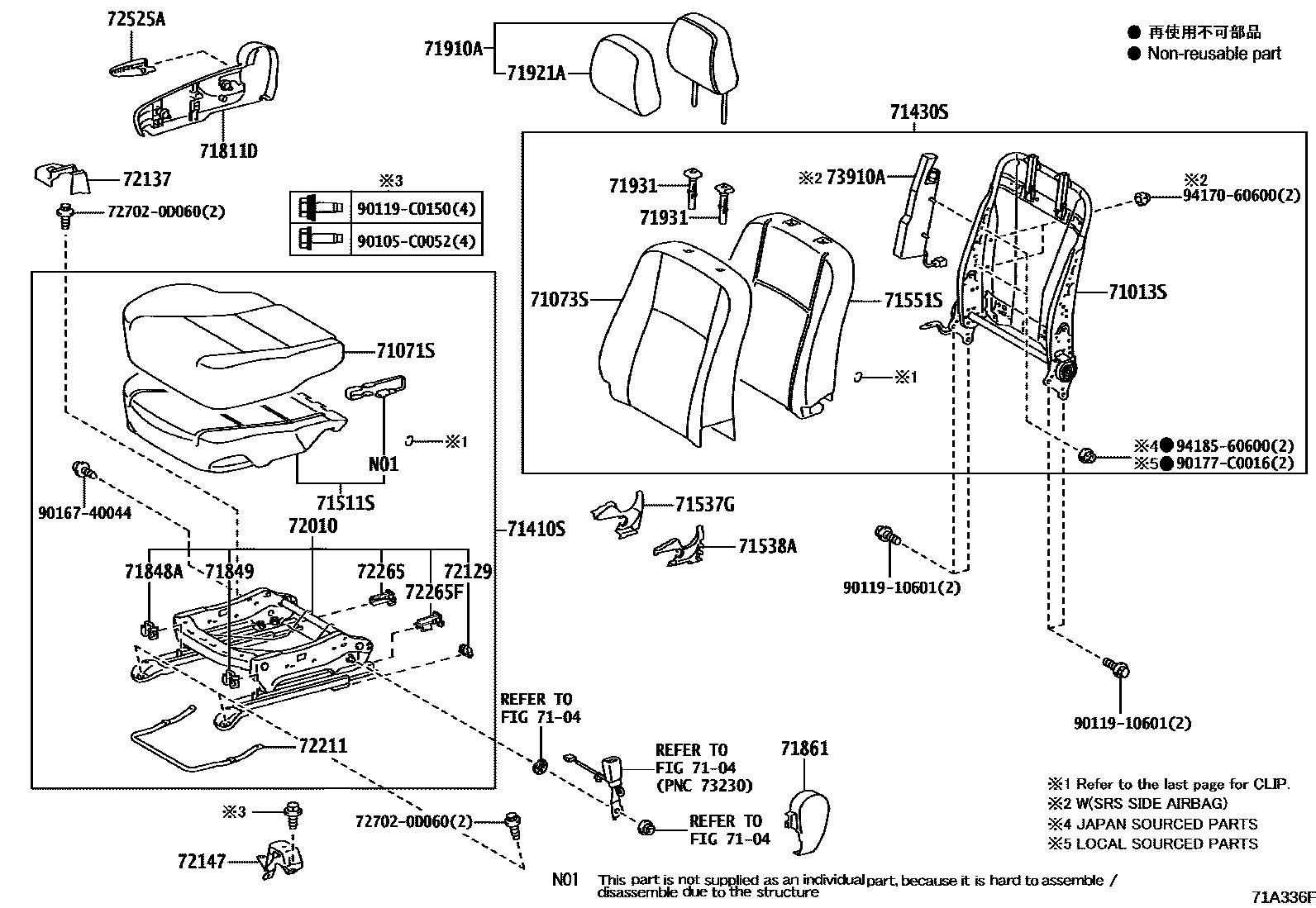

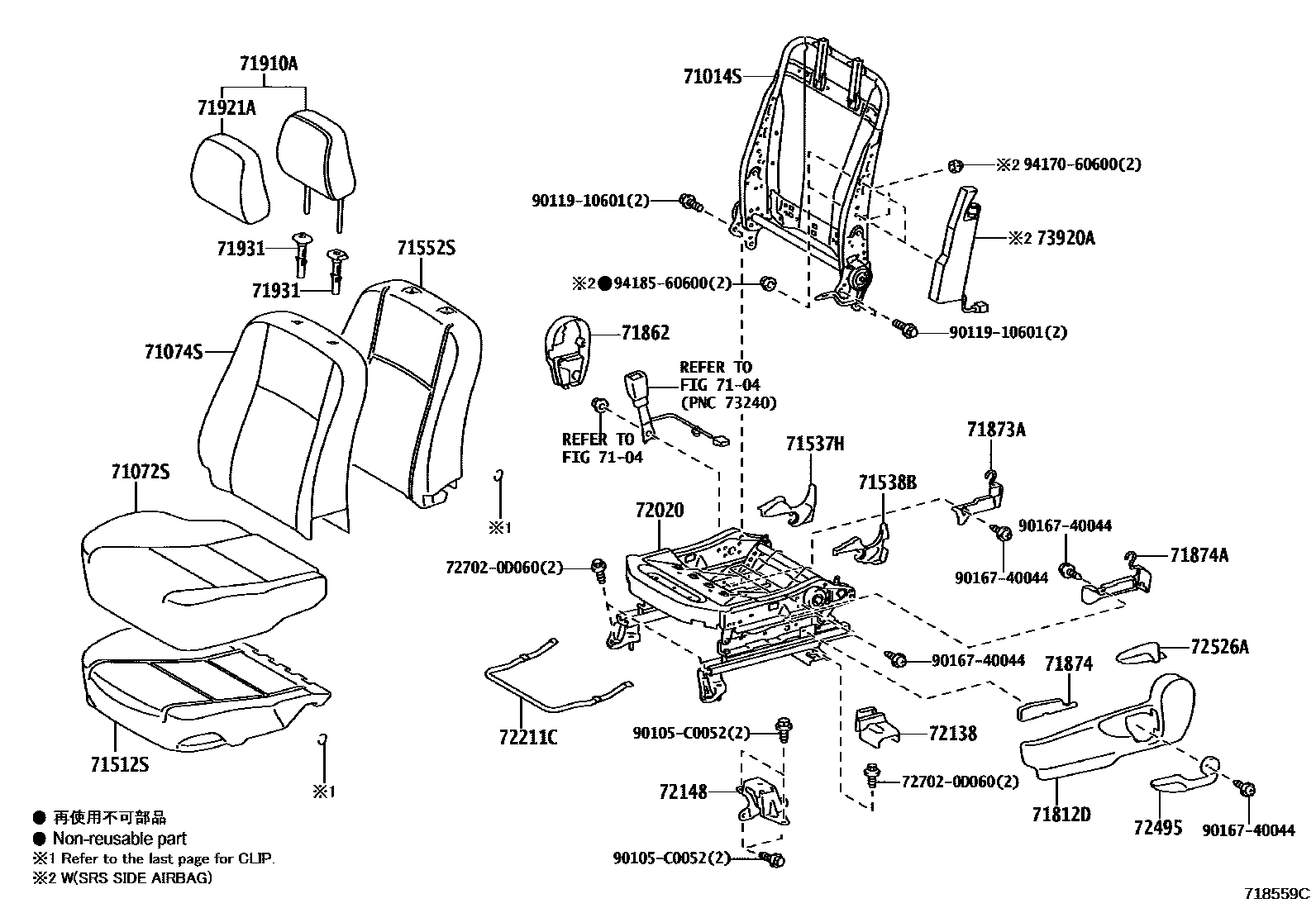

Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101
Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 5 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-0D070 · 71013-0D080 |
| 71014S | Front left seat back frame sub-assembly | 71014-0D070 · 71014-0D080 |
| 71051 | Front right seat cushion sensor pad sub-assembly | 71501-0D090 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-0D130 · 71511-0D480 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-0D450 · 71512-0D550 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0D530 · 71551-0D540 · 71551-0D640 · 71551-0D650 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0D430 · 71552-0D440 · 71552-0D540 · 71552-0D550 |
| 71848A | Right seat adjuster cover | 71848-0D130 |
| 71849 | left seat adjuster cover | 71848-0D130 |
| 71873A | Front seat cushion lower guard | 71873-06440 |
| 71874 | Front left seat cushion lower guard | 71874-0D370 |
| 71874A | Front left seat cushion lower guard | 71874-06520 |
| 71921A | Front seat headrest protector | 71921-0D450 · 71921-0D460 |
| 72010 | Front right seat adjuster assembly | 72010-0D510 · 72010-0D511 |
| 72020 | Front left seat adjuster assembly | 72020-0D530 · 72020-0D531 |
| 72129 | No. 1 seat slide rail lower rail protective cover | 72129-0D020 |
| 72129A | No. 2 seat slide rail lower rail ring protective cover | 72129-0D020 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-0D130 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-0D140 |
| 72211 | Seat slide adjustment handle | 72211-0D200 |
| 72211C | Seat slide adjustment handle | 72211-0D200 |
| 72265 | Right seat rail upper rail cover | 72265-0D020 |
| 72265E | Right seat rail upper rail cover | 72265-0D030 |
| 72265F | Left seat rail upper rail cover (for right seat) | 72265-0D030 |
| 72265G | Left seat rail upper rail cover (for left seat) | 72265-0D020 |
| 73910A | Front right seat airbag assembly | 73910-0D080 |
| 73920A | Front left seat airbag assembly | 73920-0D080 |
