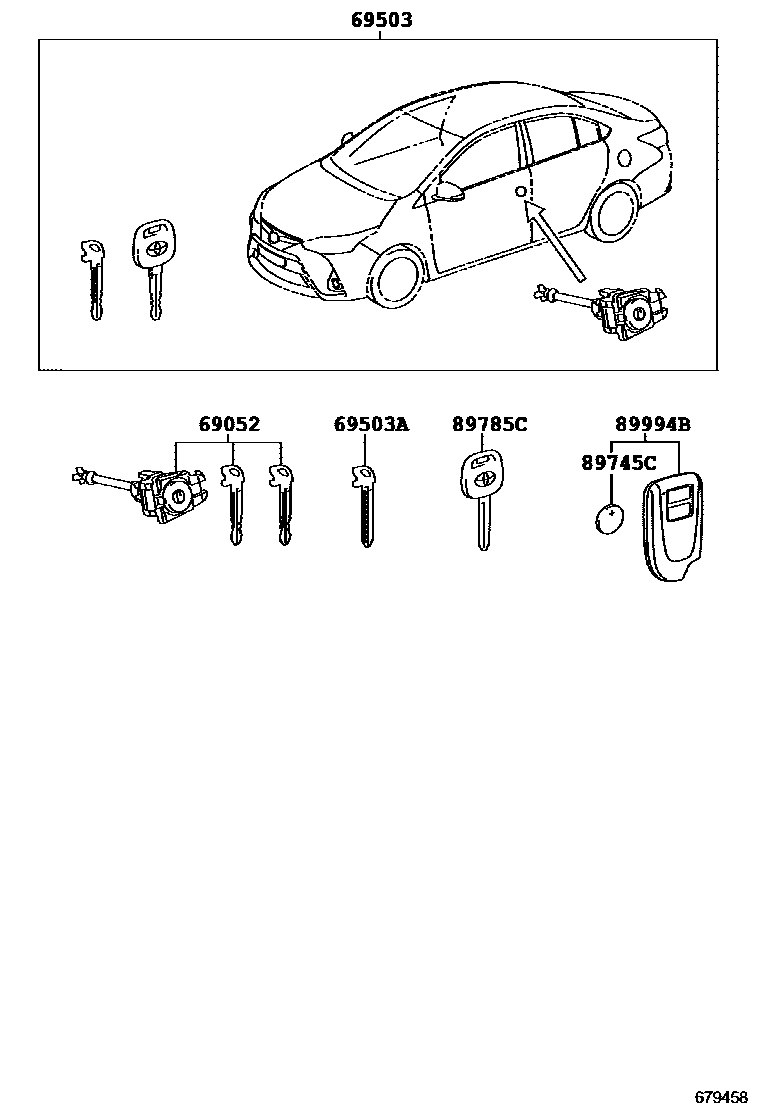

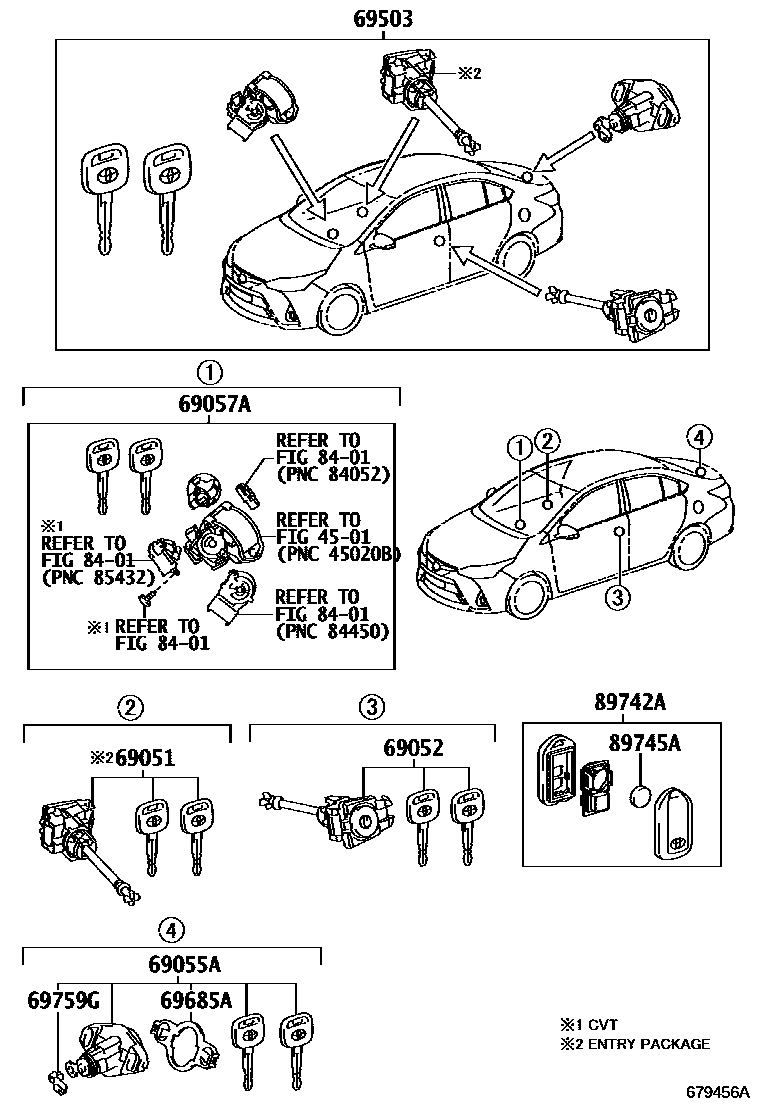

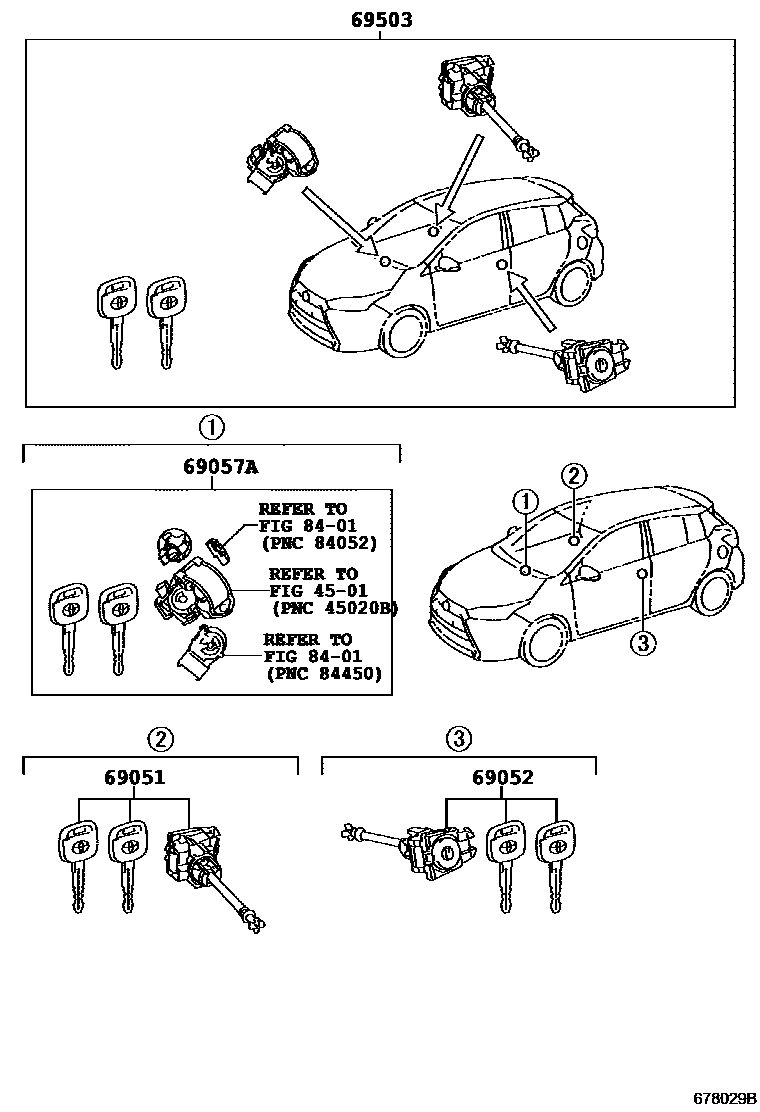

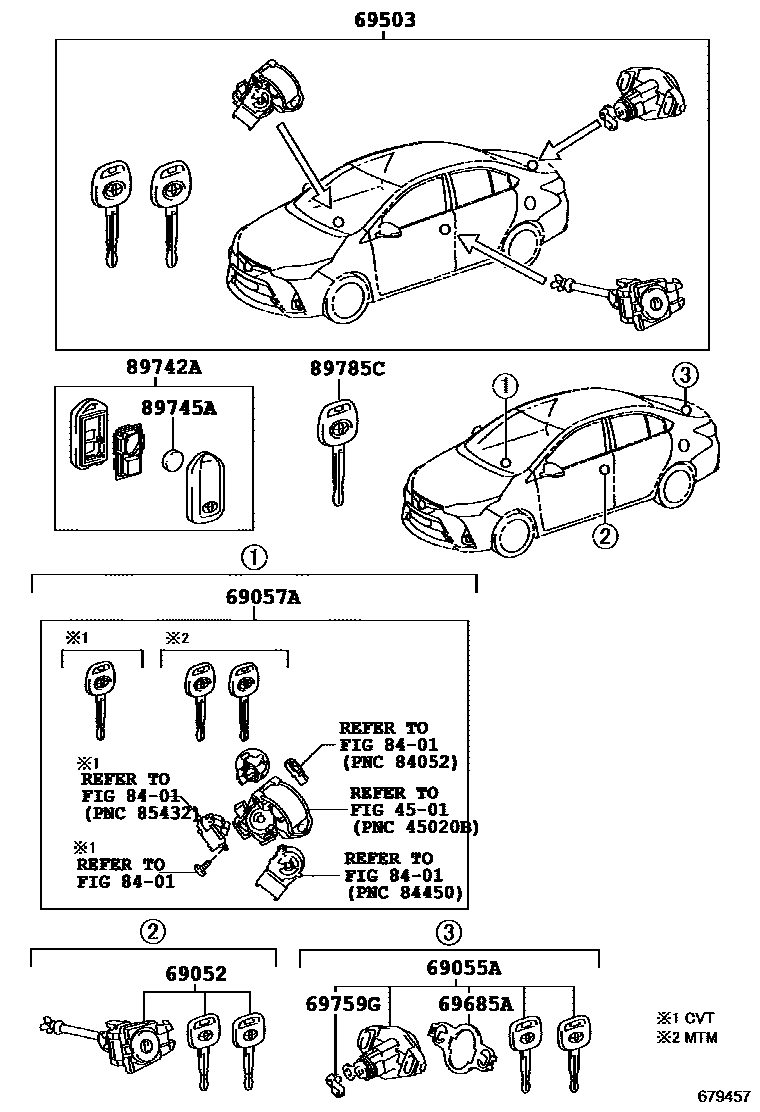

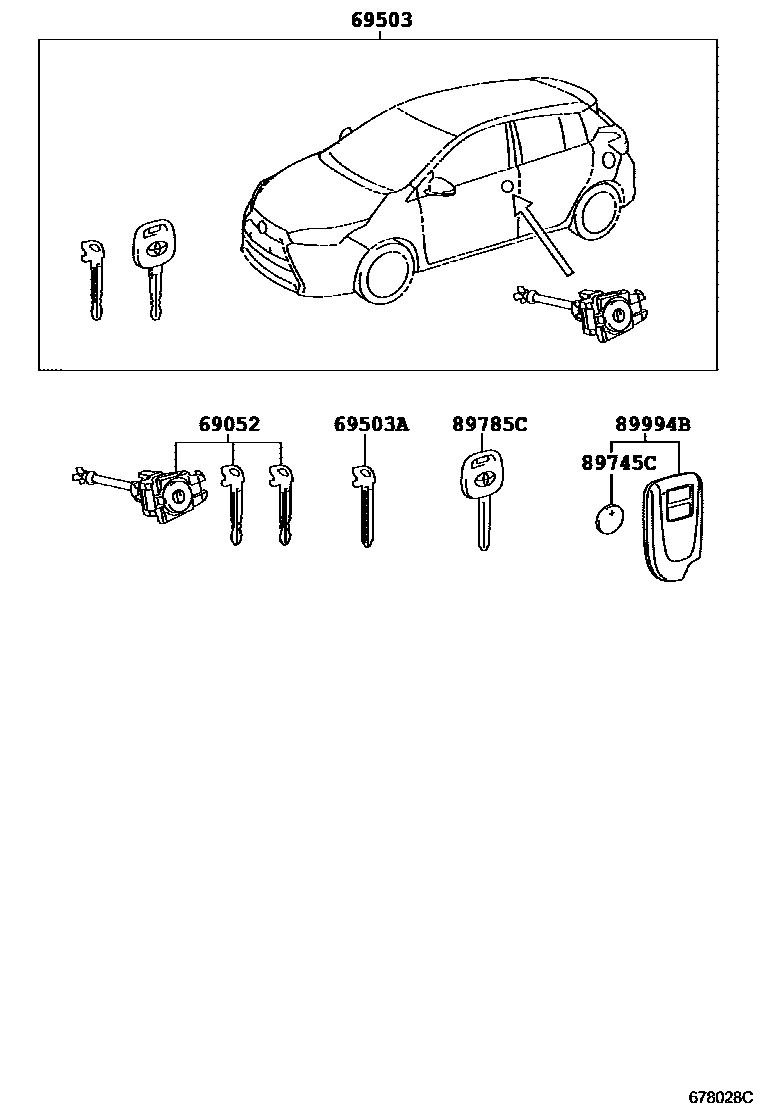

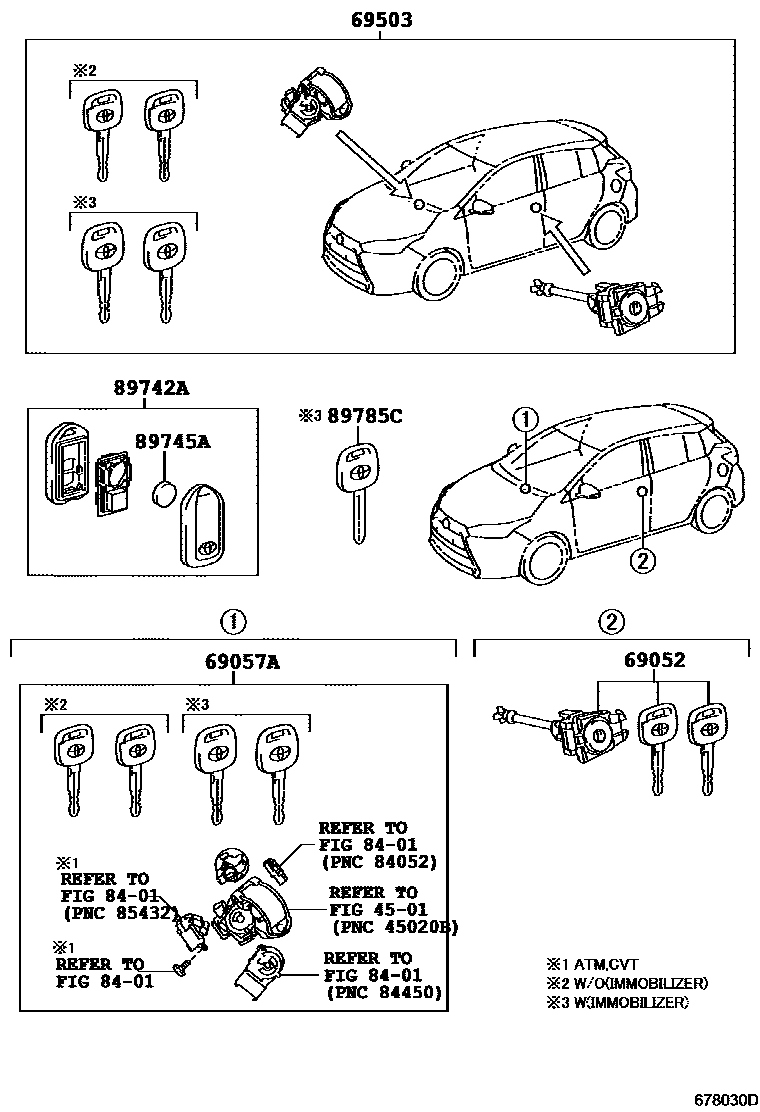

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 6 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-0D250 |
| 69052 | Left door lock cylinder and key assembly | 69052-0D260 · 69052-0D300 |
| 69055A | Luggage lock cylinder and key assembly | 69055-0D360 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-0D510 · 69057-0D520 · 69057-0D530 · 69057-0D540 |
| 69503 | Door lock cylinder components | 69005-0DA20 · 69005-0DA30 · 69005-0DA40 · 69005-0DA50 · 69005-0DA70 · 69005-0DB20 · 69005-0DF20 · 69005-0DF30 · 69005-0DF40 · 69005-0DF50 · 69005-0DF60 |
| 69503A | external tooth key | 69515-52180 |
| 69685A | Lock cylinder liner | 69563-0D040 |
| 69759G | Trunk door lock core buckle | 69759-24080 |
| 89742A | remote key | 89742-0D060 |
| 89745A | Transmitter battery | 89745-45010 |
| 89745C | Transmitter battery | 89745-50020 |
| 89785C | transceiver key master transmitter | 89785-0D140 · 89785-0D180 |
| 89994B | electronic key transmitter | 89904-0D110 · 89904-0D150 · 89904-0D151 |
