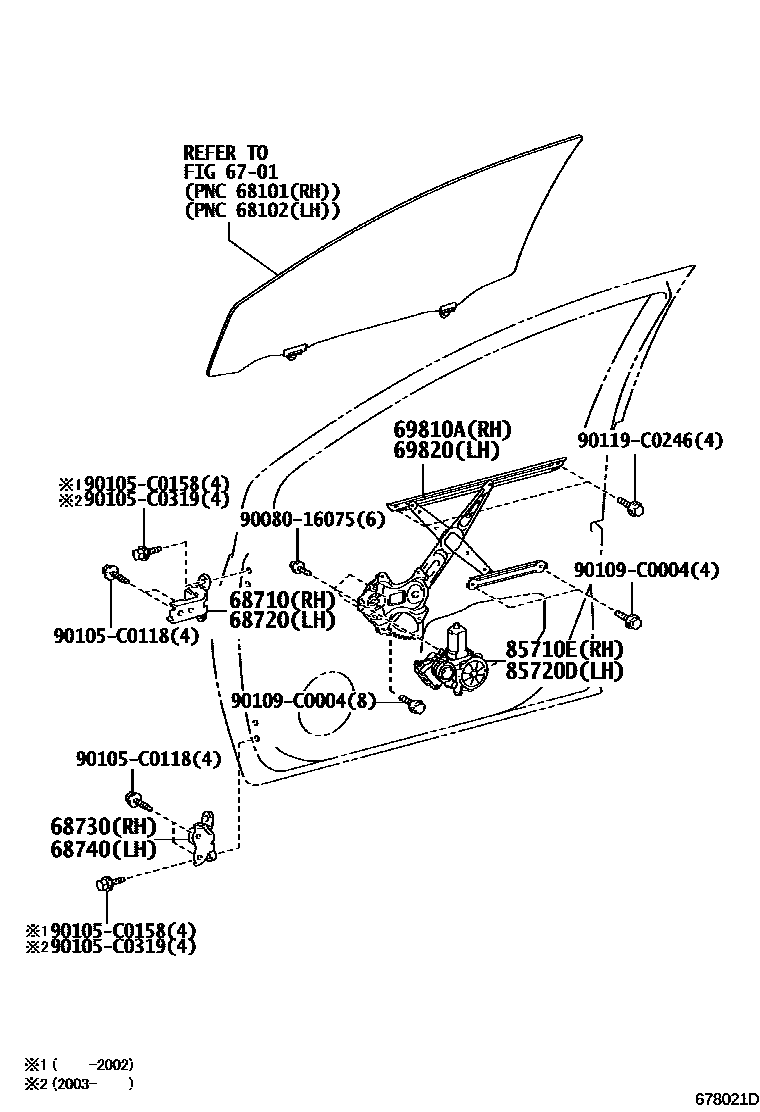

Toyota YARIS 前门车窗升降器和合页 — Figure 6704
Toyota YARIS EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-02031 |
| 68720 | Left front door upper hinge assembly | 68720-02031 |
| 68730 | Right front door lower hinge assembly | 68730-02061 |
| 68740 | Left front door lower hinge assembly | 68740-02061 |
| 69810A | Right front door window lift assembly | 69801-06230 · 69801-0D190 |
| 69820 | Left front door window lift assembly | 69802-06230 · 69802-0D200 |
| 85710E | Right power window lift motor assembly | 85710-06190 · 85710-0D231 |
| 85720D | Left electric window lift motor assembly | 85720-06210 · 85720-0D271 |
