Toyota YARIS 底板和底板装饰罩 — Figure 6404

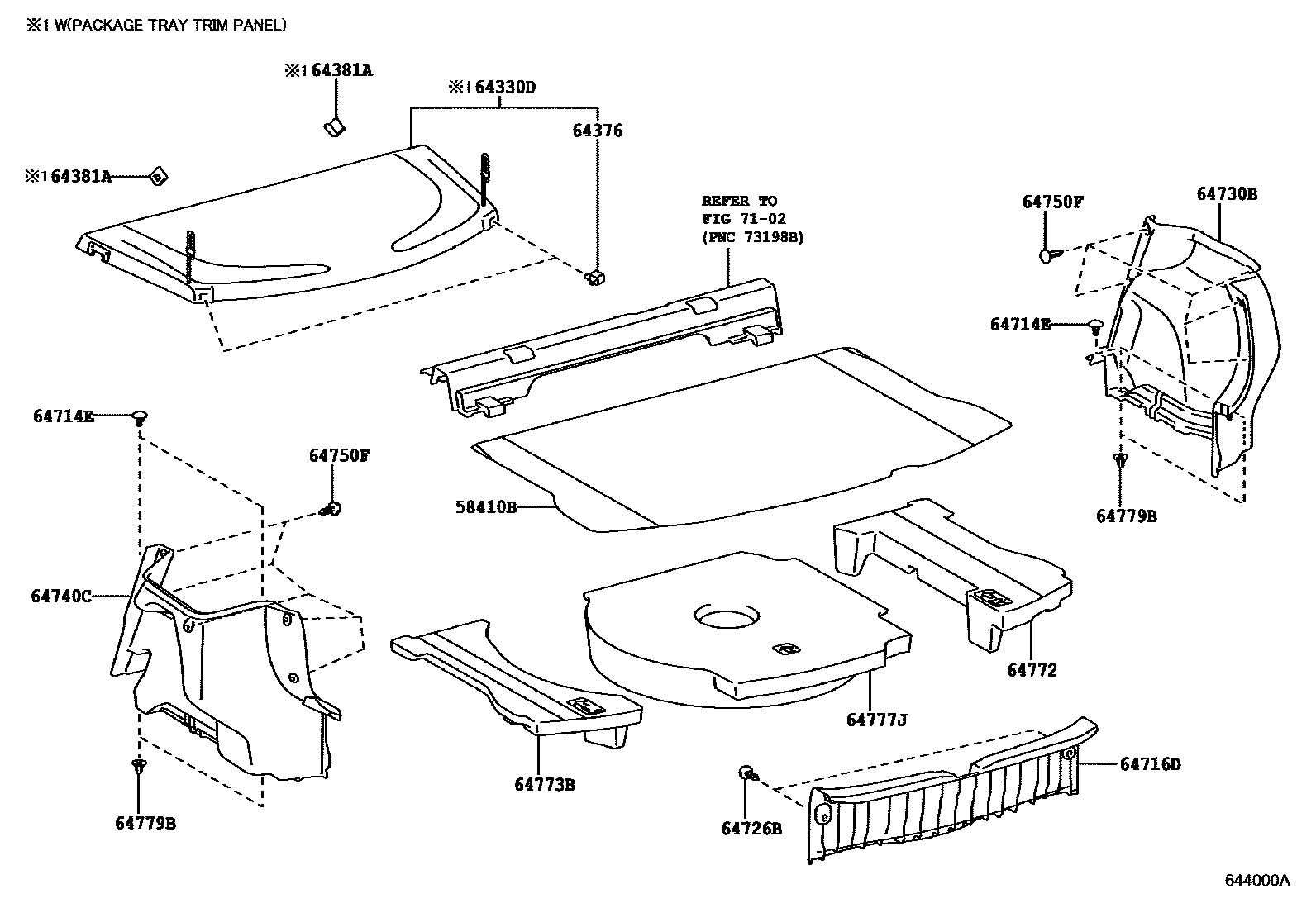

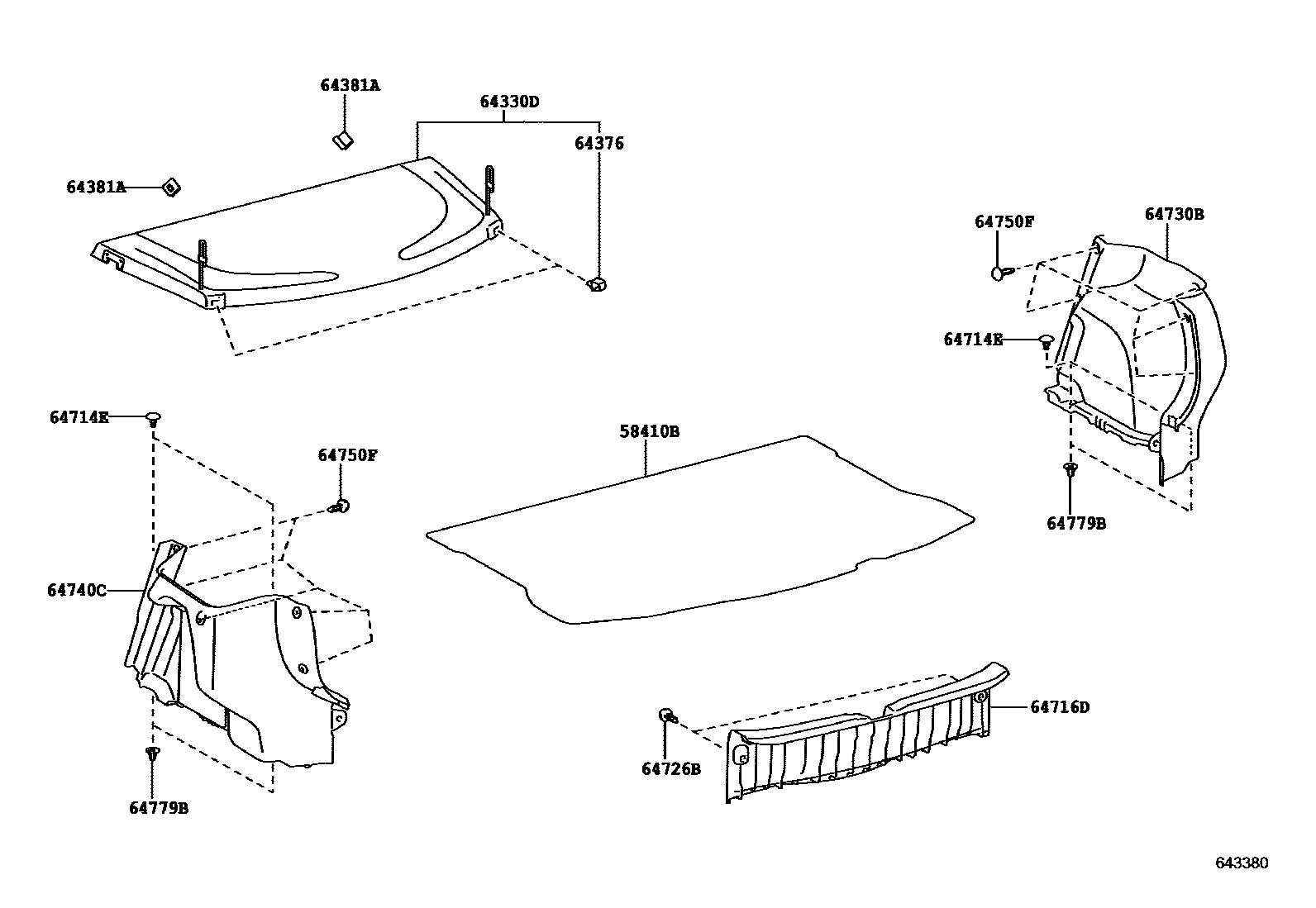

Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64376 | No. 2 glove box decorative panel spacer | 64376-12020 |
| 64381A | Glove box decorative panel hanger | 64381-52010 |
| 64714E | Clip (for bottom panel side decorative cover) | 64726-0D070 |
| 64716D | Rear floor decorative cover | 64716-0D140 |
| 64772 | Spare tire cover liner | 64772-0D111 |
| 64773B | No. 2 spare tire cover liner | 64773-0D051 |
| 64777J | Spare tire cushion | 64777-0D091 · 64777-0D140 |
| 64779B | Spare tire cover stop | 64779-0D100 |
