Toyota YARIS 杂物箱板和行李箱垫 — Figure 6403

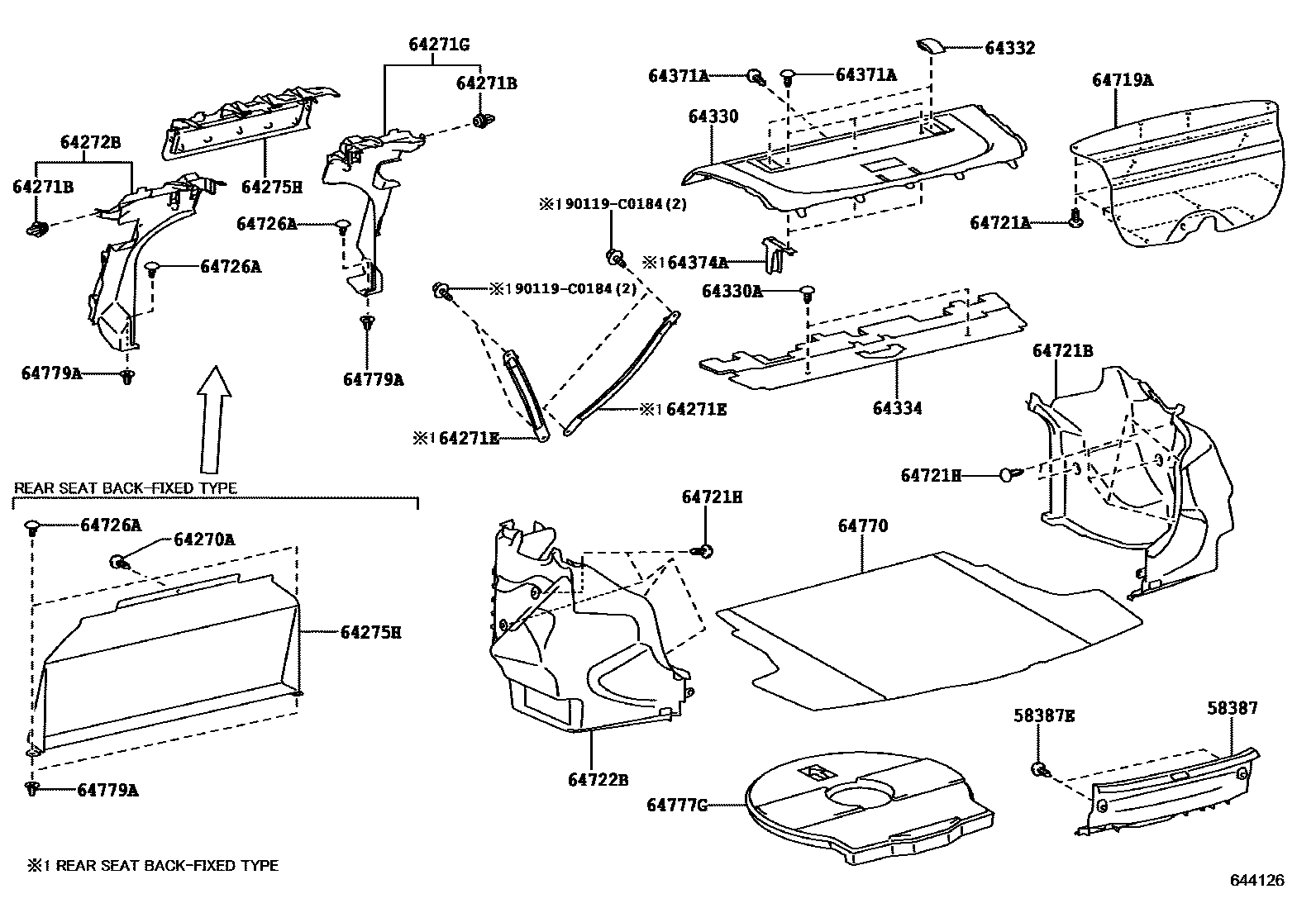

Toyota YARIS EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387 | Rear floor decorative panel | 58387-0D190 |
| 64271B | Clip (for compartment partition) | 90467-C0036 |
| 64271E | compartment partition | 64241-0D110 |
| 64271G | Right compartment partition | 64271-0D100 |
| 64272B | Left compartment partition | 64272-0D090 |
| 64275H | No. 1 carriage partition cover | 64275-0D170 · 64275-0D180 |
| 64334 | Glove box decorative panel muffler pad | 64334-0D230 |
| 64374A | Glove box decorative panel bracket | 64374-0D100 |
| 64726A | Luggage rear trim clip | 64726-0D070 |
| 64777G | Spare tire cushion | 64777-0D120 |
| 64779A | Spare tire cover stop | 64779-0D100 |
