Toyota YARIS 车顶内衬和消声垫 — Figure 6402

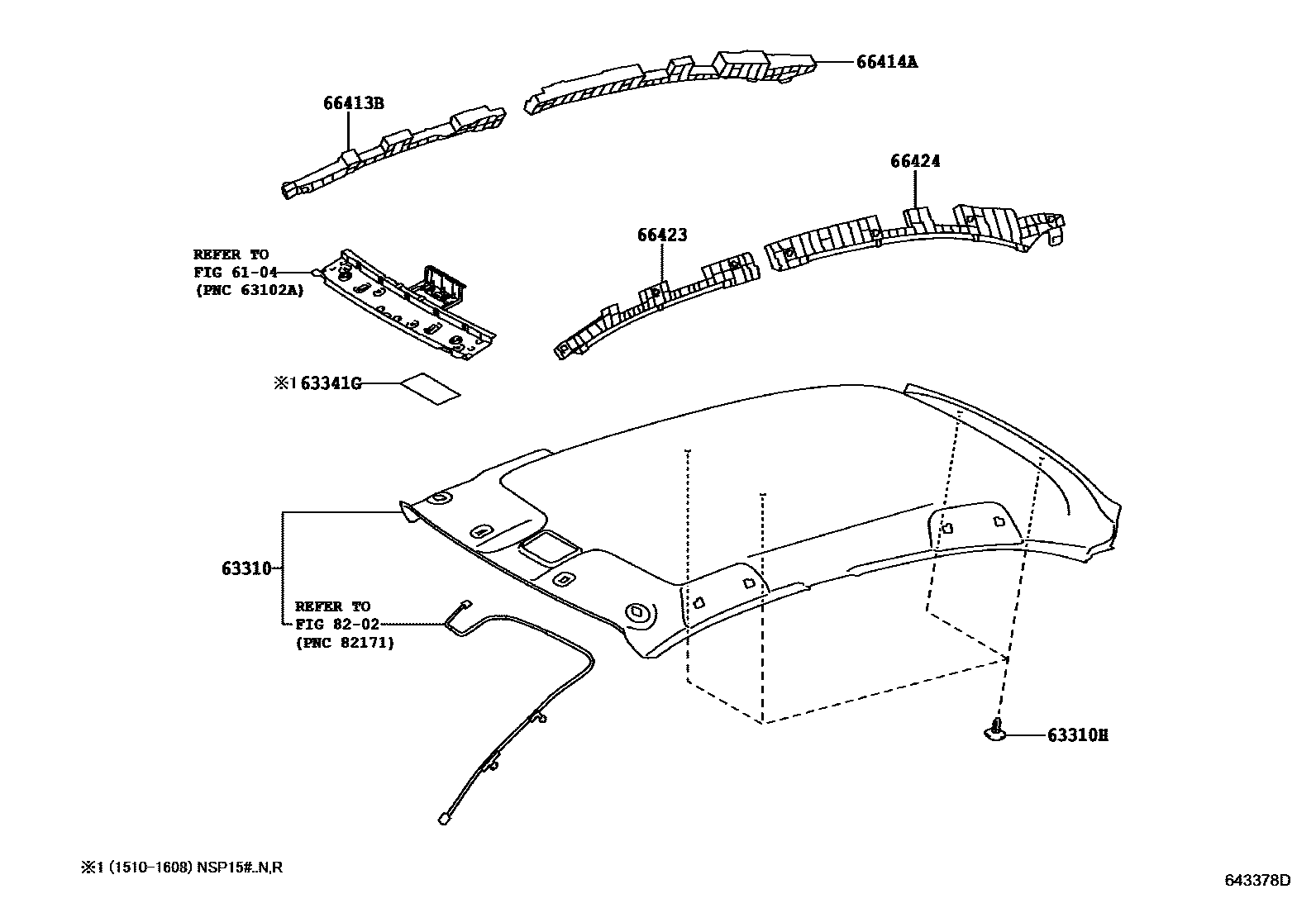

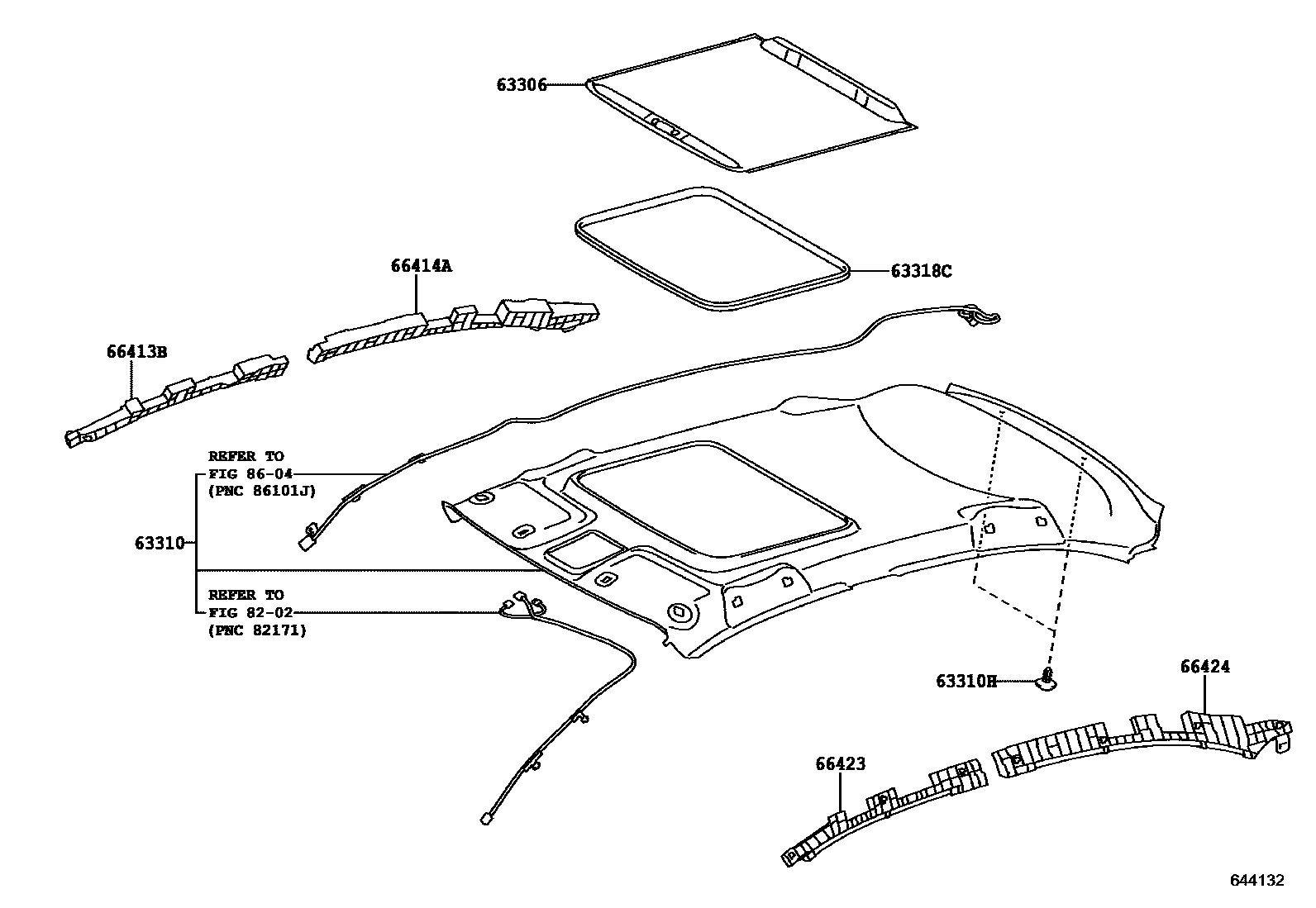

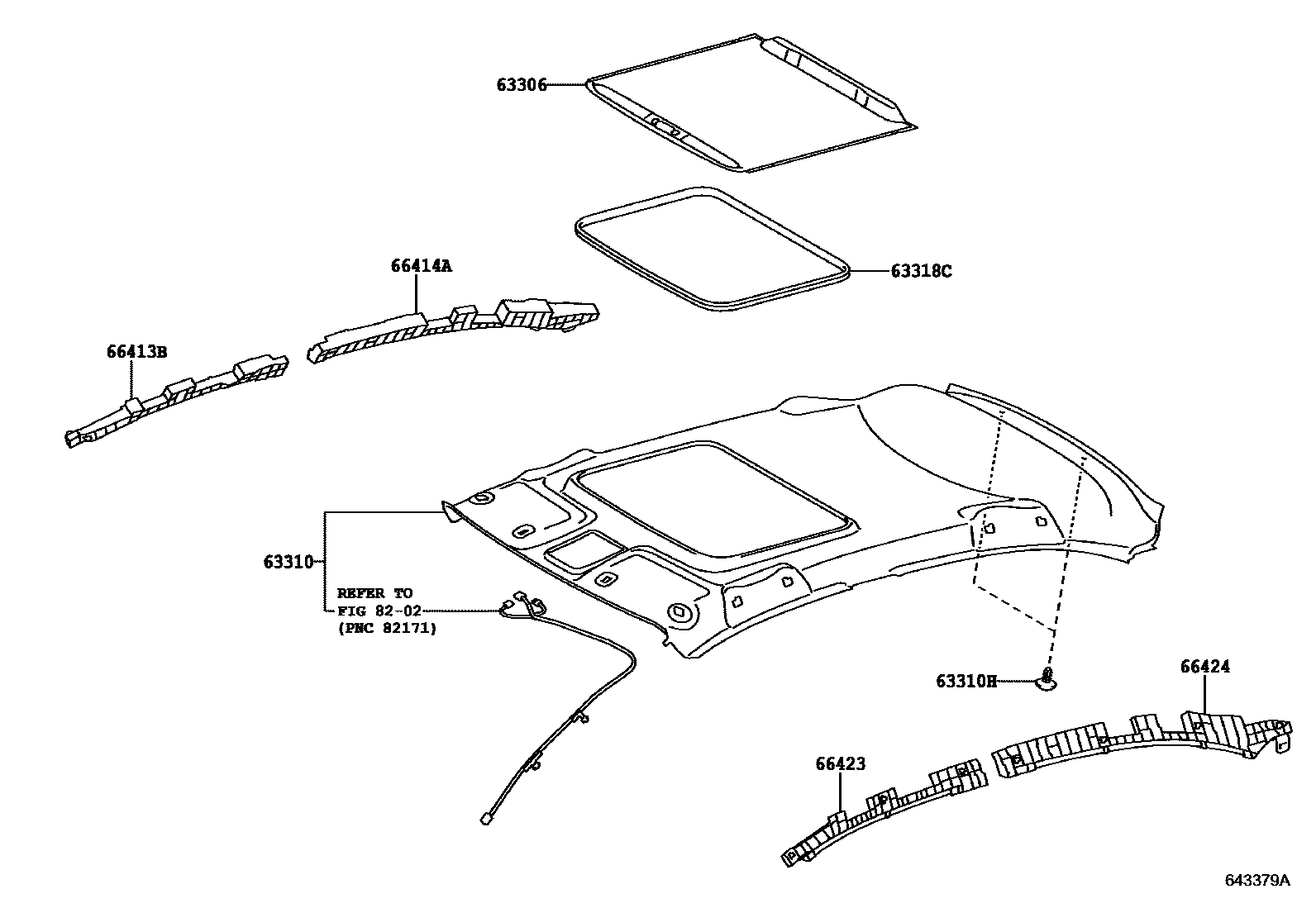

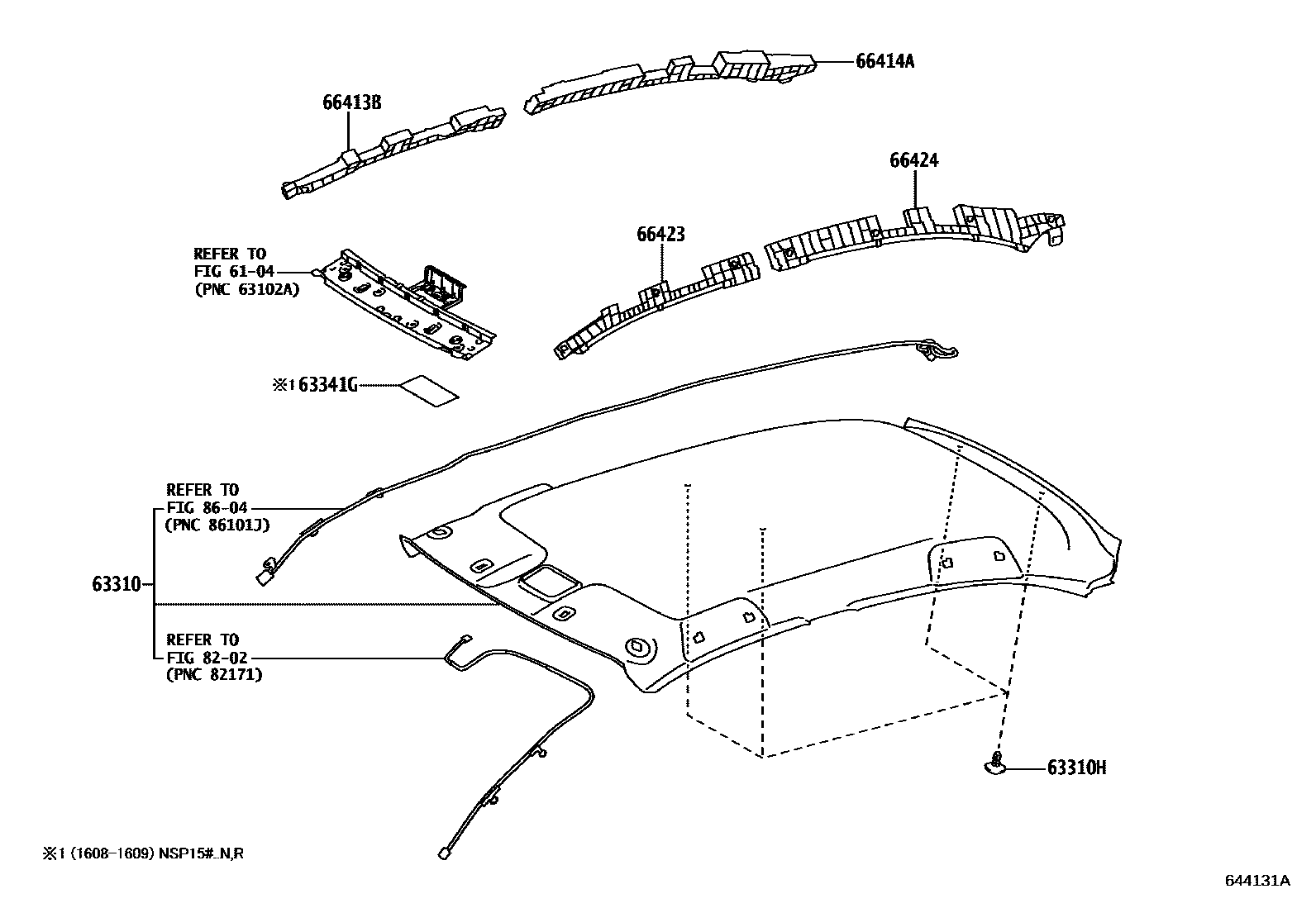

Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341G | roof muffler mat | 63341-0D700 |
| 66413B | Right front longitudinal member spacer | 66413-0D280 |
| 66414A | Right rear longitudinal member spacer | 66414-0D300 · 66414-0D370 |
| 66423 | Left front longitudinal member spacer | 66423-0D270 |
| 66424 | Left rear longitudinal member spacer | 66424-0D300 · 66424-0D370 |
