Toyota YARIS 内饰板和车门防水胶条 — Figure 6401

Toyota YARIS EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 11 PNC and OE references.

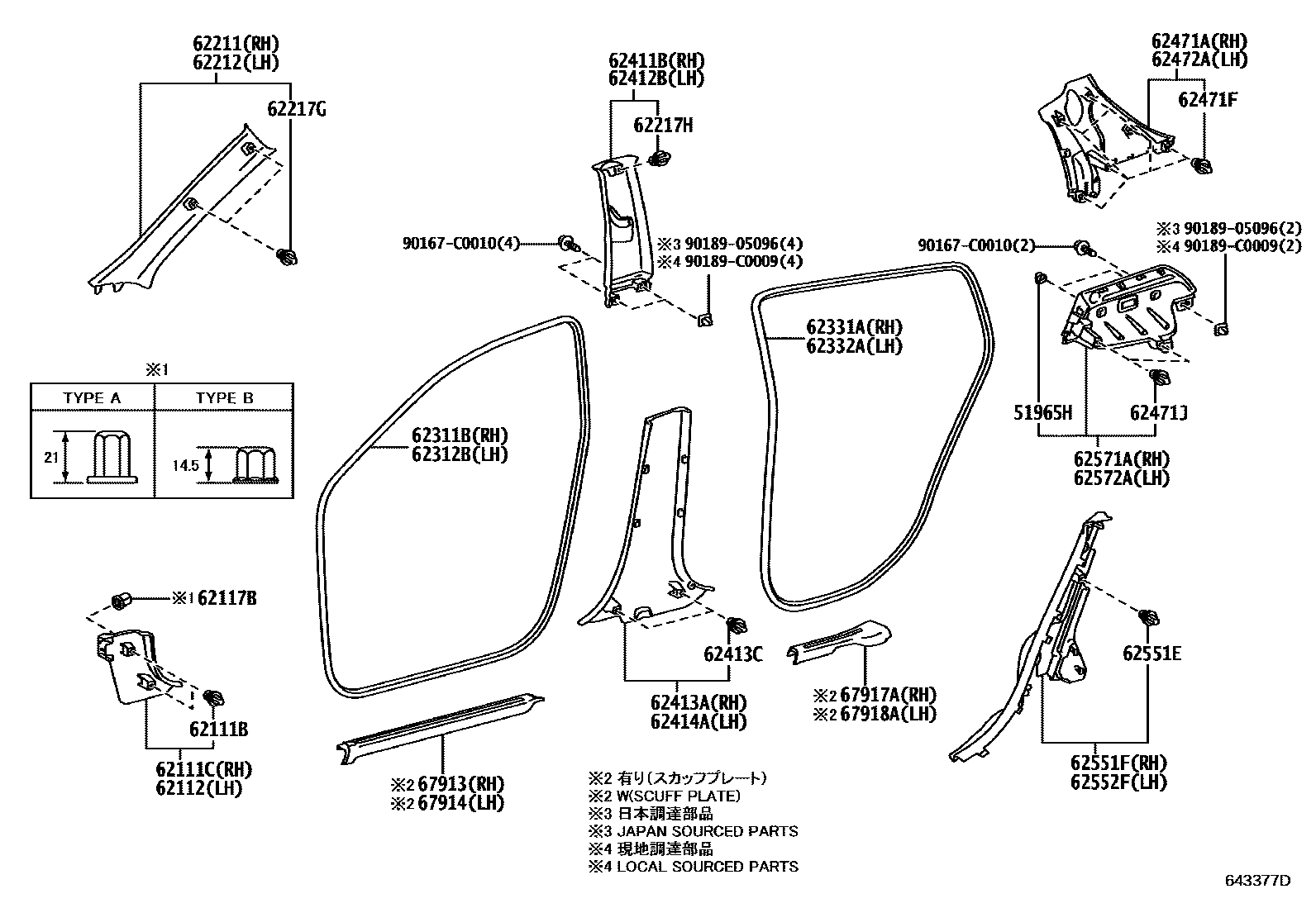

Toyota YARIS 内饰板和车门防水胶条 EPC diagram — 643377D
内饰板和车门防水胶条 — 643377D (201312 – 999999)

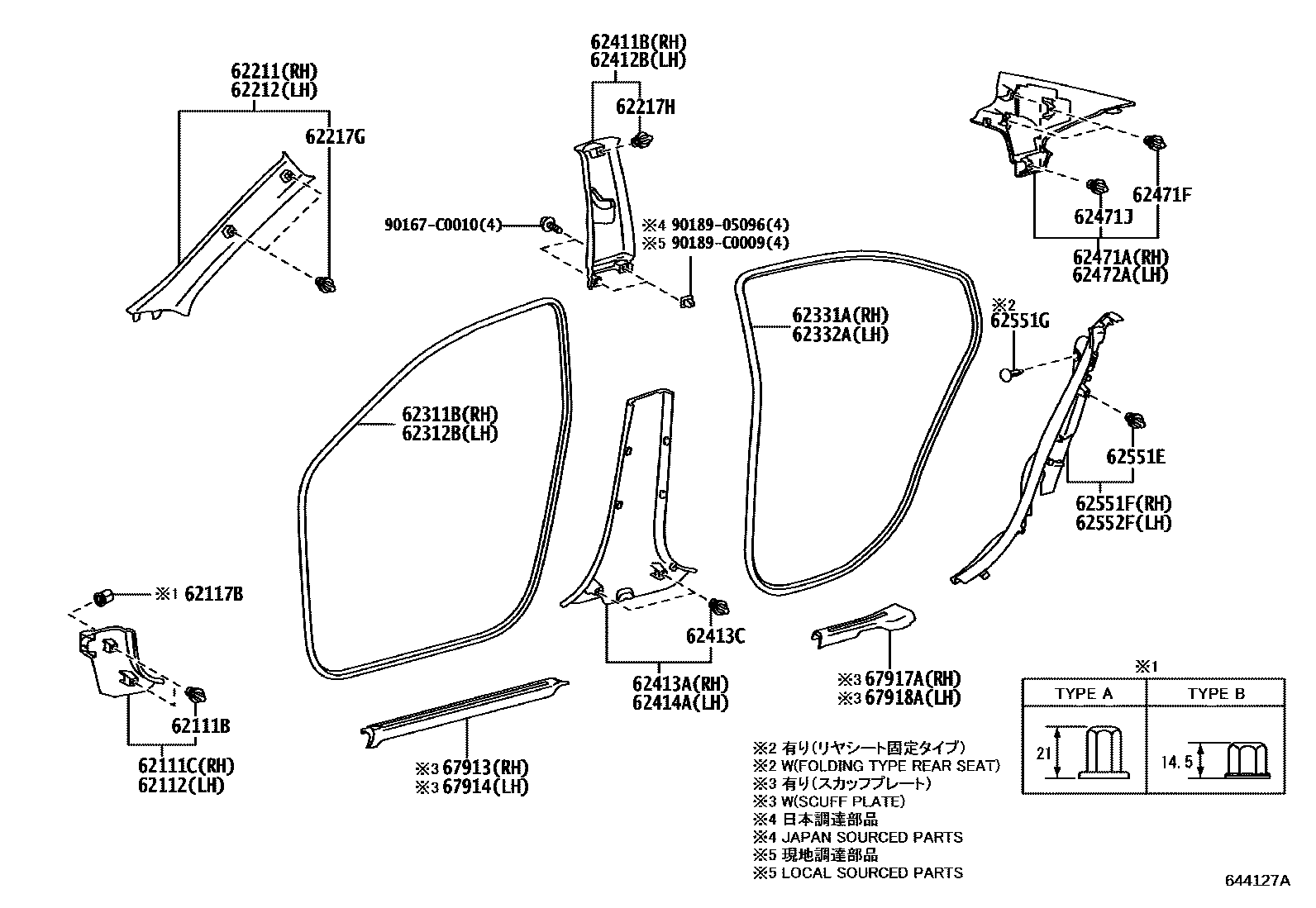

Toyota YARIS 内饰板和车门防水胶条 EPC diagram — 644127A
内饰板和车门防水胶条 — 644127A (201703 – 999999)

PNC and OE references

PNCPart nameOE numbers
62111BClip (for cowl side trim panel)90467-10161 · 90467-C0036
62217GFront pillar decorative plate clip90467-10161 · 90467-C0036
62217HCenter pillar decorative plate clip90467-10161 · 90467-C0036
62311BRight front door opening waterproof tape62311-0D200
62312BLeft front door opening waterproof tape62312-0D180
62331ARight rear door opening waterproof tape62331-0D120 · 62331-0D130
62332ALeft rear door opening waterproof tape62332-0D050 · 62332-0D110
62413CClip (for the decorative panel under the center pillar)90467-10161 · 90467-C0036
62471FClip (for roof side inner upper trim panel)90467-10161 · 90467-C0036
62471JClips (for roof side trim panels)90467-10161 · 90467-C0035 · 90467-C0036
62551EClips (for rear seat side trim panels)90467-10188 · 90467-C0034
