Toyota YARIS 侧梁 — Figure 6101

Toyota YARIS EPC diagram 6101, 侧梁, with 4 images and 61 PNC and OE references.

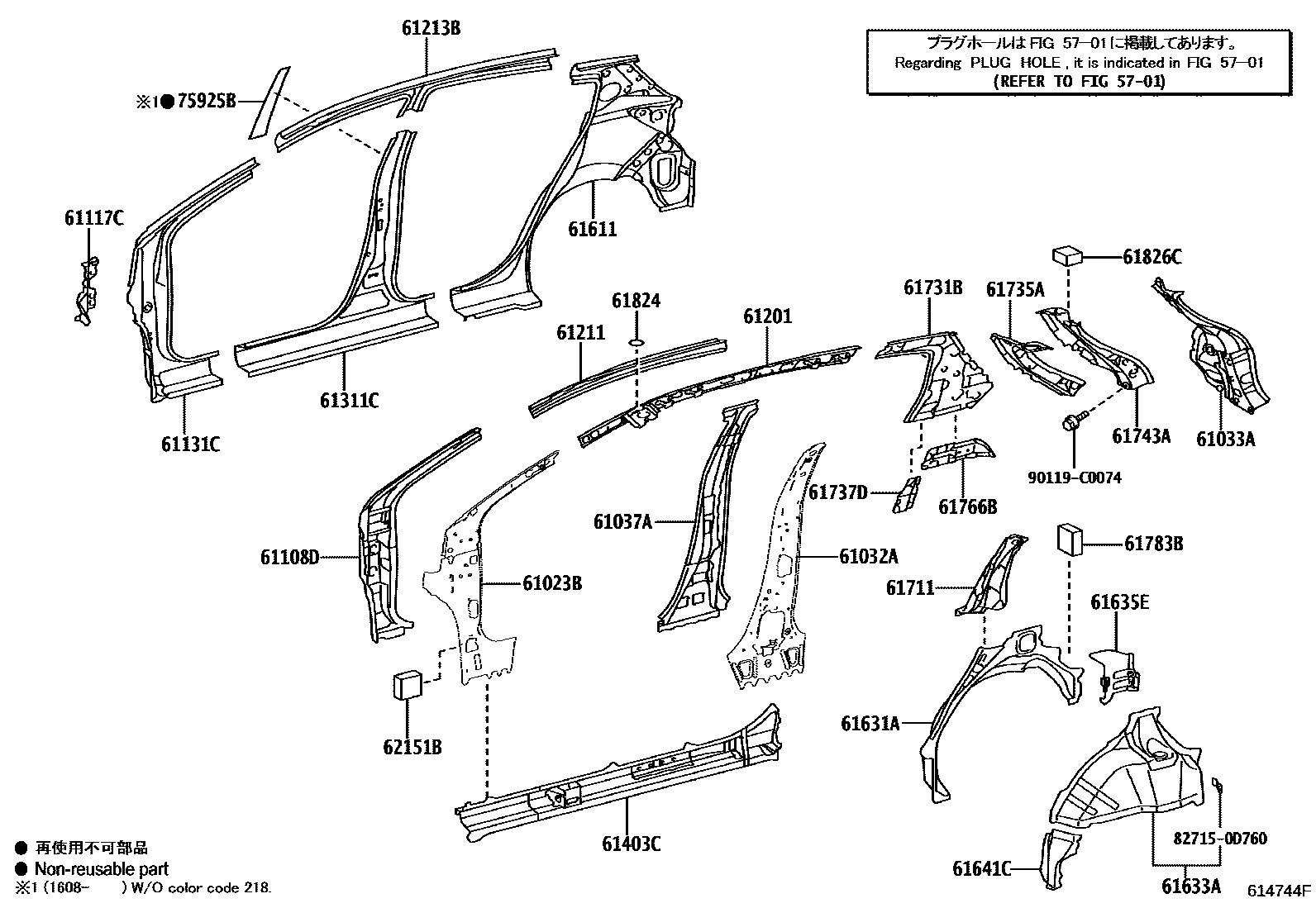

Toyota YARIS 侧梁 EPC diagram — 614744F
侧梁 — 614744F (201312 – 999999)

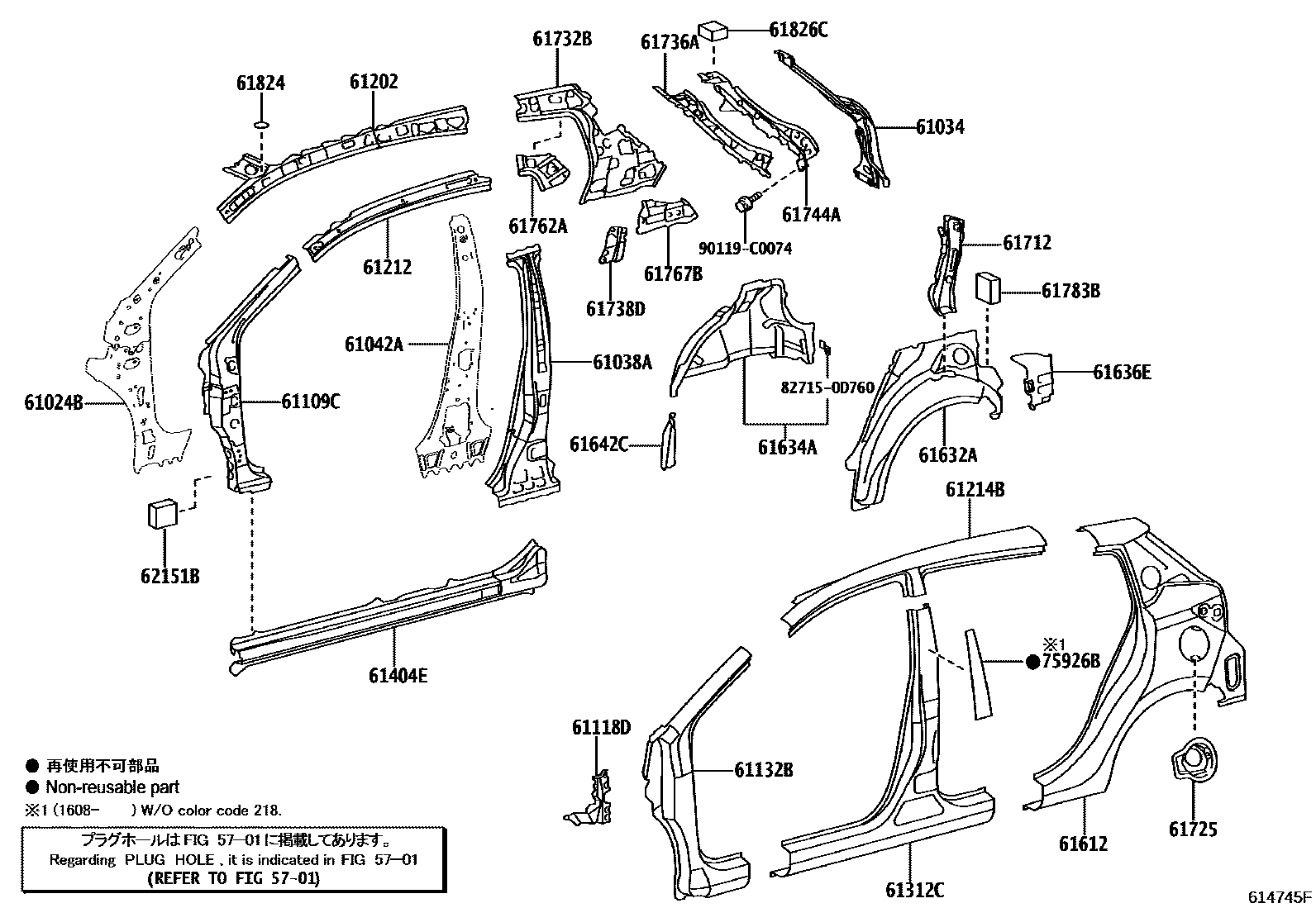

Toyota YARIS 侧梁 EPC diagram — 614745F
侧梁 — 614745F (201312 – 999999)

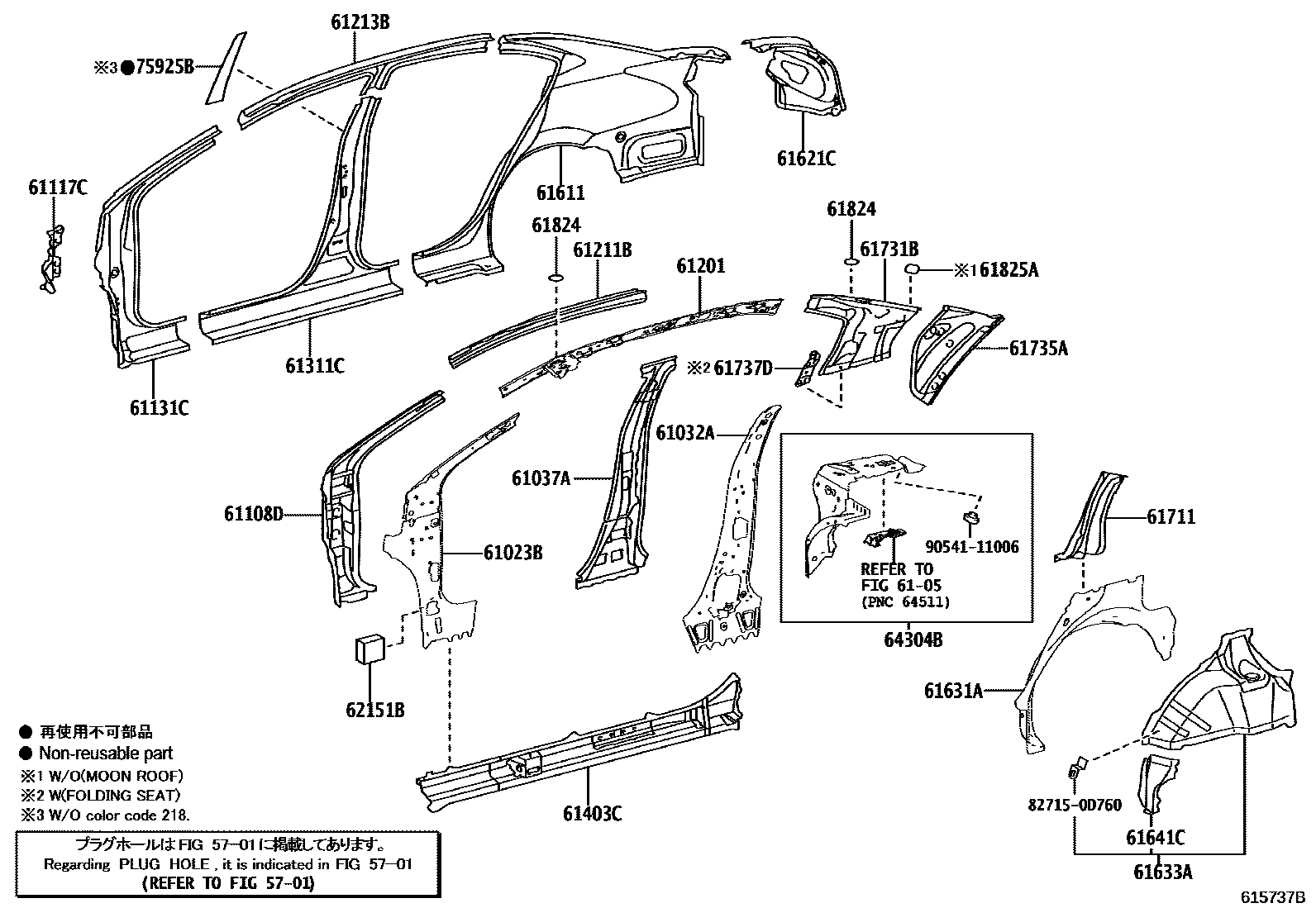

Toyota YARIS 侧梁 EPC diagram — 615737B
侧梁 — 615737B (201703 – 999999)

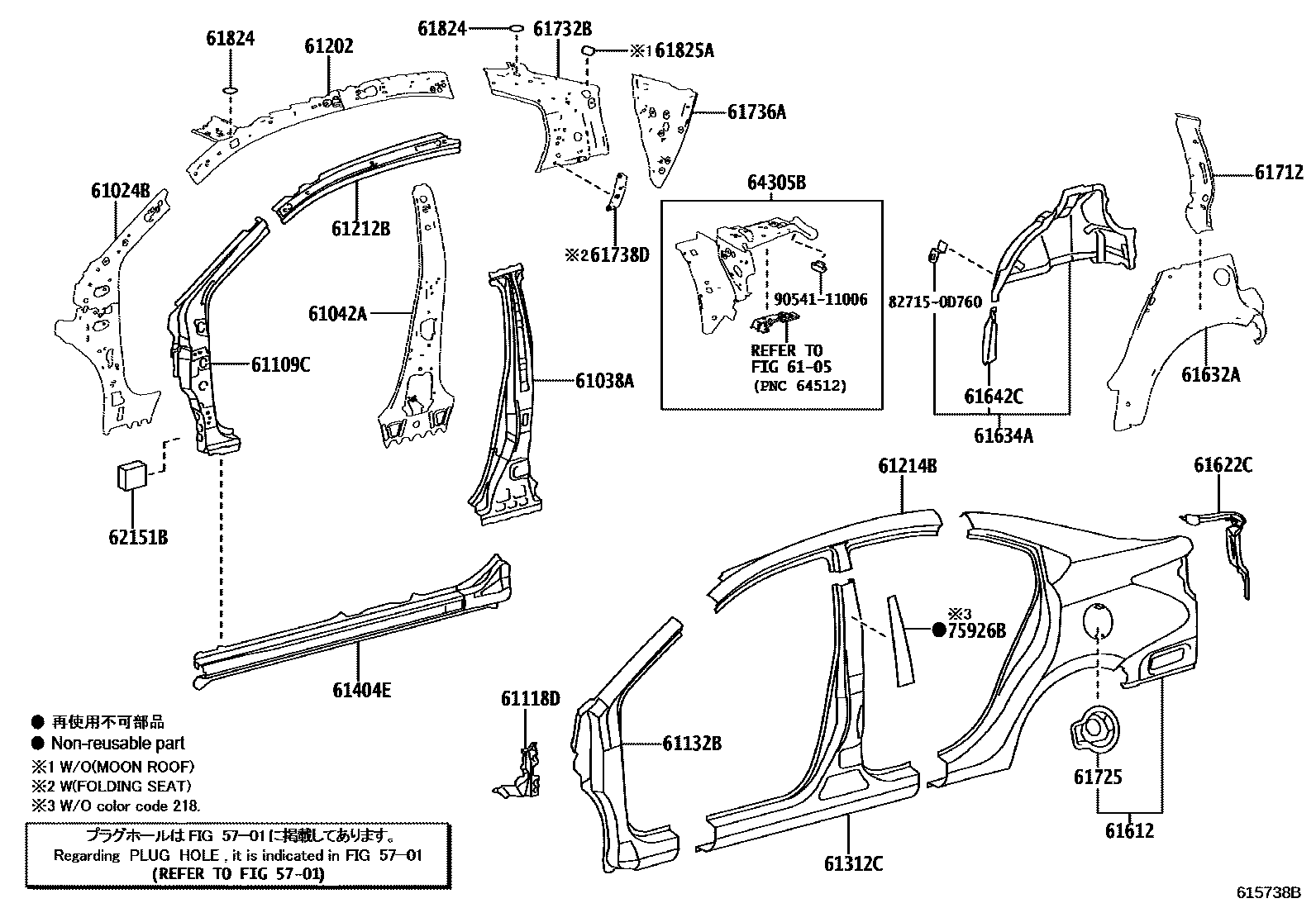

Toyota YARIS 侧梁 EPC diagram — 615738B
侧梁 — 615738B (201703 – 999999)

PNC and OE references

PNCPart nameOE numbers
61023BRight body inner front pillar sub-assembly61023-0D180
61024BLeft body inner front pillar sub-assembly61024-0D180 · 61024-0D181
61032ANo. 1 right inner column sub-assembly61032-0D110
61033ARear door opening side reinforcement sub-assembly61033-0D080
61034Rear door opening left reinforcement sub-assembly61034-0D080
61037ARight body center pillar reinforcement sub-assembly61037-0D913
61038ALeft body center pillar reinforcement sub-assembly61038-0D913
61042ANo. 1 left inner column sub-assembly61042-0D110
61108DFront panel right lower reinforcement sub-assembly61108-0D130
61109CFront panel left lower reinforcement sub-assembly61109-0D130
61117CSide panel to right front quarter panel61117-0D040
61118DSide panel to left front quarter panel61118-0D030
61131CRight body outer front pillar61131-0D180 · 61131-YL010
61132BLeft body outer front pillar61132-0D180 · 61132-YL010
61201Roof right side longitudinal beam sub-assembly61201-0D130 · 61201-0D190
61202Roof left side longitudinal beam sub-assembly61202-0D130 · 61202-0D190
61211Roof right outer longitudinal beam61211-0D160
61211BRight rear roof outer longitudinal beam61211-0D230
61212Roof left outer longitudinal beam61212-0D160
61212BLeft rear roof rail61212-0D220
61213BNo. 2 longitudinal beam on the outer right side of the roof61213-0D160 · 61213-0D230
61214BNo. 2 longitudinal beam on the left side of the roof61214-0D160 · 61214-0D230
61311CRight rear body front outer panel61311-0D100 · 61311-YL010
61312CLeft rear body front outer panel61312-0D100 · 61312-YL010
61403CRight door outer sill reinforcement sub-assembly61403-0D190 · 61403-0D191 · 61403-0D280 · 61403-0D400
61404ELeft door outer sill reinforcement sub-assembly61404-0D190 · 61404-0D191 · 61404-0D400
61611Right side hoarding61601-0D330 · 61601-0D380 · 61601-YL010
61612left side panel61602-0D330 · 61602-0D370 · 61602-YL010
61621CLuggage right opening slot61063-0D080
61622CLuggage trunk left opening slot61064-0D080
61631ARight wheel cover outer panel61631-K0010 · 61631-K0030
61632ALeft side wheel cover outer panel61632-K0010 · 61632-K0030
61633ARight wheel housing lining panel61605-0D040 · 61607-0D290
61634ALeft side wheel housing lining panel61606-0D040 · 61608-0D290
61635ERight wheel housing extension61635-0D070
61636ELeft side wheel housing extension61636-0D070
61641CRight front side wheel housing corner panel61641-0D070
61642CLeft front side wheel housing corner panel61642-0D070
61711Roof right side outer panel61711-K0010 · 61711-K0020
61712Roof left outer panel61712-K0010 · 61712-K0020
61725Fuel inlet61725-0D100 · 61725-0D160
61731BRoof right inner panel61731-K0031 · 61731-K0040
61732BRoof left inner panel61732-K0030 · 61732-K0040
61735ARight rear roof inner panel61735-0D090 · 61735-0D091 · 61735-K0010
61736ALeft rear roof inner panel61736-0D100 · 61736-K0010
61737DRoof right inner reinforcement61737-0D050 · 61737-0D130
61738DRoof left inner reinforcement61738-0D060 · 61738-0D130
61743ARear door opening right reinforcement61743-0D050
61744ARear door opening left reinforcement61744-0D050
61762ALeft No. 1 seat belt anchor upper reinforcement61762-0D040
61766BRight seat belt anchor to roof inner reinforcement61766-0D090
61767BLeft-hand seat belt anchor to roof inner reinforcement61767-0D100
61783BNo. 1 rear fender outer panel pad61783-0D010
61824Noise Control Panel No. 161824-0D050
61825ANoise Control Panel No. 261825-0D040
61826CNo. 3 silencer panel gasket61826-0D040
62151BFront cowl side silencer pads62151-0D120
64304BGlove box bracket right reinforcement sub-assembly64304-0D160
64305BGlove box bracket left reinforcement sub-assembly64305-0D150
75925BNo. 3 right side light-blocking film75925-0D070
75926BNo. 3 left shading film75926-0D070
