Toyota YARIS 中央扶手箱和支架 — Figure 5806

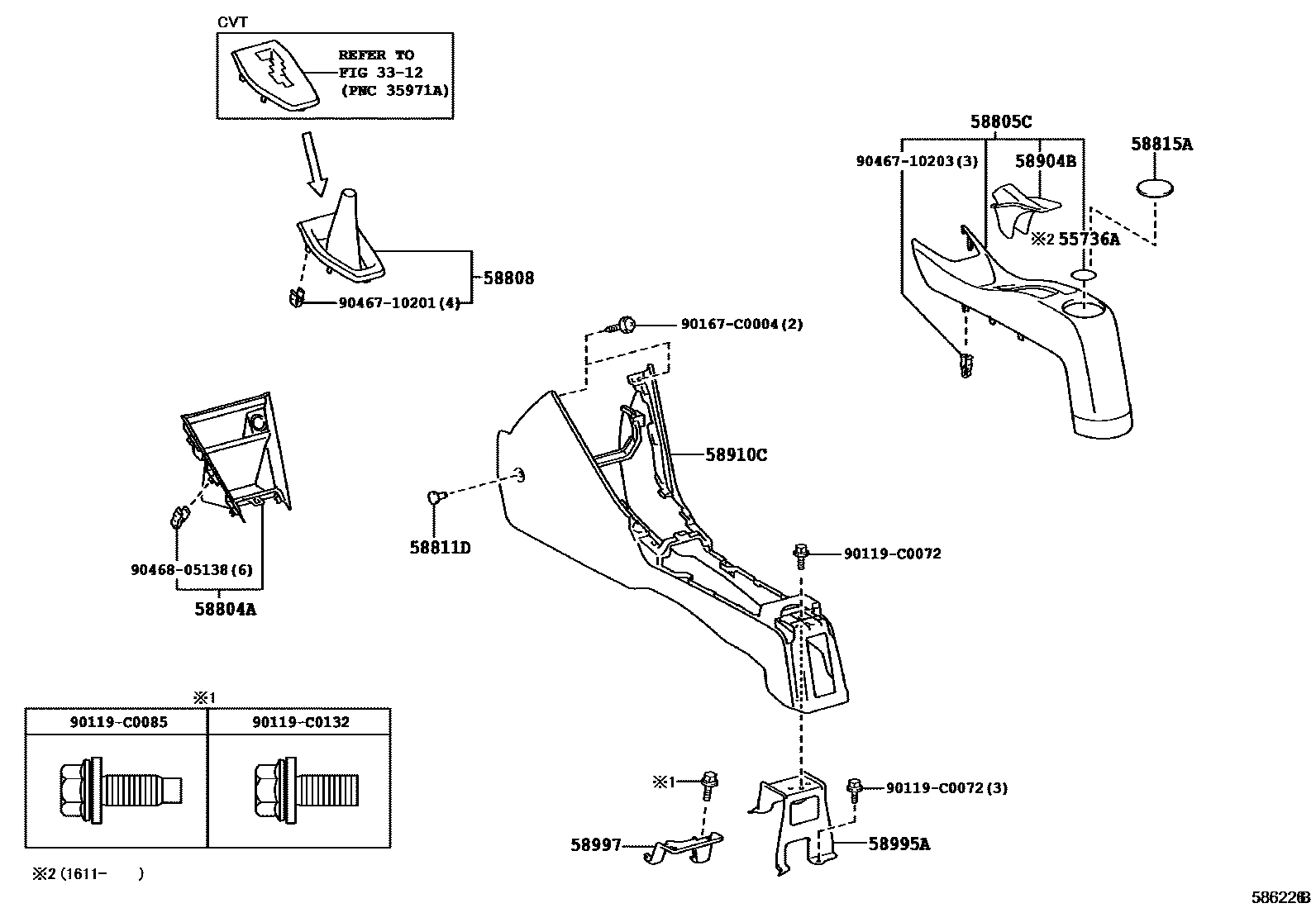

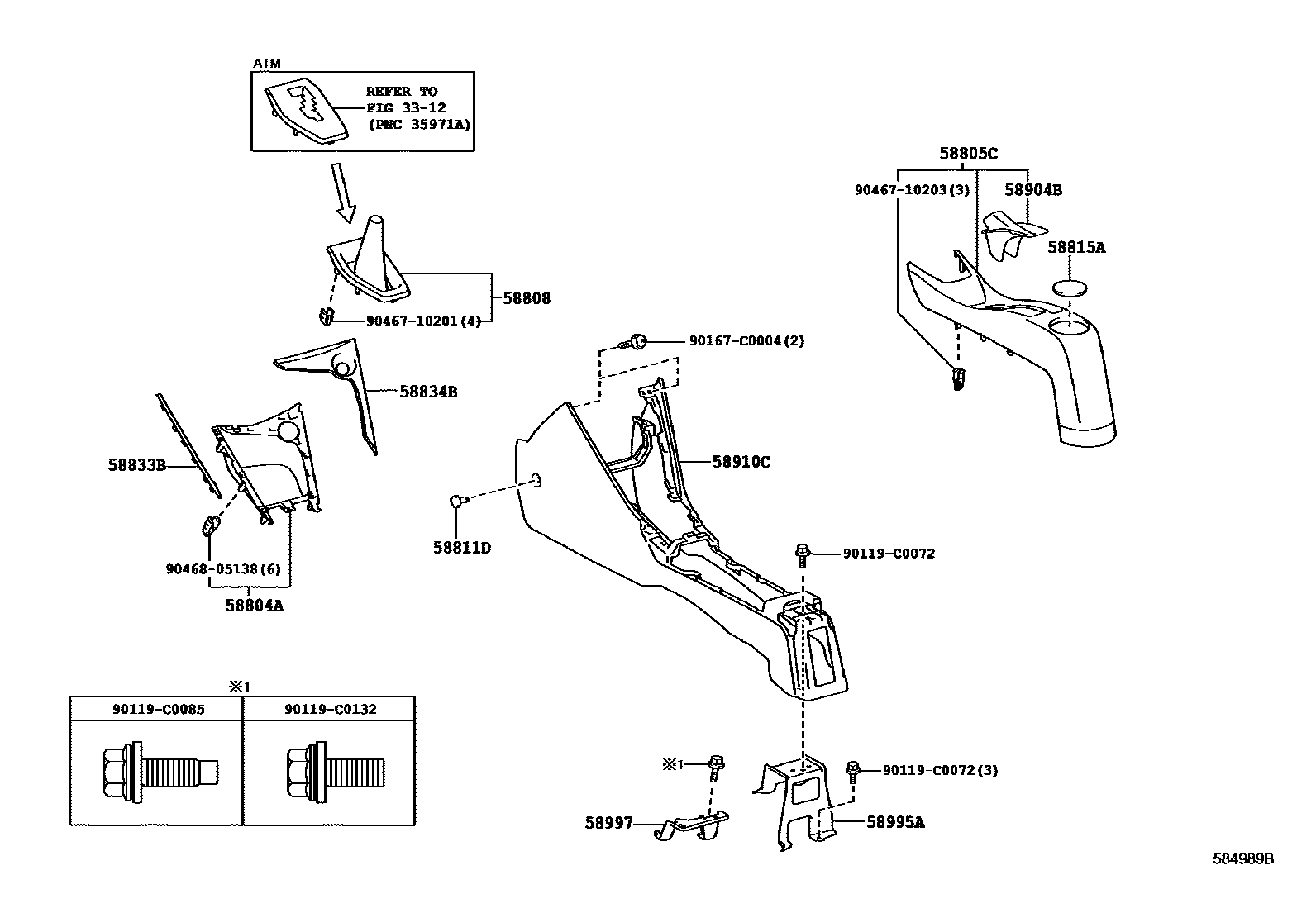

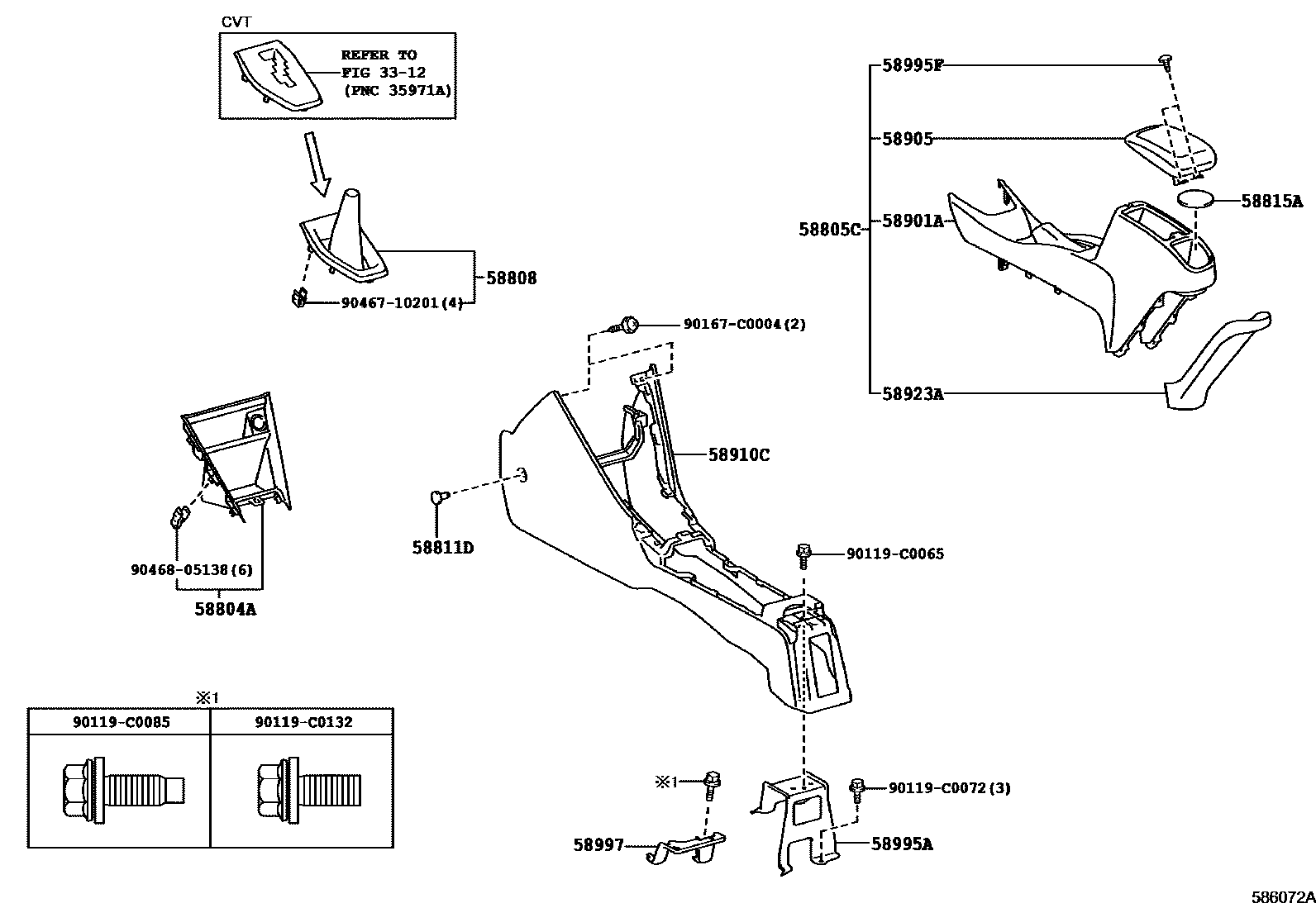

Toyota YARIS EPC diagram 5806, 中央扶手箱和支架, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55736A | Waterproof cover plate seal | 55736-0D020 |
| 58804A | Armrest box upper panel sub-assembly | 58804-0D080 · 58804-0D260 |
| 58815A | Armrest box felt pad | 58815-0D160 · 58815-YY020 |
| 58833B | Armrest box upper panel decorative part No. 1 | 58833-0D040 · 58833-0D170 |
| 58834B | Armrest box upper panel decorative part No. 2 | 58834-0D020 · 58834-0D170 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-0D090 |
| 58995F | Armrest box No. 2 mounting bracket | 58995-YY020 |
| 58997 | Armrest box No. 3 mounting bracket | 58997-0D030 |
