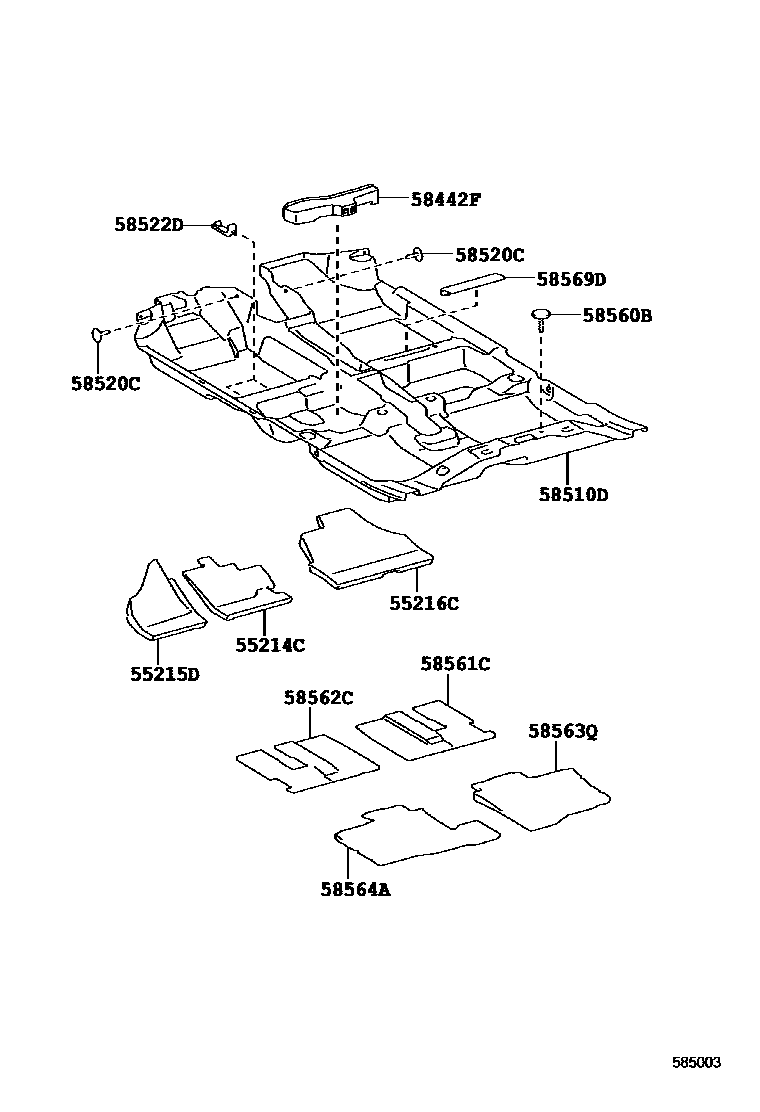

Toyota YARIS 地板垫和地毯 — Figure 5804
Toyota YARIS EPC diagram 5804, 地板垫和地毯, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55214C | No. 2 insulation pad for front wall panel | 55214-0D190 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-0D160 |
| 55216C | No. 4 heat insulation pad for front wall | 55216-0D100 |
| 58442F | jack cover | 58442-0D160 |
| 58522D | Carpet hook number 2 | 58522-52030 |
| 58560B | Clip (for rear carpet) | 90467-C0049 |
| 58561C | Front floor silencer No. 1 | 58561-0D280 |
| 58562C | Front floor silencer No. 2 | 58562-0D240 |
| 58563Q | Front floor silencer No. 3 | 58563-0D270 |
| 58564A | Front floor silencer No. 4 | 58564-0D230 |
| 58569D | Front floor warning nameplate cover | 58569-0D020 |
