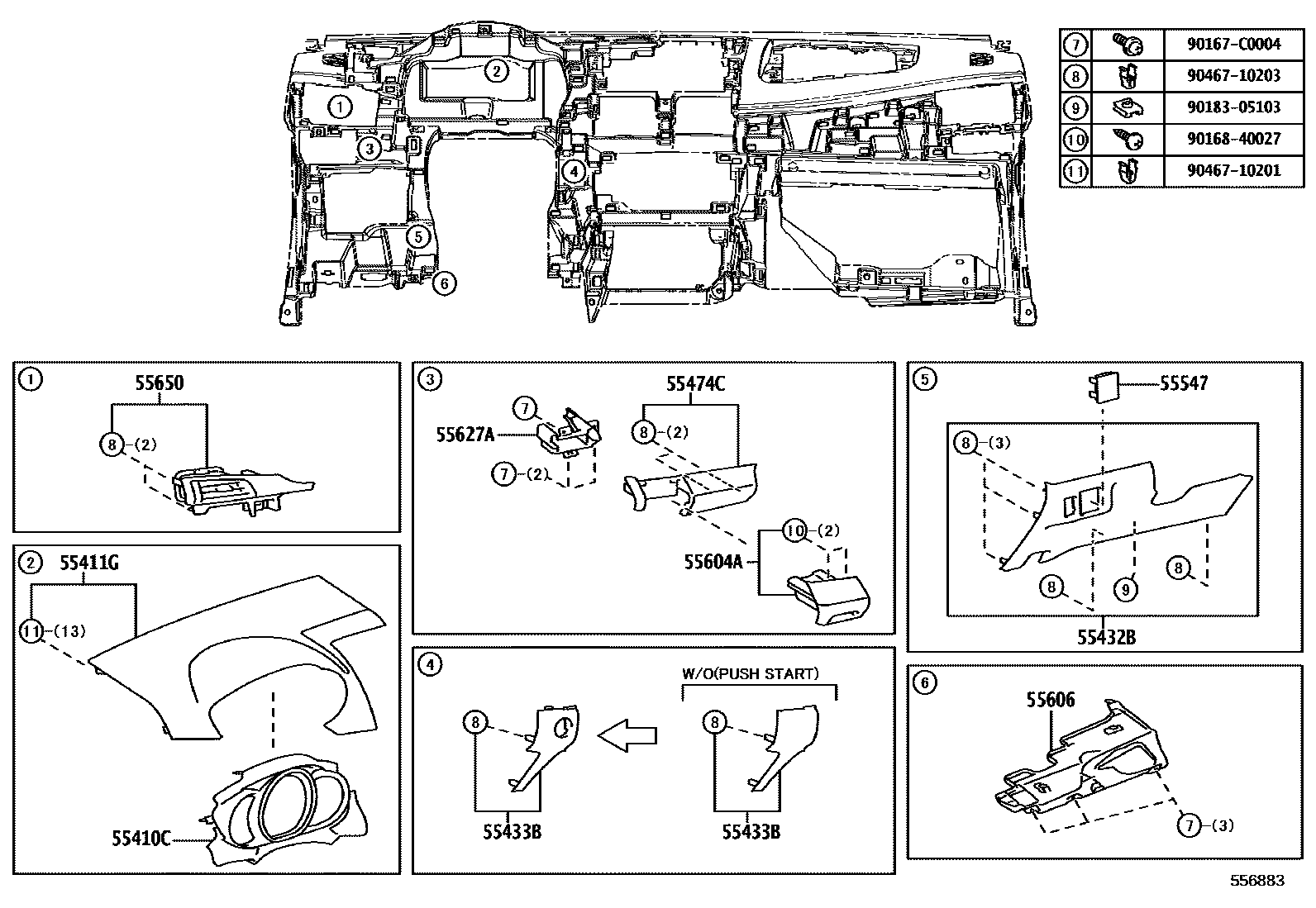

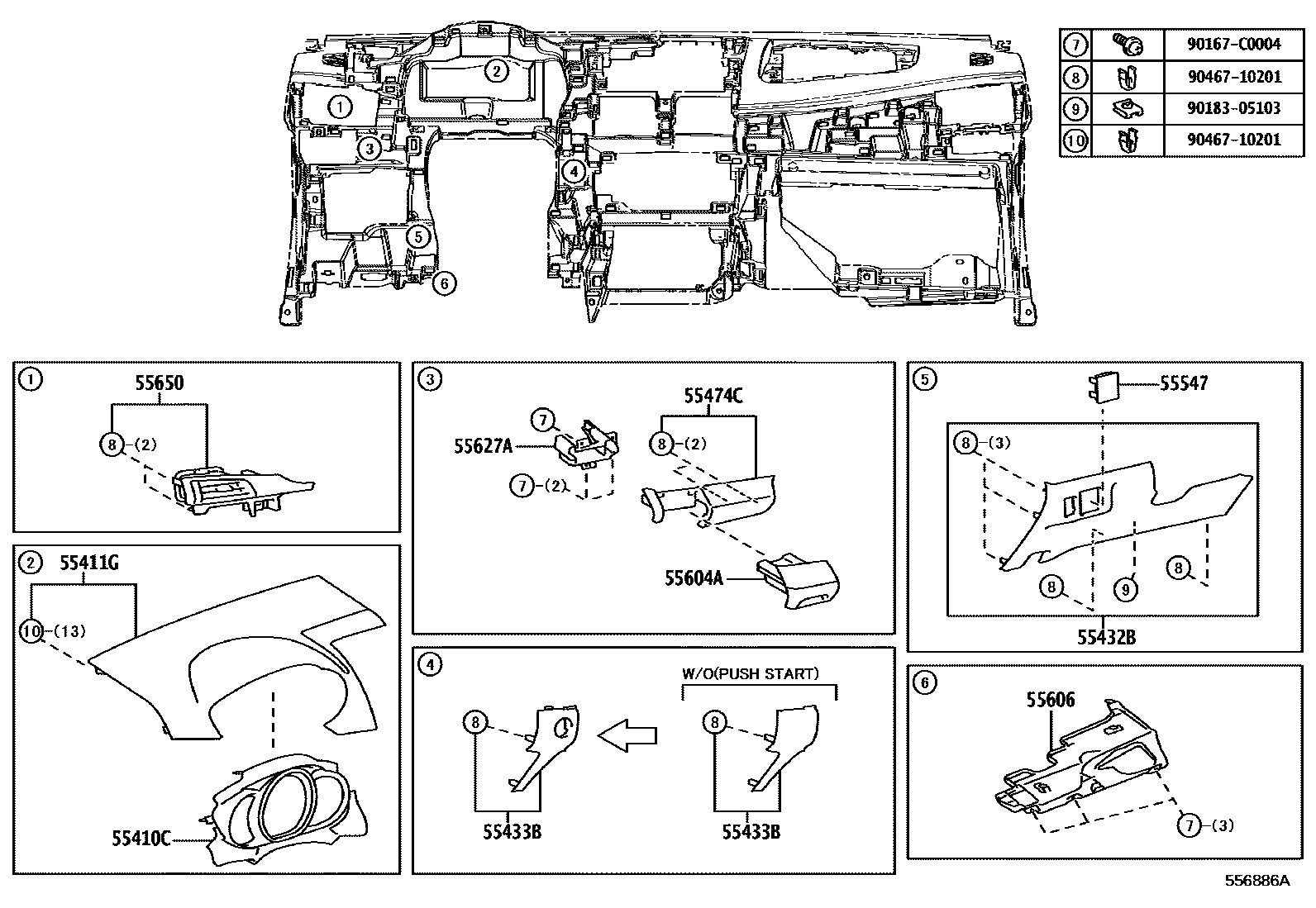

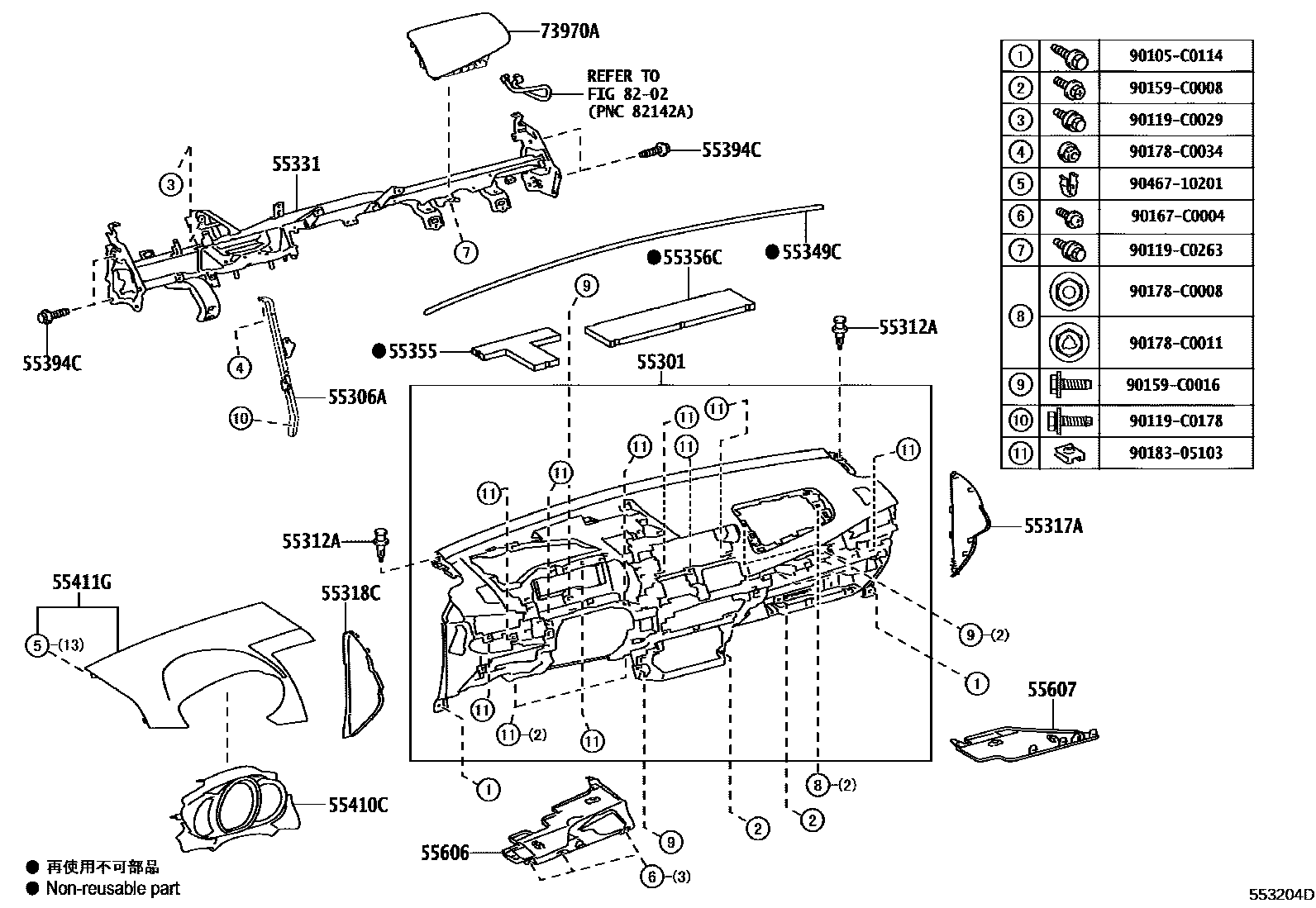

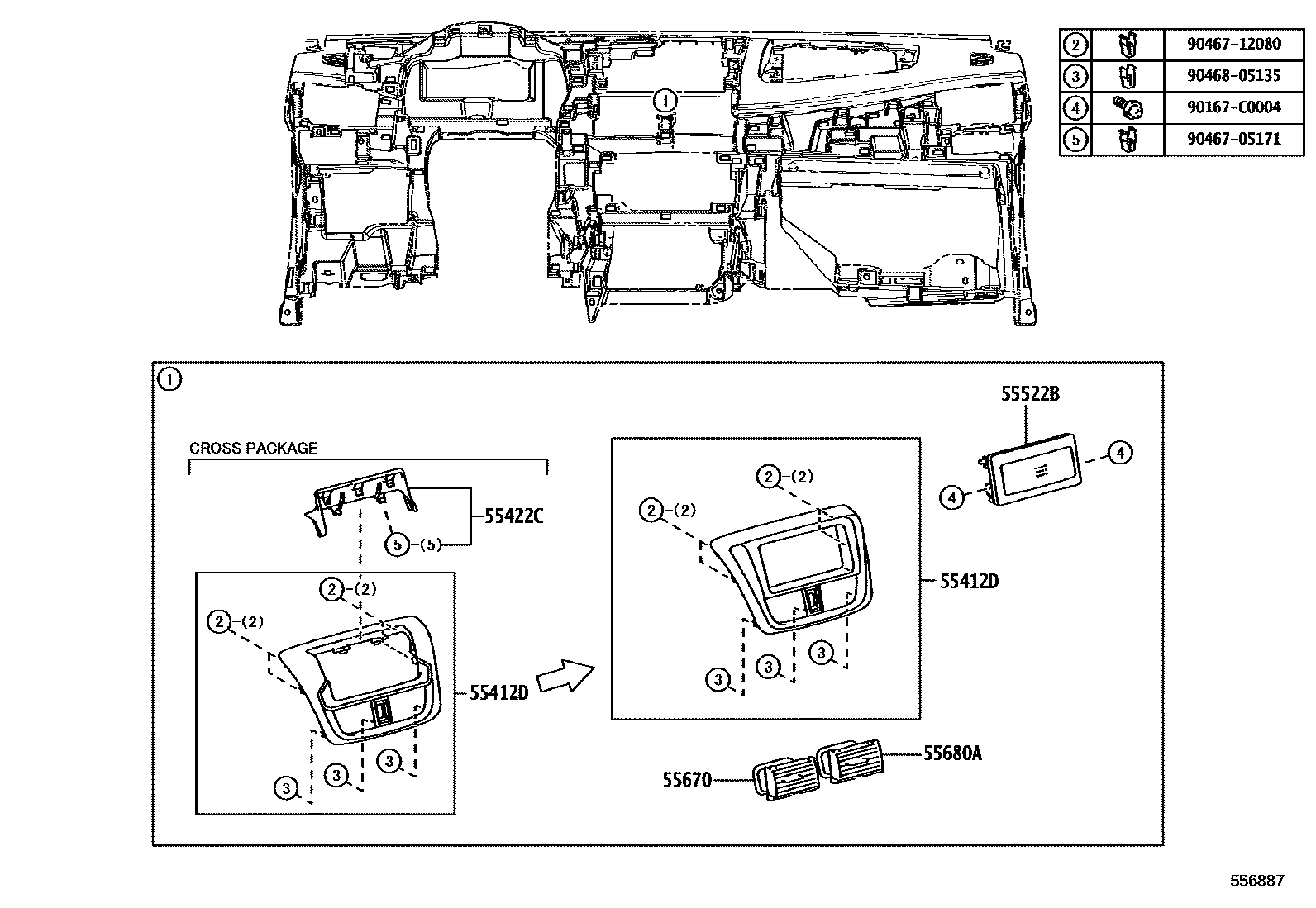

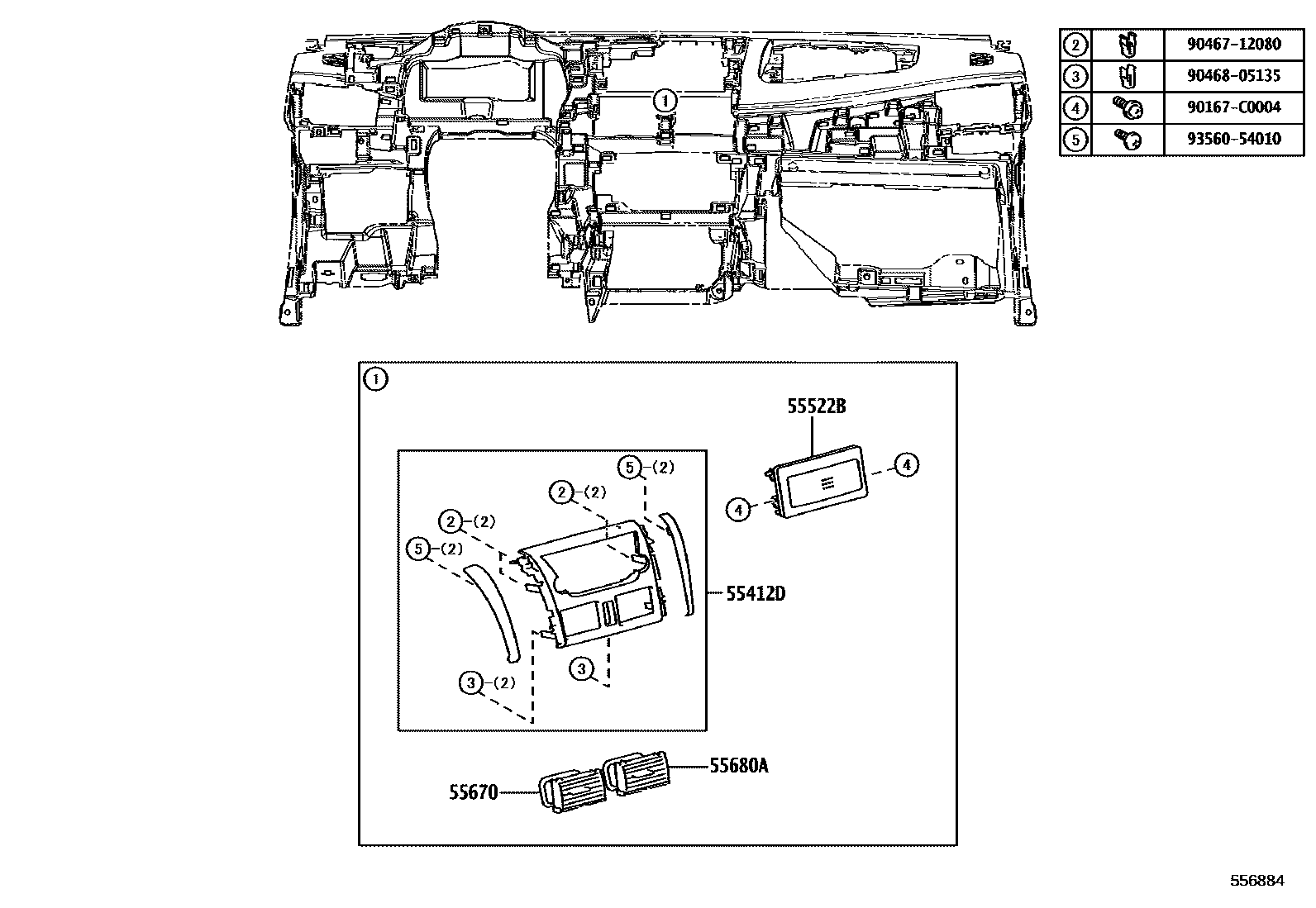

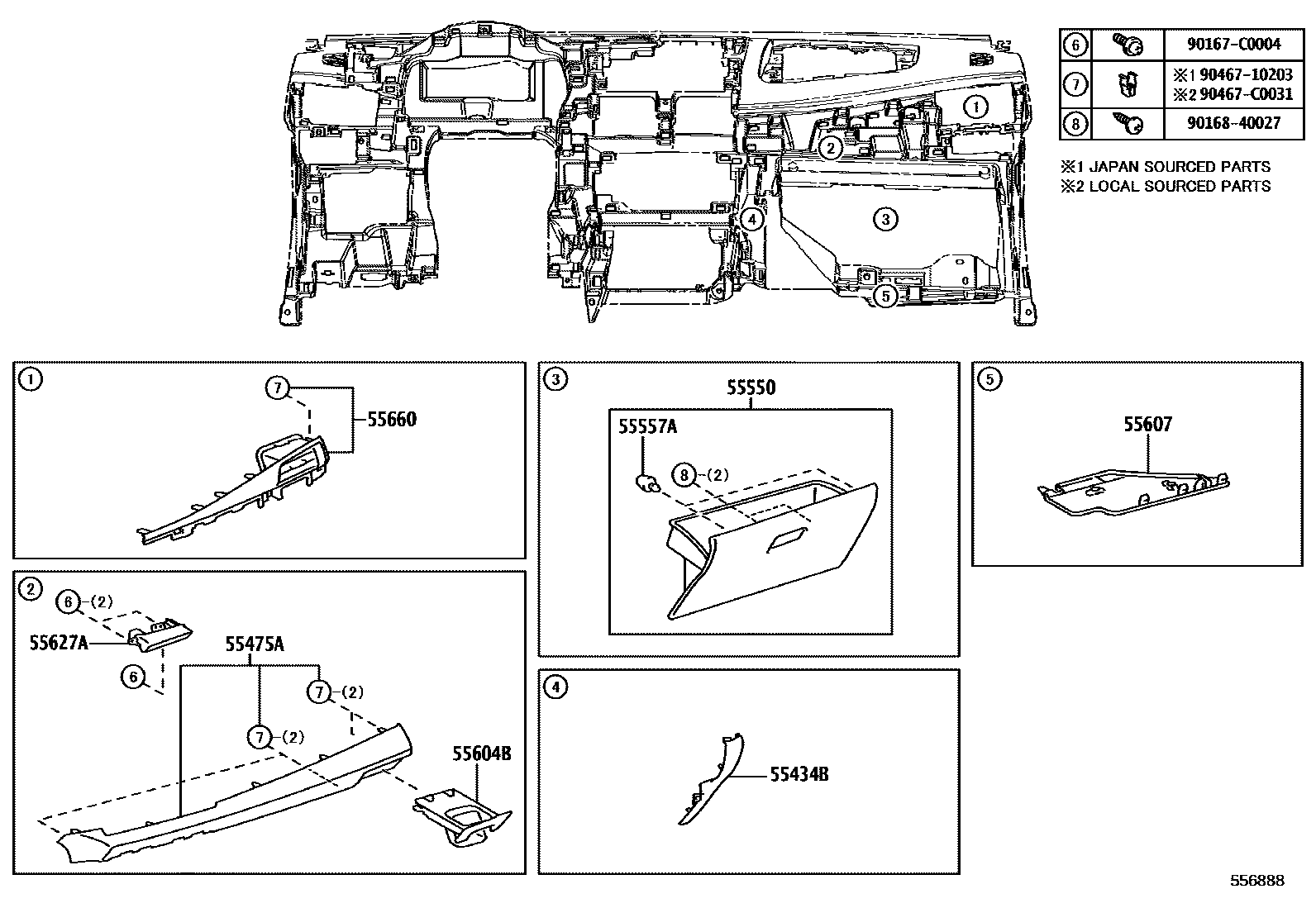

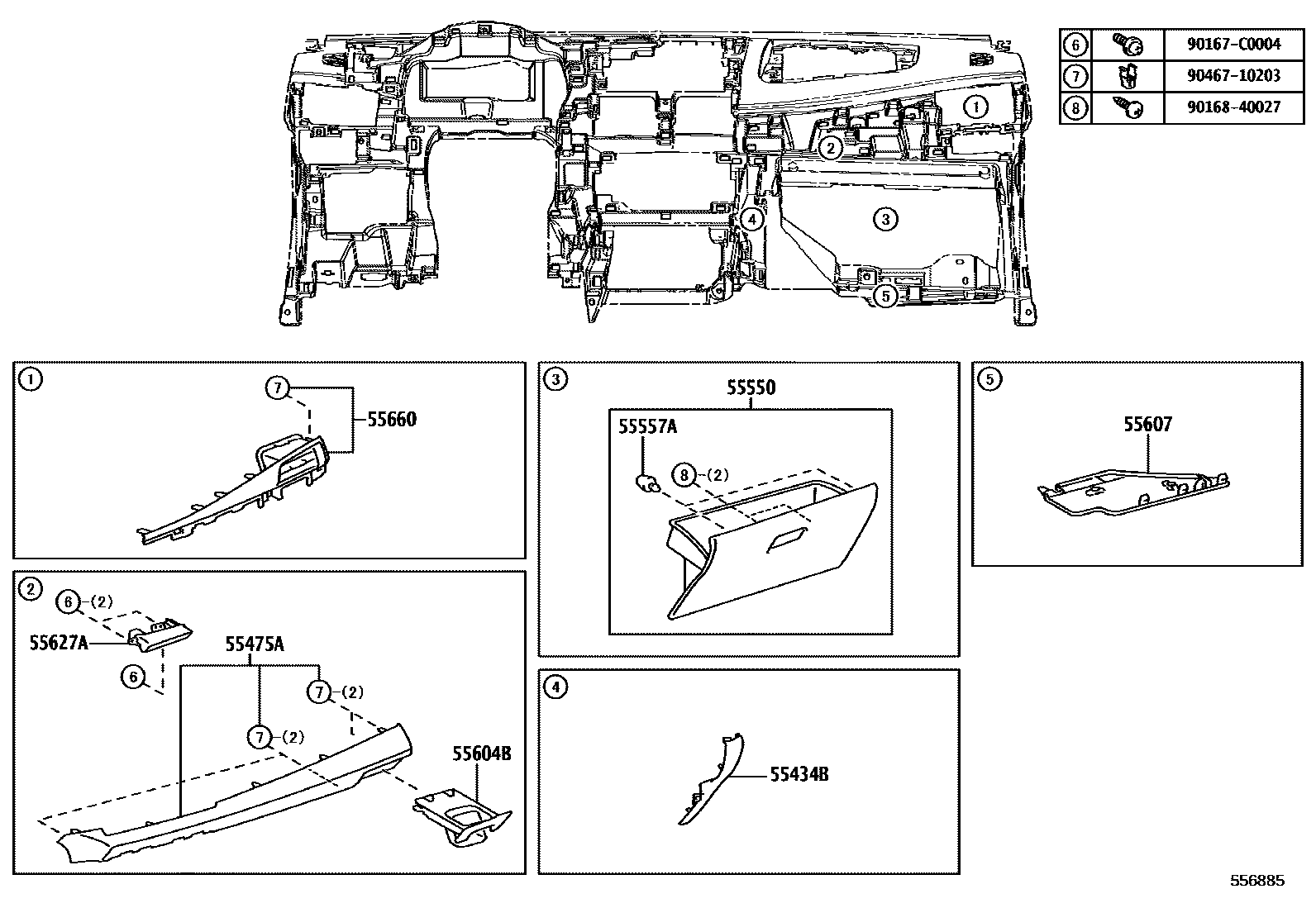

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 7 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0D240 |
| 55312A | Dashboard clip | 52161-02040 · 52161-16010 |
| 55331 | Dashboard reinforcement | 55330-0D500 · 55330-0D730 |
| 55349C | Dashboard cushion | 55349-0D180 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-0D180 · 55355-0D181 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-0D170 · 55356-0D171 |
| 55394C | Dashboard bolts | 55394-52010 · 90105-C0440 |
| 55410C | Instrument cluster decorative panel assembly | 55410-0D090 |
| 55412D | Center instrument cluster decorative panel | 55405-0D490 · 55405-0D500 · 55405-0D750 · 55405-YL010 |
| 55422C | Center instrument cluster upper decorative panel | 55422-YL010 |
| 55522B | Radio tuner opening cover | 55522-52020 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0D110 · 55606-0D111 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-0D120 · 55607-0D121 |
| 55627A | Dashboard cup holder guide | 55627-0D070 · 55627-0D080 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-0D550 · 55650-0D560 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-0D400 · 55660-0D410 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-0D150 · 55670-0D190 · 55670-0D360 · 55670-0D370 |
| 55680A | No. 4 air regulator assembly on instrument panel | 55680-0D060 · 55680-0D100 · 55680-0D200 · 55680-0D210 |
