Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304

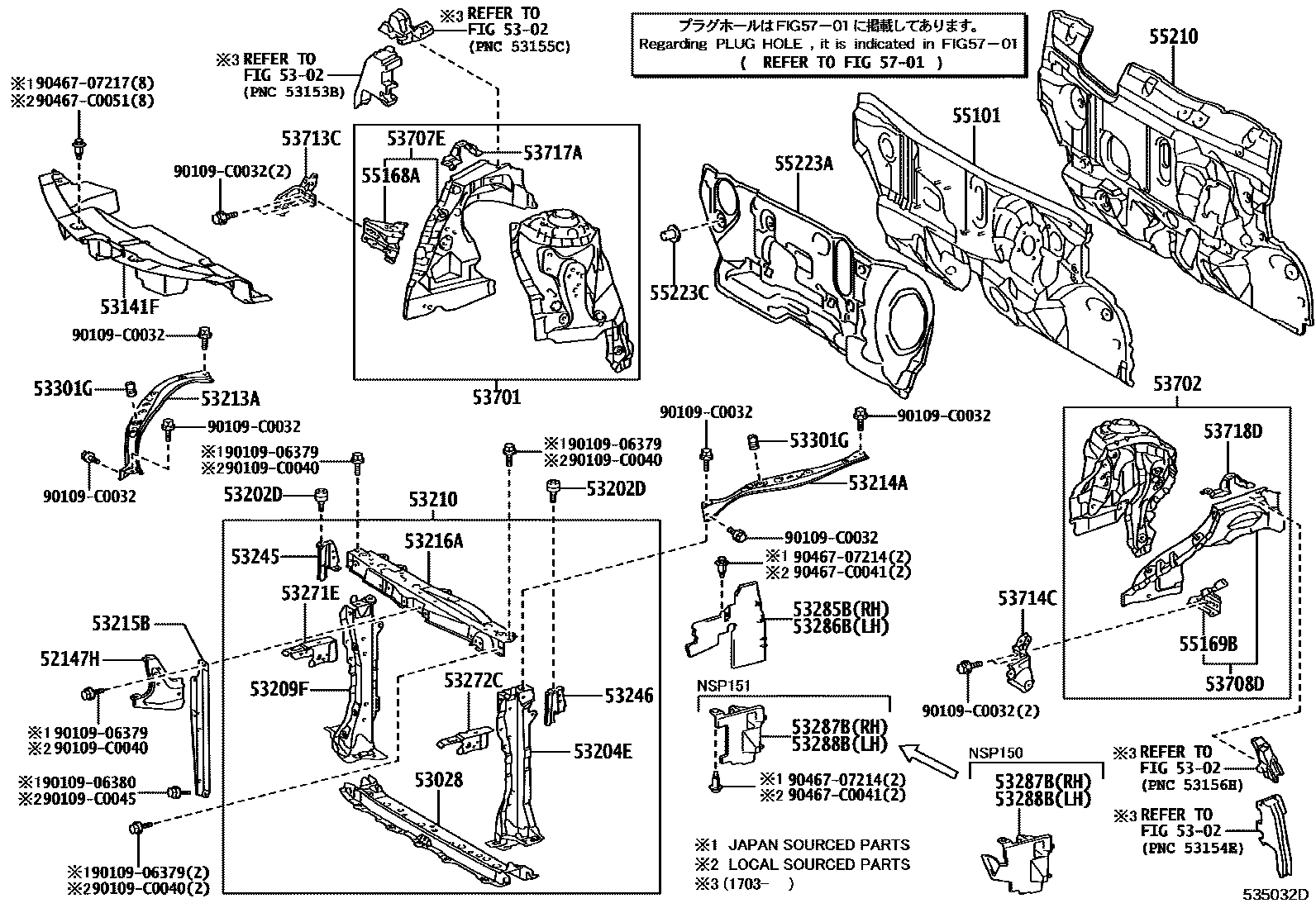

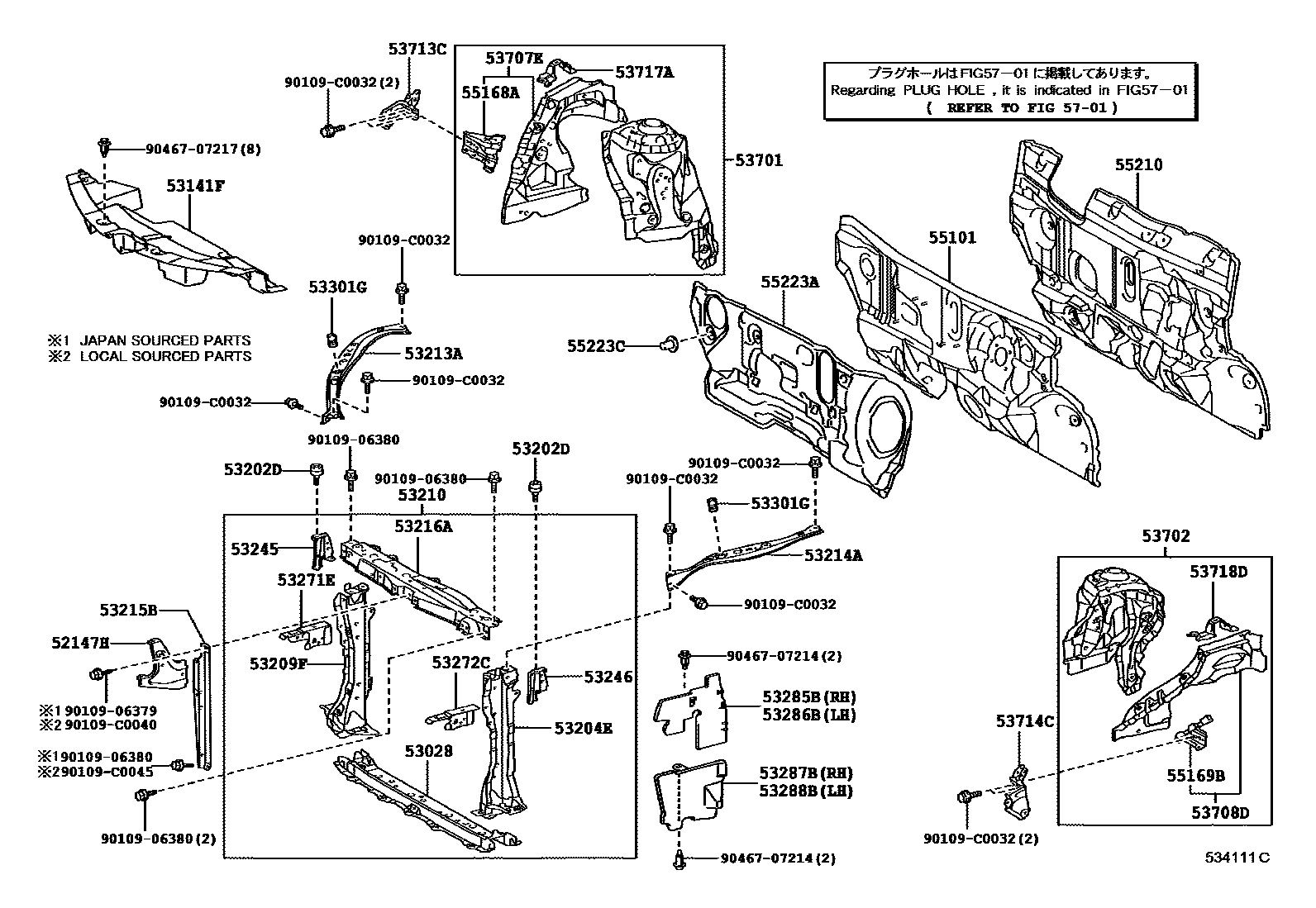

Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52147H | Front bumper mounting bracket | 52147-0D140 |
| 53028 | Radiator lower bracket sub-assembly | 53028-0D080 |
| 53141F | radiator cap | 53141-0D090 |
| 53202D | Radiator bracket cushion | 53119-12150 |
| 53204E | Radiator left bracket to cross beam bracket sub-assembly | 53204-0D040 |
| 53209F | Radiator right side bracket to cross beam bracket sub-assembly | 53209-0D040 |
| 53210 | Radiator bracket assembly | 53210-0D916 |
| 53213A | Radiator upper right bracket | 53213-0D120 |
| 53214A | Radiator upper left bracket | 53214-0D130 |
| 53215B | Engine hood lock support | 53215-0D131 |
| 53216A | Radiator upper bracket | 53216-0D100 |
| 53245 | Right headlight bracket | 53245-0D040 |
| 53246 | Left headlight bracket | 53246-0D040 |
| 53271E | Right headlight mounting bracket | 53271-0D050 |
| 53272C | Left headlight mounting bracket | 53272-0D050 |
| 53285B | Radiator side 1 air seal | 53285-0D210 · 53285-0D351 · 53285-YL010 · 53285-YL020 |
| 53286B | Radiator No. 2 side air seal | 53286-0D200 · 53286-0D350 · 53286-YL010 · 53286-YL020 |
| 53287B | Radiator right side bracket extension | 53287-0D130 · 53287-0D240 · 53287-0D320 · 53287-YL010 |
| 53288B | Radiator left bracket extension | 53288-0D120 · 53288-0D230 · 53288-0D310 · 53288-YL010 |
| 53301G | engine cover cushion | 90541-15111 · 90541-C0004 |
| 53701 | Right front fender fender sub-assembly | 53701-0D210 |
| 53702 | Left front fender fender sub-assembly | 53702-0D200 |
| 53707E | Fender right fender sub-assembly | 53707-0D020 · 53707-0D060 |
| 53708D | Fender left fender sub-assembly | 53708-0D020 |
| 53713C | Right front fender fender front extension | 53713-0D080 · 53713-0D902 |
| 53714C | Left front fender fender front extension | 53714-0D080 · 53714-0D902 |
| 53717A | fender fender | 53717-0D080 |
| 53718D | Left fender fender corner panel | 53718-0D080 |
| 55101 | Front apron sub-assembly | 55101-0D530 · 55101-0D540 · 55101-0D840 · 55101-0D850 |
| 55168A | Right front fender mounting bracket | 55168-0D050 |
| 55169B | Left front fender mounting bracket | 55169-0D050 |
| 55210 | Front wall insulation pad assembly | 55210-0D420 · 55210-0D421 · 55210-0D430 · 55210-0D431 · 55210-0D720 |
| 55223A | Front wall outer heat insulation pad | 55223-0D270 · 55223-0D271 · 55223-0D360 · 55223-0D361 |
| 55223C | clip | 90467-06197 · 90467-C0080 |
