Toyota YARIS 发动机盖和前翼子板 — Figure 5302

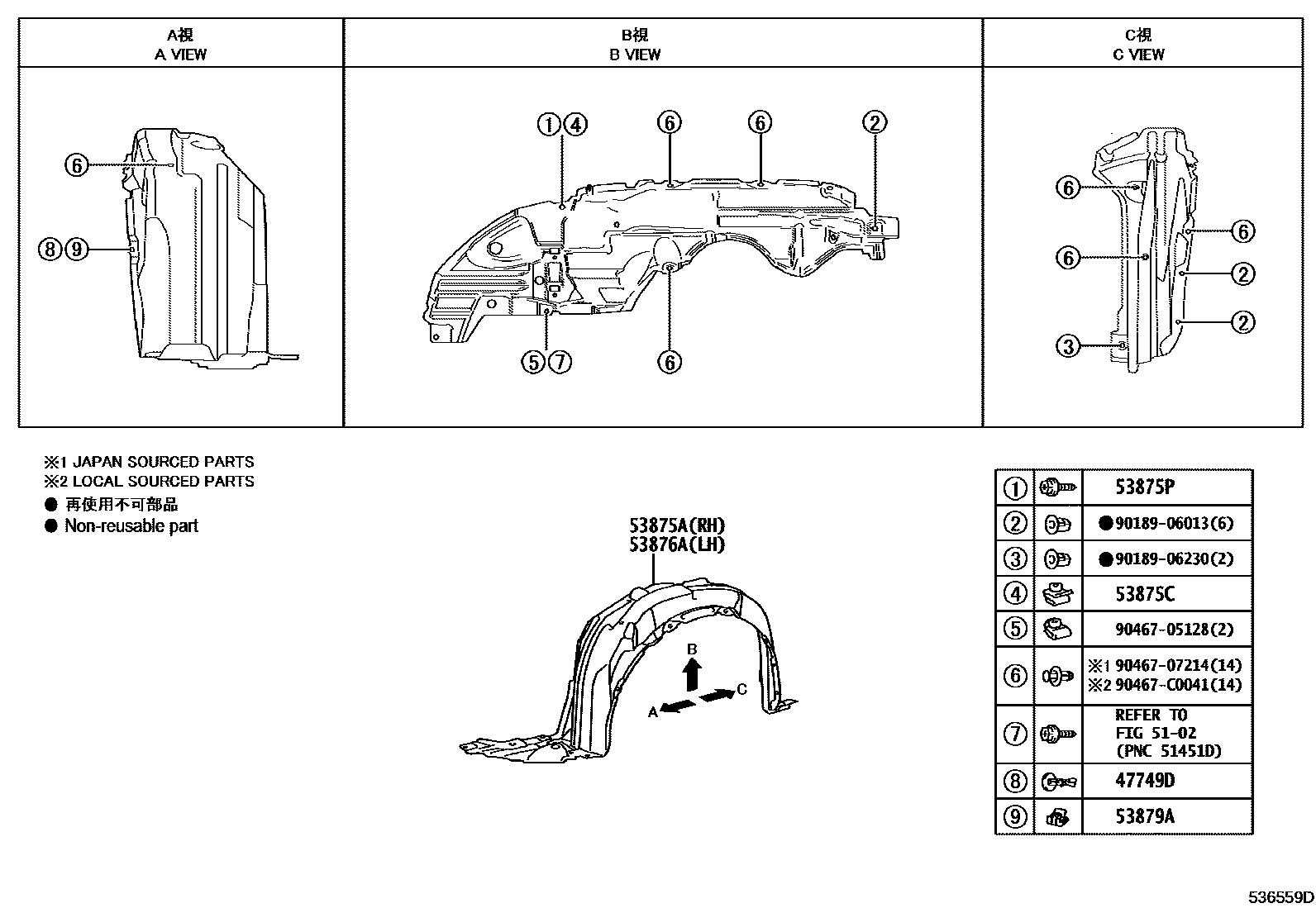

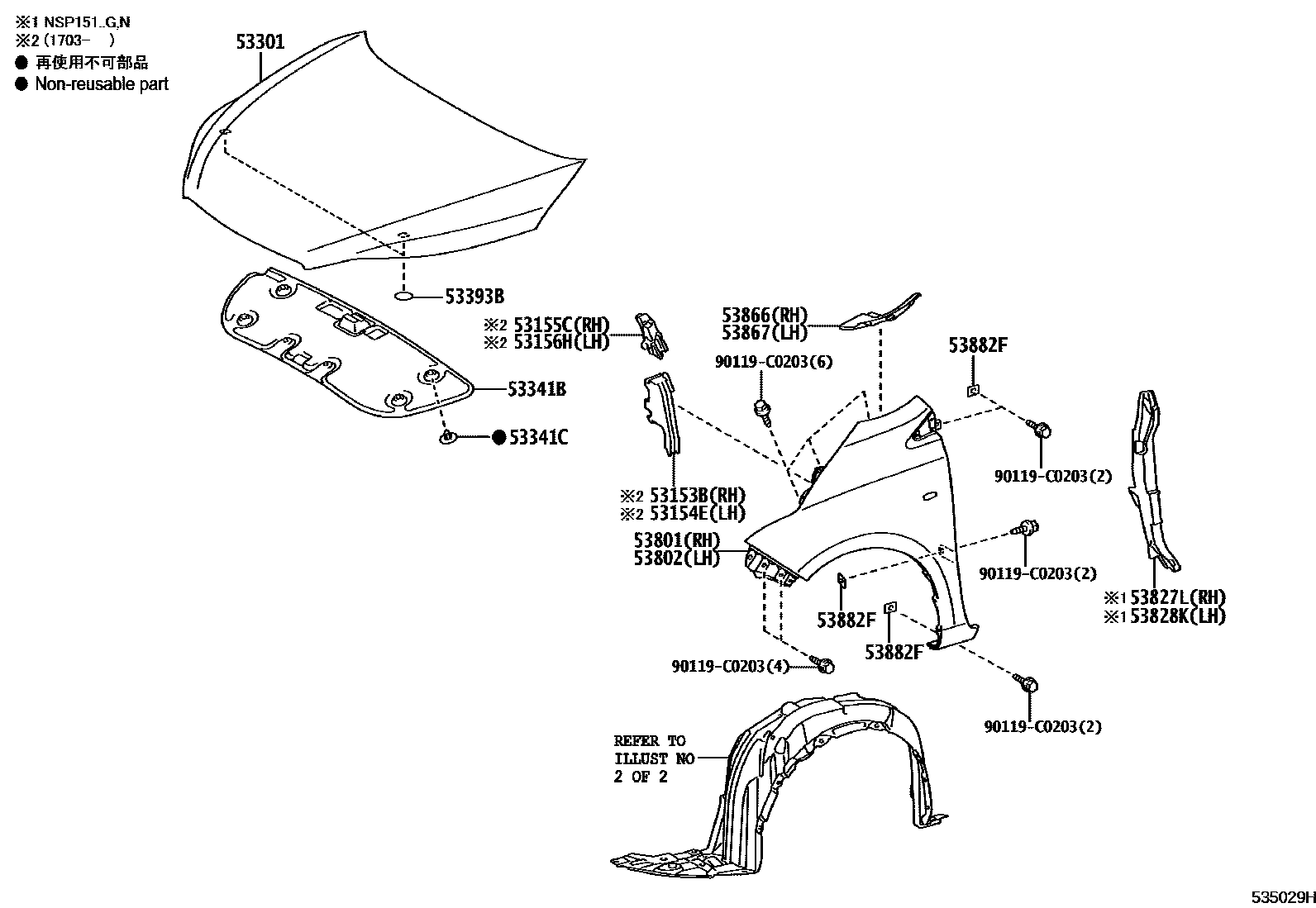

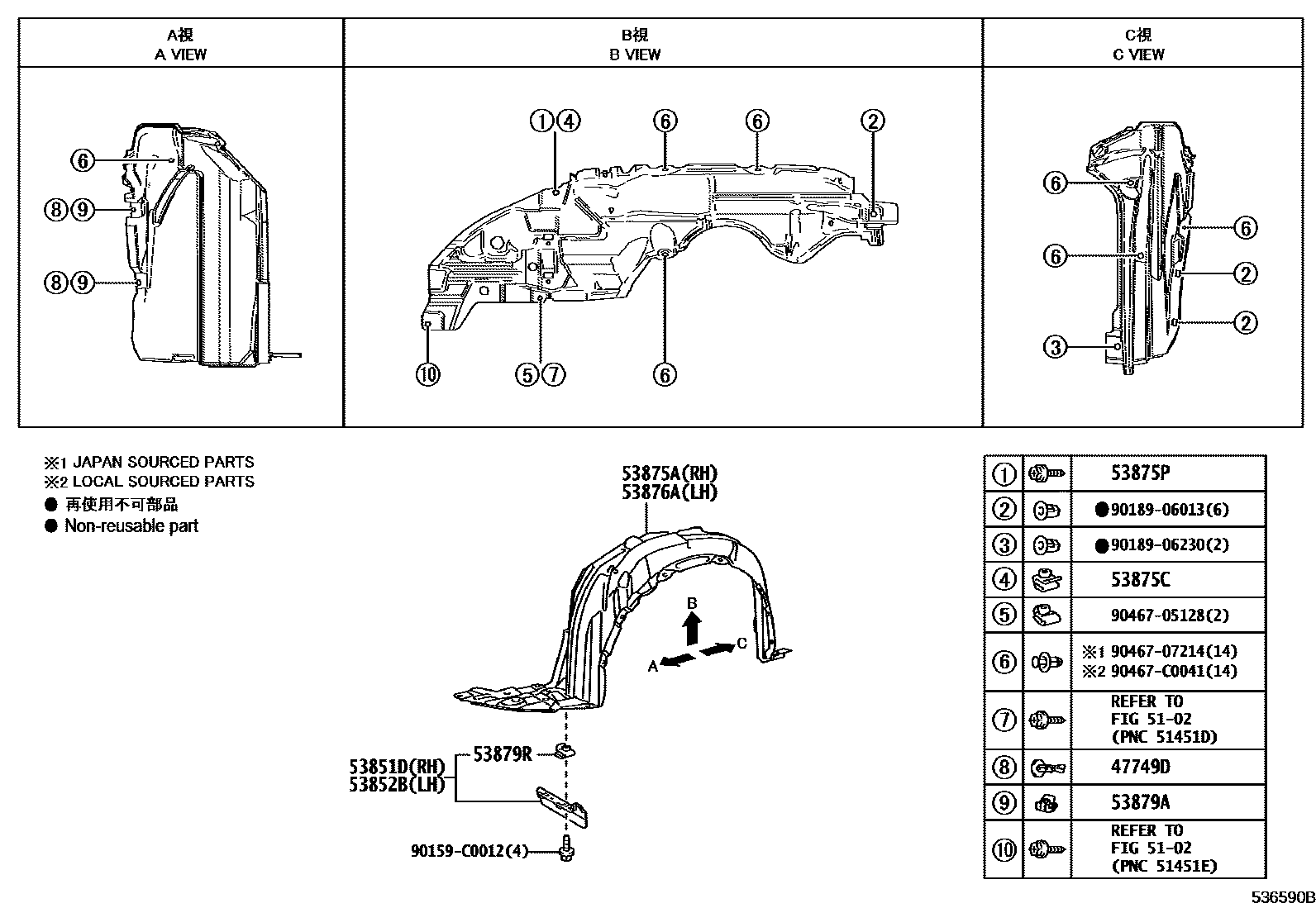

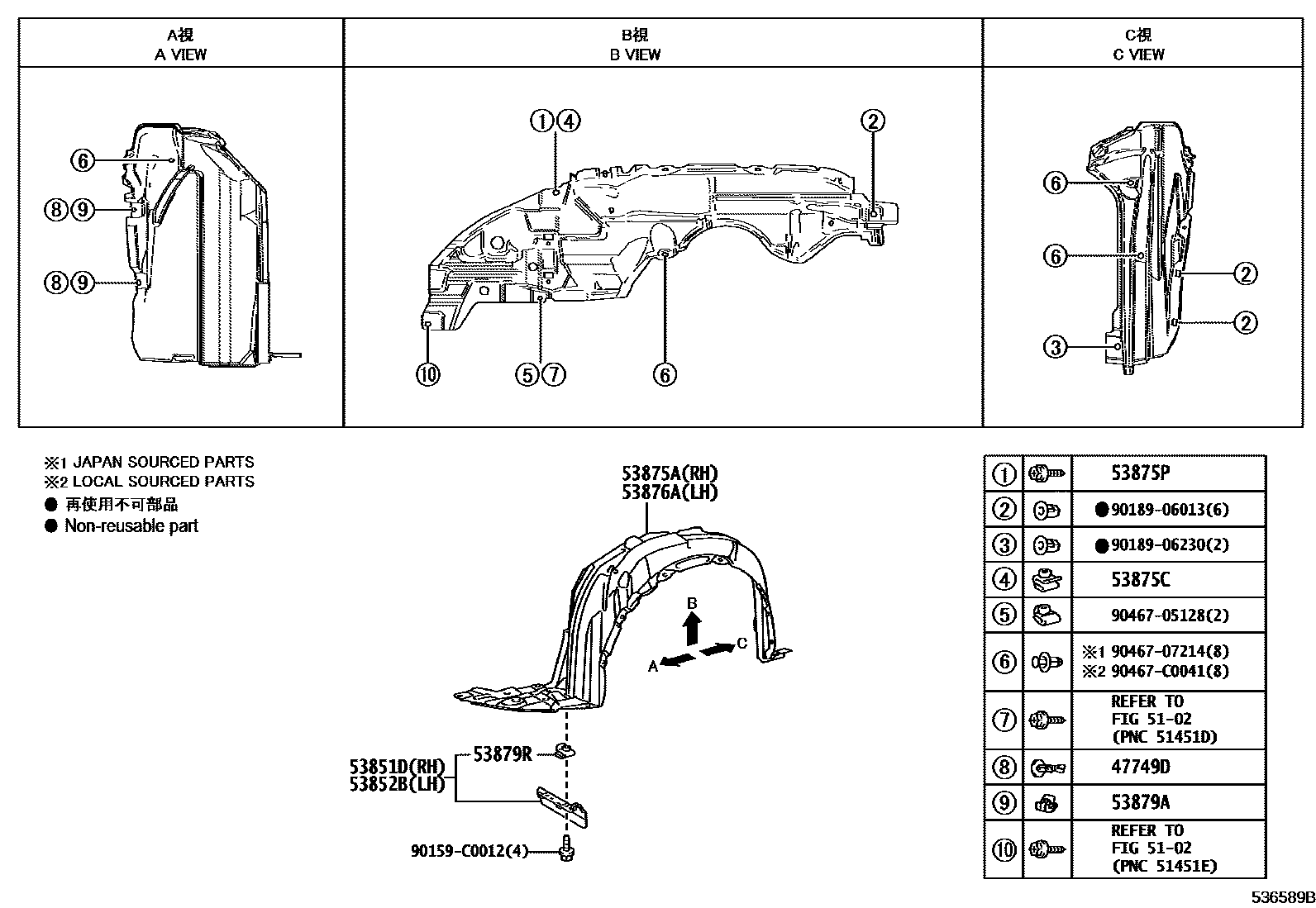

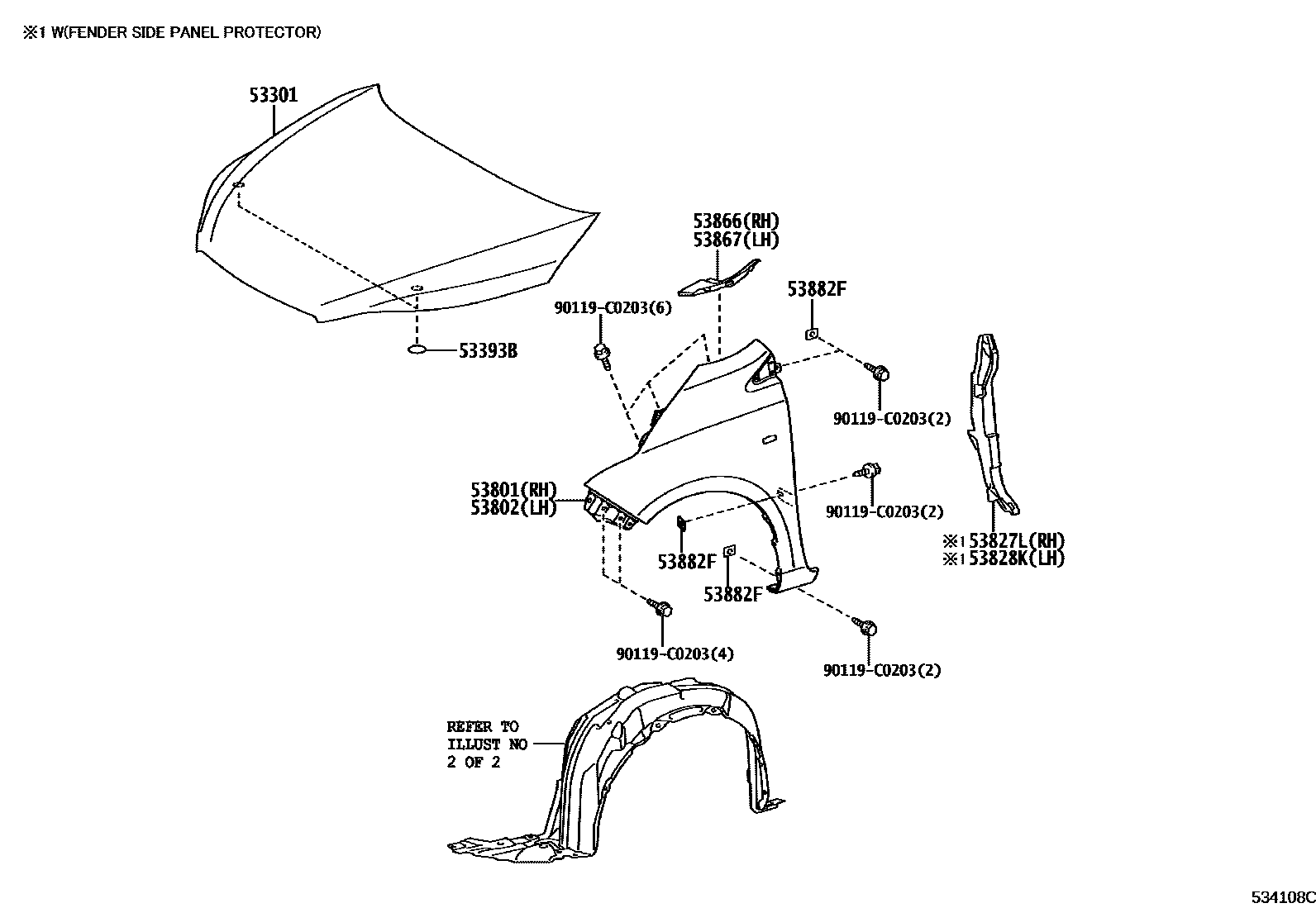

Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 5 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749D | pin fixing clip | 47749-0F010 · 47749-50090 |
| 53153B | front side deflector | 53153-0D080 |
| 53154E | No. 2 front side deflector | 53154-0D080 |
| 53155C | Radiator grille seal No. 1 | 53155-0D031 |
| 53156H | Radiator grille seal No. 2 | 53156-0D031 |
| 53301 | Engine cover sub-assembly | 53301-0D170 |
| 53341B | engine cover gasket | 53341-0D300 · 53341-0D301 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-C0006 |
| 53393B | Engine cover front protector | 90950-06124 · 90950-C6006 |
| 53801 | Right front fender sub-assembly | 53801-0D030 · 53801-YL010 |
| 53802 | Left front fender sub-assembly | 53802-0D030 · 53802-YL010 |
| 53827L | Right front fender side panel protector | 53827-0D130 · 53827-0D280 |
| 53828K | Left front fender side panel protector | 53828-0D130 · 53828-0D280 |
| 53851D | Right front fender outer panel pad | 53851-0D160 |
| 53852B | Left front fender exterior panel pad | 53852-0D080 |
| 53866 | Right front fender to cowl side seal | 53866-0D130 |
| 53867 | Left front fender to cowl side seal | 53867-0D130 |
| 53875A | Right front fender lining | 53875-0D240 · 53875-0D520 |
| 53875C | Front fender lining clip | 90467-05114 |
| 53875P | Screw No. 1 | 90159-C0012 |
| 53876A | Left front fender lining | 53876-0D240 · 53876-0D520 |
| 53879A | Front fender lining fixing parts | 53879-0F010 · 53879-30050 · 53879-50020 |
| 53879R | Front fender lining fixing parts | 53879-17020 |
| 53882F | front fender seal | 53882-0D030 · 53882-33060 |
