Toyota YARIS radiator grille — Figure 5301

Toyota YARIS EPC diagram 5301, radiator grille, with 3 images and 2 PNC and OE references.

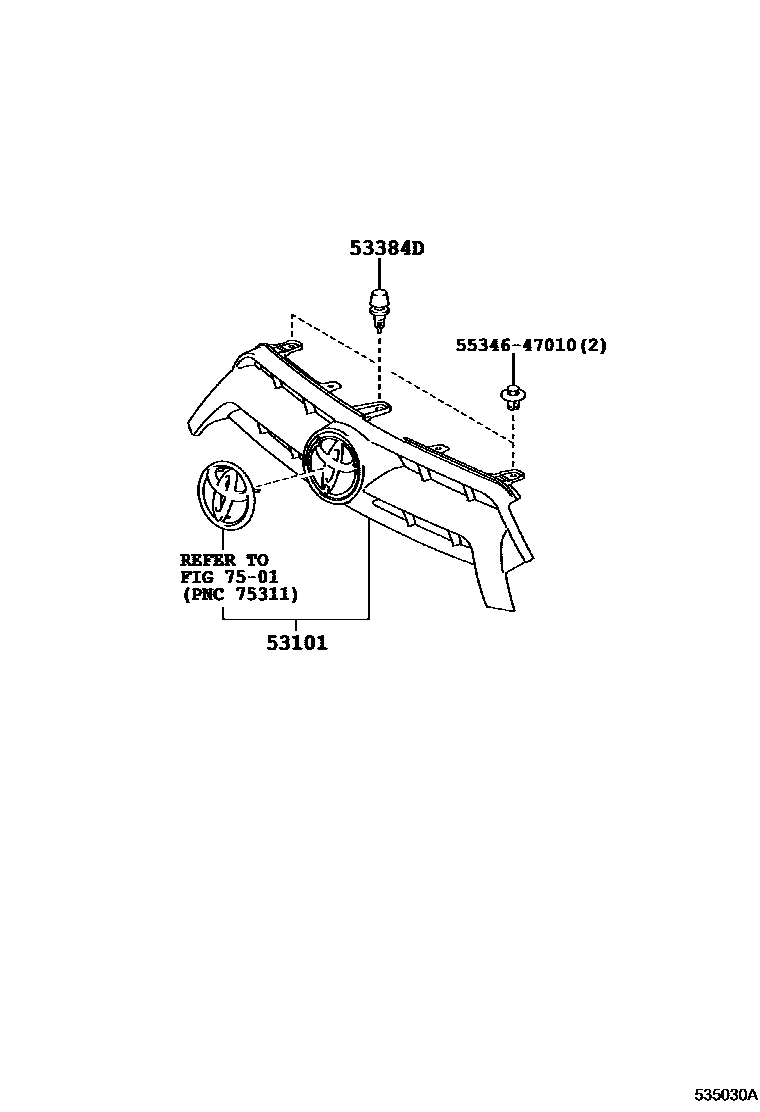

Toyota YARIS radiator grille EPC diagram — 535030A
radiator grille — 535030A (201312 – 201608)

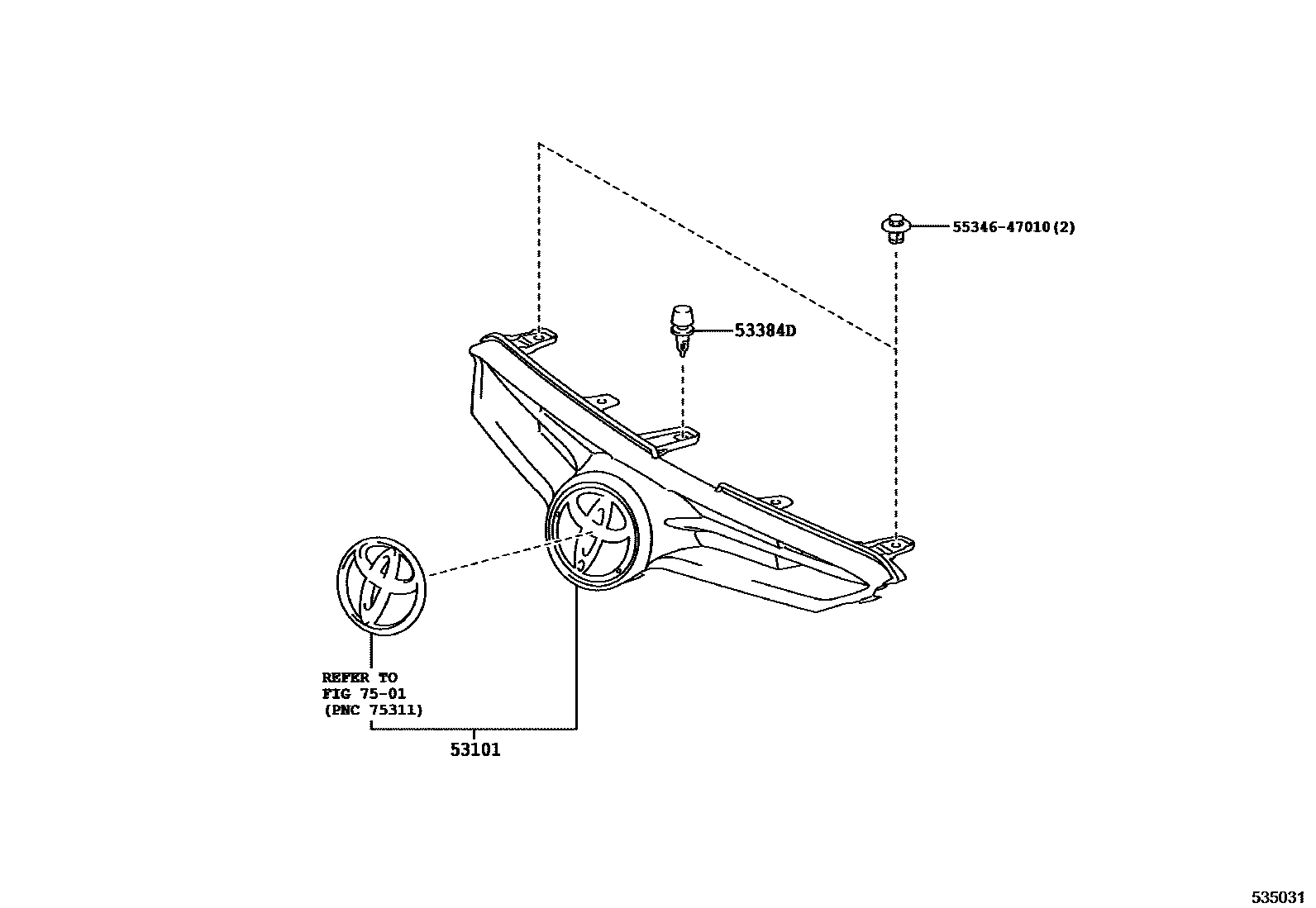

Toyota YARIS radiator grille EPC diagram — 535031
radiator grille — 535031 (201608 – 999999)

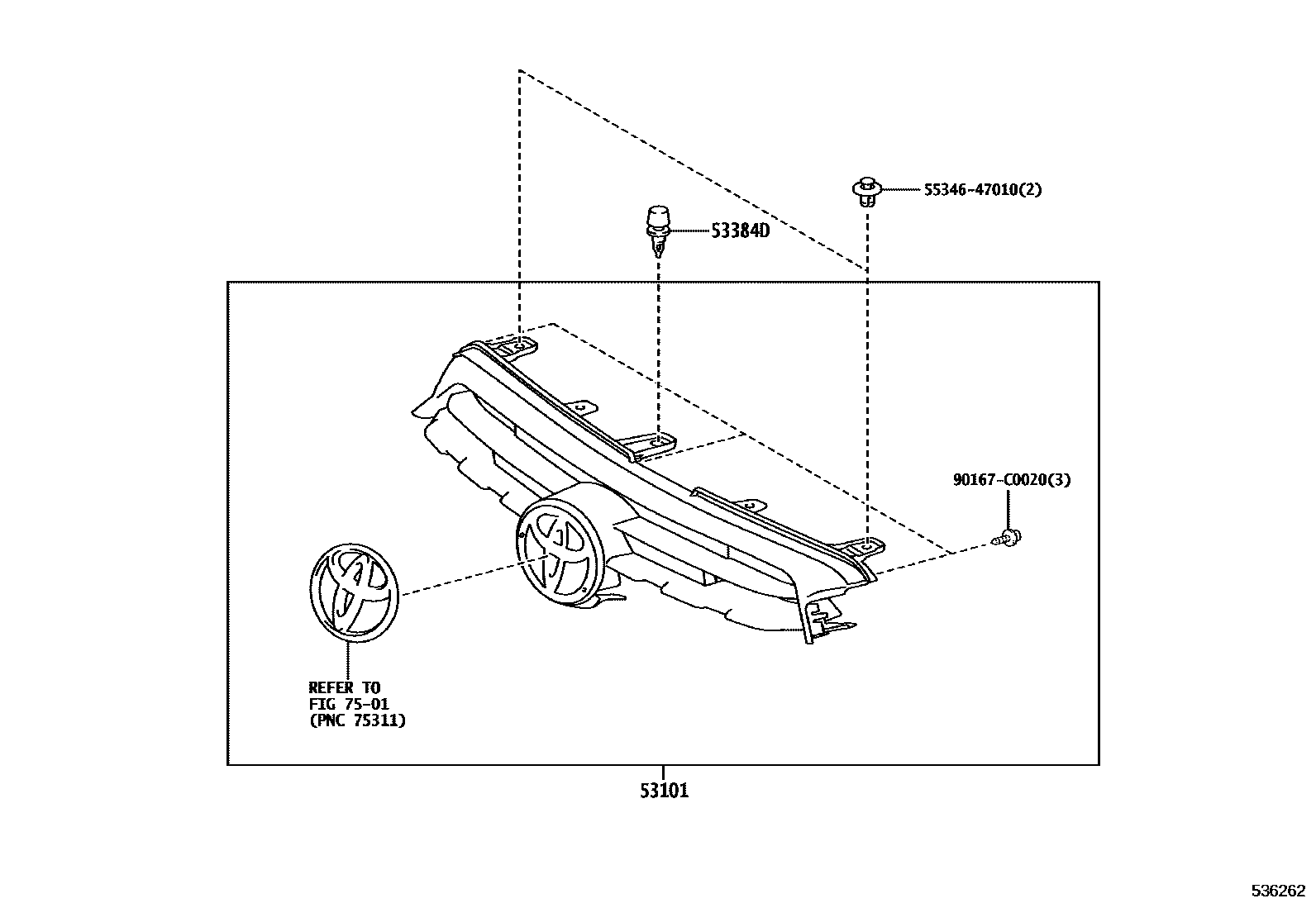

Toyota YARIS radiator grille EPC diagram — 536262
radiator grille — 536262 (201910 – 999999)

PNC and OE references

PNCPart nameOE numbers
53101Radiator grille sub-assembly53101-0D370 · 53101-0D380 · 53101-0D470 · 53101-YL020
53384DEngine cover center cushion53384-22070
