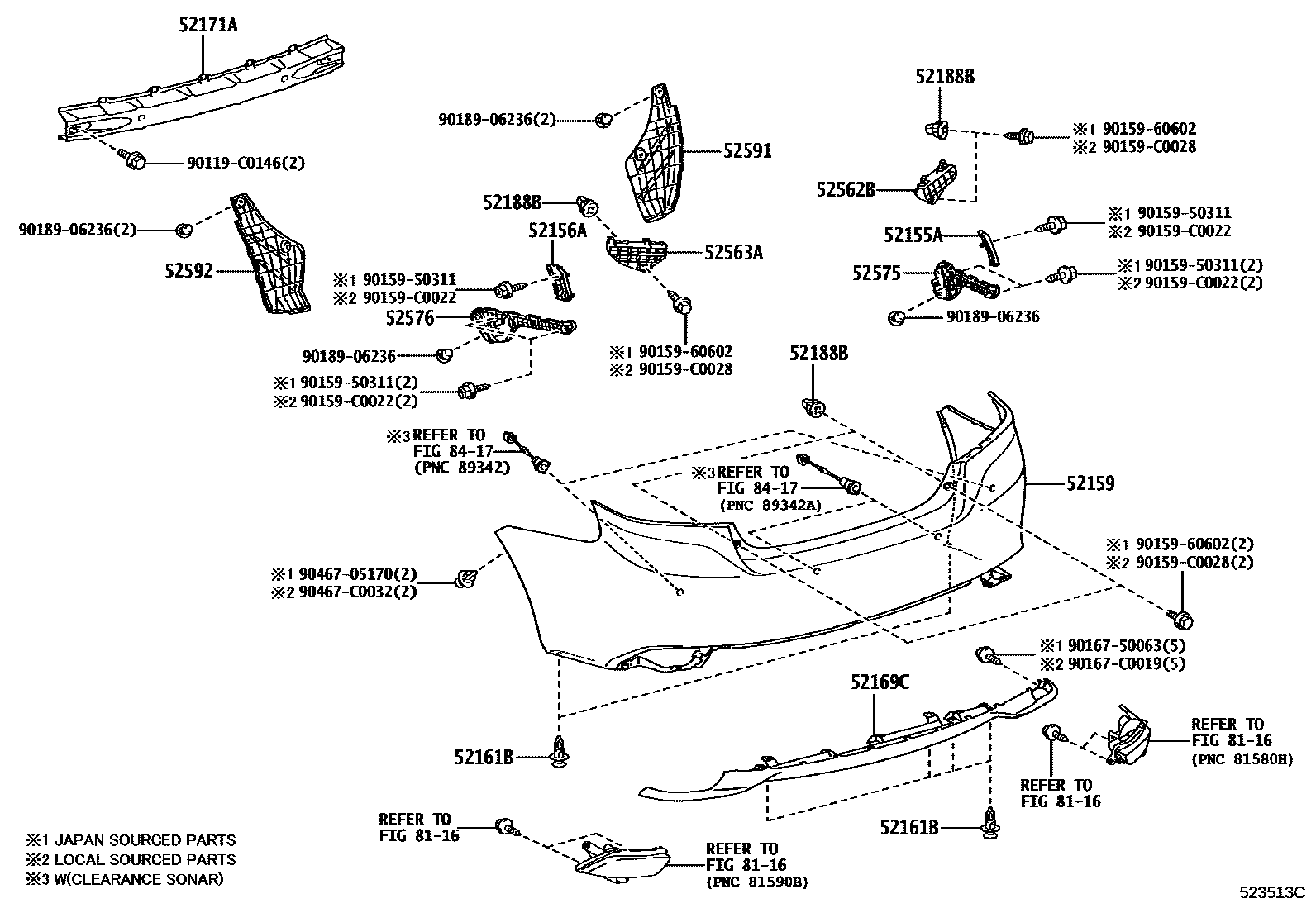

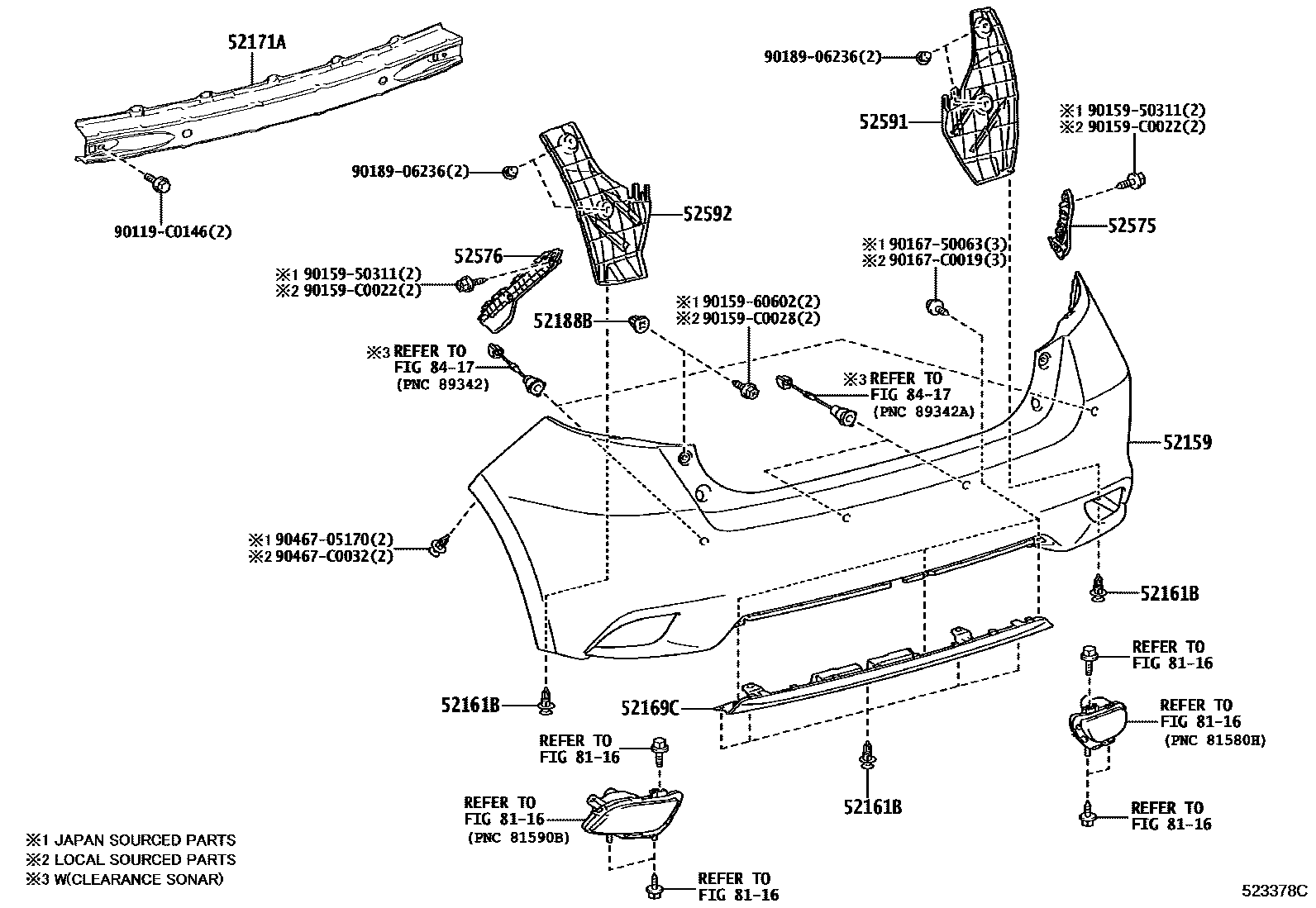

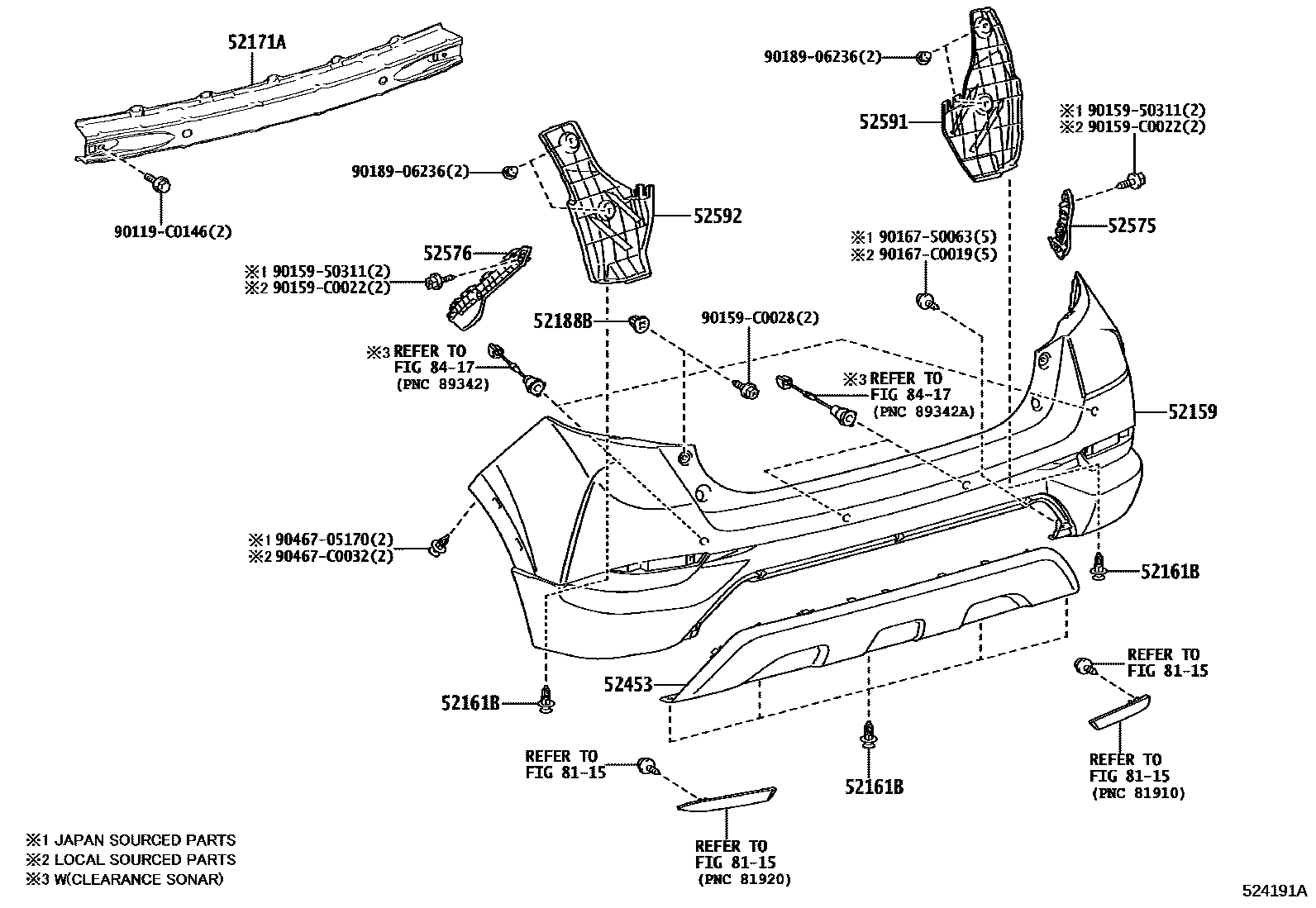

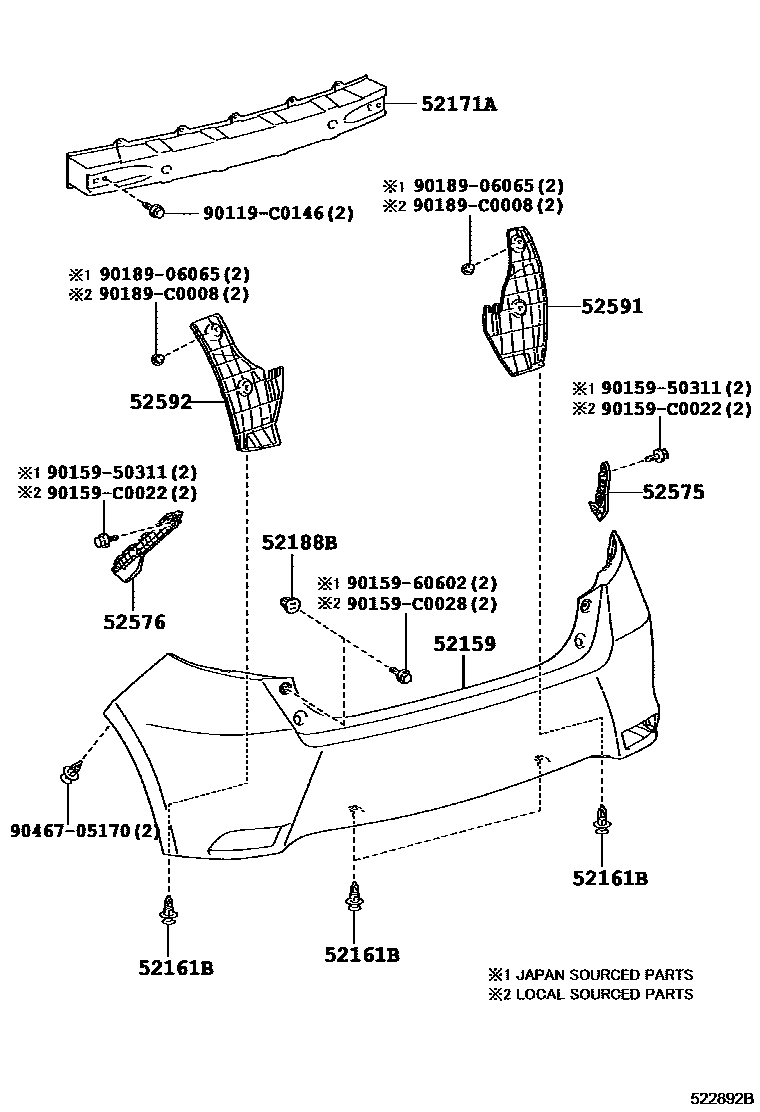

Toyota YARIS 后保险杠及附件 — Figure 5202
Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52155A | Rear bumper right side bracket | 52155-0D140 |
| 52156A | Rear bumper left bracket | 52156-0D130 |
| 52159 | rear bumper cover | 52159-0U915 · 52159-0Z930 · 52159-0Z931 · 52159-YL900 · 52159-YL901 · 52159-YL902 · 52159-YL903 |
| 52161B | Rear bumper insert | 52161-02040 · 52161-16010 |
| 52169C | Rear bumper lower cover | 52169-0D030 · 52169-0D901 |
| 52171A | Rear bumper reinforcement No. 1 | 52171-0D090 |
| 52188B | Rear bumper installation spacer | 52188-06040 |
| 52453 | Rear bumper center anti-collision bar | 52453-YL010 |
| 52562B | Rear bumper upper right fixing bracket | 52562-0D120 |
| 52563A | Rear bumper upper left fixing bracket | 52563-0D060 |
| 52575 | Rear bumper right side fixing bracket | 52575-0D160 · 52575-0D330 · 52575-YL010 |
| 52576 | Rear bumper left side fixing bracket | 52576-0D160 · 52576-0D320 · 52576-YL010 |
| 52591 | Rear bumper right seal | 52591-0D190 · 52591-0D350 · 52591-0D360 · 52591-YL010 |
| 52592 | Rear bumper left seal | 52592-0D190 · 52592-0D350 · 52592-0D360 · 52592-YL010 |
